Wharfedale Pro TITAN-AX15B
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the Wharfedale Titan AX15 Active Speaker
Essential Information About the Wharfedale Titan AX15 Active Speaker
- High output and solid bass : 15" woofer with "IRIS X" technology and 3" voice coil for better power handling and optimized sensitivity.
- Instant adjustments via DSP : 6 presets ("Flat", "Monitor", "Speech", "Bass", "Punch", "Live") and built-in processing tools to maintain clean and controlled sound.
- Even coverage : hybrid horn with nominal dispersion of 100 x 80, ideal for wide coverage without harsh zones.

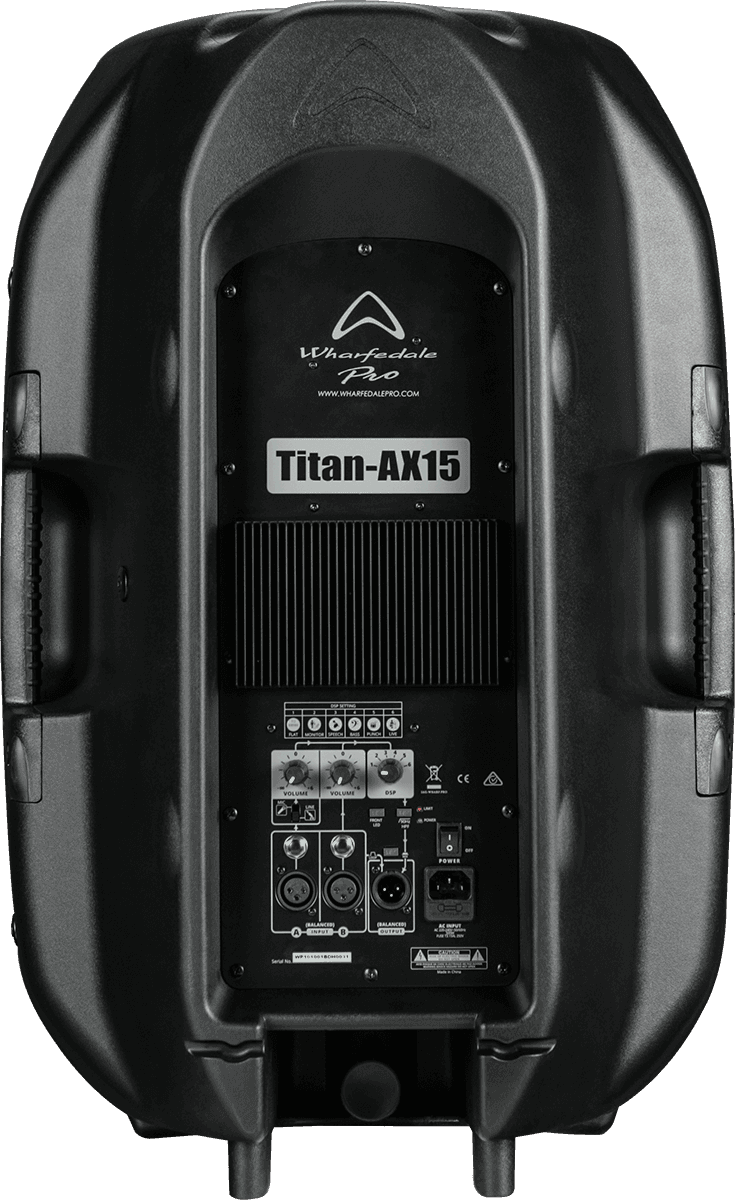

- Road-ready format : molded polypropylene enclosure, 1.2 mm steel grille, 35 mm pole mount with tightening screw, and M8 mounting points for reliable installation.
Manufacturer Information
Wharfedale Pro
https://www.wharfedalepro.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A 15" Speaker Designed in the Titan Spirit: Power, Mobility, and Reliability
The Wharfedale Titan AX15 continues the brand's line of portable speakers, known for their balance of power, manageable weight, and robustness. In the 15" version, it aims for greater low-end extension and more dynamic headroom while maintaining a practical size for transport. It is a coherent solution for versatile setups: mobile sound reinforcement, multi-purpose venues, or modular systems that need to adapt quickly to the room and audience.
An Active Speaker for Mobile DJs, Service Providers, and Versatile Stages
Built for performance, the Titan AX15 works equally well as a front-of-house speaker or as a stage monitor. Its "Speech" preset facilitates spoken word applications (conferences, ceremonies, announcements), while "Punch" and "Live" add impact for DJs, bands, and events where energy must remain clear. Thanks to its wide coverage, it is also suitable for bars with live music, places of worship, and small stages seeking consistent sound with minimal adjustments.
Technical specifications
| Frequency response - start | 50 Hz | Sensitivity | 98 dB |
| Frequency response - end | 20 kHz | SPL max | 129 dB |
| Category | Soundsystem | Speaker structure | polypropylene |
| Type | active speaker | Transport | 2 handles |
| Peak power | 840 W | Inputs | 2 x XLR, 2 x jack |
| Number of channels | 2 channels | Outputs | XLR |
| Amplification | Active amplified | Color | Black |
| Application | Facade, Stage monitor | Finishing | Black & chrome |
| Speaker diameter | 15" | Index of protection (IP) | IP54 |
| Tweeter | 1" | Power output | 420 W |
| Horizontal dispersion in degrees | 100.0000 | Quantity | 1 |
| Vertical dispersion in degrees | 80.0000 | Mounting | On stand or aerial |
| DSP | Yes | Weight | 22.94 kg |
| Cut-off frequency | 90 Hz | Dimensions (mm) | 830 x 480,6 x 395,6 |
| Baseplate width | 35 mm | ||
You will also like
HK Audio
Sonar 115 XI
RCF
Art 715-A MK5
RCF
Art 712-A MK5
JBL
EON715
QSC Pro audio
CP12
RCF
Art 910-A
DB Technologies
Es 802
Yamaha
DBR 15 (unit)
Questions frequently asked
Is the Wharfedale Pro TITAN-AX15B suitable for DJ performances and bands?
Its 420 W RMS and maximum level of 129 dB at 1 m provide the necessary headroom for DJ performances, bands, and events. The DSP presets Punch and Live allow adapting the sound output for these uses.
Can it be used as a stage monitor?
The enclosure can be used both as a front speaker or as a stage monitor. A dedicated DSP monitoring preset facilitates this use.
What connections are available on this active speaker?
The connectivity includes 2 XLR inputs and 2 6.35 mm jacks, with a balanced mic/line input on channel 1. A balanced female XLR LOOP/MIX output allows sending the signal to another speaker.
What bass response does the 15-inch woofer provide?
The frequency response is specified as 50 Hz to 20 kHz at ±3 dB, and extends down to 40 Hz at -10 dB. For use with a subwoofer, the 90 Hz low-cut filter relieves the 15-inch woofer.
How to install and transport this 15-inch speaker?
Weighing 22.94 kg, featuring two handles and a polypropylene enclosure, the speaker is designed for mobility. The 35 mm pole mount allows for stand mounting, while the M8 points enable flown installation.
