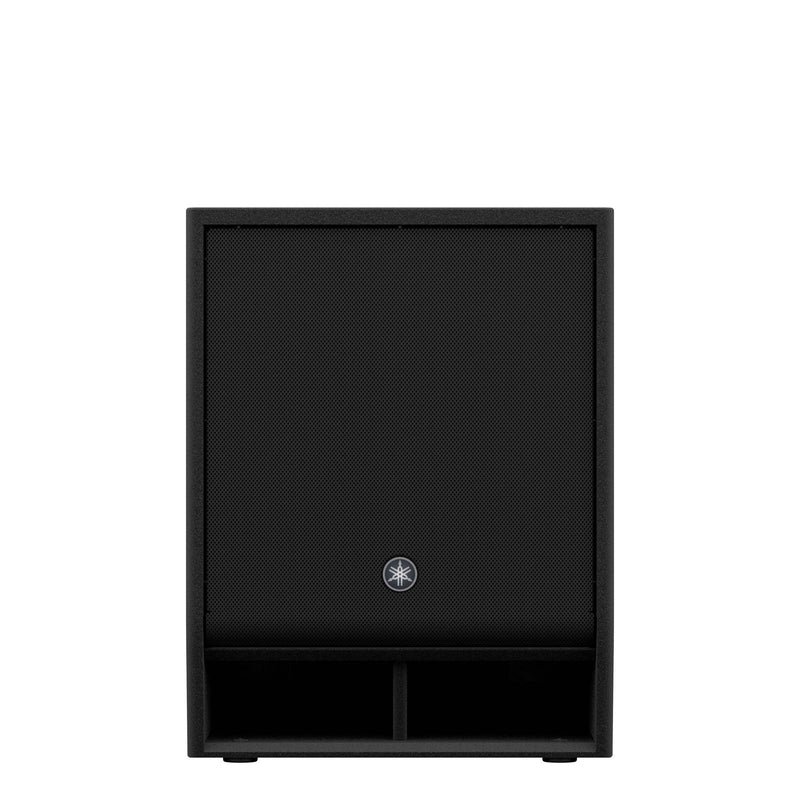

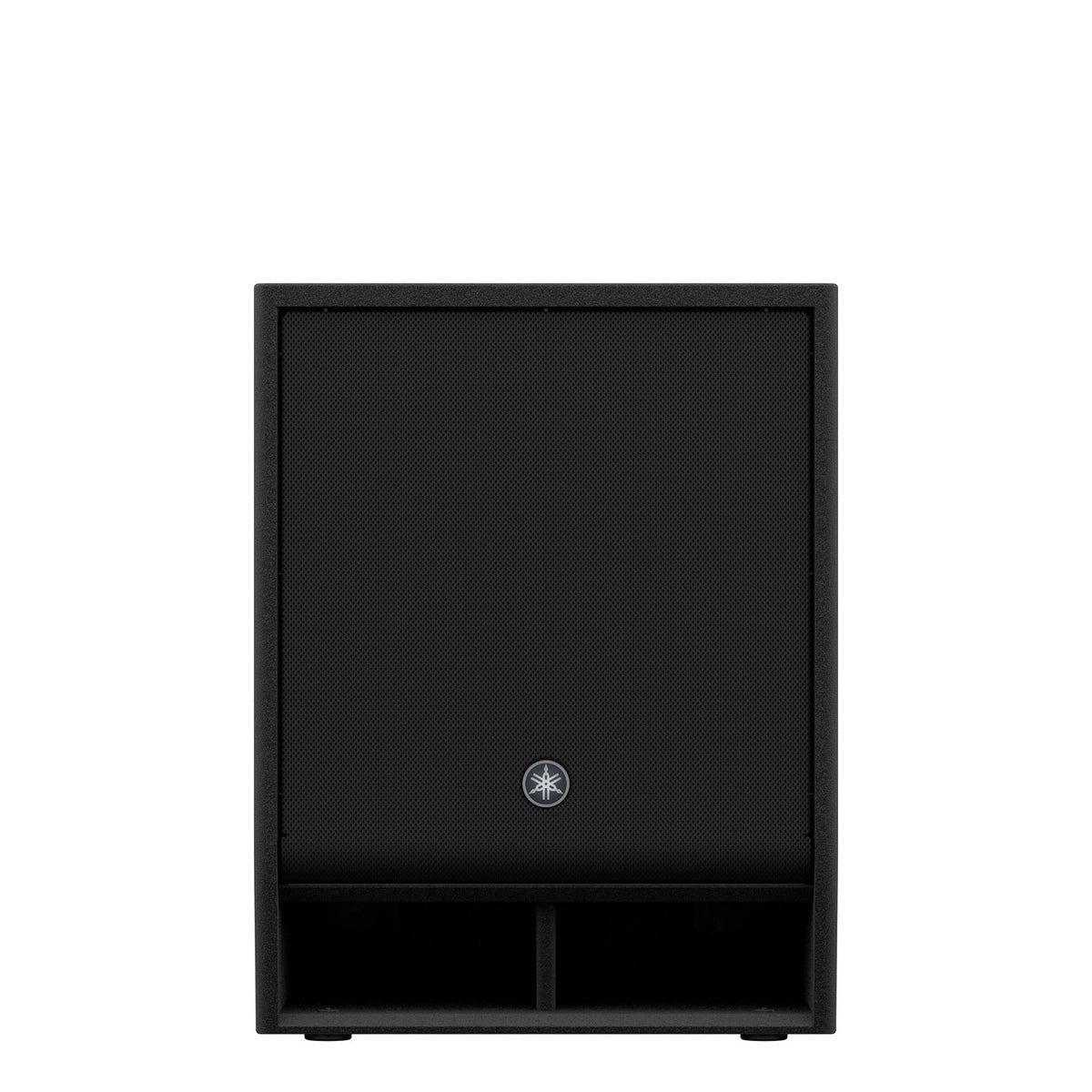

Yamaha DXS 15-XLF 1600W

A subwoofer designed to complement the DZR series

The Yamaha DXS15-XLF was designed to naturally complement the DZR series speakers, with a "performance + control" oriented approach. Its format remains compact for a 15-inch subwoofer, while targeting very low extension and high acoustic pressure to provide coherent bass reinforcement for live, DJ, or installation setups. It fits within a system logic: same digital processing philosophy, same reliability standards, and management functions (presets, routing, delay) that simplify alignment with the rest of the sound system.

Who is it for and what are its uses?

This active subwoofer is aimed at service providers, DJs, bands, and venues that want deep bass without sacrificing clarity. It is suitable for both front-of-house (FOH) use and more technical configurations (stacking, time alignment, directivity management), notably thanks to the cardioid mode. With its high output level and integrated DSP control, the DXS15-XLF is suited for medium to large stages, as well as fixed installations requiring clean, stable, and repeatable bass from one event to another.

DSP processing, control, and performance: a modern and mastered subwoofer

96 kHz DSP and FIR filtering: precision and phase coherence

The DXS15-XLF features 96 kHz digital processing (96 kHz AD/DA converters) and internal filtering announced at 96 kHz with FIR filter. The goal is clear: preserve low-frequency definition, improve coherence with the tops, and offer a "cleaner" bass feel, especially noticeable on kick drum, bass guitar, and electronic impacts.

Accessible DSP functions: presets, equalization, delay, and routing

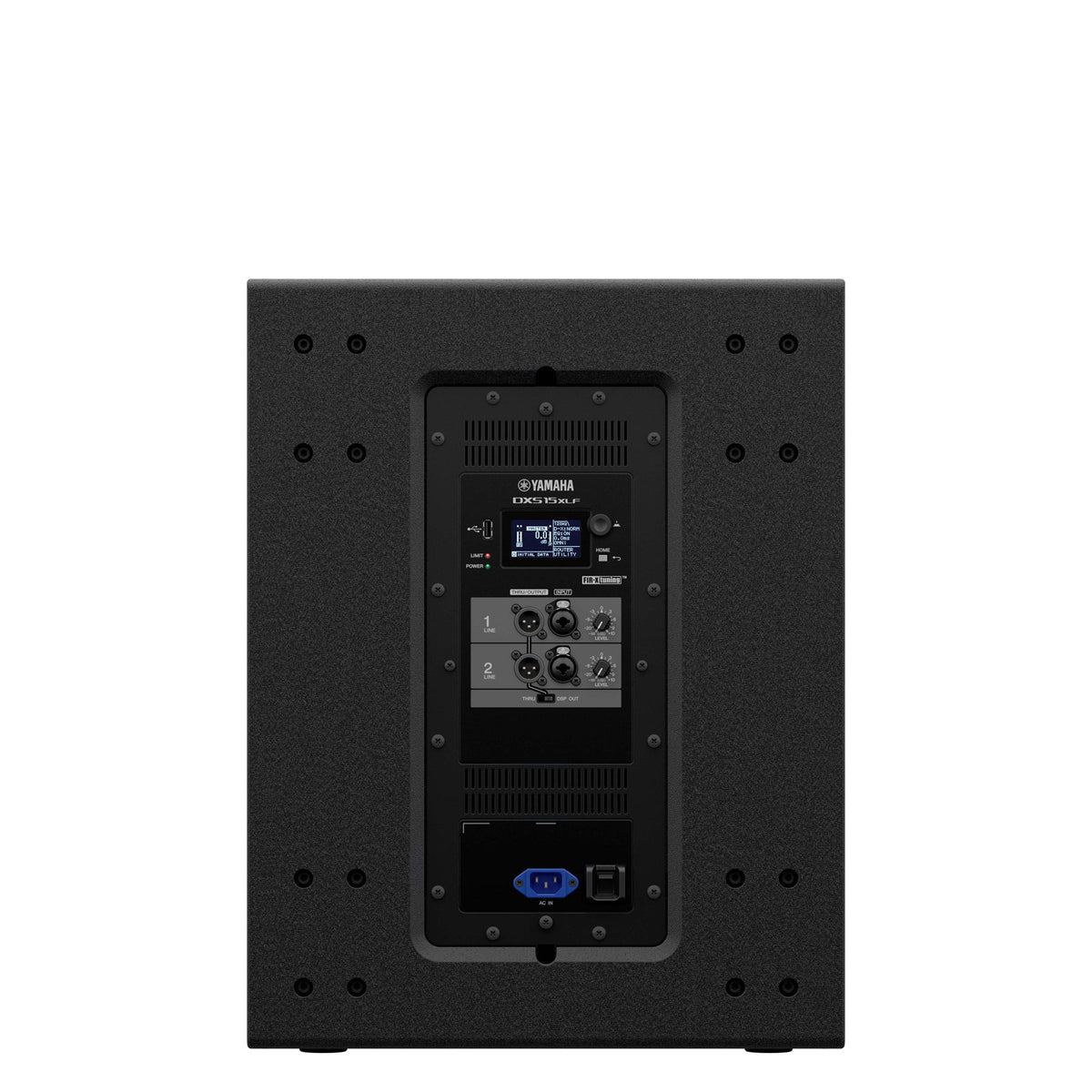

To quickly adapt to the room and system, Yamaha emphasizes ergonomics: access to DSP functions (loading presets, parametric equalization, delay, and routing) is intuitive via the LCD screen. In practice, this saves setup time and ensures reliable settings, whether you work in touring or installation.

D-XSUB, cardioid mode, and protections: durability and control in real conditions

D-XSUB processing and cardioid mode expand bass optimization possibilities: impact reinforcement, cleaner resonance management, and, depending on placement, rear bass reduction for a more comfortable stage. All this is combined with protection circuits designed to remain reliable when levels rise, while maintaining clear reproduction.

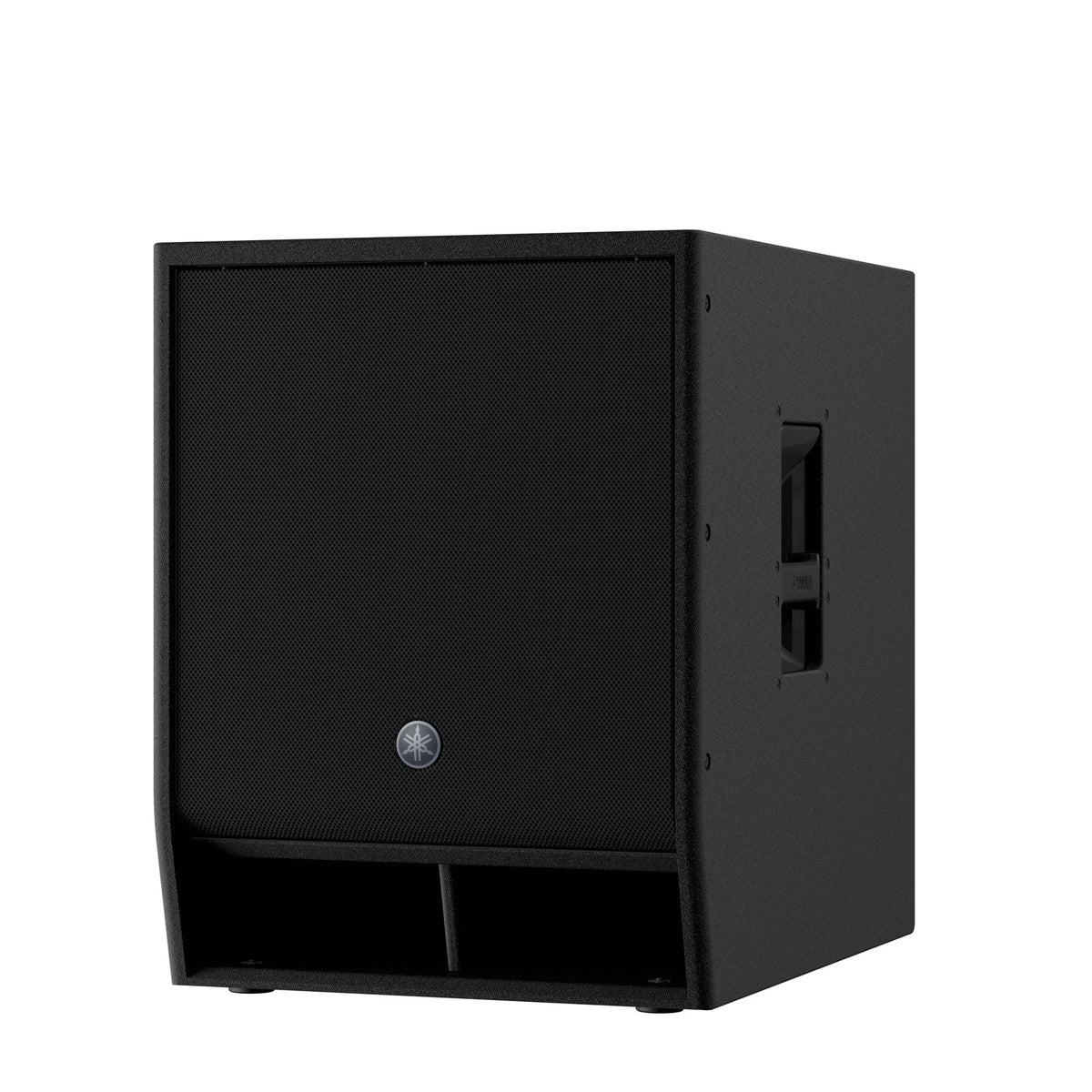

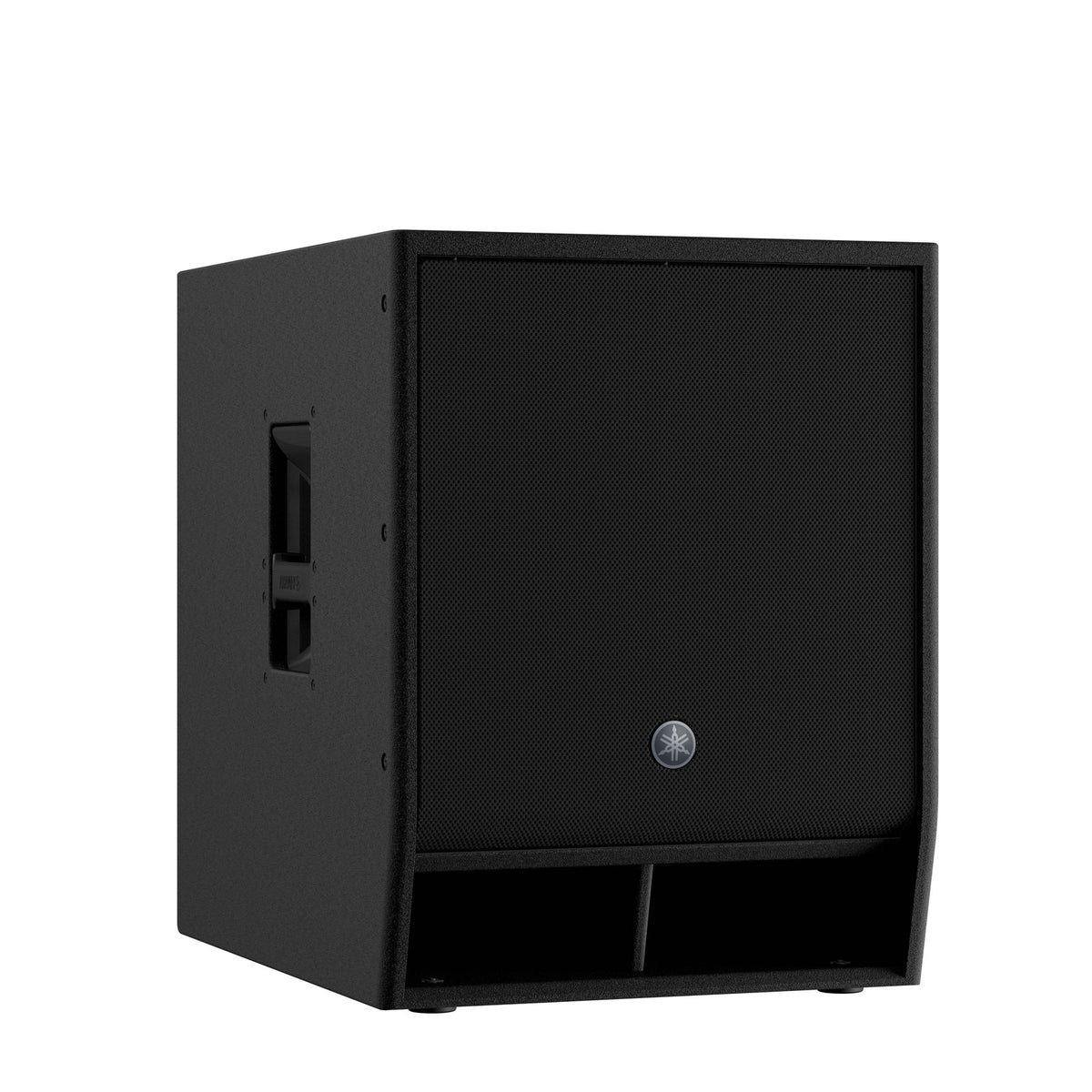

Robust design: multi-ply enclosure and Polyurea finish

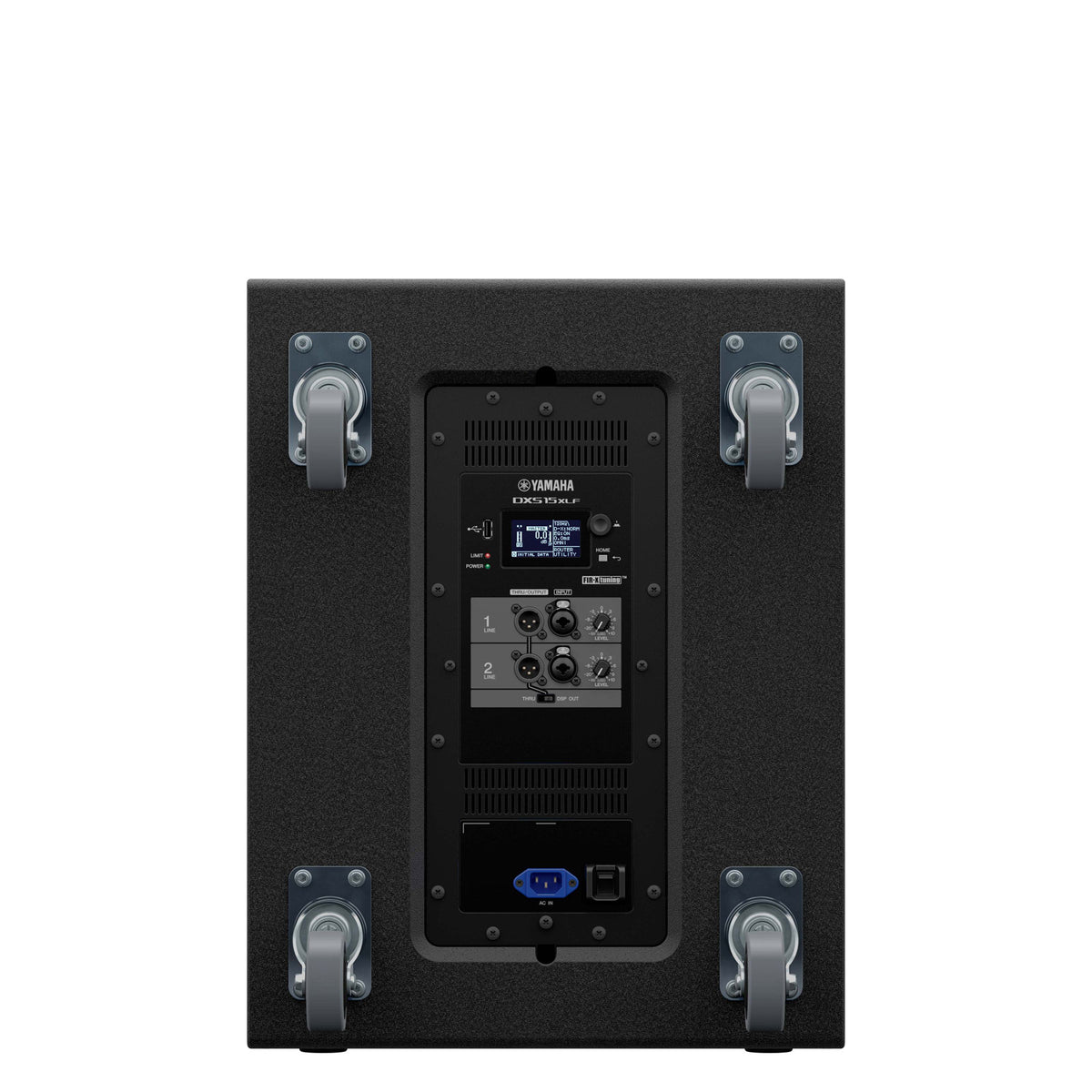

The multi-ply enclosure is coated with durable Polyurea, designed to withstand repeated handling. Two die-cast aluminum side handles facilitate grip. For transport, Yamaha offers optional cover and a set of wheels, convenient for gigs where equipment is frequently loaded and unloaded.

Technical specifications

Bluetooth	No	Standby power consumption (Wh)	40 W
Nominal mode power consumption (Wh)	180 W

Type	Powered Subwoofer, bass-reflex	A/D D/A converters	96 kHz AD/DA

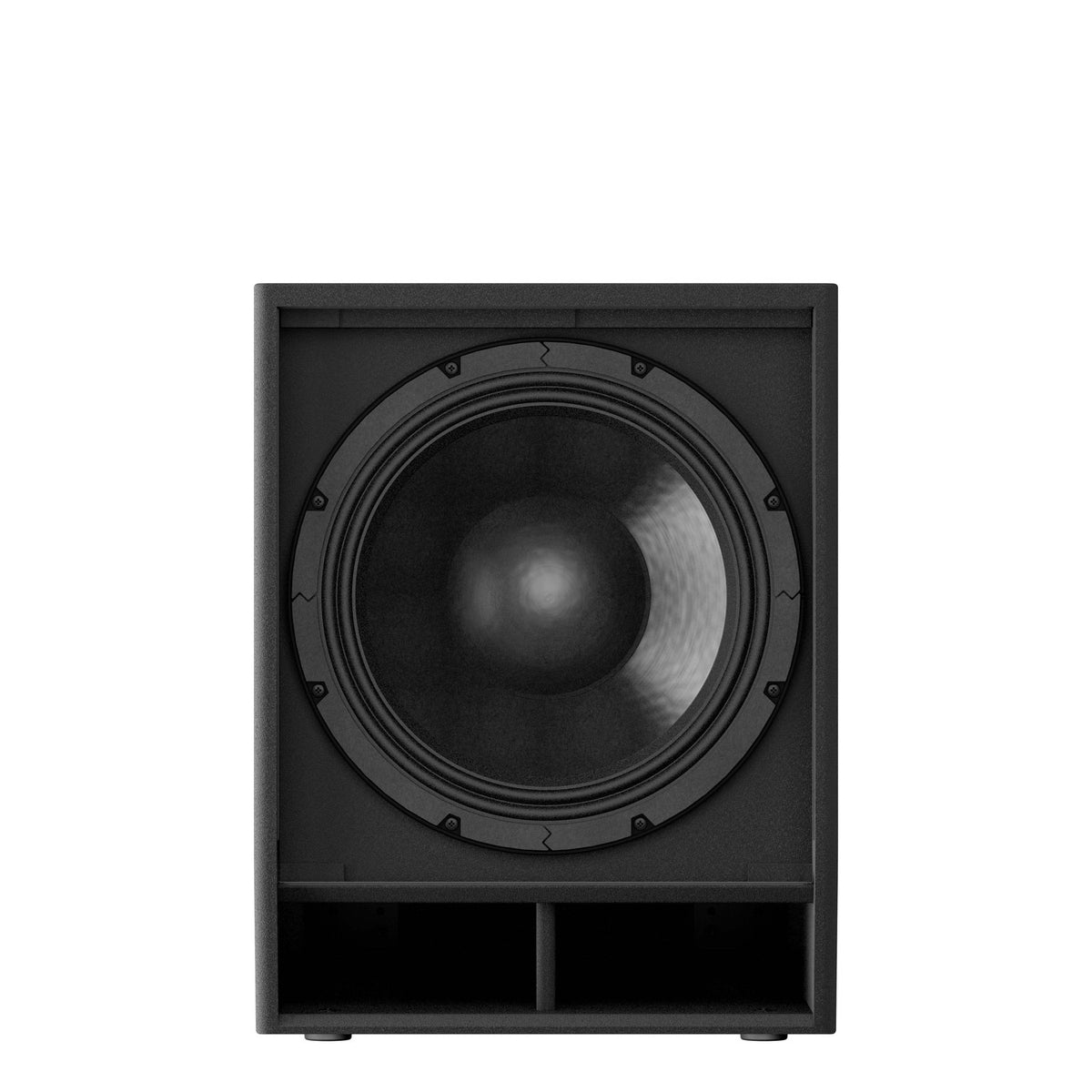

Low-frequency driver (LF)	15-inch cone, 4-inch voice coil, ferrite magnet	Analog inputs	Combo x2, line level (maximum +24 dBu), input impedance 20 kohms
Mid-frequency driver (MF)	Not specified	Analog outputs	XLR3-32 x2, CH1/2: THRU or DSP OUT
High-frequency driver (HF)	Not specified	USB	USB 2.0 Host 5 V 500 mA (data storage/loading via USB memory)
Frequency range (-10 dB)	33 Hz - 150 Hz	Power input	IEC AC inlet x1 (V-Lock)
Coverage area	Not specified	Cooling	fan ventilation, variable speeds
Maximum output level (1 m; on-axis)	136 dB SPL	Power consumption	40 W (Idle), 180 W (1/8 power)
Power (dynamic)	1600 W	Material / finish / color	multi-ply, durable Polyurea paint, black
Power (continuous)	1230 W	Handles	die-cast aluminum, side x2
Amplification class	Class-D	Rigging	Not specified
Filtering / Crossover	Not specified	Floor monitor angle	Not specified
Internal processing	96 kHz and FIR filter	Pole mount	35 mm (depth 80 mm), M20 thread (depth 25 mm)
