Adam Audio Sub 8 PRO

A Subwoofer Connected to the Heart of the ADAM Audio Ecosystem

The Sub8 PRO is part of the new generation of ADAM Audio subwoofers designed for modern studios. It combines the efficiency of Class D amplification with a scalable DSP platform, designed to work alongside A Series monitoring speakers both in a stereo control room and as part of a multichannel setup.

Compared with a conventional studio subwoofer, the Sub8 PRO takes integration a step further: its network control allows essential parameters to be adjusted from the listening position, acoustic correction profiles to be loaded, and future developments to be implemented via firmware updates. This approach is particularly relevant in studios where bass precision directly influences the quality of mixing decisions.

A Studio Subwoofer for Reliable Mixing, Production and Calibration

The ADAM Audio Sub8 PRO is designed for producers, audio engineers, composers for picture and content creators who want to extend their monitoring system without sacrificing clarity. Its low-frequency range makes it easier to control the energy of a kick drum, the foundation of a bassline, electronic sub-bass or the low-frequency effects of an audiovisual mix.

Thanks to its three operating modes, it easily adapts to a range of workflows. Stereo mode is suitable for conventional 2.1 configurations. LFE mode applies a dedicated 120 Hz low-pass filter, making it suitable for immersive setups and Dolby Atmos workflows. Finally, Wide mode allows the subwoofer to reproduce its entire frequency range, leaving bass management to an external processor or another stage in the audio chain.

DSP, Calibration and Precise Low-Frequency Control

Controlled Bass Reproduction

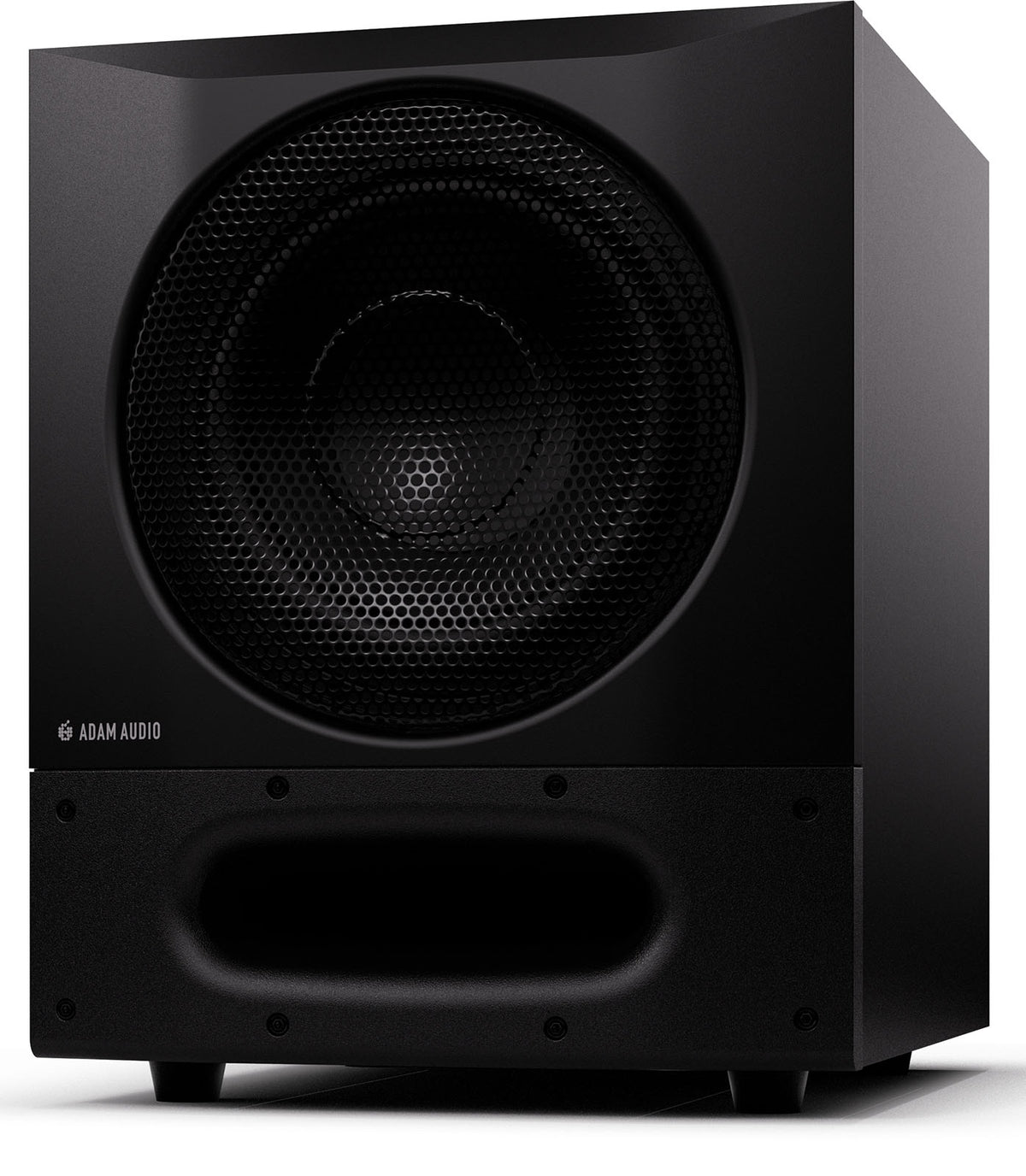

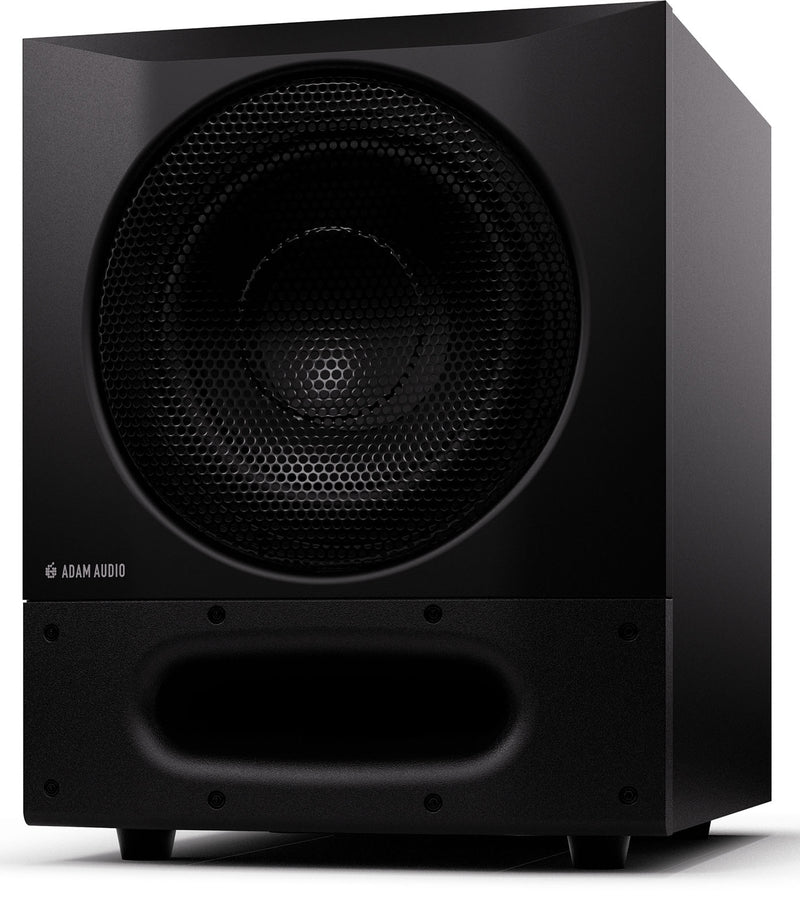

The Sub8 PRO is built around an 8-inch woofer with a paper cone reinforced with fibers. Its rubber surround enables substantial excursion while maintaining stable mechanical behavior. The ferrite magnet motor, complemented by demodulation rings, helps reduce distortion and stabilize the voice coil inductance.

The front-ported bass-reflex enclosure features a port optimized through FEA analysis. This design aims to homogenize airflow through the port in order to limit turbulence, air-flow noise and unwanted resonances at high levels. The result is cleaner, denser bass that is easier to place in a mix.

Efficient Amplification and Intelligent Protection

Its PWM amplifier delivers up to 200 W RMS to the woofer, with a peak power of 325 W when the limiter is disabled. The DSP controls the filters, crossover and equalization, while independent thermal and peak limiters protect the loudspeaker and electronics. The Sub8 PRO can therefore maintain controlled reproduction during extended listening sessions.

ADAM Control and Integrated Acoustic Correction

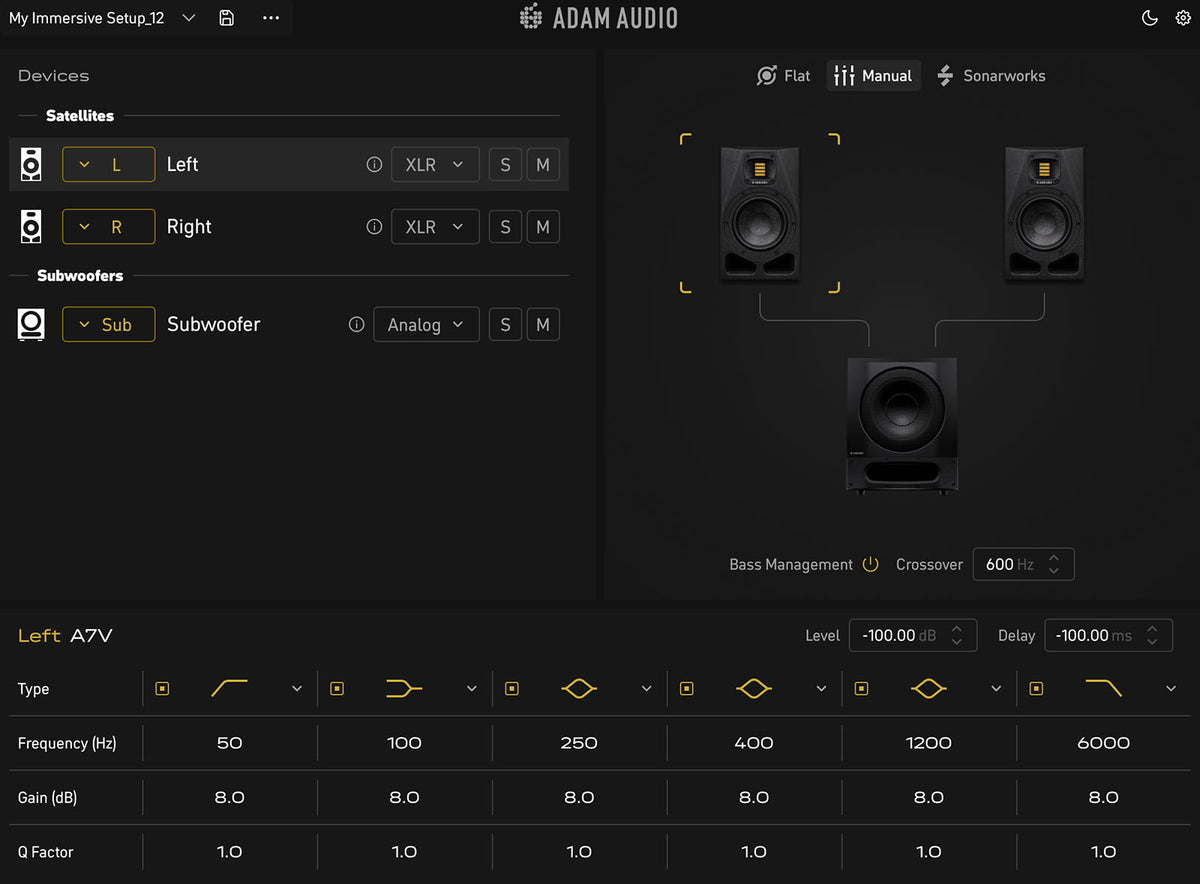

Via Ethernet, the ADAM Control software provides access to level, phase, Delay and four bands of parametric equalization. This makes it possible to time-align the subwoofer with the monitors and fine-tune its response according to the room acoustics or listening position.

The integrated DSP can also accommodate filters created with Sonarworks SoundID Reference. This compatibility simplifies the calibration of a stereo or multichannel system comprising ADAM Audio speakers and the Sub8 PRO, without adding an external correction processor to the signal path.

Analog, Digital and Footswitch Control

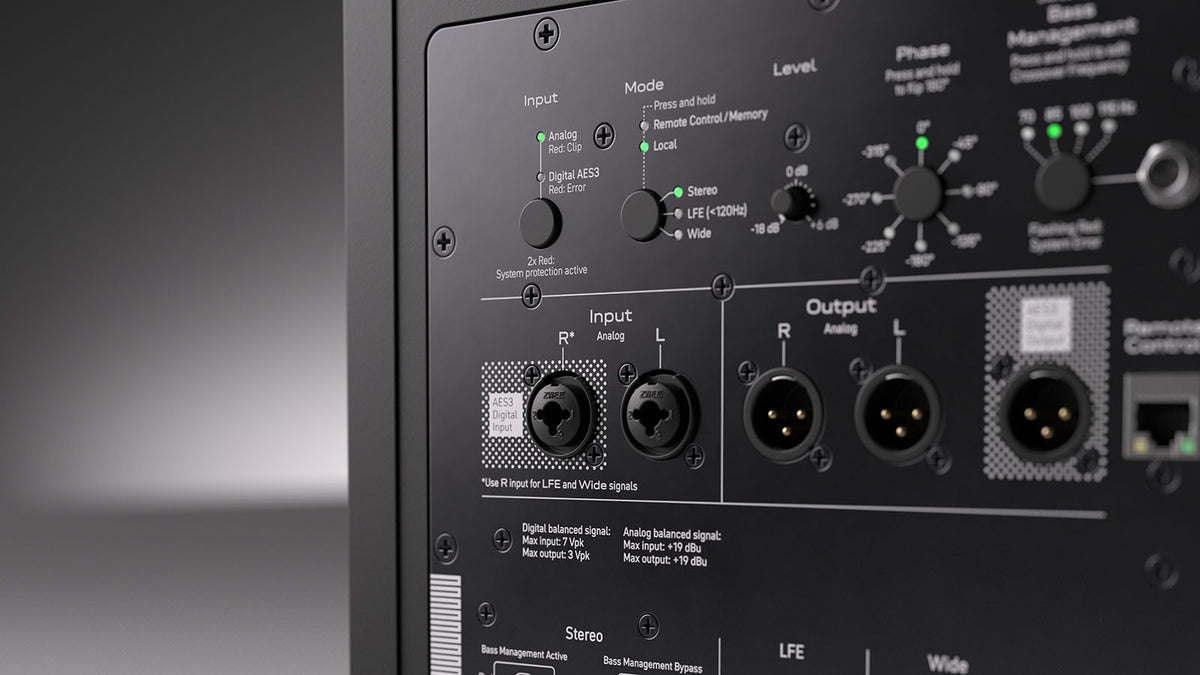

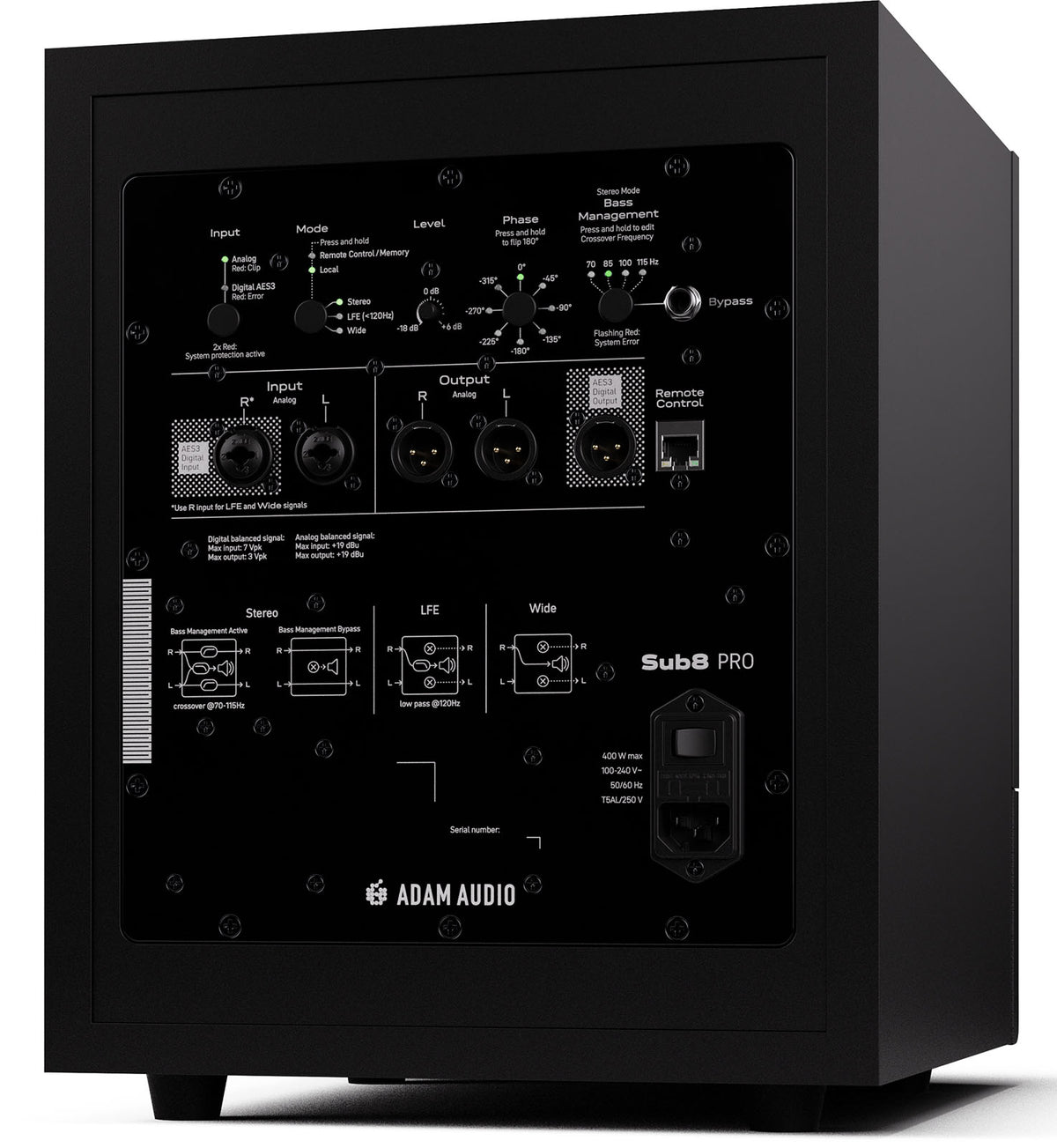

The two balanced XLR/TRS combo inputs and two XLR outputs ensure easy integration into an analog studio chain. For control rooms equipped with digital systems, the AES3 input and output connectors carry two channels at 24-bit/96 kHz, reducing unnecessary conversions.

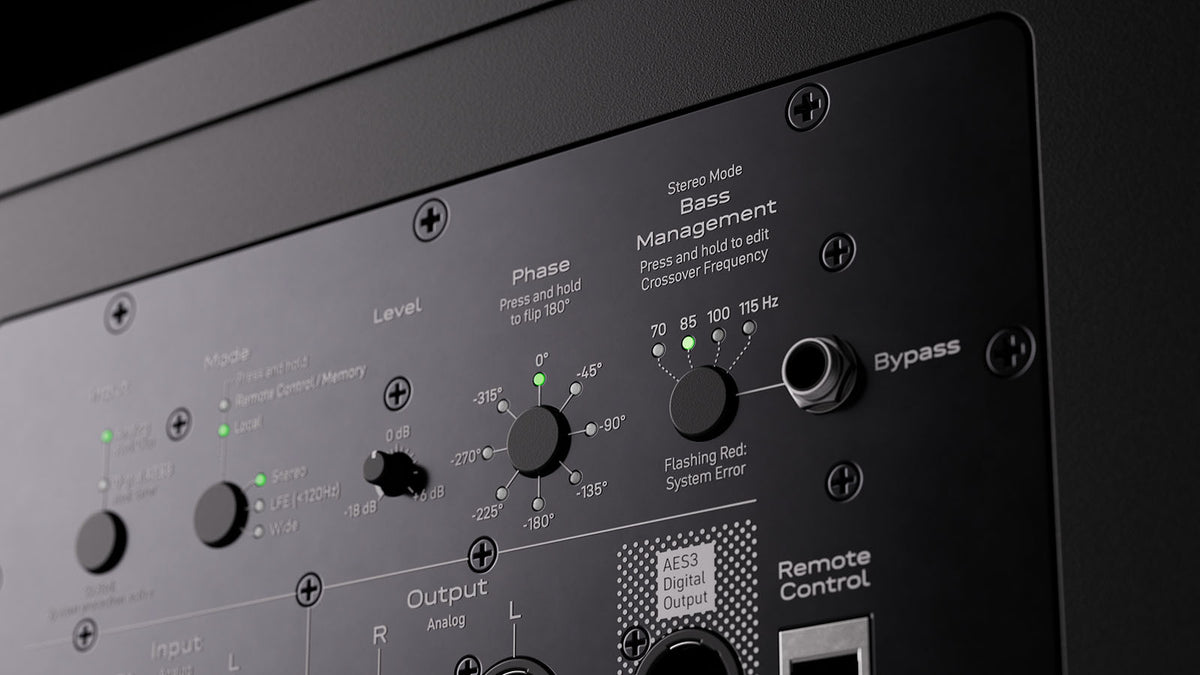

The phase control offers eight positions, while selectable crossover frequencies at 70, 85, 100 and 115 Hz facilitate pairing with different nearfield monitors. A dedicated TS jack input accepts a latching footswitch to instantly bypass bass management and check the balance of the mix without the subwoofer.

Technical specifications

Battery	No	Impedance	25000 Ω
Category	monitoring	Cutaway	Yes
Type	active subwoofer	SPL Max / peak	112 dB
Speaker protection type	Fuse	SPL max	112 dB
Peak power	325 W	Speaker structure	MDF
Number of channels	1 channel	Inputs	AES3, XLR, jack, RJ45
Recommended amps	200 W	Outputs	XLR, AES/EBU
Amplification	Active amplified	Color	Black
Auto-standby	Yes	Colours	Noir
Bluetooth	No	Power output	200 W
Connection	Combo, RJ45, AES3, XLR	Power / type	RMS
Controls	Crossover, Input Select, Phase, volume	Quantity	1
Speaker diameter	8"	Weight	15.3 kg
Number of speakers	1	Dimensions (mm)	385 x 300 x 365
DSP	Yes	Nominal mode power consumption (Wh)	400 W
EQ	Yes	Standby power consumption (Wh)	2 W

Frequency response at less than 3 dB	30 to 228 Hz	Analog input impedance	25 kOhm
Frequency response at less than 6 dB	26 to 300 Hz	Digital input impedance	110 Ohm
Maximum SPL at 1 m, half-space, 50 to 100 Hz sine-wave bursts at 3 percent THD RMS	105 dB	Maximum input level	19 dBu
Maximum SPL at 1 m, half-space, 25 to 50 Hz sine-wave bursts at 10 percent THD RMS/peak	101 / 104 dB	A/D converter	24-bit
Maximum SPL at 1 m, half-space, IEC-weighted noise in Stereo mode	112 dB	Internal sampling frequency	96 kHz
Maximum peak SPL Dolby D.A.R.D.T., full bandwidth / bass management at 85 Hz	112 dB	Delay range	0 to 10 ms, 32-bit resolution
Crossover frequencies	70, 85, 100 and 115 Hz	Input sensitivity	0 dBu = 100 dB SPL at 1 m, level set to 0 dB, full-space
Self-noise at 10 cm, level at +6 dB, Wide mode	below 20 dB A	Volume adjustment	from minus 18 dB to +6 dB
Woofer	8 inches, equivalent to 20.32 cm	Input selector	analog or digital
Voice coil diameter	35 mm	Phase adjustment	0, minus 45, minus 90, minus 135, minus 180, minus 225, minus 270 and minus 315 degrees
Diaphragm material	paper	Modes	Remote Control, Local / Stereo, LFE below 120 Hz and Wide
Amplifier type	PWM	Footswitch input	bypass via TS jack with latching switch
RMS power	200 W at 3 Ohm, 1 percent THD, limiter disabled	Network connector	RJ45 Ethernet
Protection	independent thermal and peak limiters, overcurrent, overheating and undervoltage protection	Communication protocol	AES70/TCP
Analog inputs	2 balanced XLR/TRS combo inputs	Software control	ADAM Control
Digital input	XLR AES3	Advanced acoustic adjustment	four parametric equalizers, level and Delay
Analog outputs	2 x XLR	Third-party calibration compatibility	import from Sonarworks SoundID Reference
Digital output	XLR AES3
