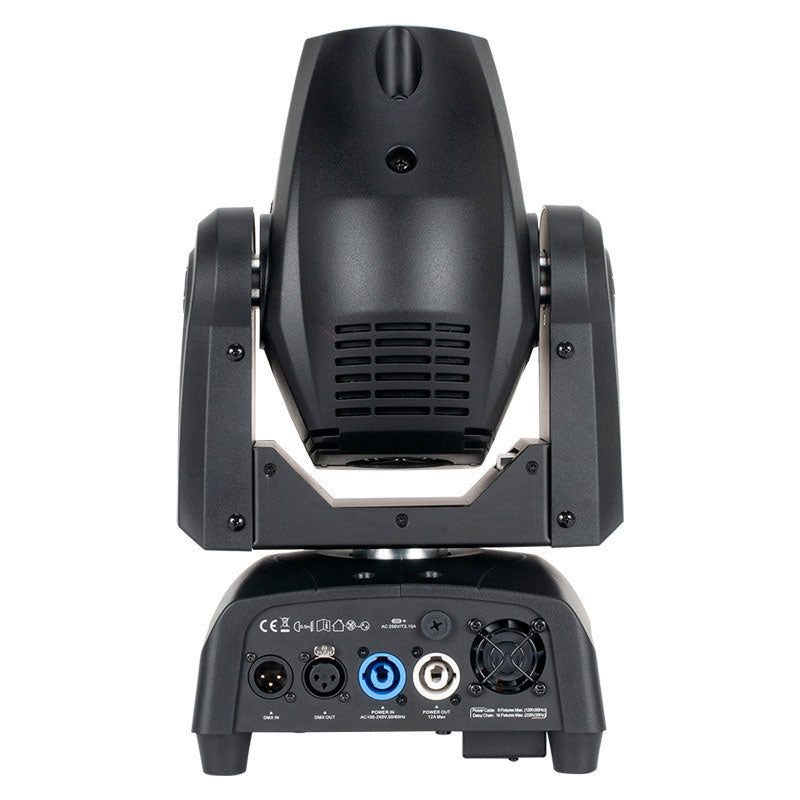

ADJ Focus Spot 2X
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

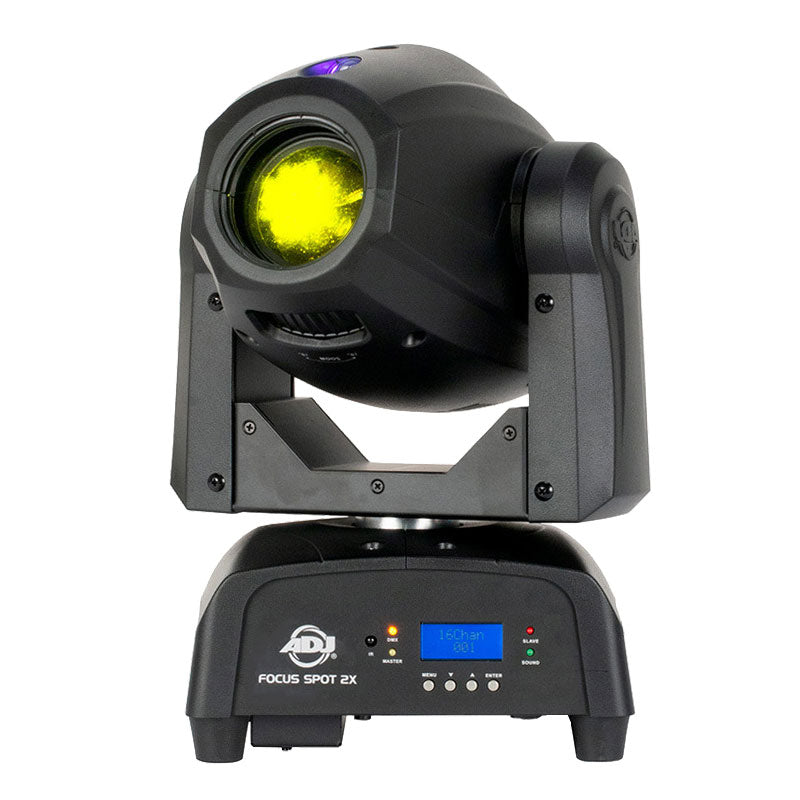

Essential Information About the ADJ Focus Spot 2X Moving Head
Essential Information About the ADJ Focus Spot 2X Moving Head
- 100 W white LED ultra-powerful + 3 W UV LED integrated for "black light" effects and creative color nuances.
- Dual 6-facet prisms (circular and linear) for textured beams, wide coverage, and dynamic looks.
- Indexable rotating gobos replaceable in a flash, with "Gobo Shake" effect and precise motorized focus.
- Manual zoom 16 to 19 degrees, very fast 16-bit Pan/Tilt, 8 colors + white and split, DMX control with 16/18 channels.
Manufacturer Information
ADJ
https://www.adj.com
info@adj.com
------------------------
Safety manager:
ADJ Supply Europe B.V.
Email: info@adj.eu
Address:
Illuminate Your Stages, Clubs, and Events with Precision
The Focus Spot 2X is an LED spot moving head designed to deliver sharp and impactful projections in all settings: concert stage, club, bar, theater, corporate set, private party, wedding, or fixed installation. Its adjustable beam from 16 to 19 degrees allows switching between tight projections and wider textures, while the integrated UV enhances immersive atmospheres, from the dancefloor to scenic decor.
For DJs, Lighting Operators, and Demanding Providers
Mobile and robust, the Focus Spot 2X meets the expectations of mobile DJs, lighting operators, rental companies, and venue managers seeking professional looks without complexity. Its clear interface, built-in shows, and Sound Active mode speed up lighting setup, while the 16/18 channel DMX control offers lighting designers granular control for tours or installations.
- Easy replacement thanks to the hinged head cover
Technical specifications
| Spotlight type | Spot | ||
| White light source | 1 x 100 W LED, 7600 K, estimated lifespan of 50,000 hours | Built-in light shows | 4 |
| UV light source | 1 integrated 3 W LED | DMX modes | 16 and 18 channels |
| Focus | motorized | Electronic dimming | from 0 to 100%, with 5 dimming curves |

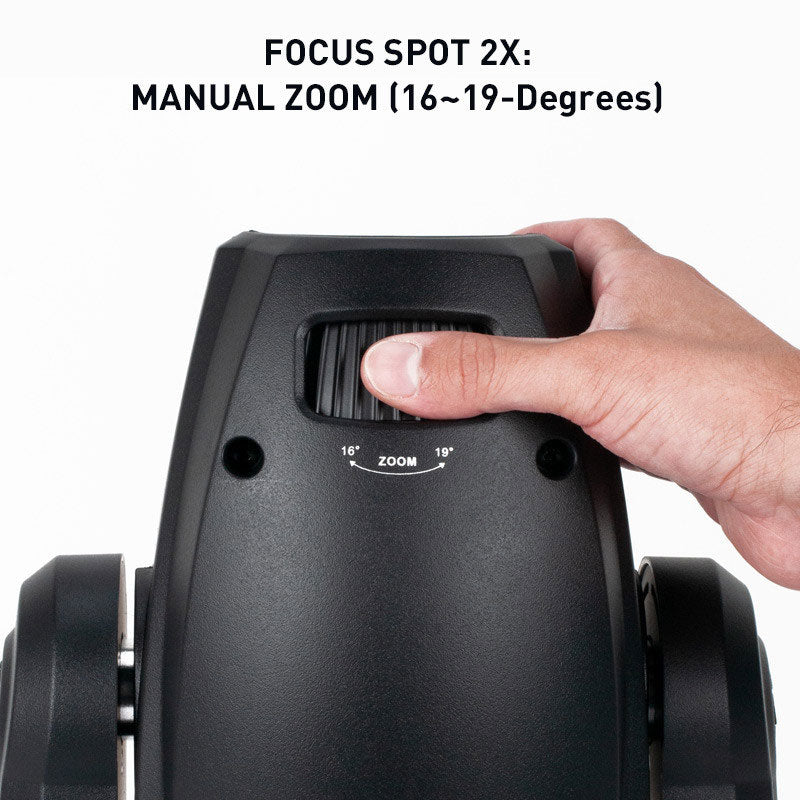

| Manual zoom on the head | beam angle from 16 to 19 degrees | Strobe/pulse effect | from slow to fast, with random strobe |
| Color wheel | 8 colors + white, with split combinations | DMX menu | 4-button LCD display |
| Gobos | 6 rotating and replaceable + spot | Motors | stepper motors with microstepping |
| Gobo size | outer diameter 23.8 mm / inner diameter 19 mm / thickness 0.2 mm | Communication network | wired digital |
| Gobo indexing | yes | Compatible remotes | UC IR and Airstream IR (sold separately) |
| Head cover | hinged | Pan/Tilt control resolution | 16-bit |
| Gobo Shake effect | yes | Pan | 540 degrees |
| Prisms | 6-facet circular, 6-facet linear | Tilt | 270 degrees |
| 3 operating modes | Sound Active, Show Mode and DMX Control | Pan/Tilt inversion mode | yes |
| Master/slave mode | yes | Built-in Pan/Tilt target modes | 4 |
You will also like
Chauvet DJ
Intimidator Spot 360X
Algam Lighting
MH200
J.collyns
Pack Moving Head Spot 100W Primus
Cameo
Auro Spot 200 - LED Moving Head
Showtec
Phantom 100 Spot
Afx Light
HOTBEAM-3r
Contest
STORM-8X10wh
Afx Light
SPOT180led
Questions frequently asked
What is the beam angle of the ADJ Focus Spot 2X?
The manual zoom on the head adjusts the beam angle from 16 to 19 degrees.
Does the moving head have rotating gobos?
The GOBO wheel features 6 rotating, replaceable, and indexable gobos. Compatible gobos measure 23.8 mm outer diameter, 19 mm inner diameter, and 0.2 mm thickness.
What DMX modes are available?
Two DMX configurations of 16 or 18 channels are available. They notably allow 16-bit control of Pan/Tilt movements. Movement inversion and predefined presets are included.
Can this moving head be used without a DMX console?
Three operating modes are accessible: Sound Active, Show, and DMX. The 4 built-in shows and master/slave mode allow operation without a console. UC IR and Airstream IR compatibility is provided with optional controllers.
What lighting effects are integrated?
A 100 W white LED at 7600 K is complemented by a 3 W UV LED. The color wheel includes 8 colors, white, and split positions, while two 6-facet prisms, circular and linear, multiply the beam.
