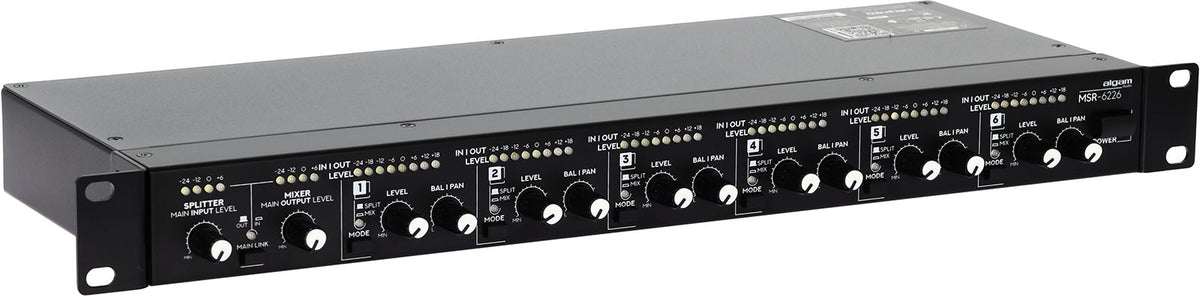

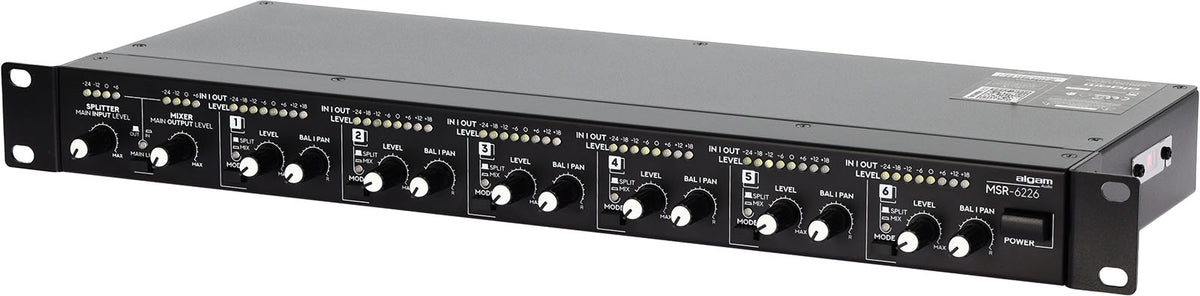

Algam Audio MSR 6226 - rack-mountable 6-in-2 mixer / 2-in-6 splitter
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Algam Audio
https://www.algam.net
contact@algam.net
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Essential Information About the MSR 6226 Audio Mixer/Splitter
- Two devices in one: operates either as a 6-in-2 mixer or a 2-in-6 splitter, ideal for installation and sound reinforcement.

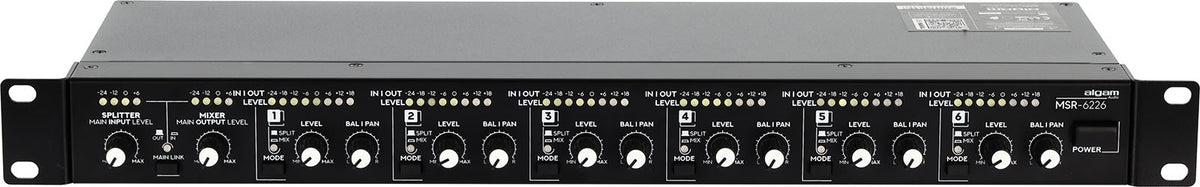

- Flexible routing per channel: each channel can be independently switched between mixing or splitting mode from the front panel.
- Professional-grade connectivity: XLR on channels 1 to 4, 6.35mm TRS balanced jack on channels 5 and 6, plus a stereo Main XLR input/output.
- Robust 19-inch rack format: metal chassis, compact size, perfectly suited for technical racks and fixed installations.
An Installation Tool Inspired by Field Needs: Versatility and Space Saving
Designed for installation applications, the MSR 6226 addresses a very practical challenge: managing, summing, or distributing audio signals without multiplying the number of devices. By combining mixer and splitter functions in a single rack-mountable chassis, it easily integrates into a control room, technical cabinet, or stage rack while remaining user-friendly. Its design emphasizes clear control layouts and connectivity adapted to professional environments.
Within a range focused on "professional utility," this type of device occupies a strategic position: it serves both for sub-mixing and multi-zone distribution, with channel-based operation logic that allows routing adaptation to each scenario without complex rewiring.
Who Is It For and What Are Its Uses?
The MSR 6226 is aimed at installers, sound technicians, venue operators (bars, restaurants, shops, multipurpose rooms), and any organization that needs to route a clean signal between multiple points (playback, recording, monitors, zones). In live sound, it becomes a practical ally for creating a stereo sub-mix from multiple line sources or for feeding several destinations with the same signal.
In installations, it facilitates setting up a distributed audio system: ambient zone playback, sending to multiple amplifiers, or splitting a main signal to different equipment. Its 19-inch format and compact size make it especially relevant when rack space is limited.
Technical specifications
| Number of channels | 6 | Color | Black |
| Rackable | Yes | Weight | 2.2 kg |
| Rack unit | 1 | Dimensions (mm) | 483 x 44,5 x 183,5 |
| Category | mixer/splitter | ||
Questions frequently asked
Can the Algam Audio MSR-6226 mix six sources to a stereo output?
In mixer mode, up to 6 channels can be summed to the Main LR stereo output. Each channel features a level control, a pan/balance control, and an 8-LED indicator.
How can an audio signal be distributed to multiple zones with this rack?
In splitter mode, the Main LR input feeds the individual outputs of the 6 channels. This setup allows sending the same signal to several amplifiers or sound zones.

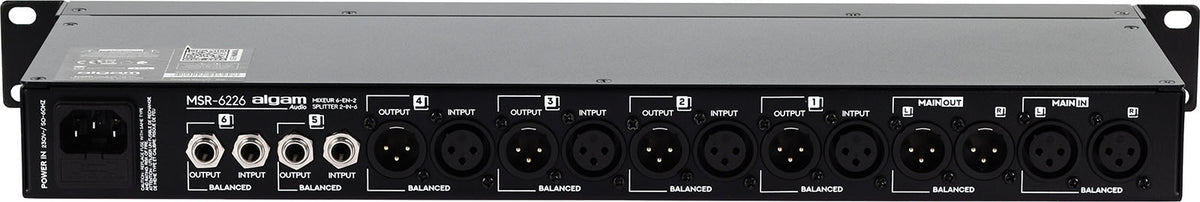

What connectors are present on the MSR-6226 channels?
Channels 1 to 4 use XLR connectors for both input and output. Channels 5 and 6 are equipped with balanced 6.35 mm TRS jacks.
Is it possible to use mixing and distribution simultaneously?
A MODE switch is available on the front panel of each channel. Some channels can thus be configured for mixing while others handle signal distribution.
What are the dimensions and power supply specifications of the MSR-6226?
The 19-inch rack chassis occupies 1 unit, with dimensions of 483 x 44.5 x 183.5 mm and a weight of 2.2 kg. It requires a 220-250 V~ 50 Hz power supply, consuming 18 W. The chassis is metal with rack ears.
