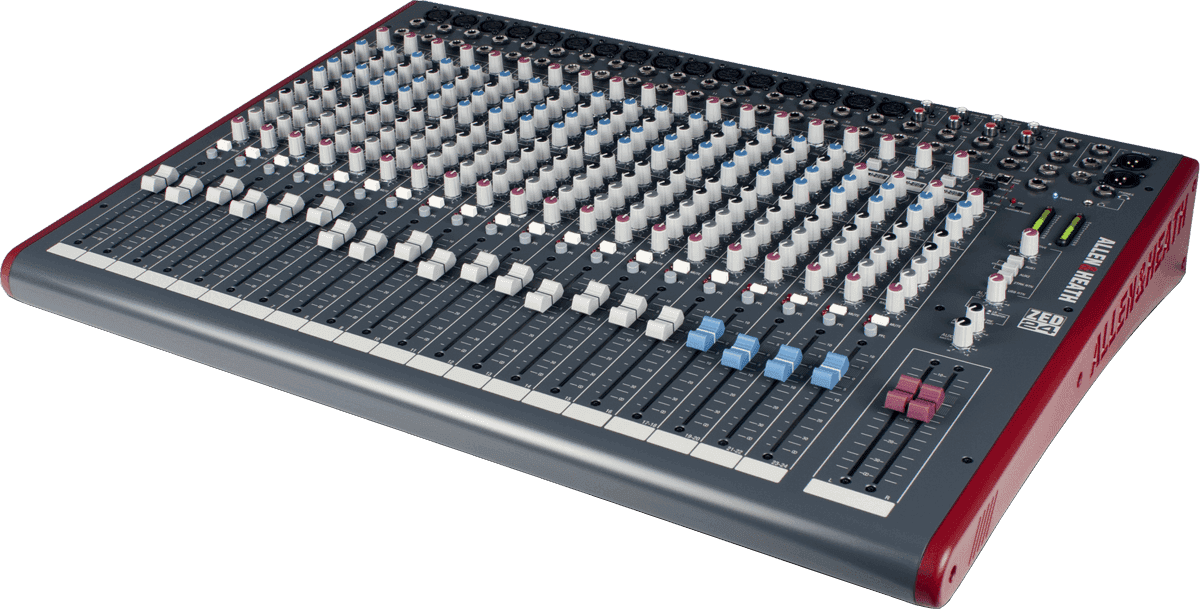

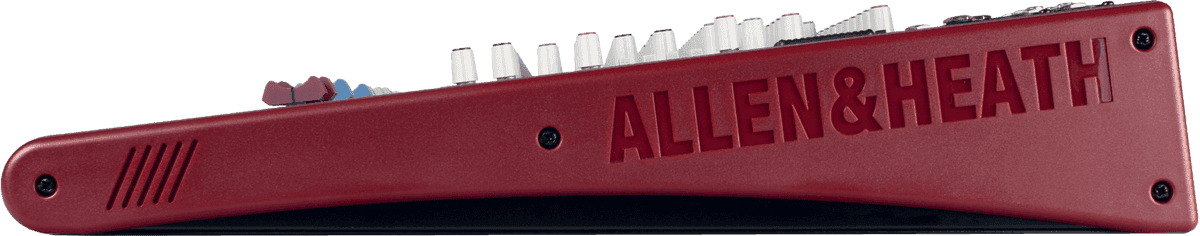

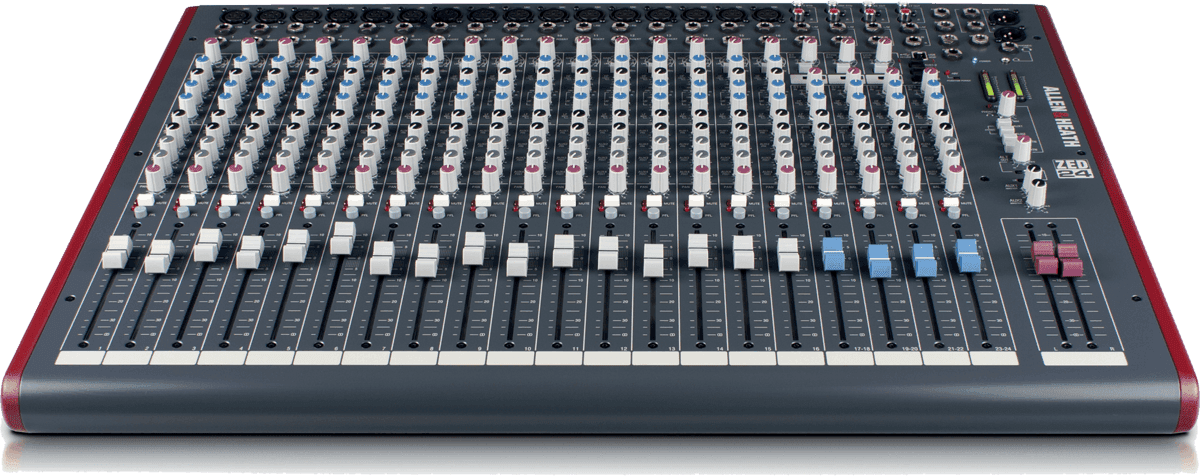

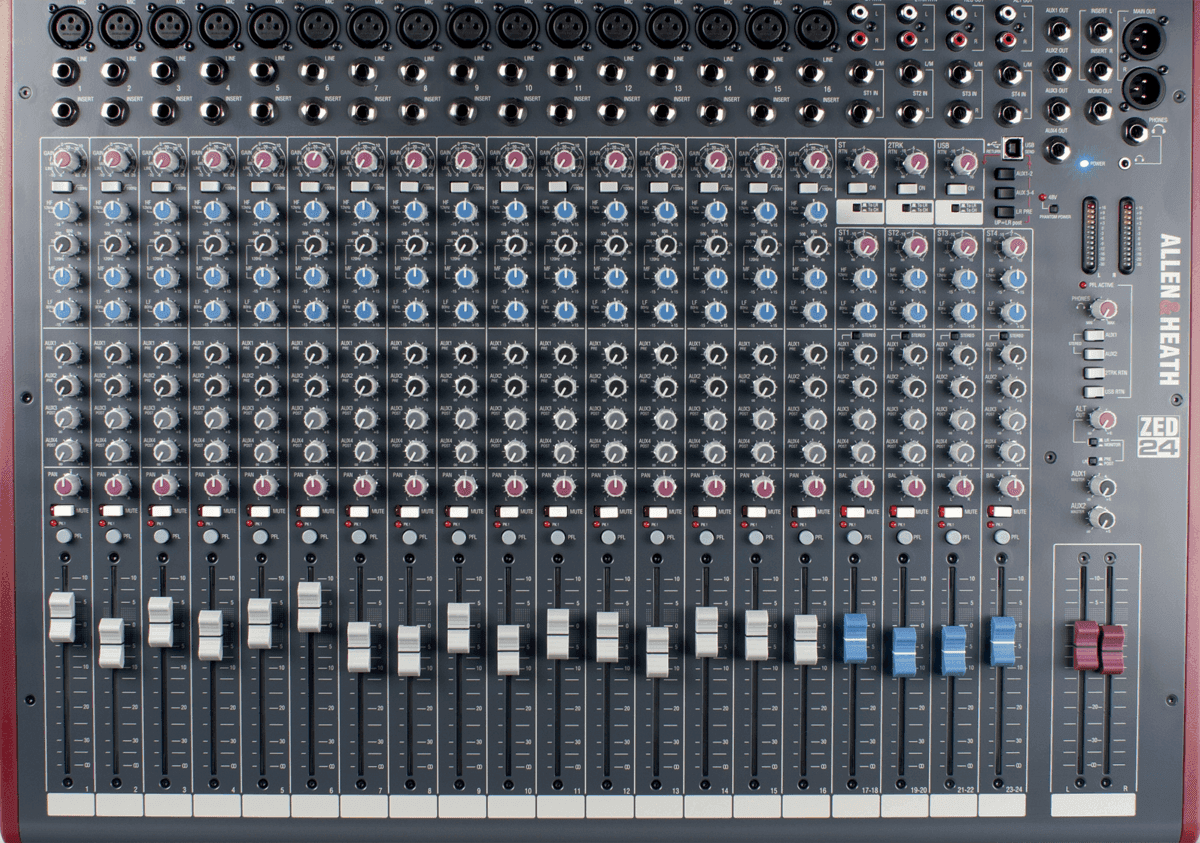

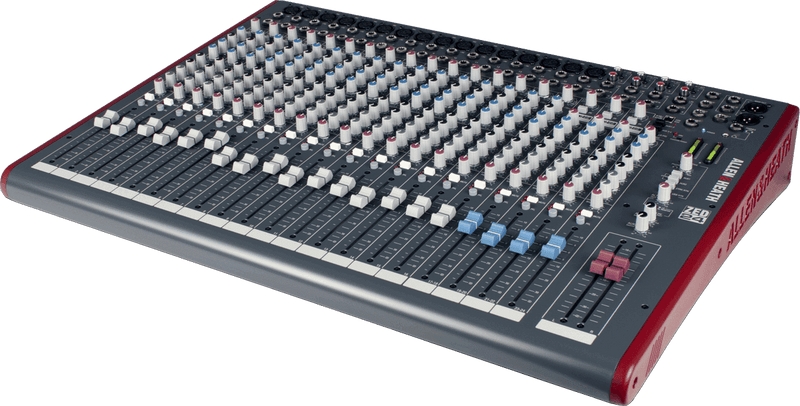

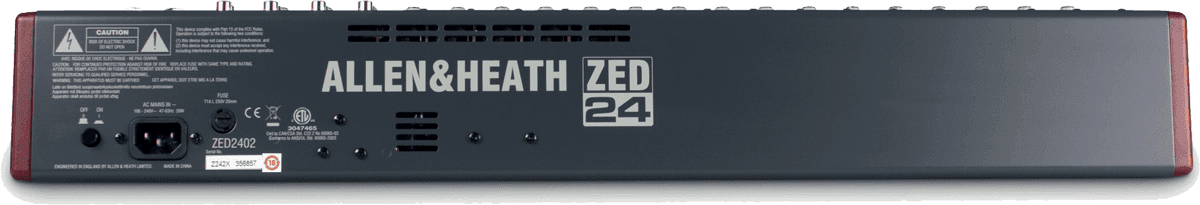

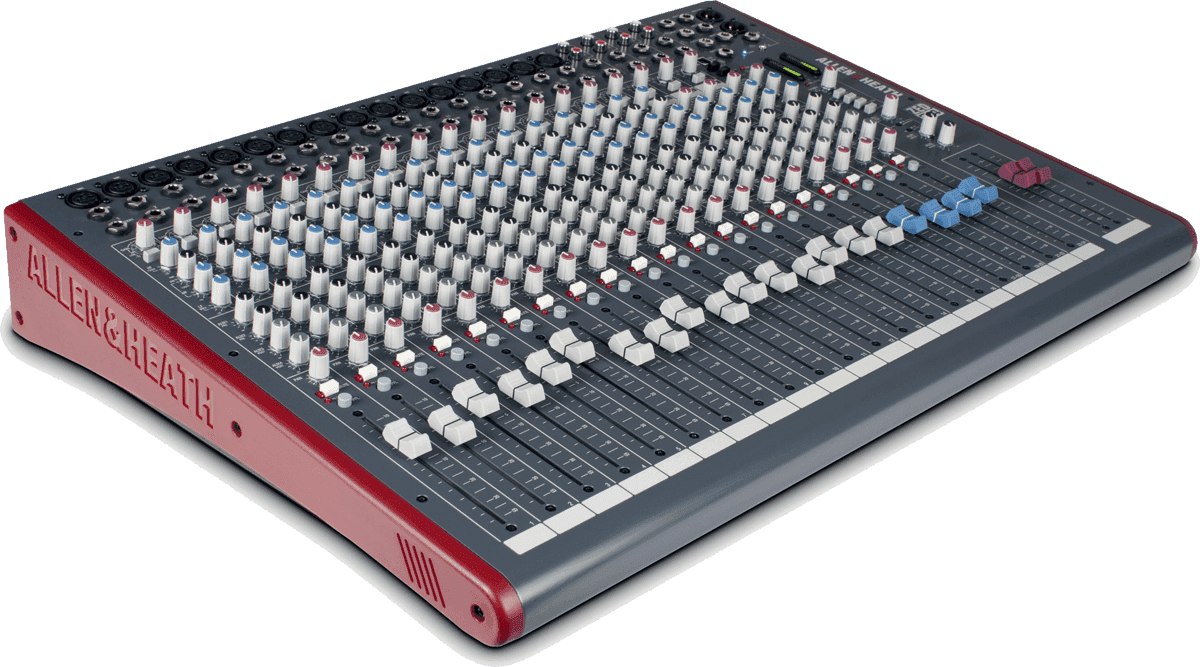

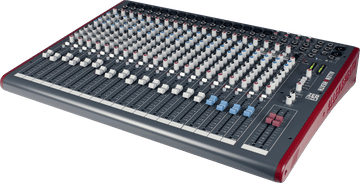

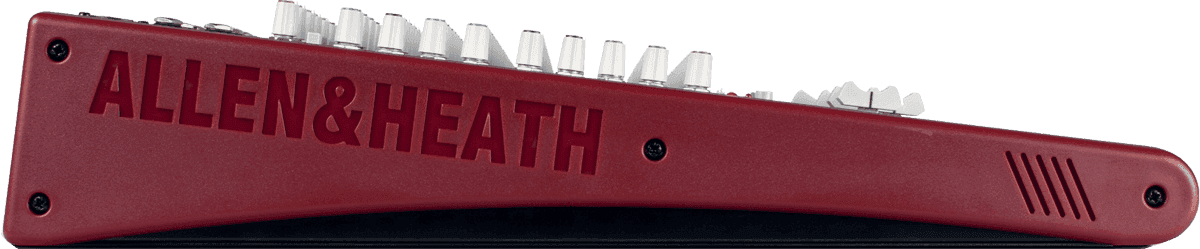

Allen & Heath ZED-24
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- 22 total inputs : 16 mono mic/line channels + 4 stereo line channels, plus 2 stereo effects returns for a complete stage or studio setup.
- Precise and comfortable mixing : ALPS 100 mm faders, Mute, PFL, pan/balance, and clipping indicators to maintain level control at all times.
- Flexible routing : 4 auxiliary sends (1 and 2 pre-fader, 3 and 4 post-fader) and main outputs on balanced XLR with insert, plus a dedicated mono summing output.
- Built-in stereo USB : recording/playback with selectable routing (L/R bus or Aux sends), 16-bit converters at 32 to 48 kHz.
Manufacturer Information
Allen&Heath
https://www.allen-heath.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A "large console" architecture designed for demanding configurations
With its 16 mono inputs featuring a 3-band equalizer including a semi-parametric section, this console positions itself as a versatile mixing center for bands, houses of worship, associations, service providers, and studios seeking a comfortable control surface. The approach combines comprehensive connectivity (inserts, auxiliaries, returns) and ergonomics oriented towards live mixing, while remaining portable.
Who is it for and what are its uses?
This mixing console is ideal if you need to manage multiple microphones (vocals, drums, brass, ambient mics) while retaining stereo inputs for keyboards, players, modules, or PC returns. The 4 auxiliaries facilitate creating independent monitor mixes (Aux 1/2) and sending to effects processing (Aux 3/4), while the USB allows quick recording of a concert, rehearsal, or stereo capture without an external audio interface.
Technical specifications
| Insert | Yes | Number of mic preamps | 16 |
| Number of faders | 22 | Recording | USB |
| Number of channels | 24 | Number of auxiliary sends | 4 |
| Phantom power supply | Yes | Mic inputs | 16 x XLR |
| Bluetooth | No | Line inputs | 16 x jack, 4 x stereo |
| EQ | 3-band with semi-parametric mid | Inputs (other) | USB, inserts : jack for each mono input, 2 x phono |
| Motorised faders | No | Main outputs | mono jack, 2 x XLR |
| Filters | Low cut | Outputs (other) | headphone 6,35 mm stereo jack, headphone 3,5 mm stereo jack, 4 x Aux unbalanced Jacks, Record RCA, alternative (Rca), 2 x tracks (RCA) |
| PFL/AFL mode | Yes | Color | Grey |
| Rackable | No | Display | LED |
| Category | analog mixer | Weight | 11.5 kg |
| Fader travel | 100 mm | Dimensions (mm) | 645 x 465 x 95 |
