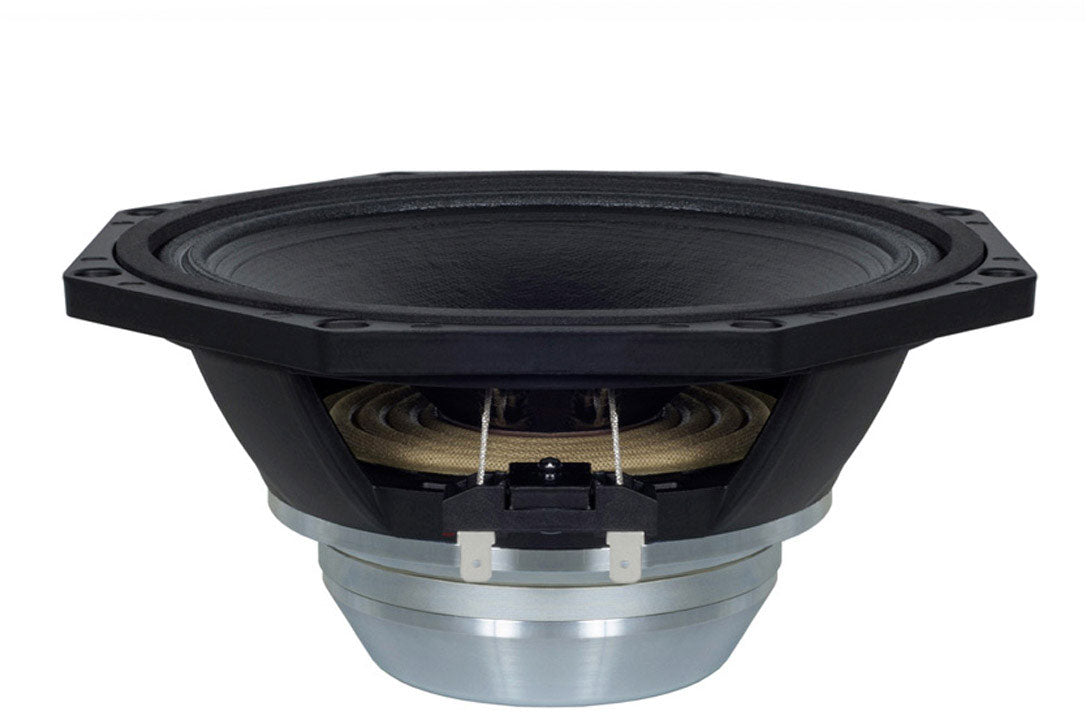

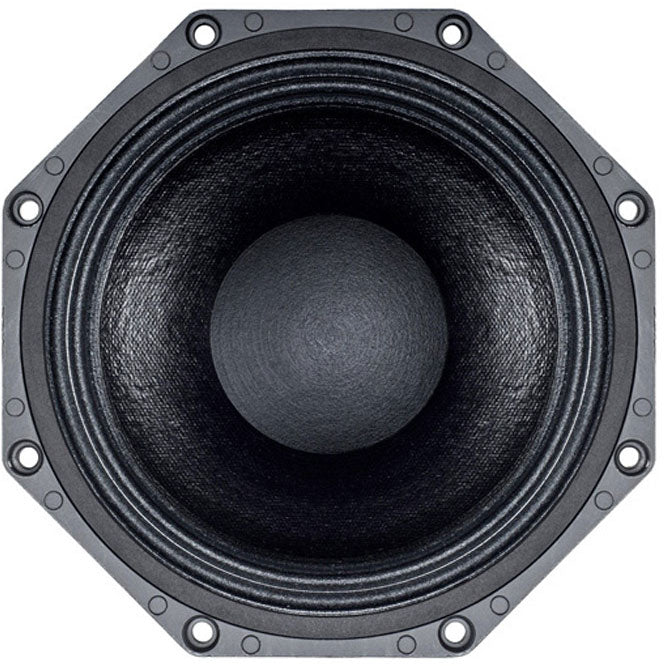

B&C Speakers 8 NDL 51

A "pro" 8" designed for compact and high-performance systems

The B&C 8NDL51 Medium fits the typical approach of modern sound reinforcement speakers: compact format, neodymium motor to limit weight, and design focused on efficiency and power handling. In an 8" range intended for sound diffusion, this type of transducer is particularly sought after for building speakers that are easy to transport while maintaining real dynamic reserve and a clean response in the crucial low-mid area.

Who is it for and what are its uses?

This 8" (21 cm) speaker is aimed at integrators, speaker manufacturers, technicians, and DIY enthusiasts who want an efficient transducer in a compact enclosure and consistent performance in the low-midrange. Its frequency range of 65 Hz to 3 kHz makes it relevant as a driver for mid/low-midrange channels, for example in a compact front speaker, a midrange reinforcement, or a multi-way system requiring good presence and articulation.

The recommended enclosure volume of 14 liters with a tuning at 65 Hz provides a clear starting point for speaker design, favoring a compact and rational solution suited to volume and transport constraints.

Design and performance: what makes the difference

Neodymium motor: power and lightness

The neodymium magnet keeps the total weight at 1.8 kg, a concrete advantage for portable speakers, suspended systems, or any project where every kilogram counts. This architecture is especially appreciated when multiplying channels or aiming for an enclosure that is easy to handle without sacrificing power handling.

Power handling and dynamic behavior

With a 400W AES power rating and a 2" (51 mm) copper wire voice coil, the 8NDL51 Medium is designed to operate cleanly under sustained conditions. The 94 dB sensitivity (1W/1m) helps achieve a useful level quickly, a key point to maintain headroom and limit amplifier stress when the system needs to "cut through" the mix.

Suspension, excursion, and control

The dual-roll suspension contributes to mechanical stability, while the 7.0 mm Xmax provides usable excursion for an 8", useful for maintaining control in the lower spectrum. The parameters Fs 66 Hz and Qts 0.37 naturally orient this speaker towards coherent alignments in compact enclosures, emphasizing the low-midrange and a structured response up to the crossover area to a compression driver or tweeter.

Waterproof treated cone: more reliability in operation

The exponential cone receives a waterproof treatment on both front and back. This is a real plus for field conditions (humidity variations, transport, storage), providing better resistance to operational stresses while maintaining the "pro" philosophy of projection and clarity.

Technical specifications
