Blackmagic Design ATEM 1 M/E Constellation HD

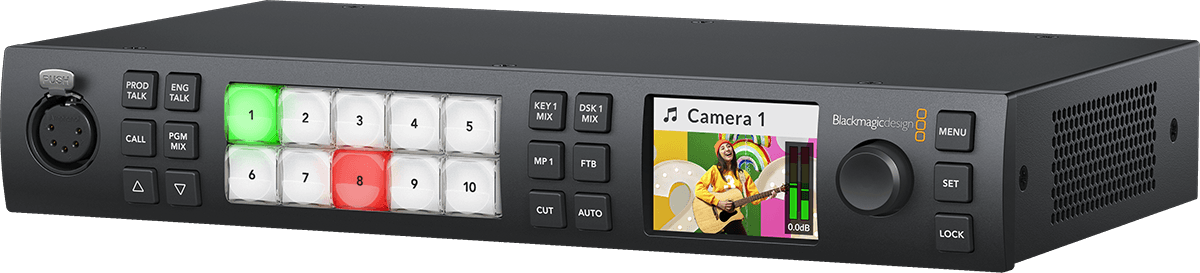

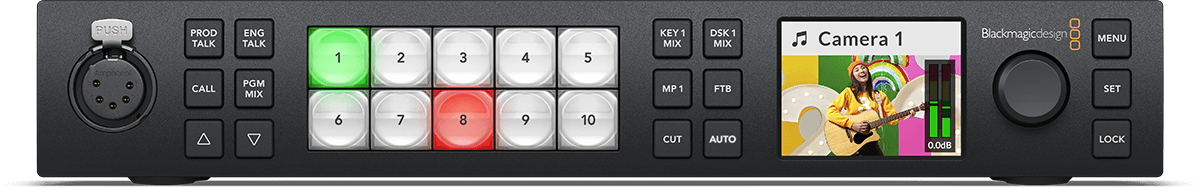

A 1 M/E Constellation HD Model Designed for Modern Control Rooms

Within the Constellation HD family, the ATEM 1 M/E Constellation HD positions itself as a compact SDI-oriented solution capable of delivering a "broadcast" logic in a 1U format (2/3 rack width). It features ATEM ergonomics and essential live production fundamentals with a very current approach: integrated conversions on each input, USB-C output in "webcam" mode, support for talkback and mix-minus, and an internal timecode generator to streamline capture workflows. The result: a video switcher that fits equally well in a fixed control room or an event production case.

For Multicam Sets, Professional Streaming, and Events

This video mixer targets teams that need to manage reliable, clear, and fast live productions: corporate shoots, training studios, e-sports, conferences, places of worship, stage events, or streaming studios. The 10 SDI inputs facilitate managing multiple cameras and players, while the 6 SDI outputs (configurable as AUX, program, or preview according to your needs) simplify distribution to room monitors, recorders, LED walls, stage returns, or monitoring systems. Thanks to the Ethernet connection, control can be done via software, an optional hardware panel, and integrated into a studio network infrastructure.

Production Tools Designed for Live Production

Integrated Conversions and Synchronization: Fewer Boxes, More Peace of Mind

In the field, source diversity is the norm: differently set cameras, computers, wireless links, guest control rooms. The ATEM 1 M/E Constellation HD stands out for its ability to re-synchronize and convert each input, which secures the live feed, saves time in control room setup, and limits the proliferation of accessories. This "all-in-one" philosophy is a real advantage compared to more basic configurations that require an external conversion and genlock chain.

Branding, Keying, and Transitions: A More "On-Air" Look

To move from a simple switch to a higher-quality production, this model includes 4 advanced chroma keyers, a DVE, and a stinger transition. You can create dynamic branding, cleaner green screen keying, picture-in-picture effects, and more polished transitions, all in real time. The 2 media players (fill and key) facilitate inserting logos, cards, jingles, and clips for a consistent visual identity throughout the production.

28-Channel Audio and Low Latency for Returns

The 28-channel audio mixer offers a comprehensive approach for clean broadcast sound, with 6-band parametric equalization and dynamics processing (expander, gate, compressor, limiter). The announced processing latency of less than 10 lines enables sharp cuts and more precise returns, especially when the control room must simultaneously manage video, audio, and stage returns.

USB-C "Webcam": A Direct Gateway to the Computer

For streaming, integration is simple: the USB-C output behaves like a "webcam" source, allowing you to send the program to a computer without an additional capture card, in 720p or 1080p depending on the program frame rate. This is a major asset for lightweight workflows (videoconferencing, software streaming) while maintaining a professional SDI chain on the camera side.

Technical specifications

Category	mixer	Option to increase the number of outputs	Yes
Video format	1080p60	Option to increase the number of inputs	Yes
Number of screens	1.0000	Weight	1.87 kg

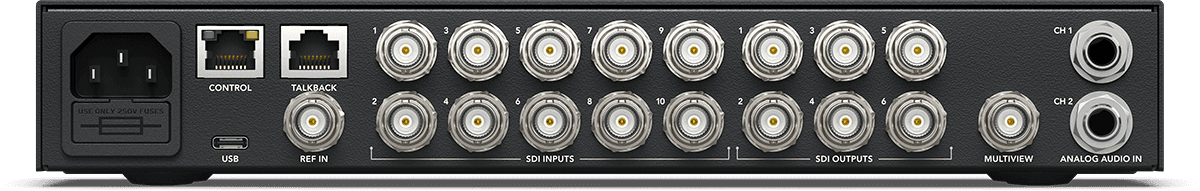

Outputs	6x SDI, Multiview	Dimensions (mm)	280 x 176 x 44
Inputs	10x SDI, Ref in SDI, 2x Jack 6,35

Total video inputs	10	Webcam output	1 x USB-C supporting 720p or 1080p at PGM frame rate
Total video outputs	6	Number of Multi Views	1 x 3G-SDI
SDI rates	1.5G, 3G	Control panel connection	Ethernet (direct panel/chassis link or via network)
Total audio inputs	2 x balanced 1/4 inch jack, 1 x 5-pin XLR talkback network	Internal timecode generator	yes
Total audio outputs	1 x 5-pin XLR talkback network	Talkback network	RJ45 for third-party systems
SDI audio inputs	8 channels of embedded audio on all SDI inputs	Tally output	integrated into GPI and Blackmagic Design Tally Interface via Ethernet (sold separately)
SDI audio outputs	16 channels of embedded audio on all SDI outputs	Ethernet	10/100/1000 BASE-T
Timecode connections	none	Computer interface	1 x USB-C (USB 2.0)
Reference input	Tri-Sync or Black Burst	SD standards	none
Video input synchronization	on all 10 inputs	HD standards	720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Frame rate and format converters	on all 10 inputs	SDI compliance	SMPTE 292M, 296M, 424M, 425M level A and B
SDI AUX outputs	any of the 6 SDI outputs	Video sampling	4:2:2
SDI preview outputs	any of the 6 SDI outputs	Color precision	10-bit
SDI program outputs	any of the 6 SDI outputs	Color space	REC 709
Down-converted SDI program output	none	Automatic SDI switching	detection between 1.5G-SDI and 3G-SDI levels A and B
