Essential Information About the Blackmagic Videohub 10x10 12G Video Router
• 10x10 12G-SDI Matrix for instant routing of SD, HD, 2K, Ultra HD, and 4K DCI signals up to 2160p60, with zero latency.

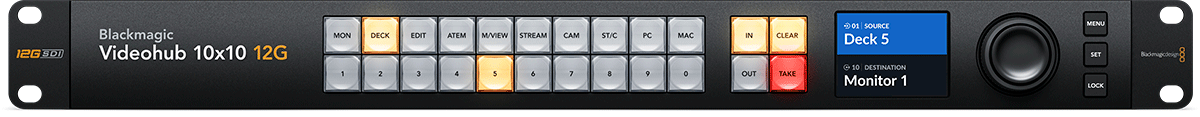

• 1U Rack Format with a 2.2-inch color LCD screen for previewing, source identification, and monitoring active standards.
• Ultra-direct Control via dedicated buttons and a large electronic clutch knob, complemented by network control.
• Tri-Sync/Black Burst Reference, SDI synchronization on outputs, and auto-detection of formats for clean switching.

Videohub 10x10 12G

1.315,00 €VAT incl.

0,90 € Ecotax included

Reference price

The Videohub 12G Philosophy: Universal Routing Over a Single Cable

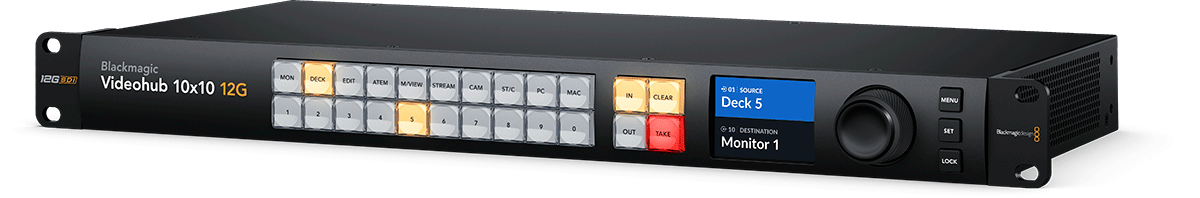

The Blackmagic Videohub 10x10 12G belongs to the "Videohub 12G" family, designed to simplify production environments where multiple resolutions coexist. The idea is clear: concentrate multi-format routing on a single BNC connection, without multiplying cables or converters depending on resolution. In a compact 1U chassis, you get 10 inputs and 10 outputs of 12G-SDI, a color LCD display, and front panel controls designed for quick operation in control rooms, studios, production trucks, or event stages.

A 12G SDI Router Designed for Control Rooms, Live Production, and Postproduction

This video router is aimed at teams who need to distribute and reconfigure their signals in real time: live directing, broadcast studios, multi-camera capture, postproduction, or managing video walls and monitoring. The Videohub 10x10 12G centralizes cameras, switchers, recorders, converters, and monitors in a robust SDI workflow, while maintaining a simple operational logic: select an input, assign it to an output, and routing happens immediately.

The integrated LCD screen enhances operational safety daily: preview and label display reduce patching errors, especially when sources look alike (multiple identical cameras, program returns, graphic feeds, etc.). And as the installation grows, Ethernet control facilitates integration into a production network and duplication of control points.

Technical specifications

Category	distributor	Rack unit	1
Type	Matrix	Power supply	100 - 240 V AC - 50/60 Hz
Recommended cables	SDI	Consumption	20.8 W
Control ports	LAN	Weight	3 kg
Maximum resolution	4K/60	Dimensions (mm)	482 x 236 x 44

Questions frequently asked

Does the Blackmagic Design Videohub 10x10 12G support 4K at 60 frames per second?

The router supports Ultra HD signals up to 2160p60 and 4K DCI up to 4Kp60 via its 12G-SDI connections.

How many SDI sources can be connected and routed?

This router features 10 SDI inputs and 10 SDI outputs. Each output can be instantly assigned to one of the connected sources. Automatic switching supports bitrates from 270 Mb to 12G-SDI on each input.

Can HD cameras and UHD sources be mixed on this router?

Each input automatically detects SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI formats. SD, HD, Ultra HD, or 4K DCI sources can therefore coexist within the same setup.

How is remote routing control performed?

Network control is done via 10/100/1000 BASE-T Ethernet, using the Blackmagic Videohub software for macOS and Windows. Compatibility with Videohub Master Control Pro and Smart Control Pro panels is also supported.

Is the Videohub 10x10 12G suitable for a broadcast rack?

Its 1U chassis measures 482 × 236 × 44 mm and weighs 3 kg. The internal power supply accepts 100 to 240 V AC at 50/60 Hz, with a specified power consumption of 20.8 W.
