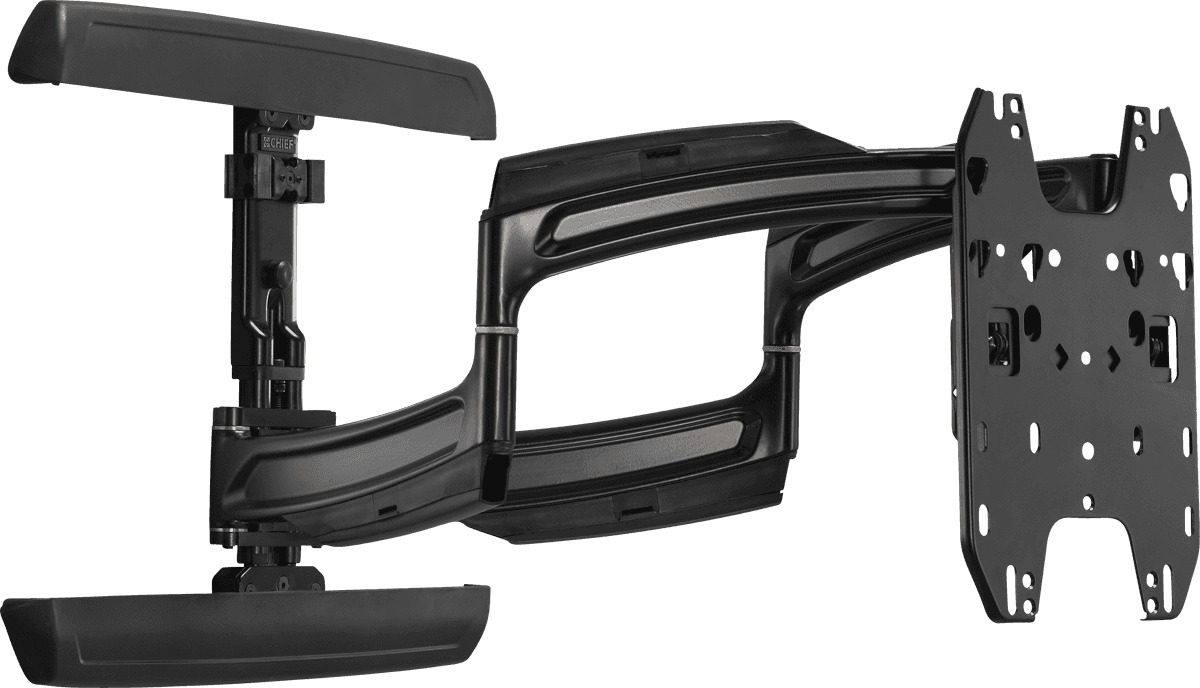

A Mount Designed for Neat Installations, from Home Cinema to Control Rooms
Designed to fit neatly behind all types of televisions (LED, LCD, and plasma), this wall mount prioritizes a clean wall appearance while maintaining true positioning freedom. Its slim profile allows for a discreet setup, especially appreciated in audiovisual environments where a clear workspace and controlled cables are essential.
Who Is It For and What Are Its Uses?
This mount is intended for users who want to fix a control screen, television, or display monitor in a rehearsal room, studio, DJ booth, control room, or home studio space. The extension and lateral offset after installation facilitate centering and optimizing the viewing angle, even when wall placement imposes constraints (studs, cable passages, outlets).
Adjustments and Daily Comfort: Precision, Centering, and Cabling
Centris Low-Profile Tilt
The tilt mechanism allows effortless adjustment of the screen up to -15 degrees to reduce glare and improve readability, especially when the screen is installed at height.
Centerless Lateral Offset After Installation
The post-installation lateral offset offers up to 406 mm of adjustment for freer centering, useful for aligning the screen with furniture, a console, or a listening point without needing to redrill.
Integrated Cable Management
The included cable covers install tool-free, and the open wall plate facilitates routing of power and signal cables for a cleaner and faster installation.
Technical specifications
| Category | flat screen | Finishing | Matt |
| Max load | 34 kg | Weight | 14.2 kg |
| Color | Black | Dimensions (mm) | 621 x 400 x 48 |
| Folded depth | 38 mm | Post-installation lateral offset | up to 406 mm |
| Maximum extension | 457 mm | Maximum mounting pattern | 600 x 400 mm |
| Tilt | -15 degrees | Load capacity | 34 kg |
| Height adjustment | 25 mm | Integrated cable management | included covers, tool-free installation |
Questions frequently asked
Does the Chief TS325tu support a 600 x 400 mm screen?
The supported mounting pattern reaches 600 x 400 mm. The maximum load capacity is 34 kg.
What is the distance from the wall that this control room monitor mount allows?
The folded depth is 38 mm. The maximum extension reaches 457 mm, allowing the screen to be pulled forward according to the control room setup.
Is it possible to center a monitor after installing the wall plate?
A post-installation lateral shift of up to 406 mm is available. A height adjustment of 25 mm complements the alignment options. Centering can thus be adjusted without re-drilling.
Can the screen be tilted to reduce reflections in the studio?
The Centris mechanism allows for a tilt of up to -15 degrees, suitable for a screen installed at height.
How are cables managed behind the screen?
Cable covers are included and install without tools. The open wall plate facilitates the routing of power and signal cables.
