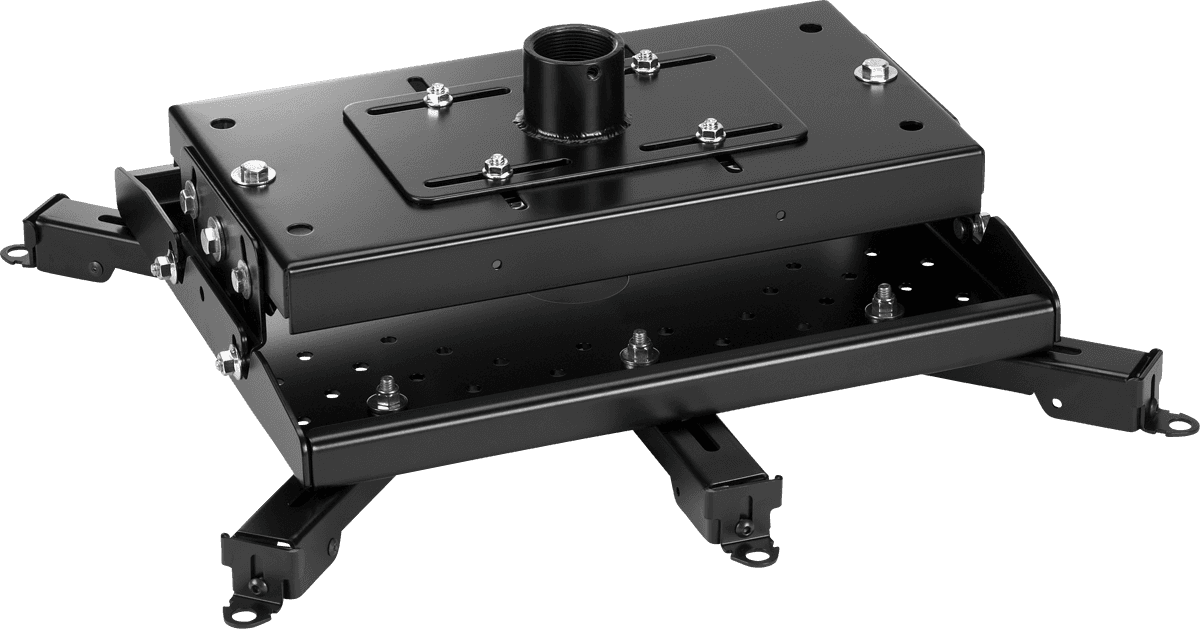

A Mount Designed for Demanding Installations
Designed to secure and simplify projector installation, this mount focuses on precise adjustment mechanics and a high load capacity. It meets the requirements of fixed venues (auditoriums, multipurpose rooms, places of worship, event spaces) where stability, maintenance access, and clean cabling are essential.
Who Is It For and What Are Its Uses?
This mount is intended for integrators, stage managers, and installers seeking a reliable ceiling installation with independent adjustments for quick image framing. It is also suitable for sites that require regular intervention on the projector (lamp, filter) while preserving settings and preset positions.
3-Axis Adjustments, Smart Disassembly, and Clean Cables
Positioning Precision
With roll, pitch, and yaw separated, alignment is intuitive without disturbing adjacent axes. The result: faster registration and more precise framing.
Simplified Maintenance
The quick connect/disconnect feature facilitates access to maintenance components, and disconnection does not affect registration or preset parameters.
Technical specifications
| Category | projector | Roll (± degree) | 5 |
| Max load | 113 kg | Color | Black |
| Tilt (degrees) | 20 | Weight | 18.4 kg |
| Rotation (degrees) | 360 | Dimensions (mm) | 204 x 425 x 292 |
| Roll | +/-5 degrees | Mounting options | flush ceiling mount, 12.7 mm threaded rods, extension column with 1-1/2 inch NPT threading |
| Pitch | +/-20 degrees | Cable management | cables routed through the top of the mount without additional accessories |
| Yaw | 360 degrees | Dimensions | W 371 x H 97 x D 312 mm |
| Maximum load | 113.4 kg | ||
Questions frequently asked
What maximum load can the Chief VCMU-b mount support?
The specified maximum load reaches 113.4 kg, making it suitable for heavy projectors in fixed installations.
What orientation adjustments are available?
Roll can be adjusted ±5°, tilt ±20°, and pan 360°. These three axes are independent to allow framing adjustments without altering other settings.
Can the projector be removed without losing settings?
The quick connect/disconnect feature allows access to maintenance parts. Disconnecting does not affect saved positions or preset parameters. This design facilitates lamp or filter servicing.
How are cables managed with this ceiling mount?
Cables are routed through the top of the mount, with no additional accessories needed.
What ceiling mounting options are compatible?
Installation can be flush to the ceiling, on 12.7 mm threaded rods, or with a 1-1/2 inch NPT threaded extension column. The black finish integrates well into fixed AV setups.
