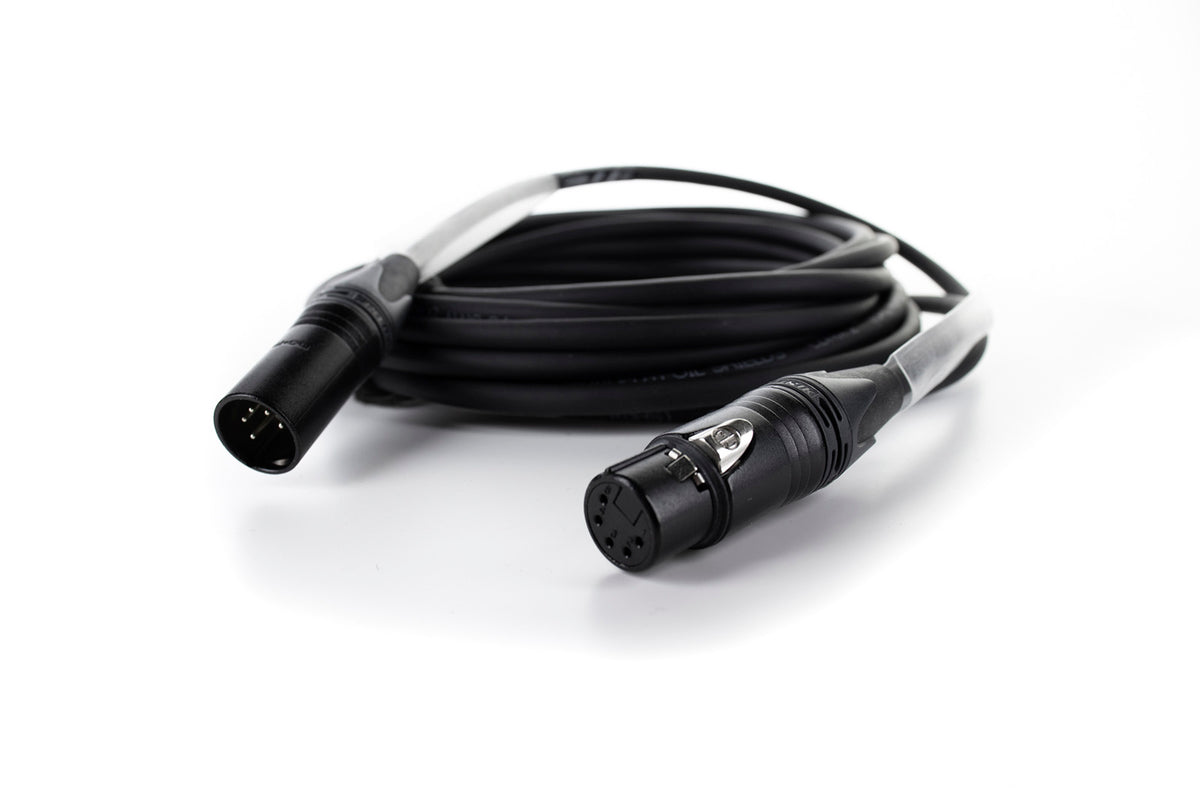

Cordial DMX Cable 5-Pin 5 M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Essential Information About the Cordial CDX-1 5 m DMX Cable
- Reliable DMX 512 Transmission thanks to a design compliant with the EIA 485 standard and impedance tailored for digital lighting signals.
- Neutrik 5-pin XLR Connectors with 3 pins connected, perfect for controlling fixtures, dimmers, and compatible DMX interfaces.
- Effective Double Shielding with tinned copper braid and laminated aluminum foil to minimize interference both on stage and in fixed installations.
- Robust and Practical Design featuring a black PVC jacket, possible labeling under a transparent sheath, and a Velcro cable tie for neat storage.
Technical specifications
| Number of channels | 3 | Oxygen-free copper | Yes |

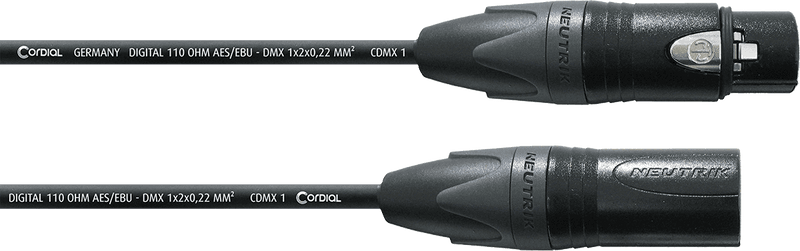

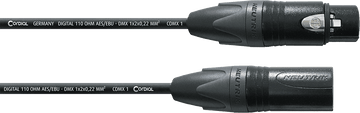

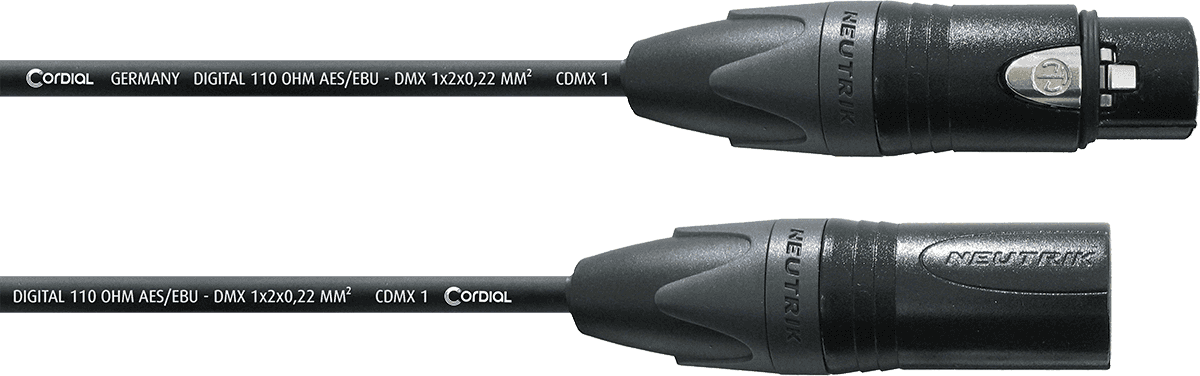

| Connectors | 5-pin female XLR (3 connected), 5-pin male XLR (3 connected) | Connector brand | Neutrik |
| From connectivity | XLR 5-pin female | Number of pairs | 1 |
| Towards connectivity | XLR 5-pin male | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | DMX cable | Shield type | tinned copper braid and laminated aluminum foil |
| Format | straight | Color | Black |
| Sheath material | PVC | Length (m) | 5 m |
Questions frequently asked
Is the Cordial CDX-1 5 m compatible with a DMX installation using 5-pin XLR?
The connector uses a 5-pin female XLR and a 5-pin male Neutrik XLR. Three pins are connected for DMX transmission, in line with common lighting equipment configurations.
Are all 5 pins of the DMX cable wired?

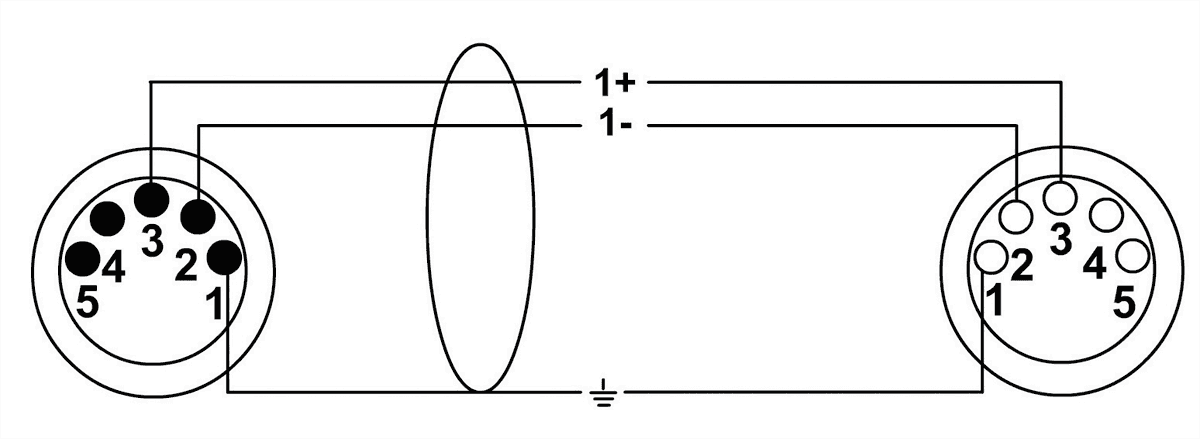

Only 3 pins are connected on the 5-pin XLR connectors. This wiring suits DMX systems using 3-wire transmission.
What is the length of this Cordial DMX cable?
The length is 5 m, suitable for connections between a controller, fixture, or dimmer.
Is the cable shielded against interference?
A double shield combines a tinned copper braid and a laminated aluminum foil. The 0.22 mm² section and oxygen-free copper conductor contribute to DMX 512 signal transmission. The design complies with the EIA 485 standard.
Is the Cordial CDX-1 convenient to store after a gig?

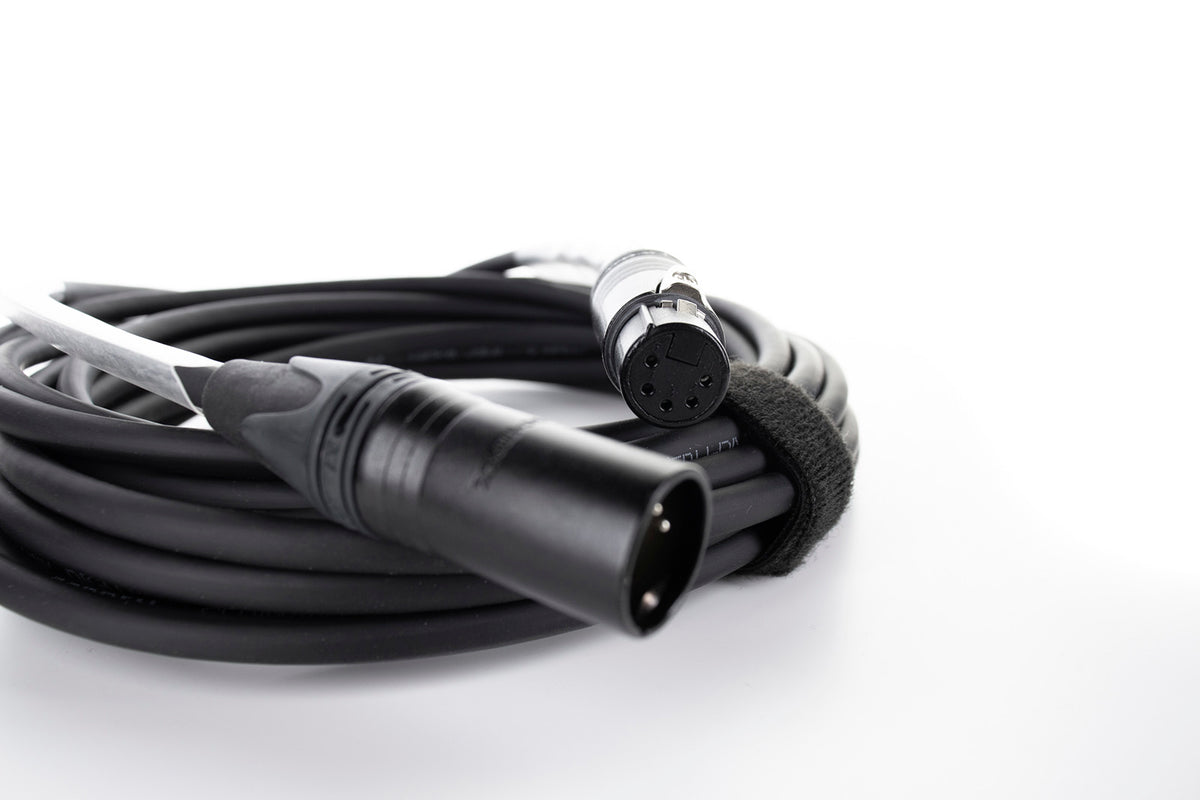

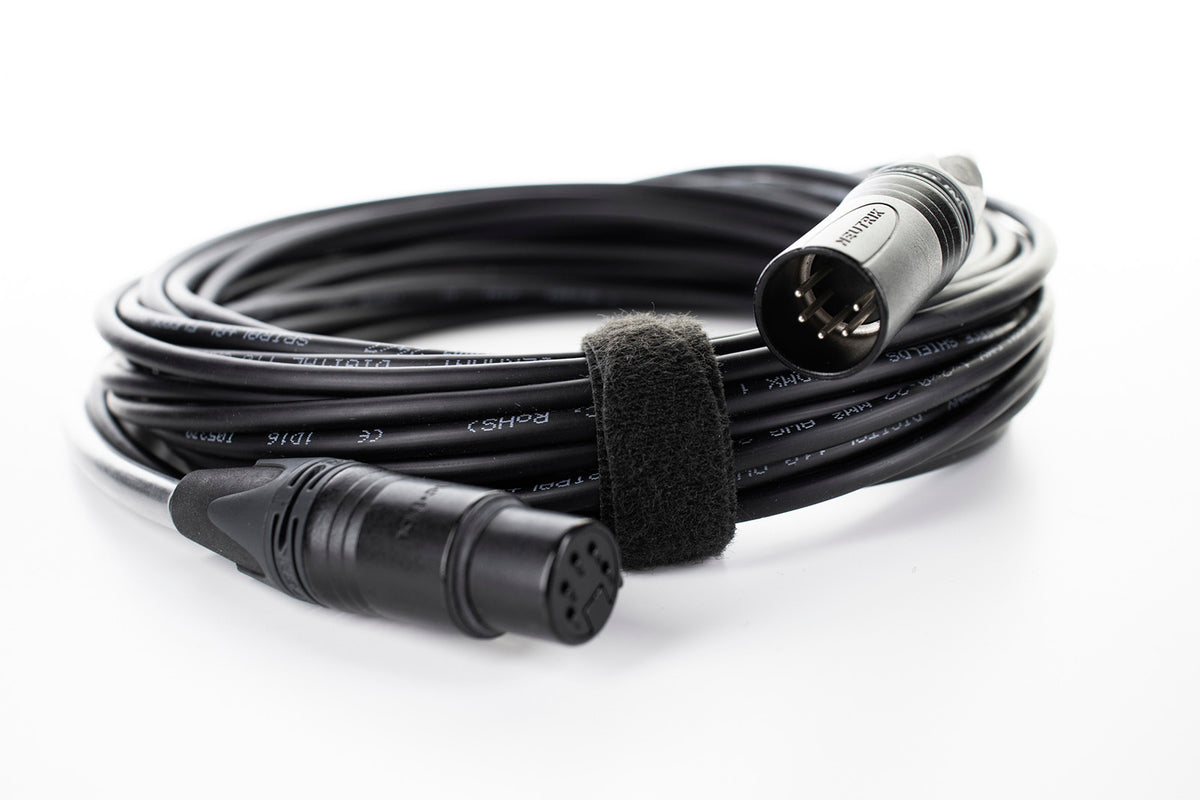

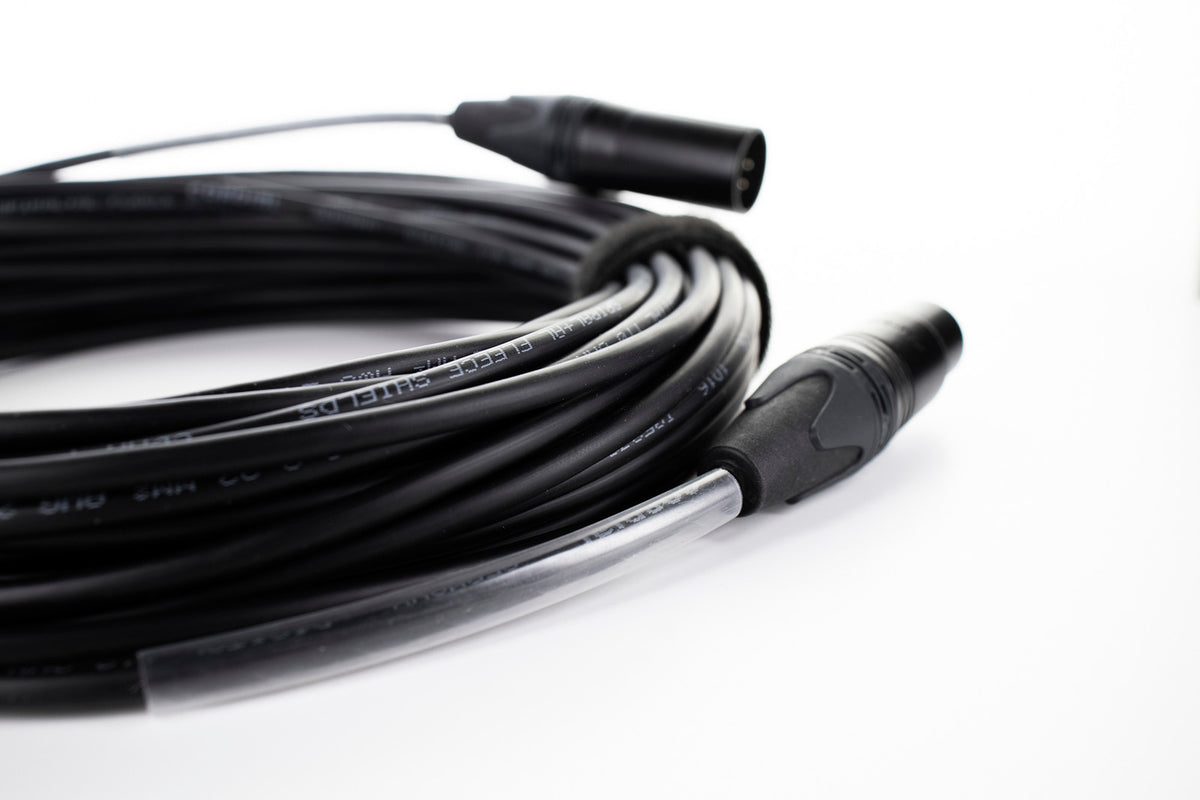

A black 4.5 mm diameter PVC jacket ensures flexible handling. A Velcro cable tie is provided to keep the cable coiled. Transparent jackets at the ends allow for labeling.
