Cordial DMX Cable 5-Pin Connected 5M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:

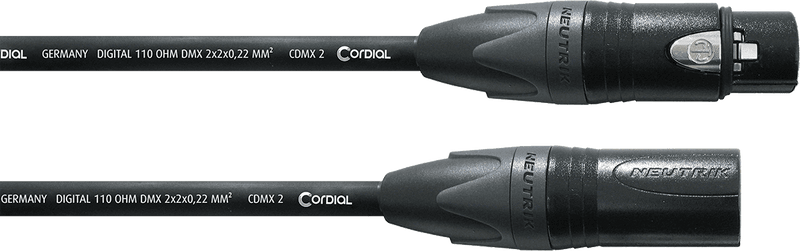

Essential Information About the Cordial CDX-2 5 m
- 5-pin DMX cable designed for precise control of professional lighting systems.
- Robust Neutrik 5-pin XLR connectors engineered for frequent setups on stage, tours, and events.
- Double shielding with tinned copper braid and aluminum foil for stable DMX 512 signal transmission.
- 5 m length ideal for connecting consoles, splitters, fixtures, moving heads, or DMX 5-pin compatible machines.
Technical specifications
| Connectors | 5-pin female XLR, 5-pin male XLR | Connector brand | Neutrik |
| From connectivity | XLR 5-pin male | Number of pairs | 1 |
| Towards connectivity | XLR 5-pin female | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | DMX cable | Shield type | tinned copper braid and laminated aluminum foil |
| Format | straight | Color | Black |
| Sheath material | PVC | Length (m) | 5 m |
| Oxygen-free copper | Yes | ||
Questions frequently asked
Is this 5-pin DMX cable compatible with DMX 512?
Compatibility with the DMX 512 protocol and EIA 485 compliant installations is stated.
What connectors are on the Cordial CDX-2 5 m?
The cable has a 5-pin male XLR at one end and a 5-pin female XLR at the other. Both connectors are Neutrik brand.
Is 5 m long enough to connect a DMX console to fixtures?
Its length of 5 m allows connecting a desk to a splitter, a fixture, a moving head, or a machine equipped with 5-pin DMX. This length is suitable for short-distance connections in control rooms or on stage. The connectors are designed for frequent plugging and unplugging.
What shielding is used on this DMX cable?
The transmission is protected by double shielding composed of a tinned copper braid and a laminated aluminum foil.
Is the cable suitable for the return data of DMX devices?
Thanks to its 5-pin XLR connectors, this model supports installations where device return data is used. The conductor is oxygen-free copper with a cross-section of 0.22 mm².
