Cordial DMX CABLE 5 POINTS 20 M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Essential Information About the Cordial CDX-1 20 m DMX Cable
- DMX 512 Cable designed for stable light data transmission, with a precise impedance of 110 ohms.

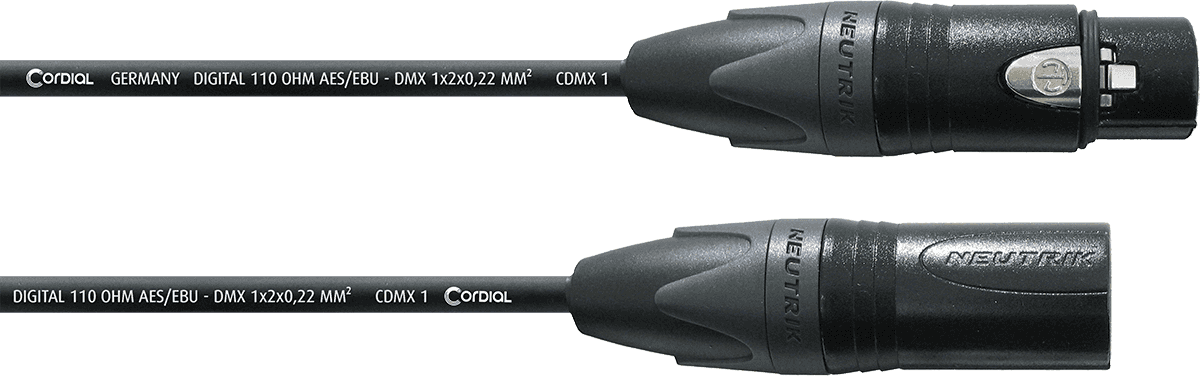

- 5-pin XLR connectors male and female, with 3 pins wired for common DMX configurations.
- Double shielding effectively limits interference on stage, in control rooms, or fixed installations.

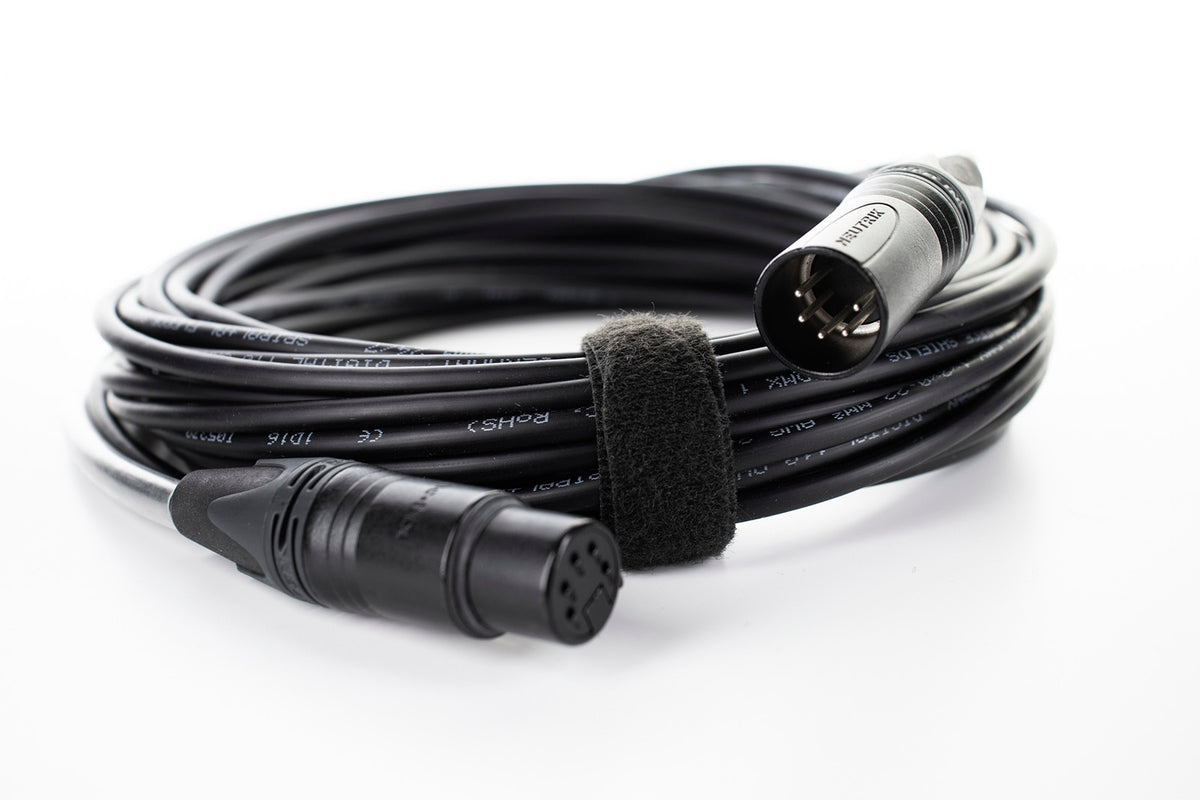

- Robust construction with Neutrik connectors, Velcro cable tie, and transparent jacket for labeling.
Technical specifications
| Connectors | XLR male, XLR female | Sheath material | PVC |
| From connectivity | XLR 5-pin male | Connector brand | Neutrik |
| Towards connectivity | XLR 5-pin female | Cable cross-section (mm²) | 0.22 SQUARE_MILLIMETER |
| Category | DMX cable | Color | Black |
| Format | straight | Length (m) | 20 m |
Questions frequently asked
Is the Cordial CDX-1 20 m compatible with DMX 512?
This cable is designed for the DMX 512 protocol and meets the required 110 ohm impedance for lighting data transmission. EIA 485 compliance is also indicated.
What type of XLR connectors are used?

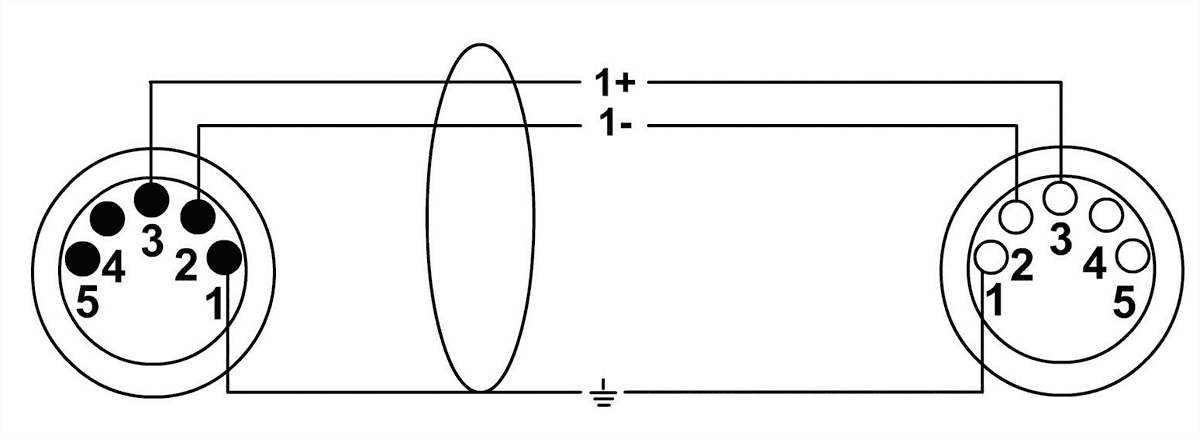

The ends come with a Neutrik 5-pin male XLR and a Neutrik 5-pin female XLR. Three pins are wired on each connector for standard DMX configurations.
Does a 20 m DMX cable limit interference?
The CDMX-1 cable features double shielding combining a laminated aluminum foil and plastic insulation. This design is intended to reduce interference on stage, in control rooms, or fixed installations. The outer jacket is black PVC.
What is the length of this DMX cable?
The length is 20 m, with a conductor cross-section of 0.22 mm².
Is the cable practical for identification and storage?

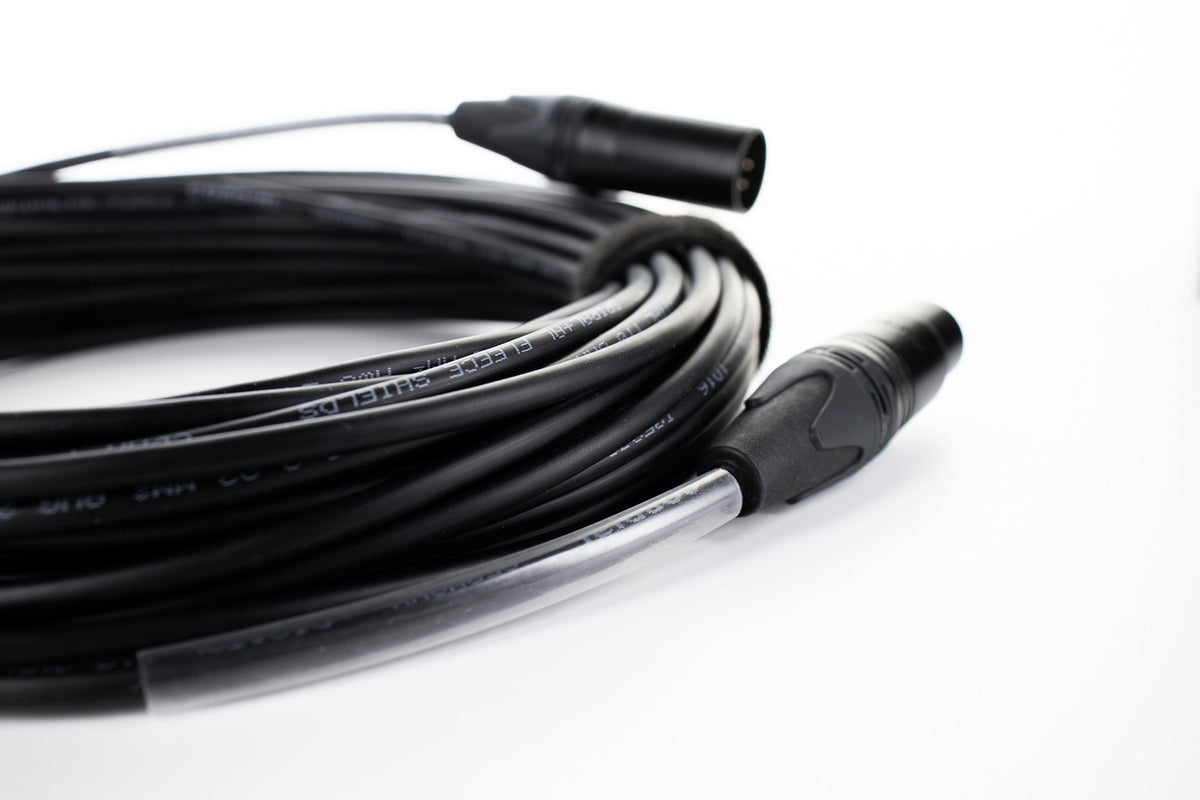

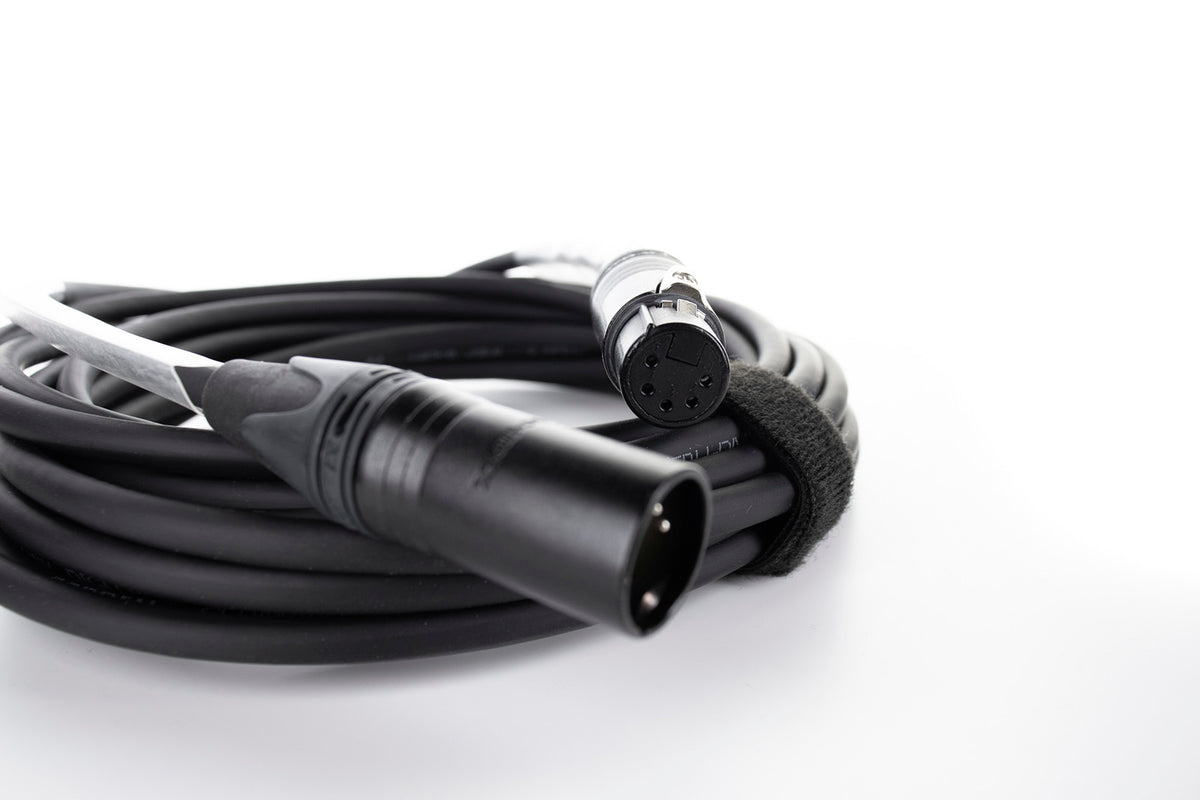

A clear heat-shrink sleeve is present at each end for labeling. A Velcro cable tie is provided to facilitate storage and attachment to structures.
