Cordial DMX XLR 5-pin + Powercon Cable 5 M
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Cordial
https://www.cordial-cables.com
info@cordial-cables.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Essential Information About This 5 m DMX PowerCon/5-Pin XLR Cable
- Hybrid DMX and power cable, ideal for simplifying the wiring of spotlights, moving heads, LED bars, and compatible stage equipment.

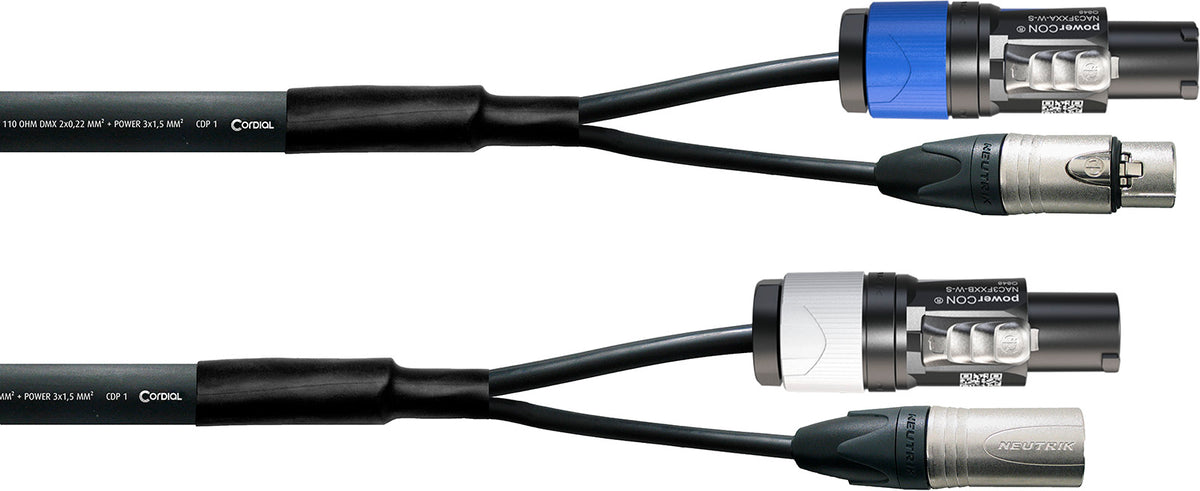

- Robust Neutrik connectors with blue female PowerCon and 5-pin female XLR on one end, gray male PowerCon and 5-pin male XLR on the other.
- Oxygen-free copper conductors for reliable DMX signal transmission and stable power supply both on stage and in fixed installations.
- Shielded with tinned bare copper braid and black PVC jacket, designed to withstand the demands of live performance and technical setups.
Technical specifications
| Connectors | powerCon, 5-pin XLR | Oxygen-free copper | Yes |
| From connectivity | XLR 5-pin female | Connector brand | Neutrik |
| Towards connectivity | XLR 5-pin male | Cable cross-section (mm²) | 1.5 SQUARE_MILLIMETER |
| Category | DMX cable | Shield type | tinned bare copper braid |
| Format | straight | Color | Black |
| Sheath material | PVC | Length (m) | 5 m |
Questions frequently asked
Is this cable compatible with DMX lighting fixtures using 5-pin XLR connectors?
The DMX link uses a 5-pin female XLR at one end and a 5-pin male XLR at the other. The 110-ohm impedance is suited to the DMX protocol.
What PowerCon connectors are used?
The assembly includes a blue female PowerCon and a gray male PowerCon, both from Neutrik. These connectors are paired with 5-pin XLR connectors at each end.
Can power and DMX signals be carried through a single cable?
This model combines a PowerCon power line and a 5-pin DMX control signal in the same cable. This setup reduces the number of cables between compatible lighting devices. The 5 m length is suitable for connections on trusses, totems, or the floor.
What is the length of the Cordial Cable DMX XLR 5 Points + Powercon?
The total length is 5 m.
Is the cable suitable for regular stage use?
The black PVC jacket has a diameter of 15.1 mm and the cable weighs 266 g/m. Oxygen-free copper conductors and tinned bare copper braid shielding contribute to the reliability of DMX transmission and power supply.
