Cranborne Audio Camden EC1

Camden EC1: Cranborne's "clean" approach enhanced by the Mojo option

The Camden EC1 embodies Cranborne Audio's philosophy: offering a very high-performance preamp designed to be clean, fast, and faithful, in a standalone format easy to integrate into any studio setup. Where some so-called "transparent" preamps still impose a subtle imprint, the Camden EC1 aims for stable and reproducible capture, notably through phase and transient management that limits phase cancellation effects responsible for summation anomalies in multi-mic recordings. This model's particularity is to combine this "clean" foundation with Mojo, a discreet analog saturation circuit that can be activated on demand to expand the sonic palette without changing the audio chain.

A studio preamp for recording, DI, and coloration on demand

The Camden EC1 targets sound engineers, producers, and musicians seeking a reference microphone preamp for vocals, acoustic guitars, percussion, overheads, or any source where precision is paramount. Its low noise floor also allows amplification of low-sensitivity microphones with a comfortable sense of headroom and silence, useful for voice-over, soft takes, or sound design.

Thanks to dedicated microphone, line, and Hi-Z input modes, the Camden EC1 can serve as a high-end instrument DI for bass and guitar, as well as a characterful tool on line-level sources: keyboards, drum machines, stems, or effects returns. The 6.35 mm jack Link outputs (per channel) facilitate routing during tracking, for example to record a DI while feeding an amp or another chain in parallel.

Transparency, precise recall, and analog saturation: key features

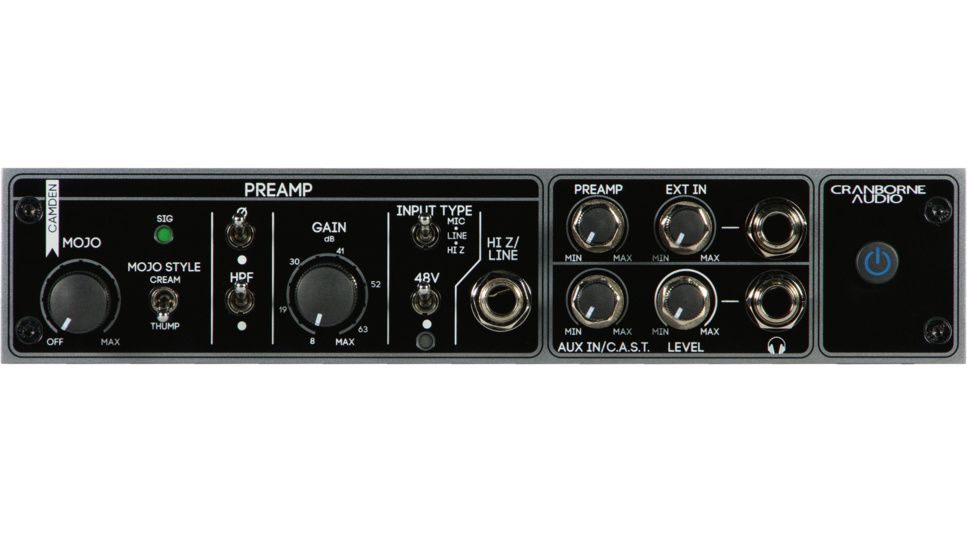

Precise and recallable gain

The 12-position rotary gain switch is a tangible asset in production: it allows for quick recall of session settings and reliable A/B comparisons. This is especially useful when reconstructing a tracking chain (vocals, doubles, re-recording) or when working on multiple songs with the same mic setup.

Mojo: character without losing control

Mojo is a discreet analog saturation circuit developed to add dimension without relying on imposed vintage topologies (transformers, legacy designs, etc.). The idea is to remain totally transparent when the session requires it, then introduce a more organic coloration with one control, subtly or strongly.

Mojo relies on a set of filters and discrete second- and third-order harmonic generators to reproduce saturation and bass enhancement behaviors typical of certain vintage transformer-based and tube gear. The Thump style is particularly suited for bass-rich instruments: it excites the low spectrum content by increasing harmonics in the 100 to 20 Hz and below range without boosting fundamental frequencies, which can give a sensation of fuller, better "placed" bass in the mix. Since this is not an equalizer, the result naturally depends on the source and its existing bass content.

Monitoring and studio integration

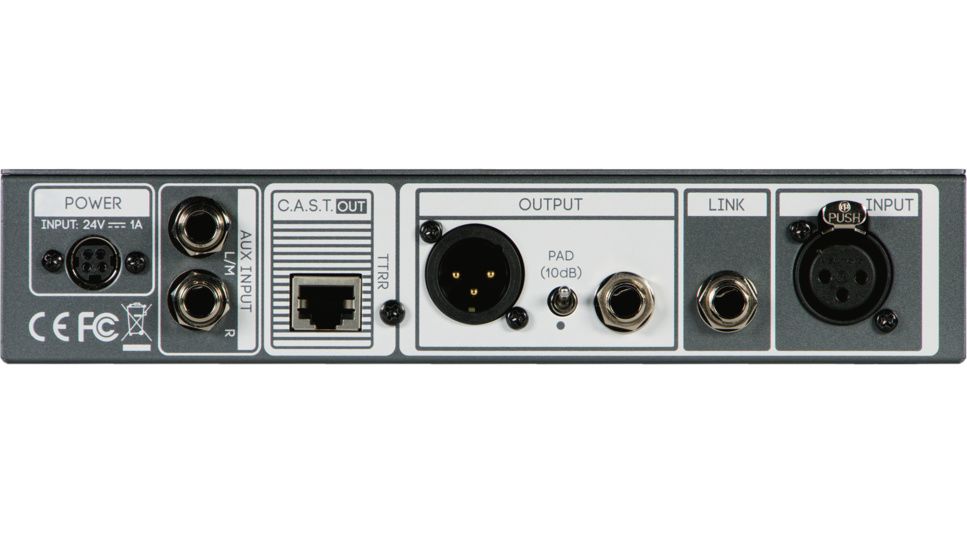

The Camden EC1 includes a headphone amplifier with independent mixes to facilitate tracking, as well as connectivity designed for studio integration, including the C.A.S.T. interface for insertion into compatible systems. The result: a compact, efficient tool for tracking as well as reamping/processing, which can be used as a main preamp or as a high-end "Swiss Army knife" to keep within reach.

Technical specifications
