Crazy Tube Circuits Orama - Fuzz

From Orange/Matamp Roots to the "Orama" Vision

True to its name ("vision" in Greek), the Orama condenses the Orange/Matamp aesthetic of the late 60s/early 70s into a modern pedalboard format. It features the chunky, roaring tone associated with historical references heard in Peter Green, Andy Powell, or Noel Gallagher, plus a 90's boutique fuzz character redesigned for more articulation and headroom. The whole covers classic rock crunch to the densest stoner/doom textures, without compromising musicality.

Who Is the Orama For?

Designed for intermediate to professional guitarists, the Orama excels in classic rock, heavy rock, grunge, stoner, and doom. In the studio, the AMP section can serve as a main channel directly into a speaker simulator or an interface. On stage, its compact format, top-mounted jacks, and two silent footswitches allow switching from pushed clean tones to massive riffs with one click, with or without fuzz stacking.

Controls, Routing, and Innovations

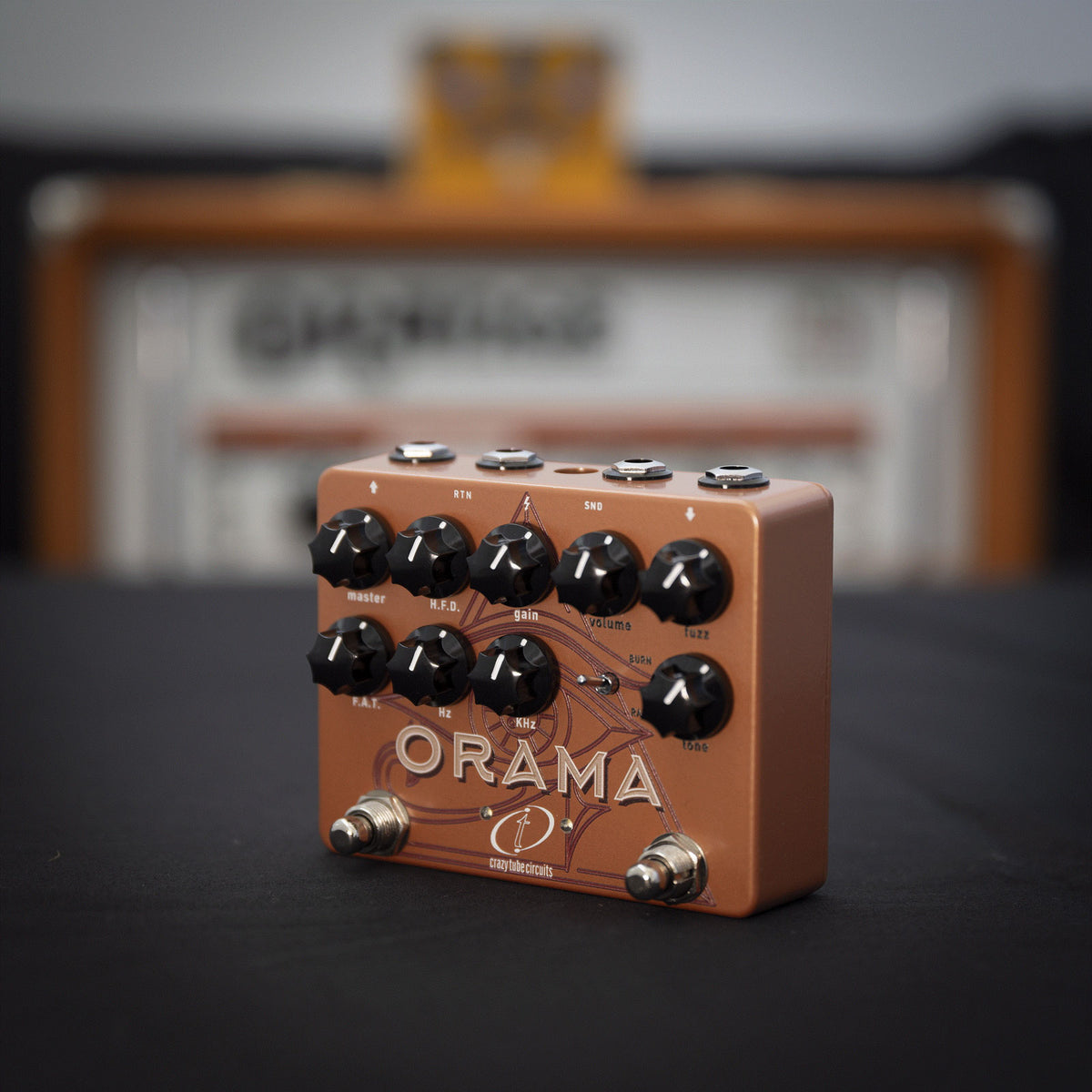

The AMP section, based on a high-voltage JFET circuit, offers gain, F.A.T. to sculpt low-mids, Hz (bass), kHz (treble), H.F.D. for brightness and presence, plus a generous master for preamp/boost roles. The FUZZ section provides fuzz, tone, volume, and two modes RAW/BURN to switch from granular softness to crushing sustain. Between the two, a passive serial loop allows insertion of delays, reverbs, or modulations for perfectly balanced chains.

The Sound

The AMP delivers thick low-mids, percussive attack, and exemplary responsiveness to playing dynamics and guitar volume, with "like an amp" harmonic complexity. The F.A.T. control adjusts density while H.F.D. adds brilliance and air without harshness. The FUZZ ranges from a warm veil to a biting, saturated grain, remaining clear even when tuned low. Stacked, the two sections build a singing, controllable wall of sound, ideal for cutting leads, authoritative power chords, and immersive doom landscapes.

Technical specifications

Effects	Fuzz, Preamp, Cabinet Simulator	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Brown
EQ	Tone

Usage	classic British rock sounds and modern stoner/doom textures	Character	gain structure, dynamics, and harmonic richness inspired by the Orange OR120
Operation	FUZZ and AMP sections usable independently or stacked	Recommended Use	amp input, power amp return, to a speaker simulator or audio interface
True Bypass	high-quality silent relay switching for each section	Effects Loop	passive serial loop between FUZZ and AMP to insert other pedals

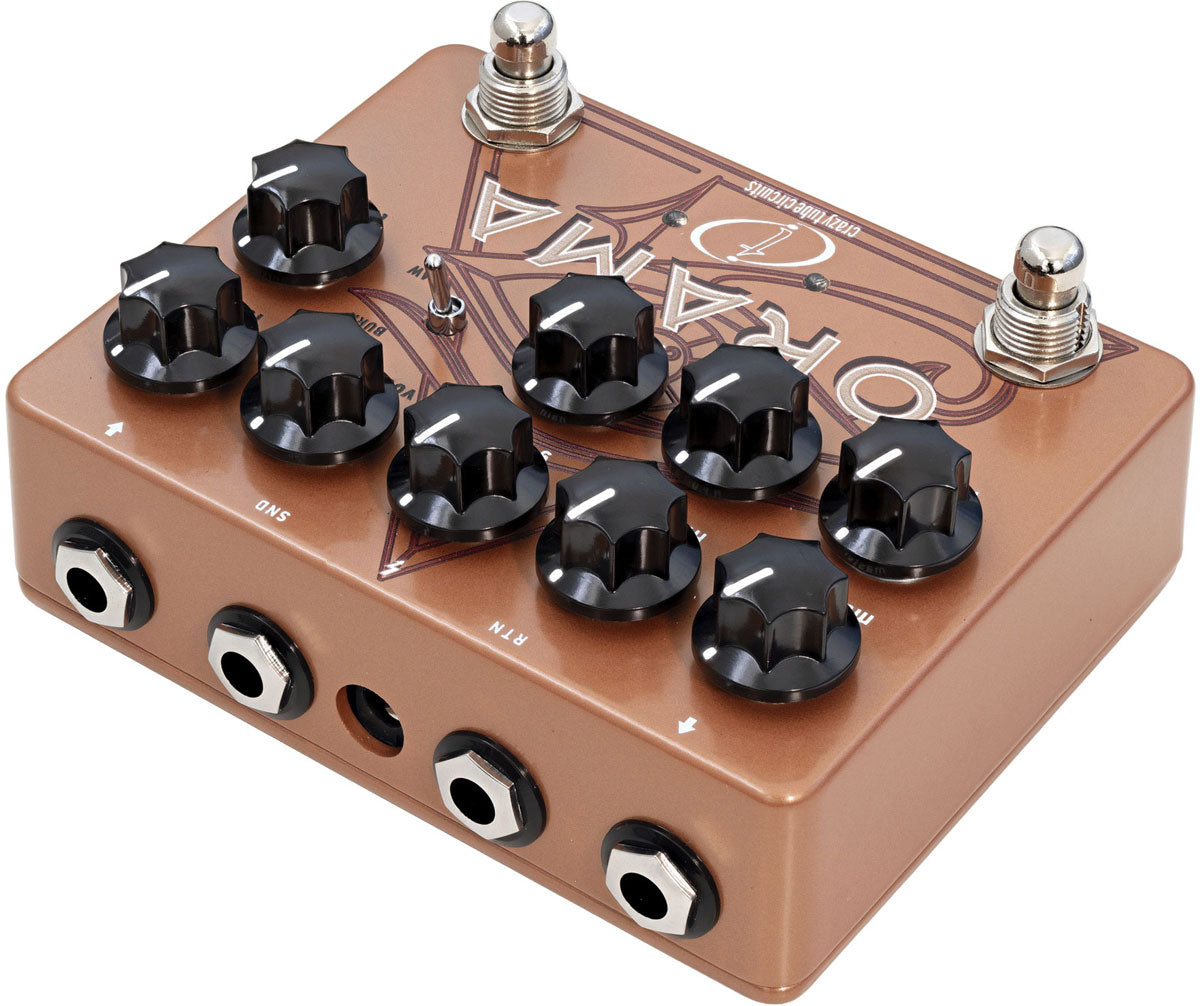

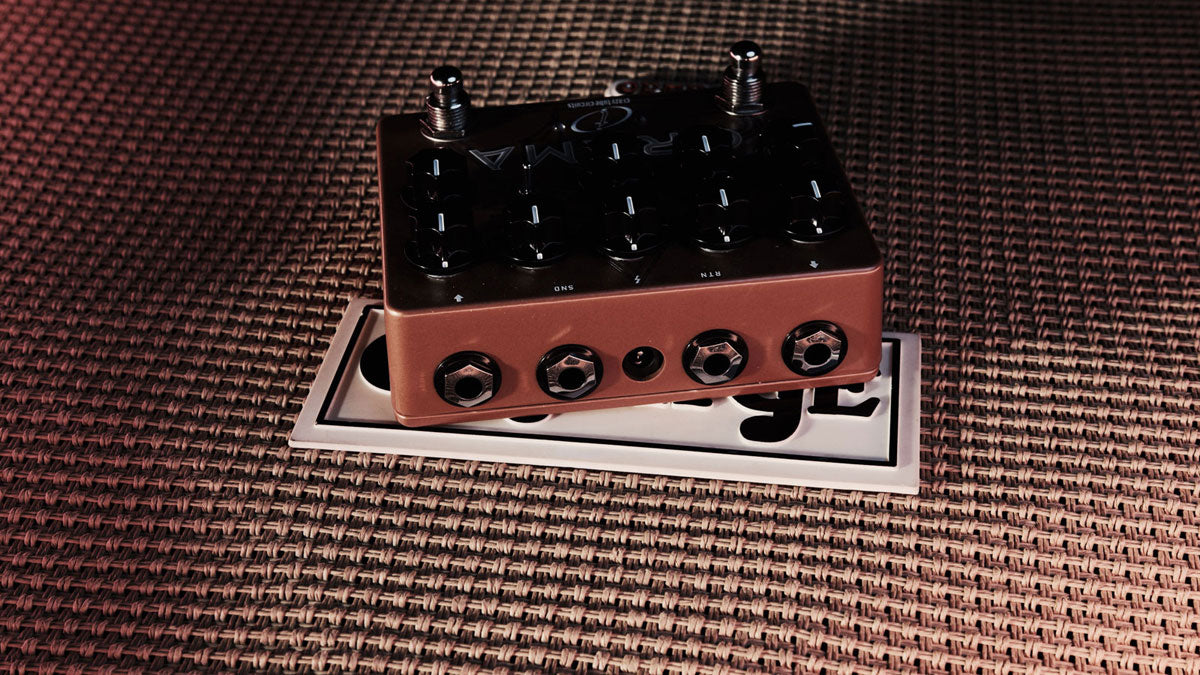

Indicators	2 footswitches and 2 LEDs (one per section)	Connectivity	6.35 mm jacks mounted on top (in/out)
Design	hand-designed and manufactured in Athens, Greece	Bypass/Activation	dedicated footswitch per section, relay-based bypass/activation switching
Item Number	Item 71018	Pedal Dimensions (L x W x H)	120 x 97 x 49 mm
EAN Code	5214001261512	Pedal Weight	approx. 423 g
Voicing	inspired by a 90's boutique fuzz, optimized for better articulation	Packaging Dimensions	14.8 x 12.3 x 7.3 cm
Controls	fuzz (intensity/saturation), tone (EQ from dark to sharp), volume (output level)	Packaging Weight	approx. 0.52 kg
Gain Modes	RAW (vintage character, tighter, reduced gain) / BURN (high gain, long sustain, enhanced lows)
