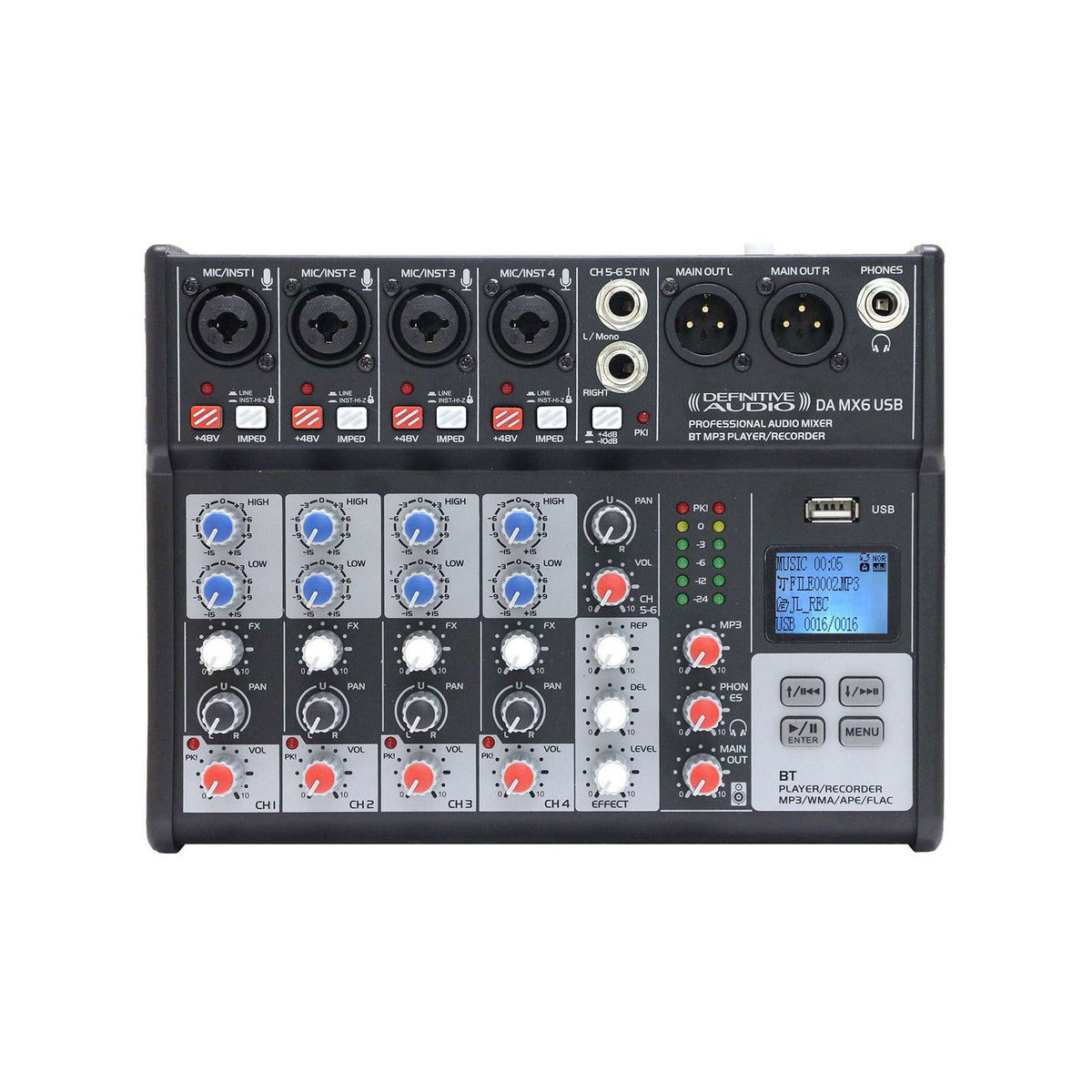

Definitive Audio Da MX6 USB
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
The essentials to know about the 5-channel Bluetooth mixing top
The essentials to know about the 5-channel Bluetooth mixing top
- Compact and versatile format: 5 channels to centralise microphones, line sources and a stereo channel in a reduced footprint.
- Stage- and studio-ready connectivity: 4 XLR/Jack combo inputs + 2 mono 6.35 mm Jack inputs, XLR outputs and a 6.35 mm Jack headphone output.
- Immediate sound control: gain, 2-band EQ (80 Hz / 12 kHz) on mono channels 1 and 2, with LED clipping indicators.
- Built-in Bluetooth: convenient for streaming a backing track, background music or a reference feed without cables.
Manufacturer Information
Definitive Audio
https://www.definitiveaudio.co.uk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
Essential Information About the 5-Channel Bluetooth Mixer
- Compact and versatile format: 5 channels to centralize microphones, line sources, and a stereo channel in a compact footprint.
- Connectivity ready for stage and studio: 4 combo XLR/Jack inputs + 2 mono 6.35mm Jack inputs, XLR outputs, and 6.35mm Jack headphone output.
- Immediate sound control: gain, 2-band equalization (80 Hz / 12 kHz) on mono channels 1 and 2, with LED clipping indicators.
- Built-in Bluetooth: convenient for streaming backing tracks, hold music, or reference monitoring wirelessly.
A Compact 5-Channel Mixer Designed for Modern Setups
This 5-channel mixer belongs to the category of compact consoles designed to focus on essentials: useful inputs, clear level monitoring, and quick handling. Its format facilitates integration on a home studio desk, streaming station, mobile control room, or small rehearsal space, while retaining XLR outputs suitable for clean output to active speakers or a PA system.
Who Is It For and What Are Its Uses?
It is aimed at musicians, singers, content creators, and technicians who need simple, reliable, and quick-to-adjust mixing. Mono channels 1 and 2 are particularly suited for vocals and instruments via microphone, thanks to the mic/line selector and +48 V phantom power (with LED indicator) for condenser microphones. The stereo channel and Bluetooth are ideal for adding a playback source (backing tracks, ambient music, mix references) and balancing everything without multiplying devices.
The 6.35mm Jack headphone output allows monitoring the mix at any time, whether preparing a set, checking a level before broadcast, or working in a home environment. LED clipping indicators per channel help maintain a clean signal, and the overall level display across multiple LEDs makes adjustments safer, even without an external VU meter.
Technical specifications
| Type | analog Compact | Rackable | No |
| USB stereo recording / playback | Yes | Headphone output | Jack 6.35, Yes |
| Number of faders | 7 | ||
| Mono inputs | 2 x 6.35 mm Jack | Master level indicator | 2 x 6 LEDs (4 green, 2 yellow and 2 red) |
| Gain | -14 to +40 dB | Maximum output level | 3 Vrms |
| Equalization | 2-band, 80 Hz and 12 kHz +/- 15 dB | Frequency response +/- 0.5 dB | 20 - 20000 Hz |
| Phantom power | +48 V with LED indicator | Dynamic range | 102 dB |
| Selector | mic/line | THD | less than 0.03% |
| Mono channels 1 and 2 clipping indicator | LED | Power supply | DC 5 V, 1 A |
| Stereo channel sensitivity | adjustable | Power consumption | max. 5 W |
| Stereo channel balance | adjustable | Dimensions | 220 x 66 x 165 mm |
| Stereo channel clipping indicator | LED | Weight | 1.17 kg |
| Connectivity | Bluetooth | ||
You will also like
Woodbrass
MP10 USB
Behringer
X1204 USB
Mackie
MIX12fx
Soundcraft
NOTEPAD-12fx
Yamaha
MG06
ALTO PROFESSIONAL
TRUEMIX800FX
Mackie
PROFX6V3
Korg
Volca Mix
Customer reviews
Based on 1 review
- 5 stars, 0 reviews
- 4 stars, 1 review
- 3 stars, 0 reviews
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
Good little compact table, no FX loop and the transformer is a bit light but overall it is very practical and the EQs are effective even if the mids are missing, as for the delay set sparingly it helps out. better than a xenyx in my opinion...
Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
Does the Definitive Audio Da MX6 USB accept condenser microphones?
The +48 V phantom power, indicated by an LED, allows the use of condenser microphones on mono channels 1 and 2. A mic/line switch adapts these inputs to the type of connected source.
Can a phone be connected via Bluetooth to this mixing console?
Bluetooth enables adding a wireless playback source, notably for streaming backing tracks or hold music.
What settings are available for a vocal or instrument?
On channels 1 and 2, gain ranges from -14 to +40 dB. The 2-band EQ affects 80 Hz and 12 kHz, with a correction range of +/- 15 dB. Channel clip LEDs help monitor the level.
Which outputs are used for active speakers and headphones?
XLR outputs allow connection to active speakers or a PA system. A 6.35 mm jack headphone output is provided for mix monitoring.
What are the dimensions and power supply of the console?
With dimensions of 220 x 66 x 165 mm and a weight of 1.17 kg, this model fits easily on a desk or mobile rig. It requires a DC 5 V / 1 A power supply and has a maximum consumption of 5 W.
