Definitive Audio TMX12 FX USB

What you need to know about the Definitive Audio TMX12 FX USB mixing console

• 12 MIC/LINE channels for managing microphones, instruments and audio players within the same mix.
• Built-in DSP effects and 7-band graphic equalizer for quickly shaping a clear, balanced sound.
• MP3 player, USB input and dedicated BT/USB section for easily playing music between two performances or during an event.
• Comprehensive connectivity and +48 V phantom power, suitable for both live performance and sound reinforcement installations.

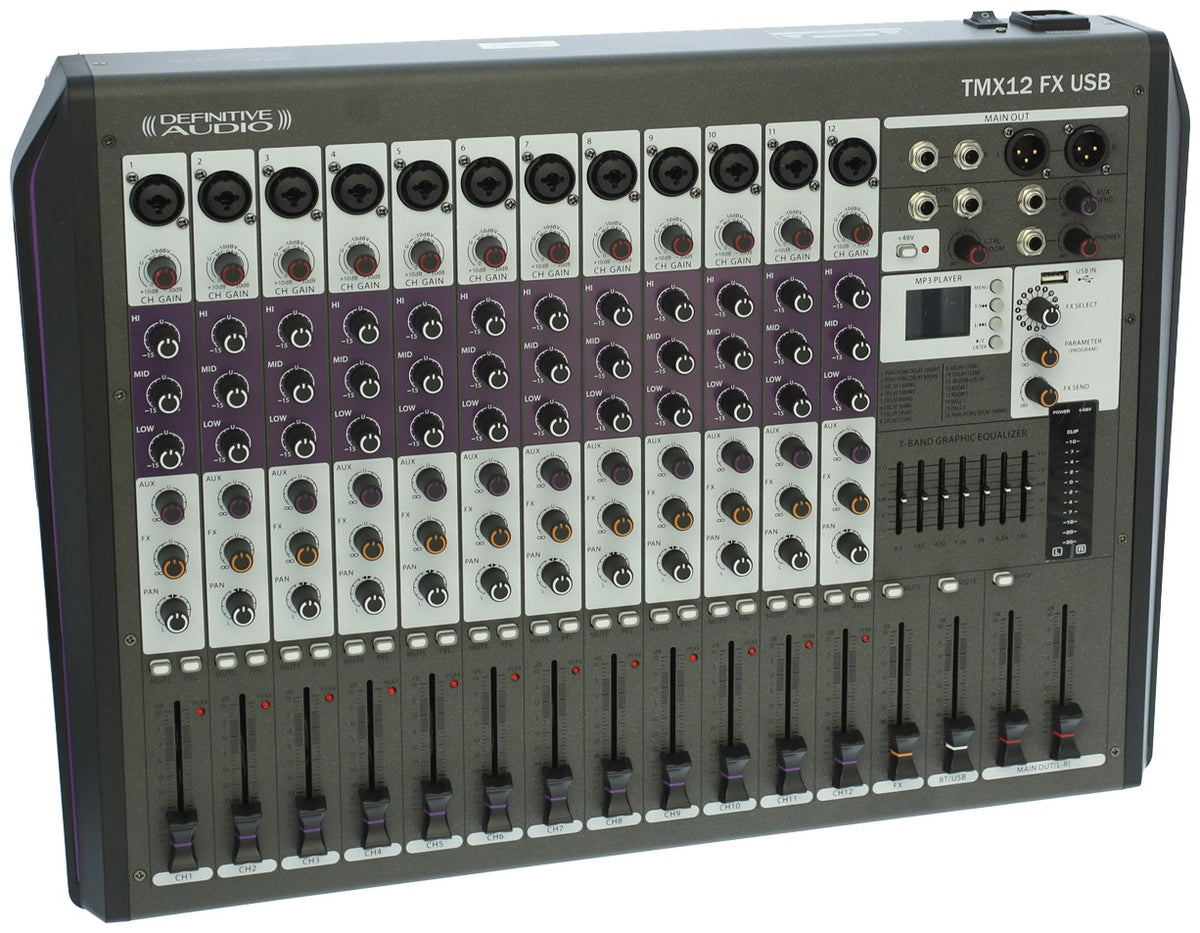

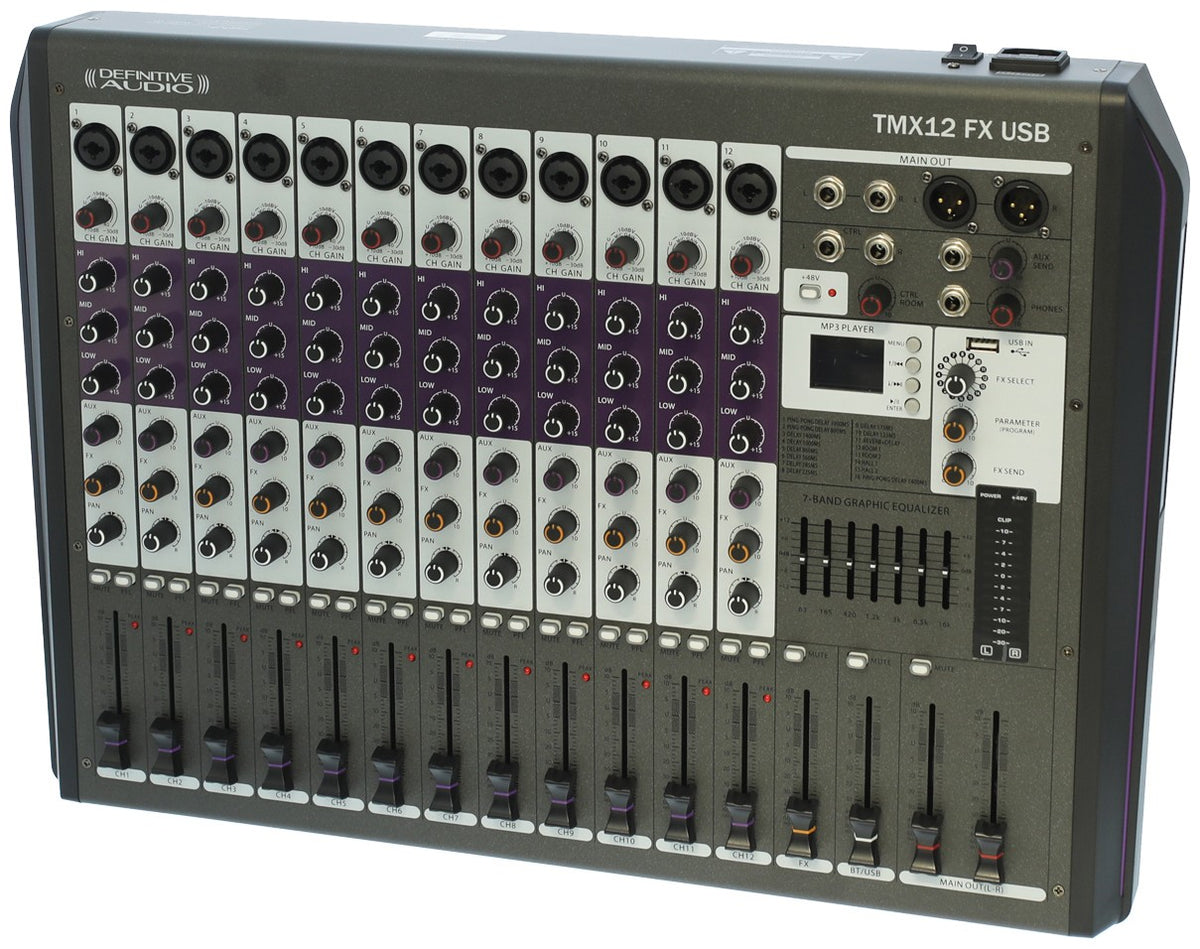

A compact mixing console designed for versatile mixing

The Definitive Audio TMX12 FX USB is an analog mixing console designed as a genuine control center for small- and medium-sized sound productions. It combines a comfortable number of channels, essential processing tools and practical audio playback functions in a format that is easy to integrate into a mobile control setup, rack or fixed installation.

Its straightforward approach will appeal to users looking for a top-performing console without complex navigation: every essential control remains accessible on the front panel. The linear faders, EQ controls and auxiliary sends make it possible to build a responsive, precise and intuitive mix, even when performance conditions require quick adjustments.

For bands, presenters, technicians and fixed installations

With its 12 MIC/LINE channels, the TMX12 FX USB is aimed at bands, singers, schools, associations, places of worship, multipurpose venues and event service providers. It can, for example, bring together several voices, electro-acoustic instruments, a keyboard, a drum machine or various playback sources on a single console.

It is also a relevant solution for DJ presenters and mobile sound engineers who want to manage presentation microphones, background music and stage monitors simultaneously. In a home studio or rehearsal environment, its PFL functions make it easy to monitor sources before sending them to the main mix, while the headphone output provides immediate monitoring.

Thanks to its +48 V phantom power, the console can accommodate compatible condenser microphones, expanding its possibilities for vocal recording, spoken presentations or demo recording. The PEAK indicators on each channel help monitor levels and maintain a clean signal without unwanted clipping.

Effects, equalization and audio playback for complete control of every performance

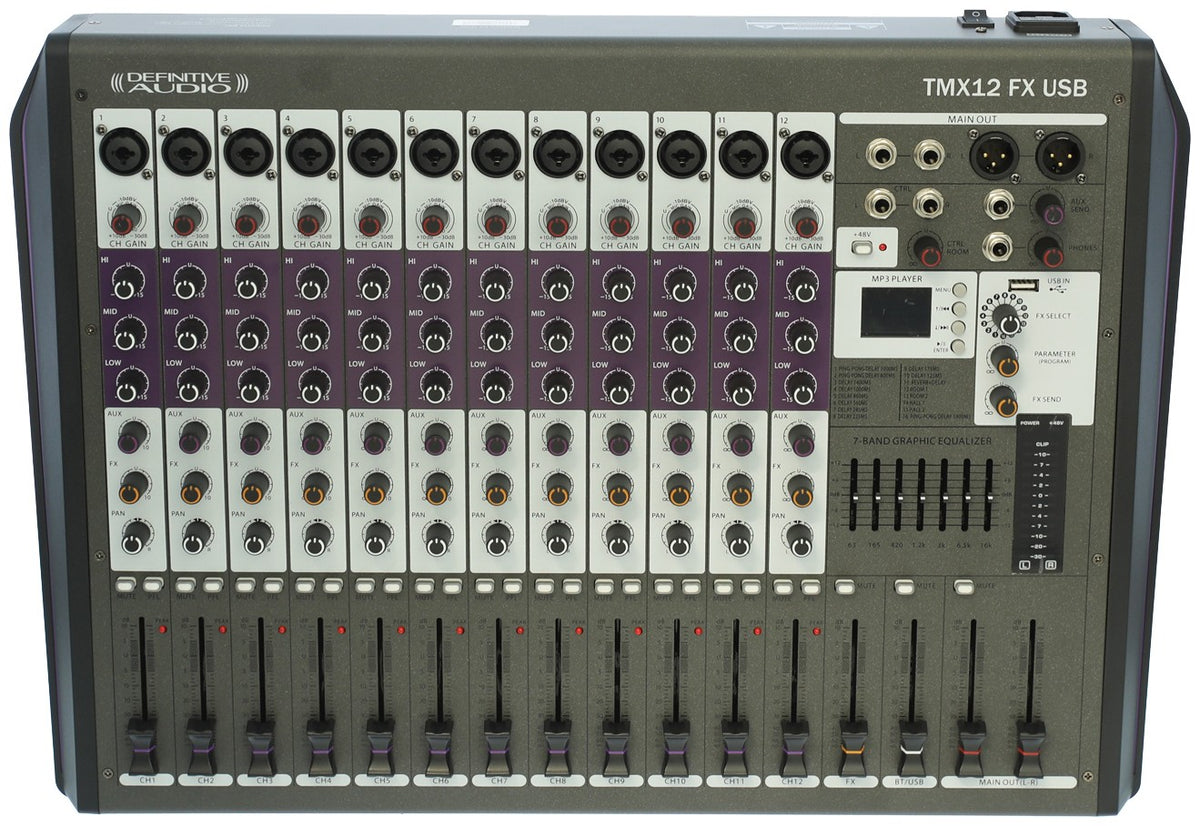

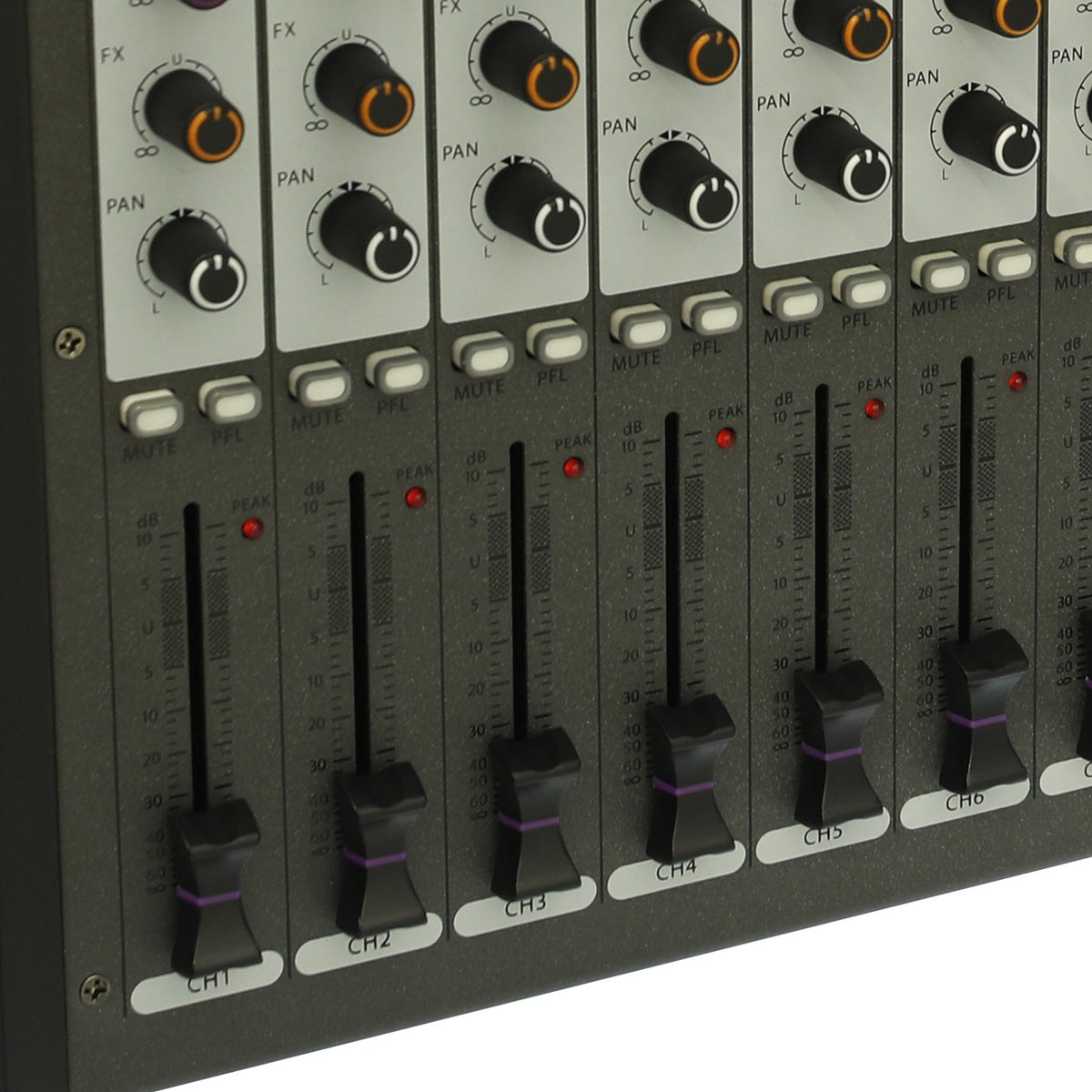

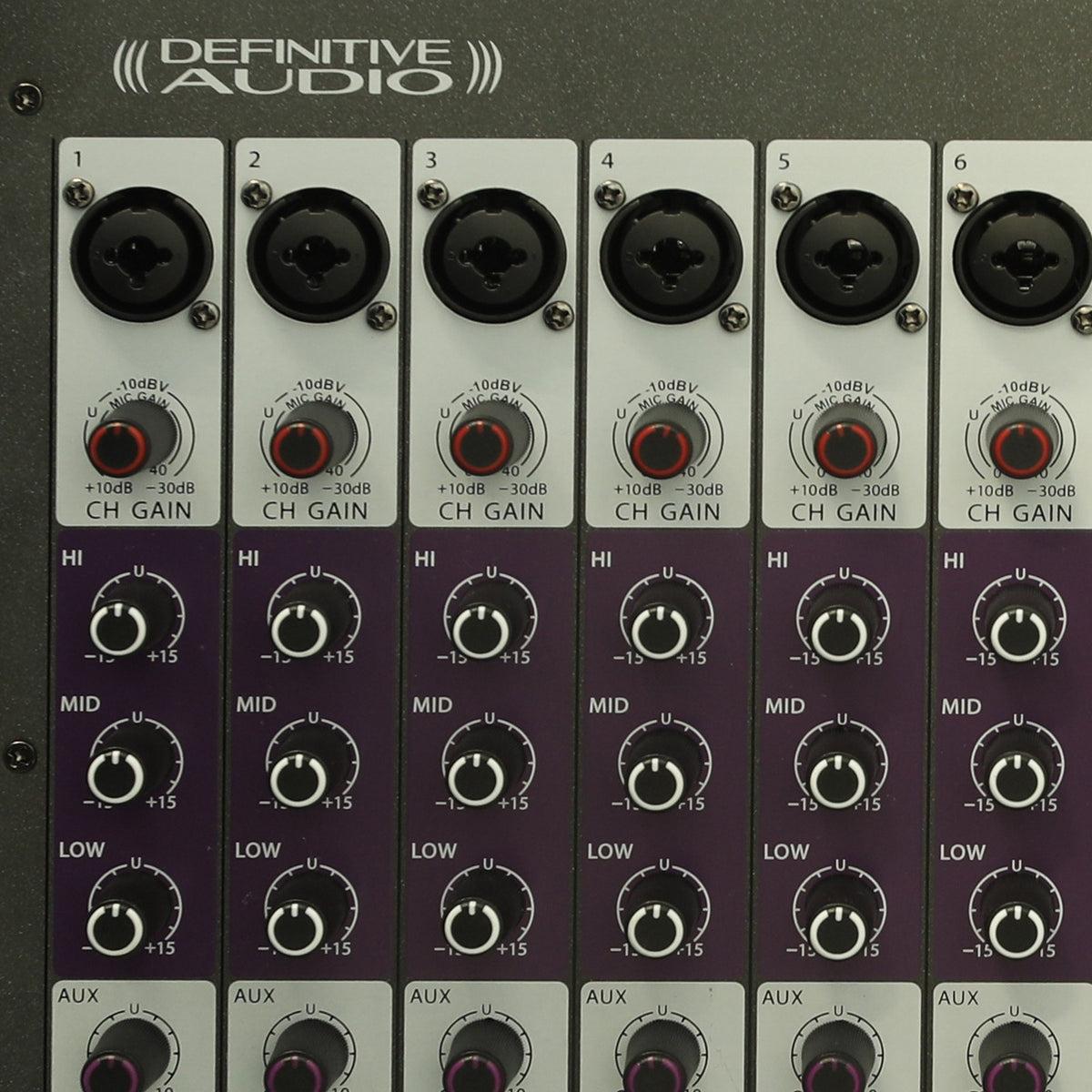

Each channel on the TMX12 FX USB features its own gain control, 3-band HIGH, MID and LOW EQ, AUX send, effect send, PAN control, as well as MUTE and PFL keys. This configuration makes it possible to adjust the sound color and positioning of each source separately, while preparing a monitor mix via the AUX SEND output.

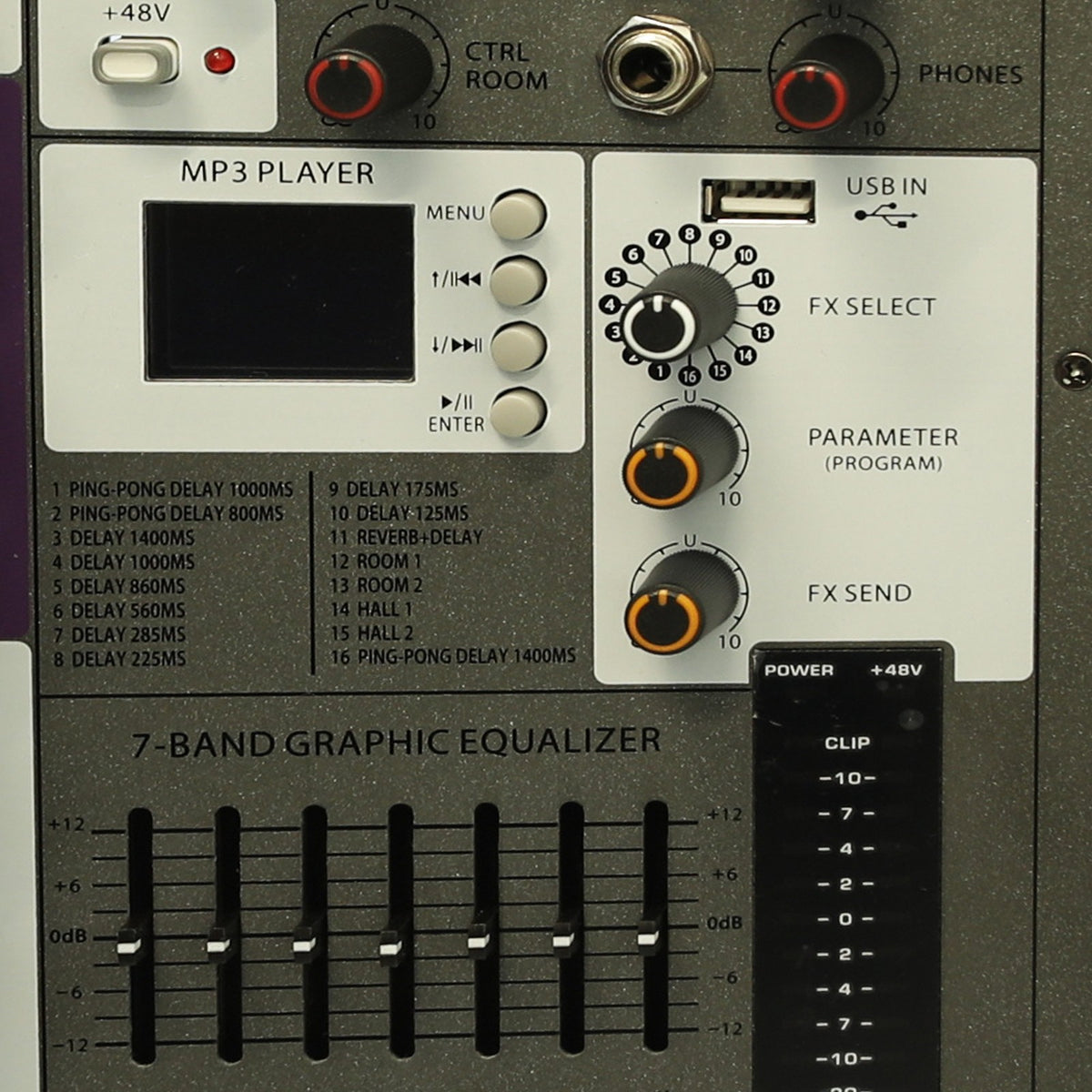

The built-in DSP processor offers 16 programmed effects, particularly useful for adding space to vocals, enriching a solo instrument or bringing greater coherence to a live mix. The FX Select, Parameter and FX Send controls allow you to choose and adjust the effect according to the needs of the performance. A dedicated fader for the FX section then ensures smooth integration of the effect into the overall mix.

To adapt the sound to the venue and sound reinforcement system in use, the console includes a 7-band graphic equalizer. It therefore becomes easier to attenuate an intrusive frequency, clarify a vocal's midrange or rebalance the sound of speakers installed in a reverberant room. The MAIN OUT L/R, CTRL ROOM and PHONES outputs provide comprehensive management of sound distribution and monitoring.

Finally, the built-in MP3 player, front-panel USB input and BT/USB section with dedicated fader provide a particularly convenient playback solution. Welcome music, event soundtrack, interlude or musical accompaniment: the TMX12 FX USB lets you manage these sources without taking up a traditional mixing channel.

Technical specifications

Type	Analog	Headphone output	Yes
Rackable	No

3-band equalizer per channel	HIGH, MID, LOW	EIN noise	-122 dBu
Graphic equalizer frequencies	63 Hz, 165 Hz, 420 Hz, 1.2 kHz, 3 kHz, 6.5 kHz and 16 kHz	CMRR	greater than 75 dB at 1 kHz
Frequency response	20 Hz to 22 kHz, ±1 dB	Crosstalk	greater than 80 dB at 1 kHz, fader closed
Maximum input level	Mic +10 dBu, Line +22 dBu	Maximum output level	XLR +22 dBu, TRS +20 dBu
THD+N	less than 0.05 percent at 1 kHz
