Diamond COMP-eq

A Modernized "Yellow Box" Legend: The Diamond DNA with More Control

Since its beginnings in Canada in the early 2000s, Diamond has carved out a unique place thanks to a simple philosophy: enhancing the sound quality of the modern guitarist with musical settings that are immediately usable. The Diamond compressor has become a classic for its very flattering optical compression and its "mastering" approach to the pedalboard.

The Diamond Pedals Comp/EQ retains the original circuit architecture while bringing it into a new generation version: a wider useful range on the compression control, a more complete equalization section, and a Mids control that allows you to position the guitar perfectly in the mix. The result: a pedal that can stay on permanently, both as a dynamic tool and as a "finisher" for your tone.

Who It's For, Which Styles, and Where to Place It in the Signal Chain

The Comp/EQ is aimed at both beginner guitarists (who want a more consistent and "pro" sound without getting lost in complex parameters) and experienced musicians looking for a characterful compressor capable of acting as glue and precise equalizer.

It excels on clean and edge-of-breakup tones: funk (tight attacks), country (more controlled picking), pop, rock, indie, worship/ambient (clean sustain), and even in studio contexts to achieve a more stable take right from the input. On stage, it helps maintain consistent dynamics from one song to another, especially when transitioning from delicate arpeggios to more pronounced rhythms.

Regarding placement, you can use it at the very beginning (or very close) of the chain for a "classic compressor" behavior that controls attack and evens out nuances. Placed at the end of the chain, it approaches the role of a limiter and gives the overall sound a "mixed" feel. It can also serve as a tone shaping tool before or after overdrives/fuzz, by lowering compression and using the EQ to better highlight the grain.

Controls, Modes, and Design: A "Mastering" Approach in Pedal Format

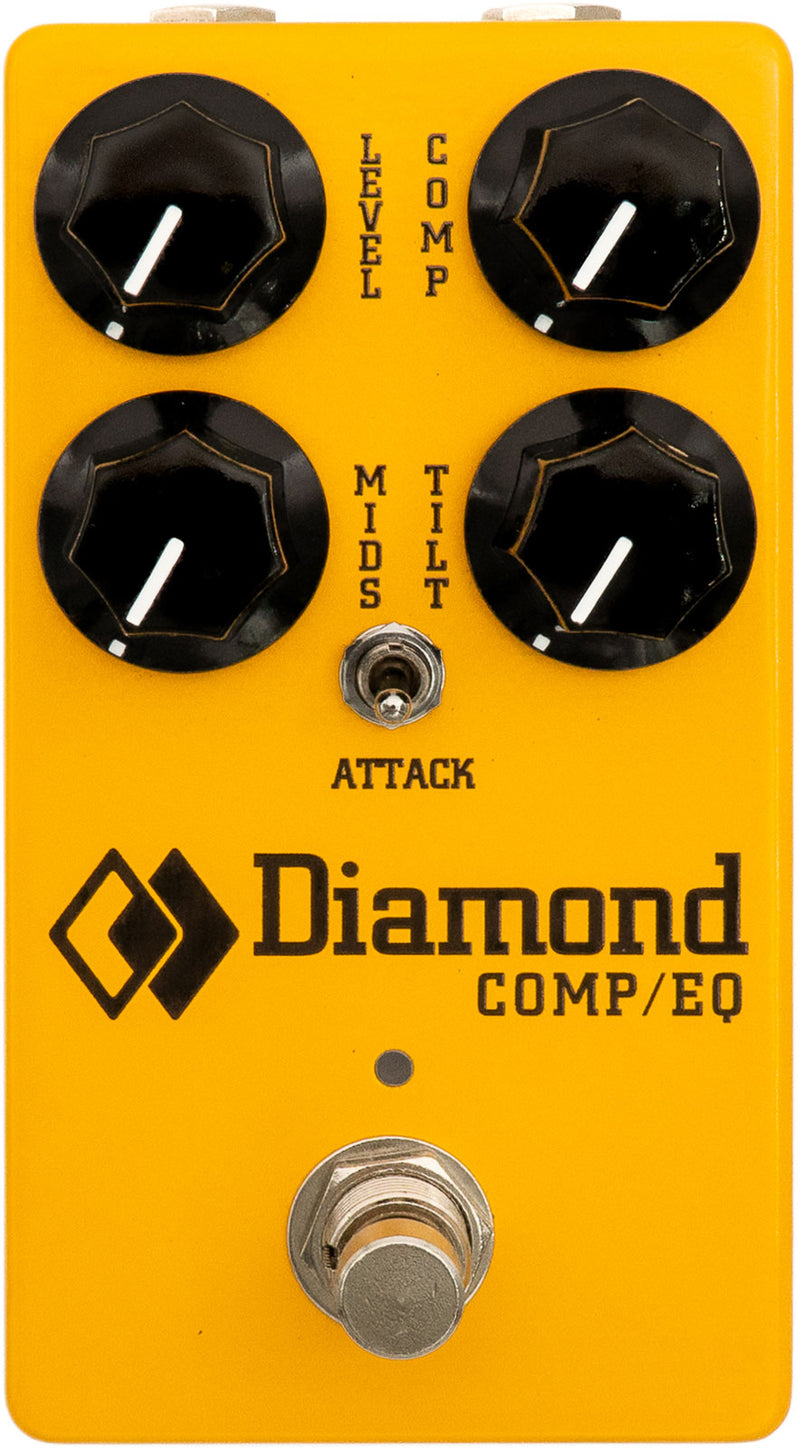

The Diamond Comp/EQ combines optical compression and active equalization designed as a musical corrector. The Level and Comp potentiometers control output level and compression amount, with an extended range and a handy bi-color LED indicator: you can immediately see whether you are in slight dynamic correction or more pronounced compression.

The EQ section consists of a Tilt (a "tilt" equalizer) and a Mids control. The Tilt acts as a global spectral balance: on one side you thicken and darken, on the other you open up and add brightness, all while remaining very musical. The Mids control allows you to cut for more air and spaciousness or boost to make the guitar stand out in a busy mix, especially in a band setting.

The 2-position Attack switch is the cherry on top: it adapts the compression feel to your playing. In fast mode, the attack is snappier and transients are controlled, perfect for tight funk or precise picking. In softer mode, the response is more transparent and longer, ideal for swelling sustain without a "pumping" sensation.

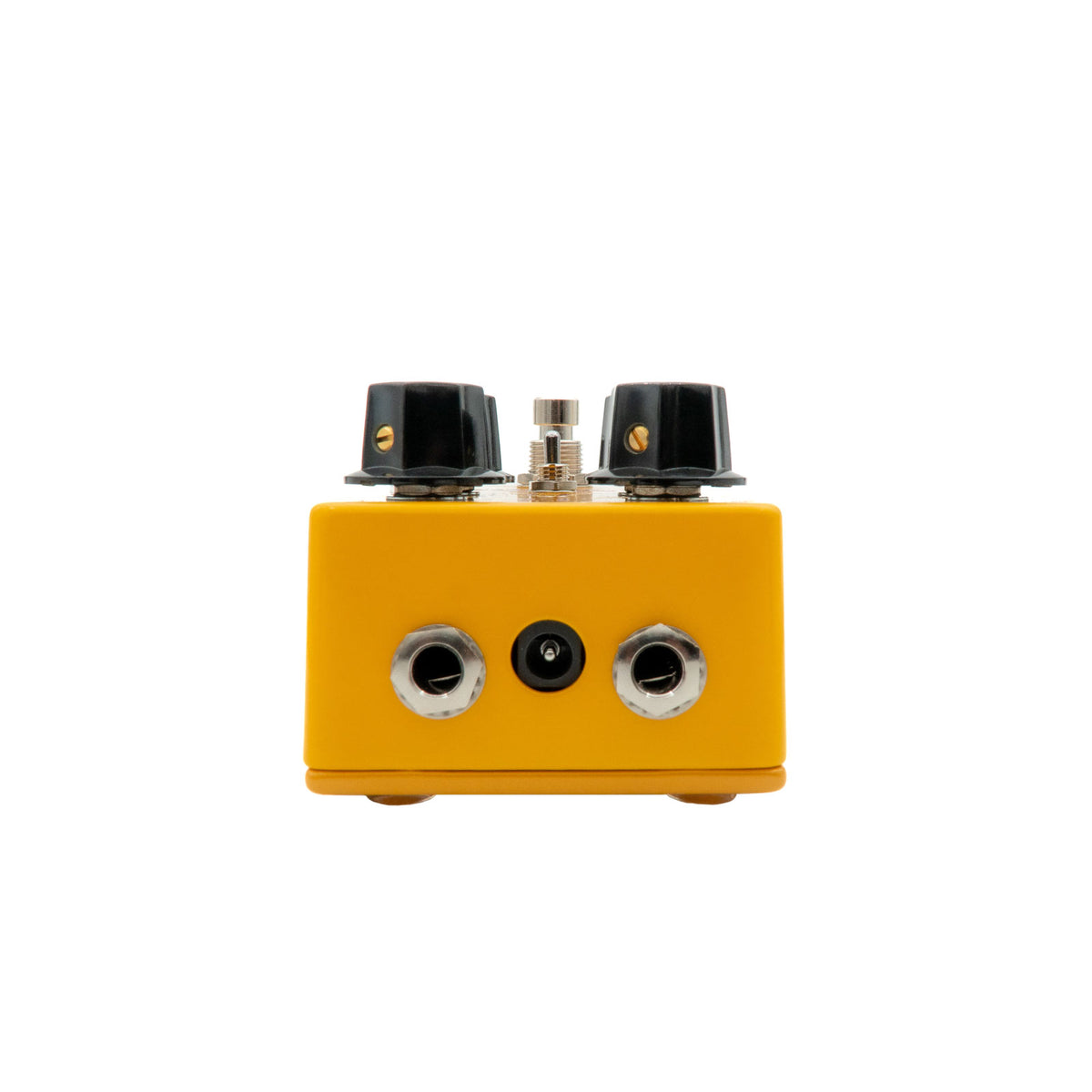

Finally, the pedal features an analog audio path with Burr-Brown components, custom American opto-isolators, modern silent footswitches, and relay true bypass. The top-mounted jacks facilitate integration on compact pedalboards.

Sound Signature

The Diamond signature is an organic sounding optical compression: smooth smoothing, a more "stable" playing feel, and dynamics that remain musical even when pushing the Comp control. Where some compressors become rigid or too obvious, the Comp/EQ maintains a pleasant breathability and a Hi-Fi character that highlights playing detail.

The Tilt EQ provides a real finishing touch, as if you instantly reposition your guitar in the spectrum: more clarity without harshness, or more body without muddiness. With the Mids, you can go from a modern, wide, scooped sound to a more present and "mix ready" tone. It's a particularly effective tool for adapting the same guitar to different amps, cabinets, or stage situations.

In spirit, it is clearly a "studio-friendly" compressor in pedal format, a type of tool regularly found on pedalboards oriented towards textures, pop/indie, and well-crafted clean sounds.

Technical specifications

Effects	EQ, Compressor	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Yellow
EQ	Tone

Guitar effects pedal	compression + equalization	Output impedance	less than 10 k?
Potentiometers	Level, Comp, Mids, Tilt	Input	6.35 mm Jack
2-position Attack switch	ultra-fast response or softer, more transparent compression with more sustain	Output	6.35 mm Jack
Mids	boost/cut +/- 10 dB	Dimensions	122 x 66.98 x 39.64 mm
Tilt EQ	+/- 6 dB	Weight	280 g
Tilt EQ pivot frequency	800 Hz	Required power supply	9 VDC to 18 VDC, center negative, 2.1 mm plug
Mid EQ center frequency	800 Hz	Consumption	22 mA at 9 VDC
Switching	Relay True Bypass	Battery operation	no
Input impedance	greater than 1 M?	Power supply	not included
