Earthquaker One to Four Splitter

Name: One to Four Splitter
Brand: Earthquaker
SKU: 410612
Price: 125.00 EUR
Availability: InStock

125,00 €VAT incl.

0,14 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 410612

EAN : 0810019914577

This item is covered for 3 years

Information

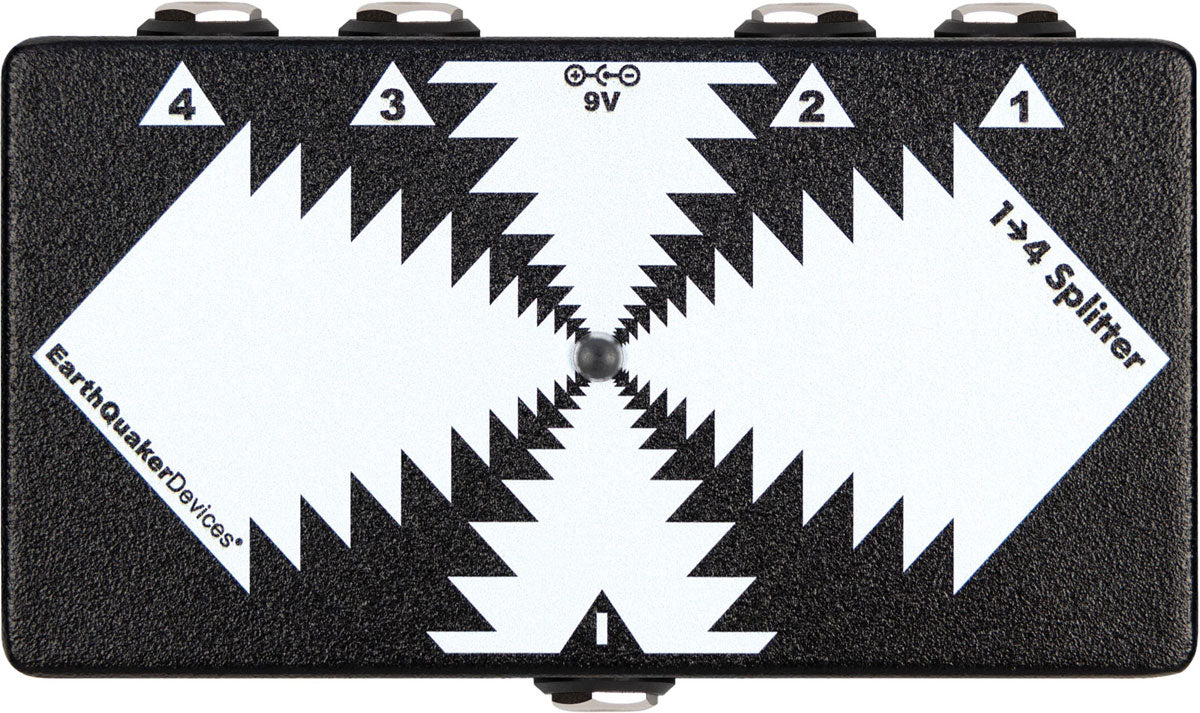

Essential Information About the EarthQuaker Devices One to Four Splitter Pedal
• 1 input to 4 outputs to feed multiple amps, multiple effects chains, or multiple recording tracks in parallel.
• 4 buffered outputs with unity gain : your signal remains punchy, stable, and coherent, even with long cables.
• Ultra-creative routing tool : wet/dry, quadraphonic, double parallel stereo, "safety" split for the studio.
• Pedalboard-friendly format : a simple, robust utility designed for modern rigs.

One to Four Splitter

125,00 €VAT incl.

0,14 € Ecotax included

Reference price

A Routing Utility Designed for Modern Setups

The One to Four Splitter is not an effects pedal in the "tone coloring" sense: it is a routing building block designed to solve a very concrete problem for guitarists (and more broadly musicians) today: multiplying signal paths without losing quality. In the spirit of studio tools (patching, splitting, multiple outputs), EarthQuaker Devices offers here a compact solution for pedalboards, perfectly suited for multi-amp setups, wet/dry systems, or hybrid recording configurations. It naturally pairs with the Four to One Mixer to create advanced parallel chains and can also integrate into even more ambitious setups by stacking multiple splitters.

Who Is the One to Four Splitter For?

This pedal is aimed both at musicians who want to secure and professionalize their signal and at routing enthusiasts. Guitarists and bassists will find a solid base to drive multiple amps (clean on one side, distorted on the other, or four distinct voicings), while fans of textures (post-rock, ambient, shoegaze) can build very clear parallel layers (long reverb on one path, modulation on another, drive on a third, etc.). In the studio, it becomes invaluable for recording a dry signal simultaneously with one or more processed signals, useful for reamping or keeping a clean backup take. It also works very well with rigs involving synths, drum machines, or other gear when the goal is to distribute a signal to multiple destinations.

Technical specifications

Effects	Signal Splitter	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Black

Questions frequently asked

Does the Earthquaker One to Four Splitter power four amplifiers?

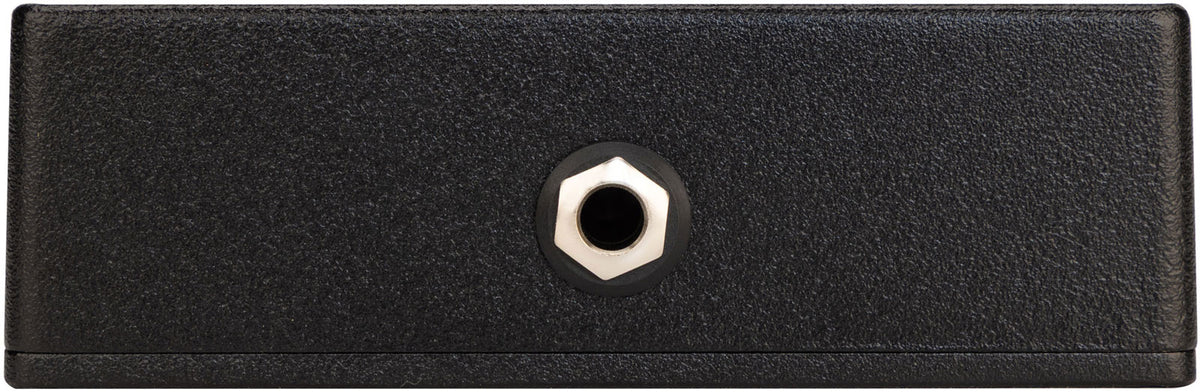

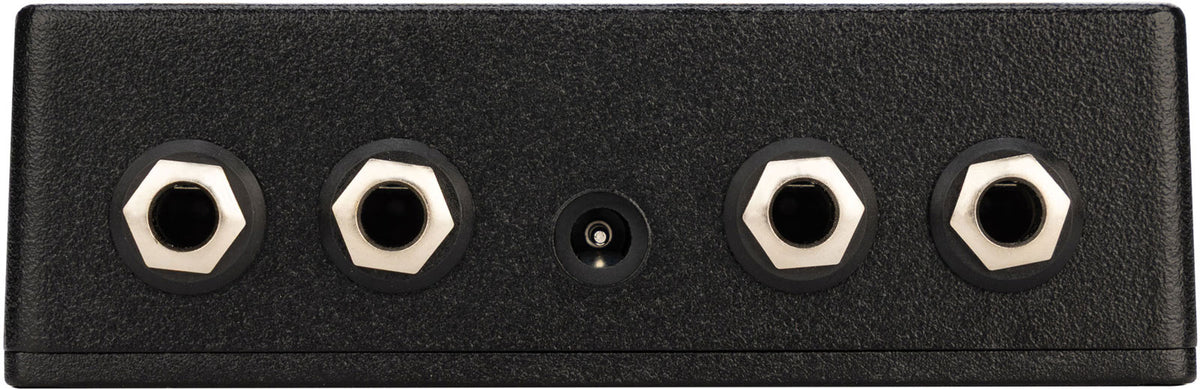

A 6.35 mm mono jack input is routed to four 6.35 mm mono jack outputs. Each output features a unity gain buffer to send the signal to multiple amps or effects chains.

Does the signal remain neutral with multiple outputs?

The unity gain buffers are designed to preserve attack, dynamics, and frequency balance. The 1 MΩ input impedance and 100 Ω output impedance limit losses related to cables and passive splits.

Can it be used for a wet/dry setup or parallel effects?

It is possible to create four separate paths, for example a dry signal, a reverb, a modulation, and a drive. Combining it with the Four to One Mixer then allows parallel chains to be combined.

What power supply is needed for this splitter?

The required power supply is 9 V DC via a 2.1 mm center-negative plug, with a consumption of 15 mA. The power supply is not included. Voltages higher than 9 V must not be used.
