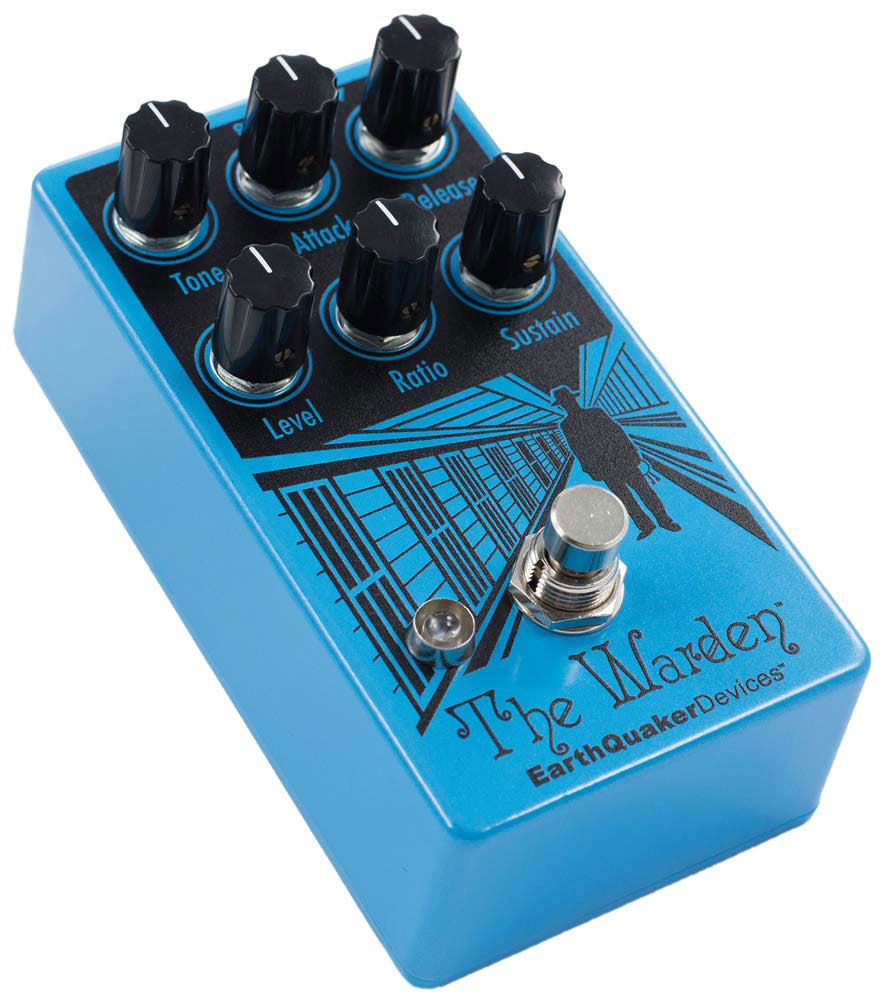

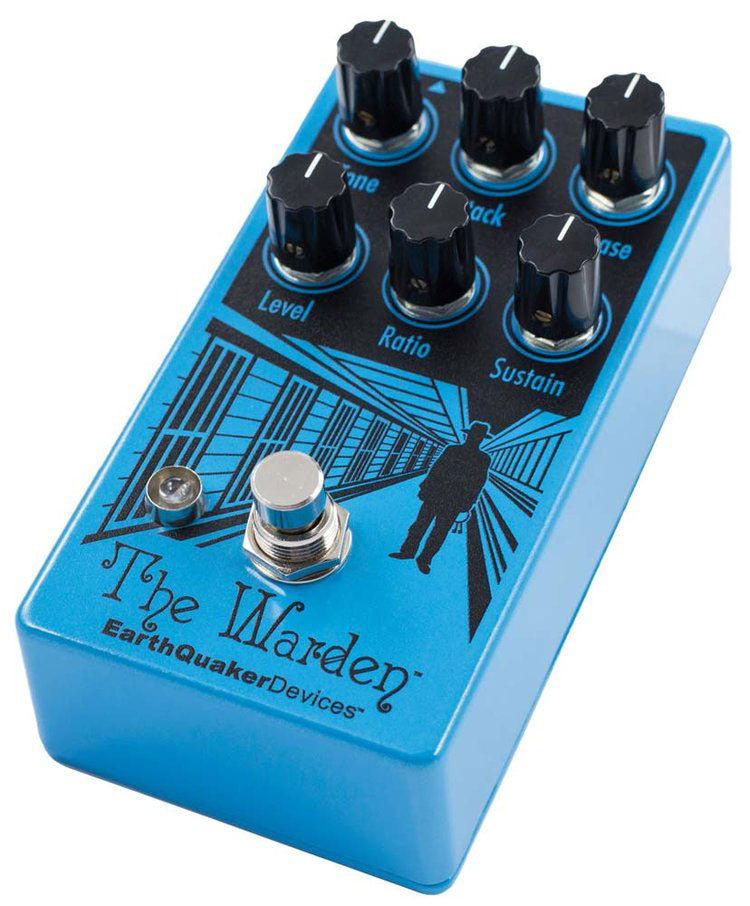

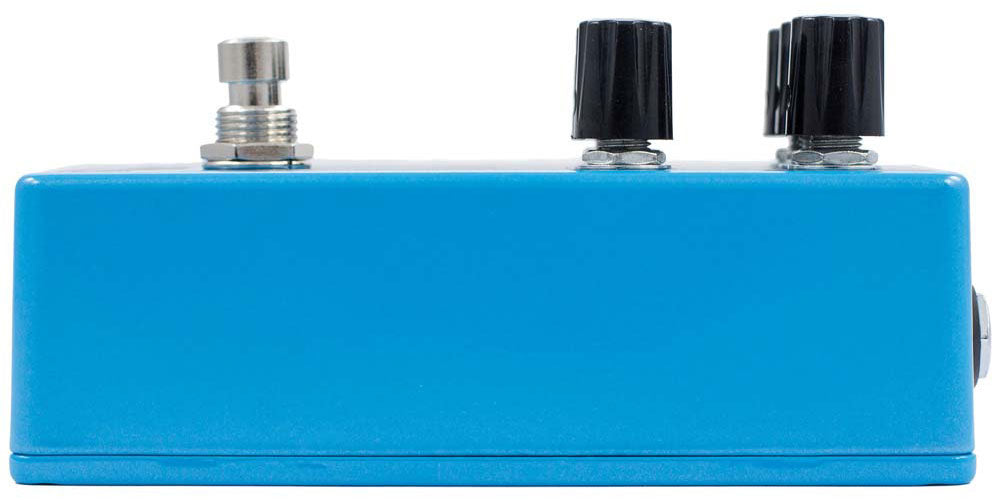

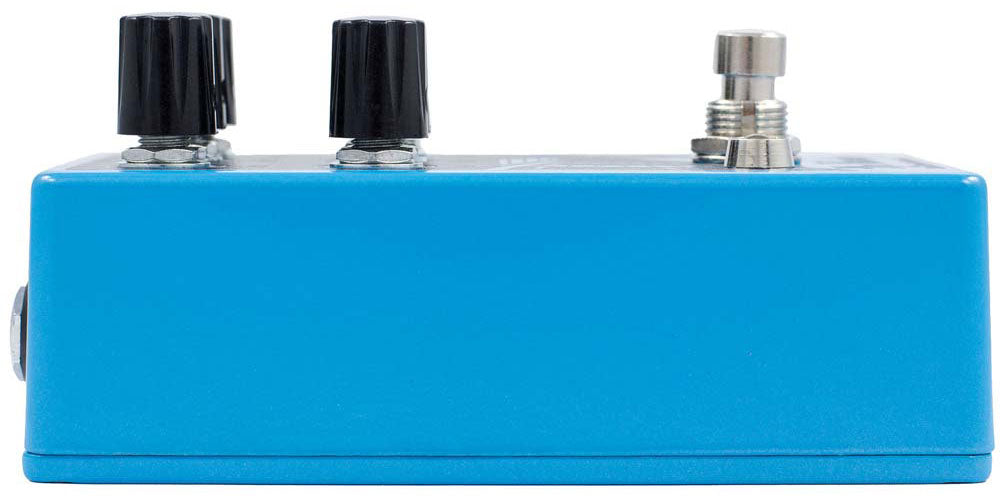

Earthquaker Warden V2

An Optical Compressor Designed as a "Studio" Unit in Pedal Format

Optical compression is renowned for its musical behavior: it "supports" the signal instead of crushing it abruptly, providing a very pleasant breathing sensation under the fingers. The Warden embraces this spirit while going further than many classic guitar compressors, thanks to comprehensive controls usually found on studio processing gear.

Its internal 18V power supply (sourced from an external 9V supply) provides dynamic headroom and clarity, particularly useful if you play with humbuckers, active pickups, or if your pedalboard already includes boosts and overdrives. The result: more stable compression, less "clogged" sound, and a comfortable level reserve.

Who It's For and In Which Contexts The Warden Makes a Difference

The Warden is aimed at guitarists (and bassists) who want to control their dynamics without sacrificing their instrument's character. Beginners can use it as a simple "leveler" to even out attacks and gain playing comfort. Intermediate to advanced players will appreciate the ability to precisely calibrate the behavior: very fast "squash" compression for funk, or subtle "barely there" settings to thicken a clean tone without revealing the effect.

In live settings, it secures nuances and improves clarity in the mix, especially on arpeggios, fingerpicking, and open chord passages. In studio, it helps achieve more consistent takes with controlled sustain and a more coherent attack. On a pedalboard, it is generally placed early in the chain (before distortions) to smooth the input, or after a mild overdrive if you're seeking a "glue" and sustain effect.

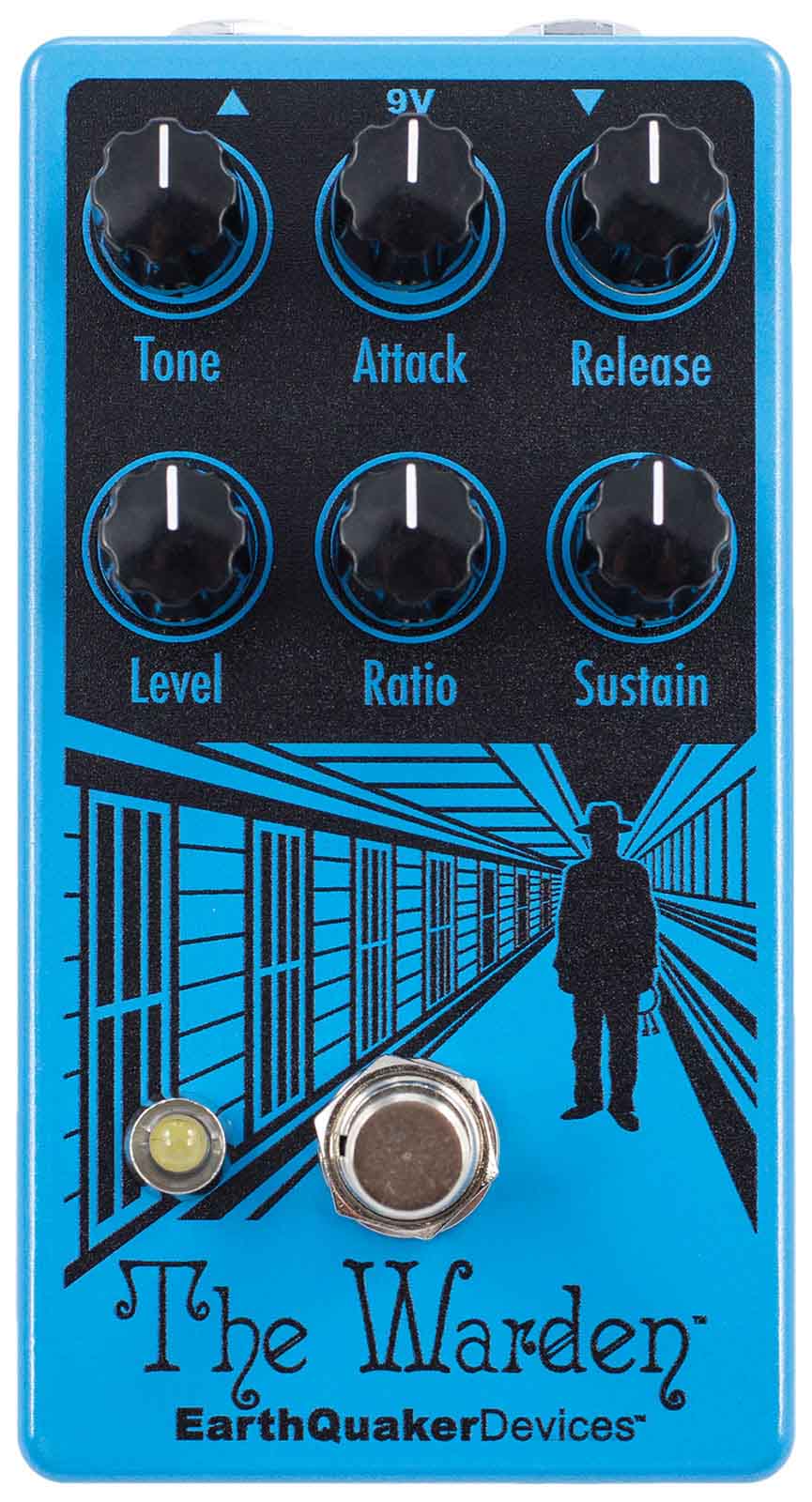

Controls and Design: Total Compression Control

Tone adjusts the pedal's subtle coloration: turning left softens the highs; turning right increases brightness and presence. The sound is close to a neutral balance around 11 o'clock, facilitating integration with any amplifier.

Attack sets the compressor's response speed. Very fast, the effect immediately catches the transient, giving a "snappy" and controlled feel. Slower settings let more natural attack through, ideal for preserving pick attack or the punch of dynamic playing.

Release controls the speed of return to normal level after compression. Short release accentuates the "pumping" effect and can make playing very percussive. Long release provides smoother sustain, perfect for singing lines and clean sound layers.

Ratio determines how much the gain reduction "tightens" the signal. At low ratios, compression remains soft and organic. Increasing the ratio leads to more pronounced smoothing, useful for evening out significant level differences between strings, pickup positions, or playing techniques.

Sustain is the core of the behavior: the higher you set it, the more active the compression becomes, with longer sustain and a "warmer" signal feel. At low sustain, the effect is subtle, with a looser response and more open dynamics.

Level adjusts the overall output volume to compensate for compression and restore balance with your bypassed tone, or conversely to slightly push your amp/drive input for added thickness.

Regarding design, the pedal features true bypass with electronic switching based on relays. Note: audio does not pass without power, so a reliable power supply is required on your pedalboard.

Sound Character

The Warden delivers optical compression with character, capable of being both subtle and very present. At light settings, it adds a "finishing" touch: notes hold better, chords gain cohesion, and playing stands out more easily in the mix without sounding compressed. At stronger settings, it produces a more "squash" effect, perfect for funk rhythms, very consistent cleans, or leads where you want long, even sustain.

Its responsiveness is particularly interesting: by adjusting Attack and Release, you can choose to preserve the snap of the attack or smooth transients for a silkier result. The Tone control finally allows you to tailor brightness to your guitar and amp, staying musical with both sparkling single-coils and denser humbuckers.

Technical specifications

Effects	Compressor	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Blue
EQ	Tone

Dimensions (with knobs)	121 x 64 x 57 mm	Required power	9V DC

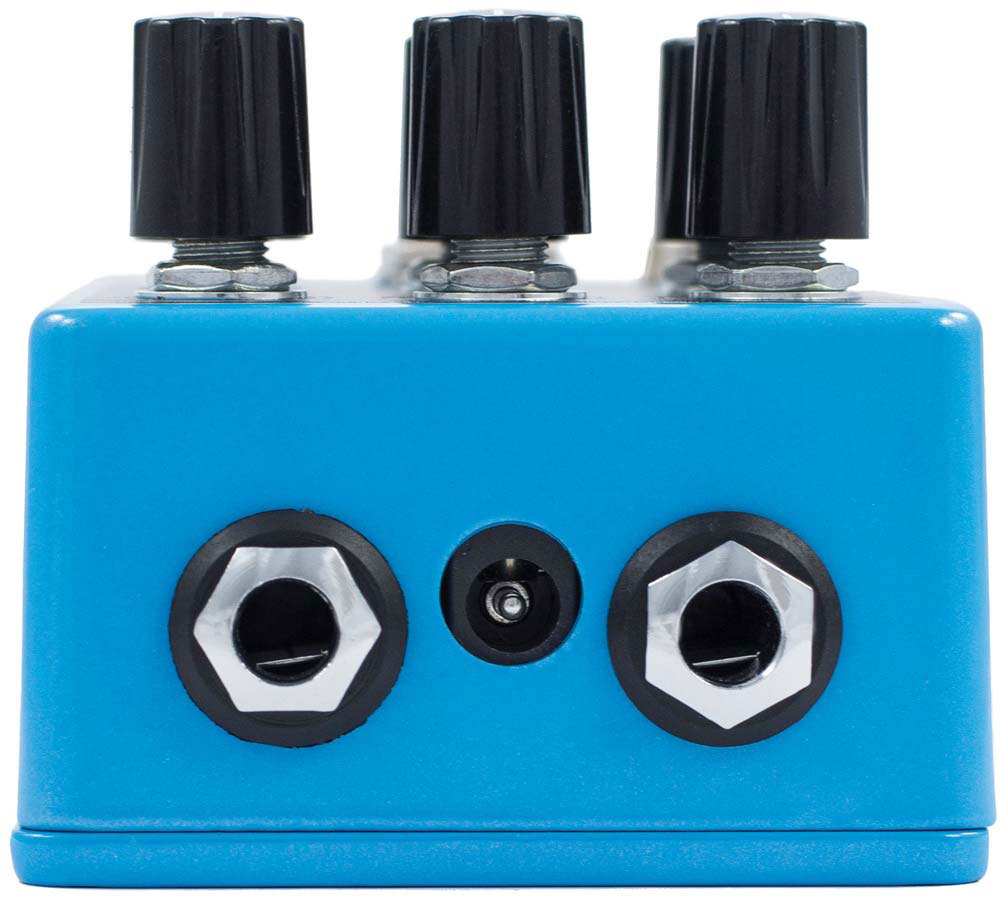

Input impedance	1 megaohm	Connector	2.1 mm barrel, center negative
Output impedance	less than 1 kiloohm	Consumption	31 mA
Internal power supply	18V	Required voltage	9V DC (center negative, 2.1 mm)
