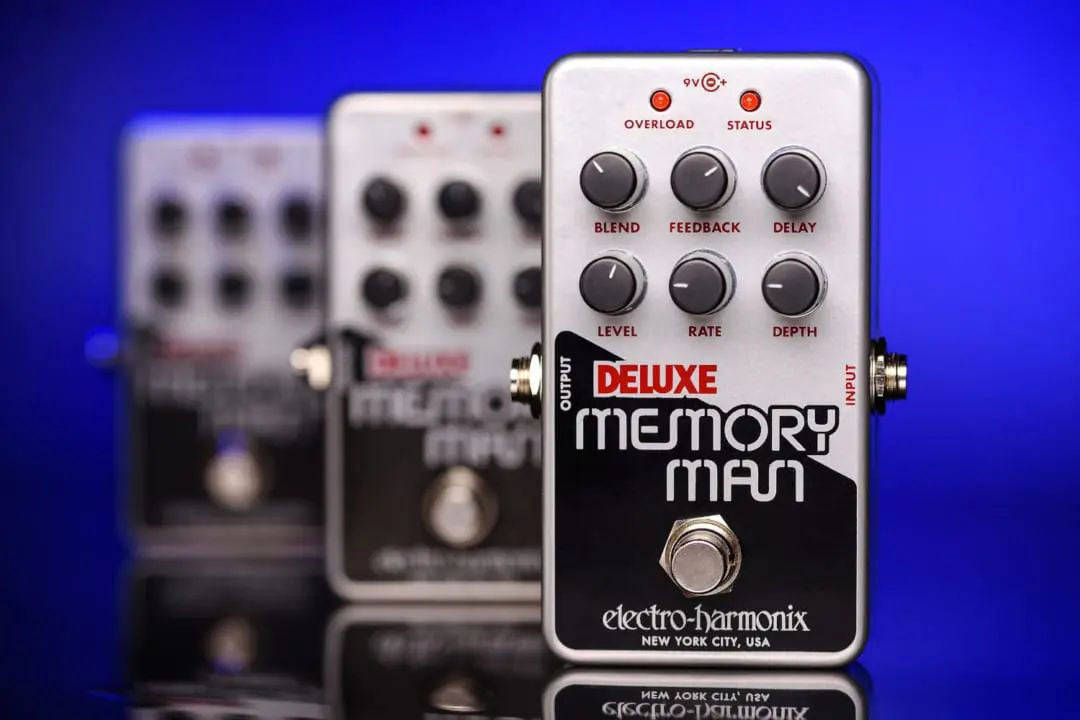

Electro Harmonix Nano Deluxe Memory Man

A classic analog delay, revisited for modern pedalboards

For over four decades, the Deluxe Memory Man family has embodied a certain idea of analog delay: round, slightly grainy repeats that blend into the playing and add an "organic" dimension that's hard to replicate with a too clinical delay. The Nano Deluxe Memory Man captures this spirit in a compact enclosure, without compromising what makes the series charming: a musical delay and modulation capable of ranging from elegant chorus to pronounced vibrato.
This "nano" version is an obvious solution for guitarists who want the Memory Man character on a crowded pedalboard, while benefiting from more precise modulation adjustments thanks to dedicated controls.

For which guitarists and styles?

The Nano Deluxe Memory Man is aimed at musicians seeking an expressive analog delay, whether as a complement to an overdrive for singing leads or as a base for a textured rhythm sound. It suits both intermediate and advanced players: the settings remain simple, but the pedal responds finely to dynamics and input level.
In terms of styles, it is particularly comfortable in blues, rock, indie, shoegaze, and all aesthetics where you want repeats that "breathe" rather than ultra-defined echoes. In the studio, it adds immediate color to a dry take; live, the mix control and tails management facilitate clean transitions between songs and sections.

Controls, modes, and operation: everything to sculpt the echo

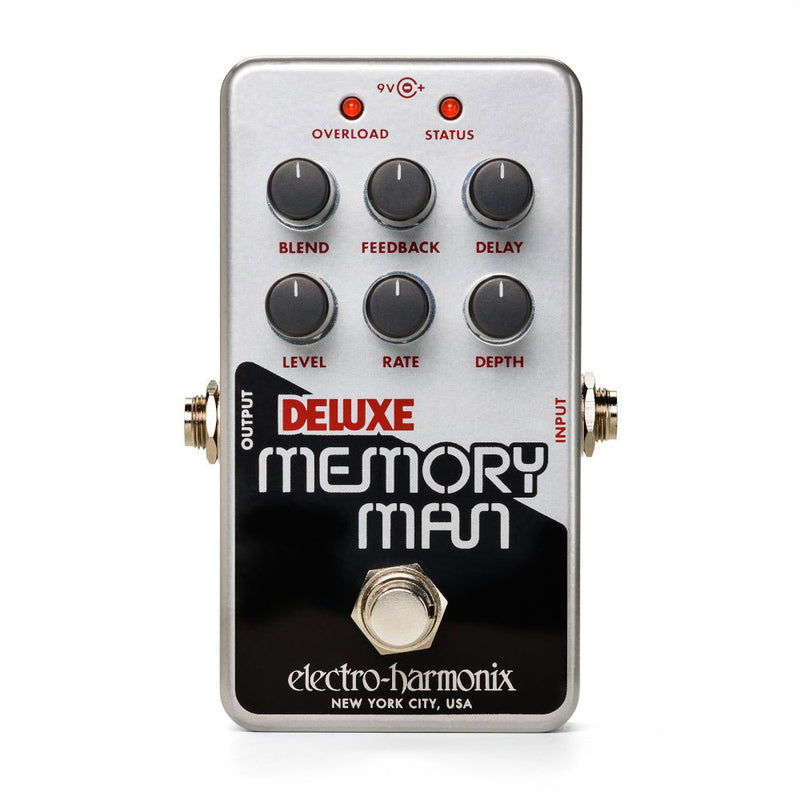

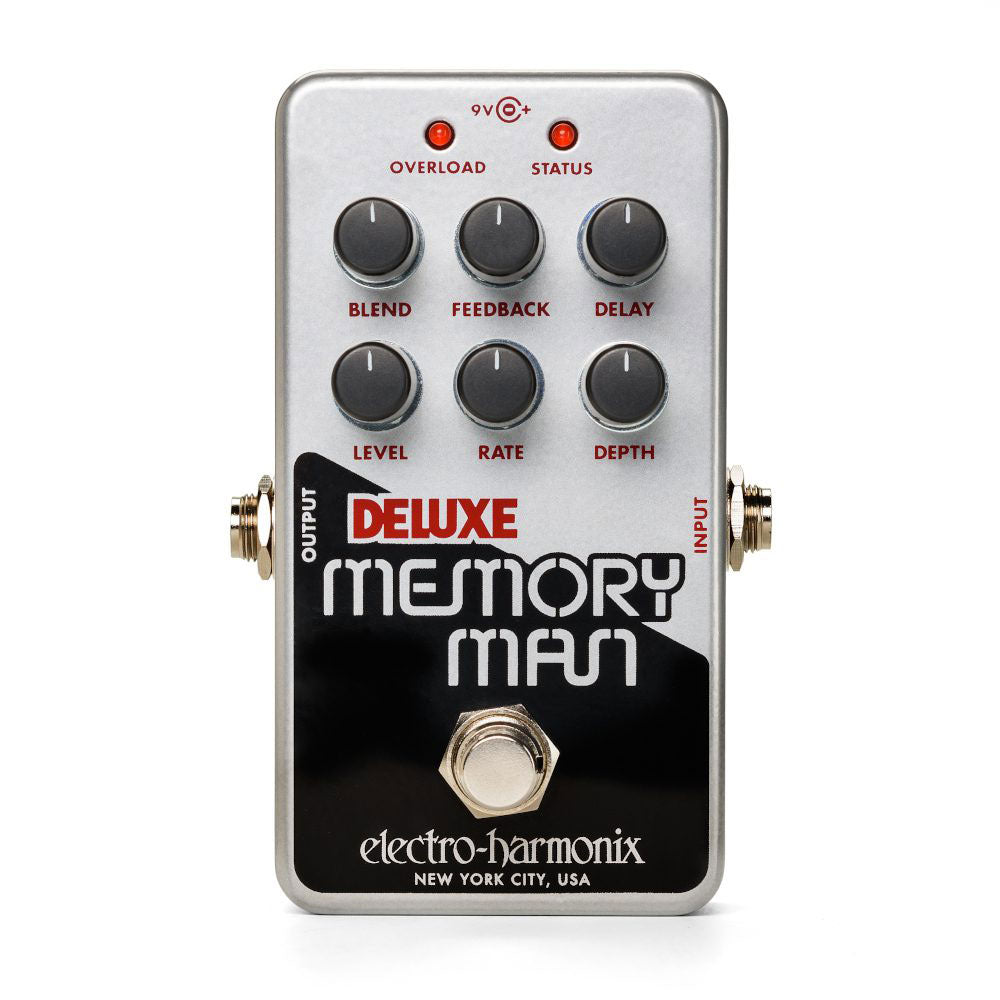

The Nano Deluxe Memory Man offers a straightforward interface focused on essential settings. The Delay knob adjusts the delay time from 30 ms to 550 ms, ideal for going from a tight slapback to a more spacious delay. The Feedback controls the number of repeats, up to self-oscillation for experimental effects. The Blend manages the mix between dry and delayed signals (Wet/Dry), a key point to position the effect correctly in the mix.
Modulation is finely adjustable via Depth (amount of modulation) and Rate (speed). You can achieve a slight chorus-like movement to thicken a clean tone or push toward a more pronounced vibrato for vintage textures. The Level control adjusts the input gain, useful for optimizing the analog circuit's response depending on your pickups' level (single coils, humbuckers, upstream boosts).
A clipping LED indicates when the signal entering the analog delay block becomes too high: a practical reference to set the Level and avoid unwanted saturation (or to exploit it creatively). Finally, the Tails function lets you choose whether repeats naturally continue when the pedal is bypassed or are cut off immediately. When tails are disabled, the pedal offers true bypass.

The sound

Expect a warm and singing delay, with repeats that slightly lose definition over echoes, helping the guitar stay upfront without cluttering the spectrum. This way of "wearing in" the signal makes the effect particularly flattering on crunch sounds and leads, while remaining superb on a dynamic clean tone. The modulation adds a lush dimension: at low depth, it widens and softens; at high depth, it transforms the delay into a moving, almost instrumental texture.
The pedal is also very enjoyable to play thanks to its responsiveness : the feel depends on input level and your attack, giving a livelier impression than a perfectly linear delay. If you like analog delays that add character without complicating your chain, the Nano Deluxe Memory Man is a safe bet.

Technical specifications

Effects	Delay, Chorus / Flanger / Phaser, Chorus	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Grey

Circuit	analog	Dimensions (inches)	4.5 x 2.75 x 2.1
Year of release	2021	Dimensions (approx.)	114 x 70 x 53 mm
Audio	mono	Required voltage	9.6 VDC
Bypass	selectable true bypass	Recommended adapter	200 mA
Power supply	9.6VDC-200mA power adapter included	Consumption	150 mA
Current consumption	150 mA
