Electrovoice R300-HD/B

An Electro-Voice solution designed for reliability in live use

The R300-HD/B follows an "efficient and straightforward" approach: a UHF system designed to offer quick setup, smooth operation, and audio quality suited to live performance demands. The presence of preset channels, assistance functions (ClearScan / EZsync), and an antenna diversity receiver make it a relevant choice for providers, bands, and venues seeking a stable solution without unnecessary complexity.

Who benefits from the R300-HD/B and in what applications does it make a difference?

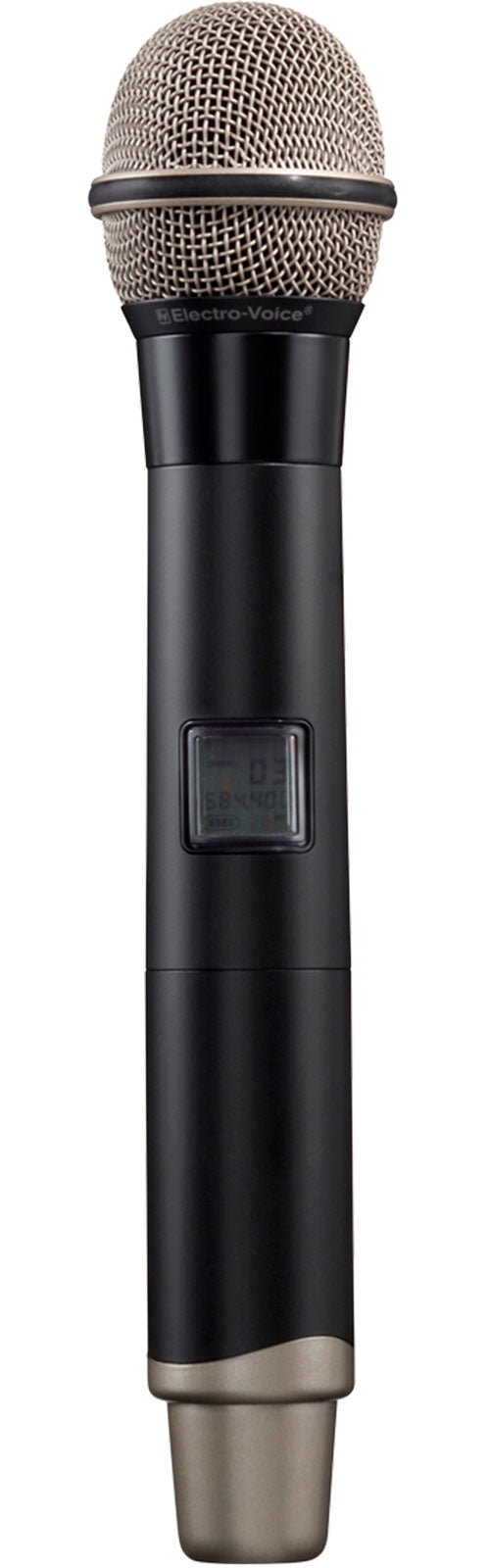

This pack is particularly well-suited for lead vocals, microphone interventions during events, rehearsals, places of worship, conferences, and hosting. The HT-300-B handheld microphone, equipped with a PL22 dynamic capsule and cardioid polar pattern, helps better control feedback and maintain a present voice even when the environment becomes noisy. The Band B frequency range (678 MHz - 694 MHz) will suit users needing a dedicated UHF range: just remember to check compatibility with your area's regulations and radio environment before use.

Key features: simplicity, control, and consistent sound

ClearScan: find a usable channel in seconds

The ClearScan channel selection is designed to speed up choosing a frequency among preset channels. In practice, it saves real time during stage changes, last-minute setups, or installations under real conditions (audience, lighting, other RF links).

EZsync: remote synchronization

EZsync synchronization allows quick pairing of the transmitter and receiver without tedious manual operations. The result: fewer errors, smoother deployment, and more comfortable configuration for both technical teams and independent users.

PL22 dynamic capsule and cardioid polar pattern

The PL22 dynamic capsule, combined with a cardioid polar pattern, targets sound capture focused on the source while further limiting off-axis ambient noise. This is an asset for improving intelligibility and maintaining a usable sound on stage, especially when the microphone is handheld and subject to placement variations.

Technical specifications

Category	Complete system	Capsule	dynamic
Directivity	cardioid

Type	handheld wireless microphone	Modulation	+/- 40 kHz
Carrier frequency band	Band B (678 MHz - 694 MHz)	Diversity	antenna diversity
Channel selection	ClearScan	RF sensitivity	< 1.0 microvolt for 12 dB SINAD
Remote channel synchronization	EZsync	Image frequency rejection	> 55 dB
Polar pattern	Cardioid	Frequency response	80 Hz - 18 kHz
Transmission power	8 mW	Distortion	< 1.0%, 0.4% typical
Display	backlit LCD screen	Signal-to-noise ratio	> 100 dB A-weighted
Power supply	2 x 1.5V AA batteries (LR6)	Dynamic range	> 95 dB
Battery life	> 14 hours	Connectivity	XLR + 6.35mm Jack
Dimensions	267 x 50 x 50 mm
