The FATSO, the Modernized Heir of an Empirical Labs Classic
Born as an evolution of the FATSO Jr, the FATSO EL7-X incorporates a finer approach to analog compression and saturation. Designed by Dave Derr, it carries the "studio-proof" DNA of Empirical Labs while addressing the limitations of the first generation. Since June 2013, shipped units already include the "Eleven" ratio factory-installed, a direct legacy of research conducted around vintage compressors.
Who Is It For and What For?
The FATSO EL7-X is aimed at sound engineers, producers, and mixers who want to add density and smoothness to digital sources, both on tracks and buses. Formidable on vocals, bass, acoustic guitars, overheads, and piano, it increases perceived level while maintaining control over peaks. In the studio, mobile rigs, or even for audiophile listening, it restores the much sought-after tape warmth and ambiance.
Features and Innovations That Make the Difference
New "Eleven" Ratio
Replacing the "GP" ratio, "Eleven" emulates the famous behavior of the 1176: very high ratio, slower attack, and ultra-fast release. From subtle control of a few dB to creative crushing, it delivers striking presence and places the source perfectly in the mix.
Redesigned Logic and Interface

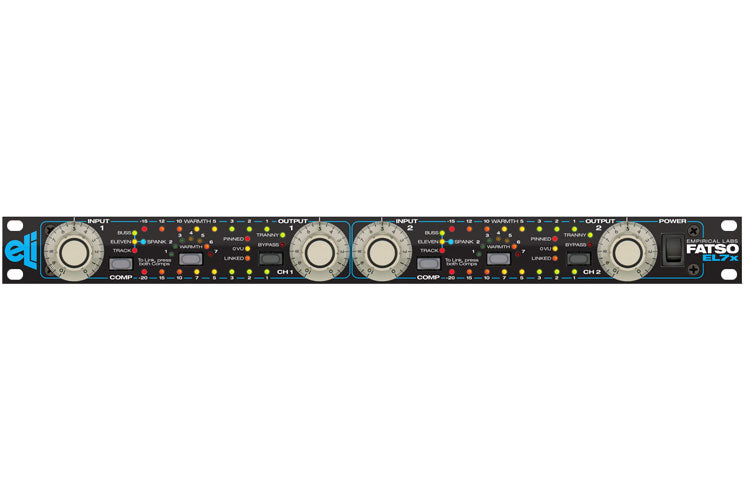

The switch to a microprocessor reduces power consumption by about 20%, lowers operating temperature, and improves reliability. Ergonomics are enhanced with a dedicated "Tracking" LED, a clearly distinct blue "Spank" LED, and a rewind function activated by holding down a button.
Smarter Stereo Linking
Two linking methods provide solid locking of compressors and bypass between channels. Control from either side becomes natural and secure, ideal for mix bus and stems.
The FATSO Sound Signature
- Harmonic generation / soft clipping: Class A circuit reminiscent of tubes or saturated tape.
- HF warmth: dynamic low-pass filter that softens highs when they accumulate.
- Transformer / playback head emulation: fuller lows and vintage-typical musical nonlinearities.
- Classic "knee" compression: smooth and consistent leveling, perfect on tracks and buses.
Four refined compression modes (including "Buss" and the legendary "Spank") are selectable and combinable. Large Distressor-style knobs control input/output for fast workflow.
Technical specifications
| "Eleven" ratio replacing "GP" | high ratio, slower attack, fast release. |
| Selectable and combinable compression modes | "Buss," "Spank," "Tracking" (dedicated LED), etc. |
| High-frequency saturation | 7 levels of "warmth" via dynamic low-pass filter. |
| Microprocessor replacing discrete logic | approximately 20% reduced consumption and lower operating temperature. |
| Two linking methods | compressor and bypass association. |
| FATSO units shipped since June 2013 | "Eleven" already present internally (circuit equivalent to EL7-X). |
| Recommended sources | vocals, bass, acoustic guitars, drum ambience mics, pianos. |
| Uses | tracking, mix bus, summing, softening digital sources and DAWs. |
Questions frequently asked
Does the FATSO EL-7X provide 1176-style compression?
The “Eleven” ratio replaces the “GP” mode and features a high ratio with a slower attack and very fast release. This setting is derived from research on vintage 1176-style compressors.
Which instruments can be processed with the FATSO?
The sources include vocals, bass, acoustic guitars, drum overhead microphones, and piano. Compression and saturation increase perceived level while controlling peaks.
How does the Spank mode work?
The “Spank” mode is one of the four selectable and combinable compression modes. A dedicated blue LED clearly indicates it on the front panel.
Is it possible to use two FATSO EL-7X units in stereo?
Two linking methods allow associating the compressors and bypass between two channels. Control can be performed from either side, suitable for processing a mix bus or stems. Parameter locking between channels is provided for coherent stereo operation.
How does the FATSO smooth out digital highs?
Seven HF warmth levels use a dynamic low-pass filter that reduces highs as they accumulate.
