Eventide Powermax V2

PowerMAX V2: A Version Designed for Today's Pedalboards

With its V2 designation, the PowerMAX represents an evolution: meeting the current needs of pedalboards, which often combine analog pedals, compact multi-effects, and digital effects demanding higher current. The goal remains the same: centralize power supply, increase reliability on stage, and maintain a more stable signal. Its isolated outputs allow you to organize your power supply cleanly, while keeping a neat setup thanks to its slim 25 mm profile, practical when space under the pedalboard is limited.

Who Is the PowerMAX V2 For?

The PowerMAX V2 is aimed at guitarists and bassists who want a single power supply to run all their effects without multiplying AC adapters. It suits both simple pedalboards and more complex setups, as long as you want to properly separate power supplies and maintain clear wiring. During rehearsals, it simplifies setup. On stage, it offers real convenience: only one AC power supply to plug in, voltages adapted to each pedal, and a compact size for easy integration under the board.

Key Features: Flexibility, Power, and Integration

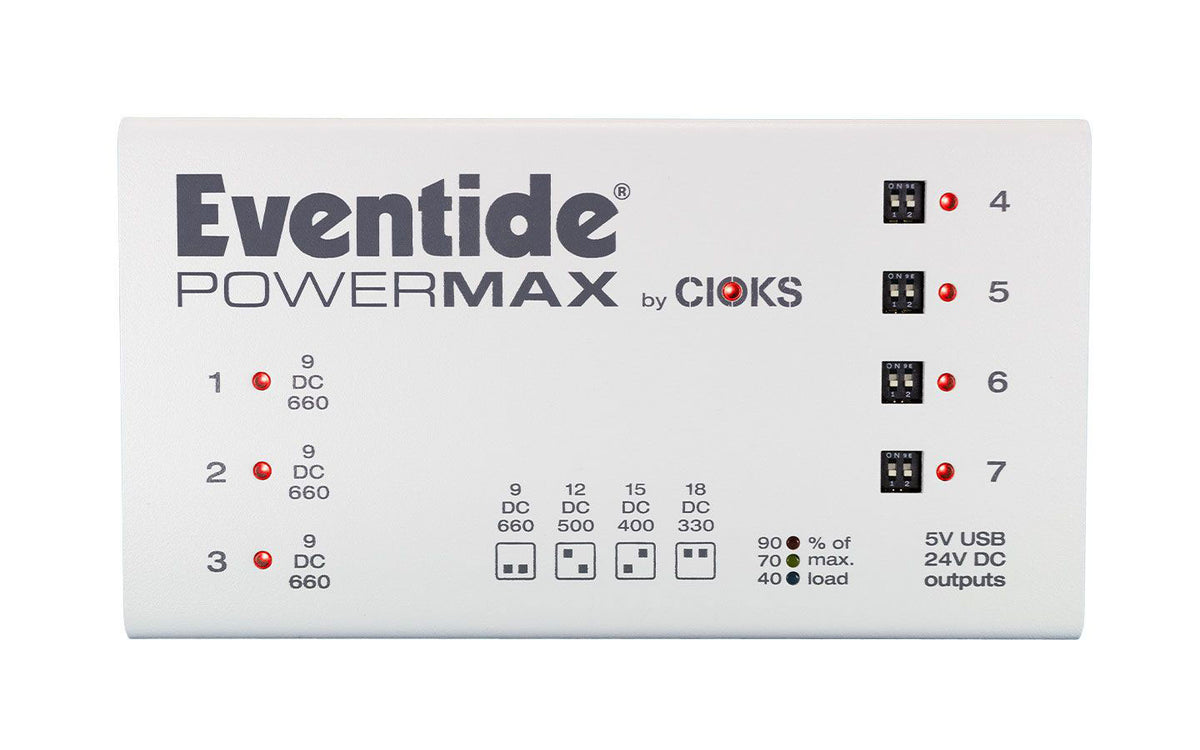

7 Isolated Outputs with Selectable Voltages

The PowerMAX V2 offers 7 isolated outputs, each adjustable to 9 V, 12 V, 15 V, or 18 V. This versatility is especially useful if your pedalboard mixes standard 9 V pedals with others requiring different voltages. You can tailor the power supply to your gear without changing the power brick or reorganizing your entire chain.

Current Capacity Suitable for Power-Hungry Pedals

Each output provides a current reserve that varies depending on the selected voltage: 660 mA at 9 V, 500 mA at 12 V, 400 mA at 15 V, and 330 mA at 18 V. Practically, this helps you power modern pedals more reliably while allowing you to intelligently distribute your effects: for example, reserve a high-current output for a demanding pedal while powering simpler overdrives, compressors, or modulation pedals on other outputs.

Built-in USB Port: A Practical Detail for Studio and Stage

The 5 V 1 A USB port adds real convenience for everyday use: charging a phone or tablet used for sheet music, setlists, a metronome, or auxiliary controls. It's a simple feature that avoids adding an extra charger to your setup.

Wide AC Compatibility and Discreet Form Factor

Thanks to a 90-265 V AC input, the PowerMAX V2 is designed to operate across a wide range of mains voltages. Its 25 mm profile facilitates installation under a pedalboard for a cleaner setup and better cable protection. Finally, the inclusion of 13 DC cables lets you quickly integrate it into your effects chain without immediately needing additional wiring.

Technical specifications

Current	0.66 A	Category	Multiple power supply
Voltage	660 V	Number of outputs	7

Type	Multi-output power supply for pedals	AC input	90-265 V
Applications	Pedalboard power supply, guitar and bass effects	Profile	25 mm (installation under the pedalboard)
Selectable voltages (per output)	9 V, 12 V, 15 V, 18 V	Cables	13 DC cables included
Current per output	660 mA at 9 V	Dimensions	1600 mm (W) x 880 mm (D) x 25 mm (H)
USB port	5 V 1 A	Weight	460 g
