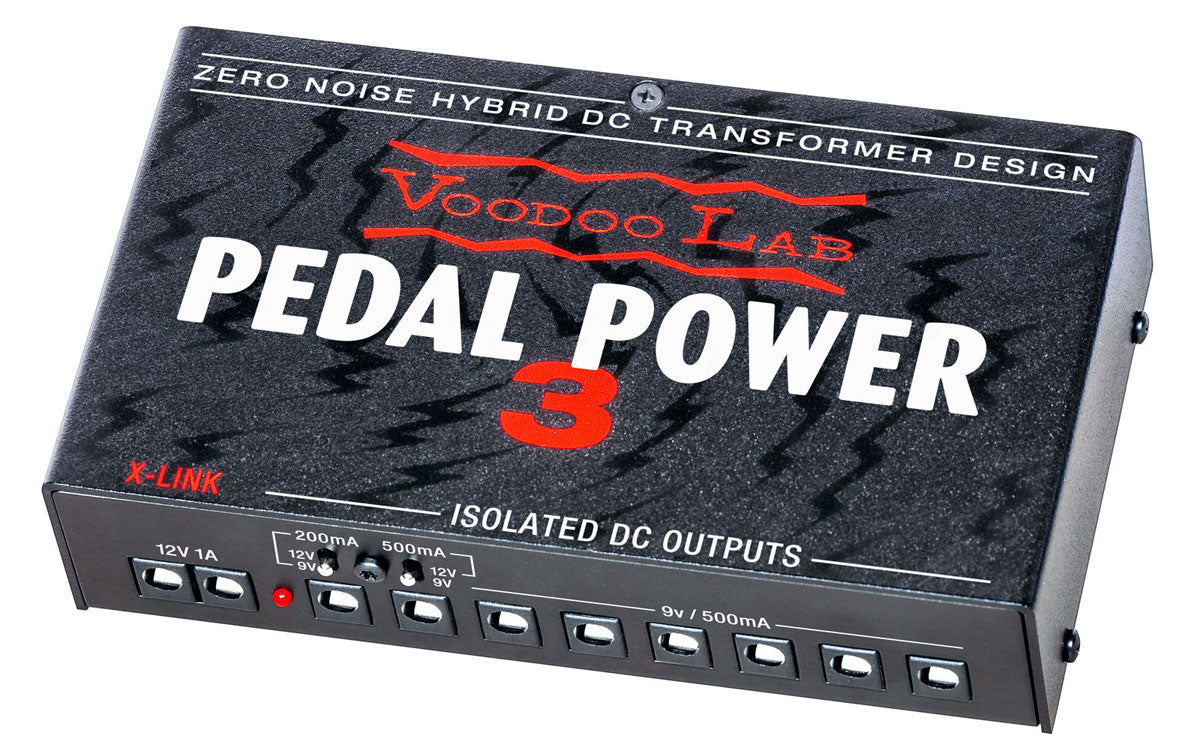

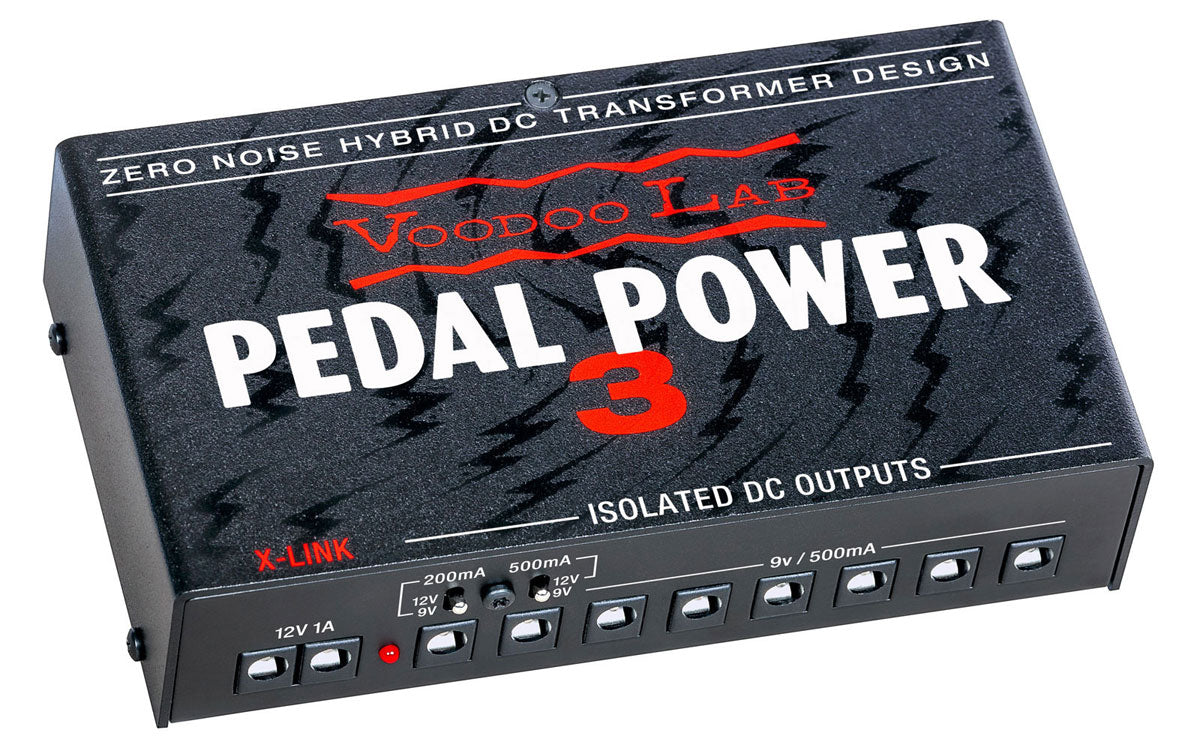

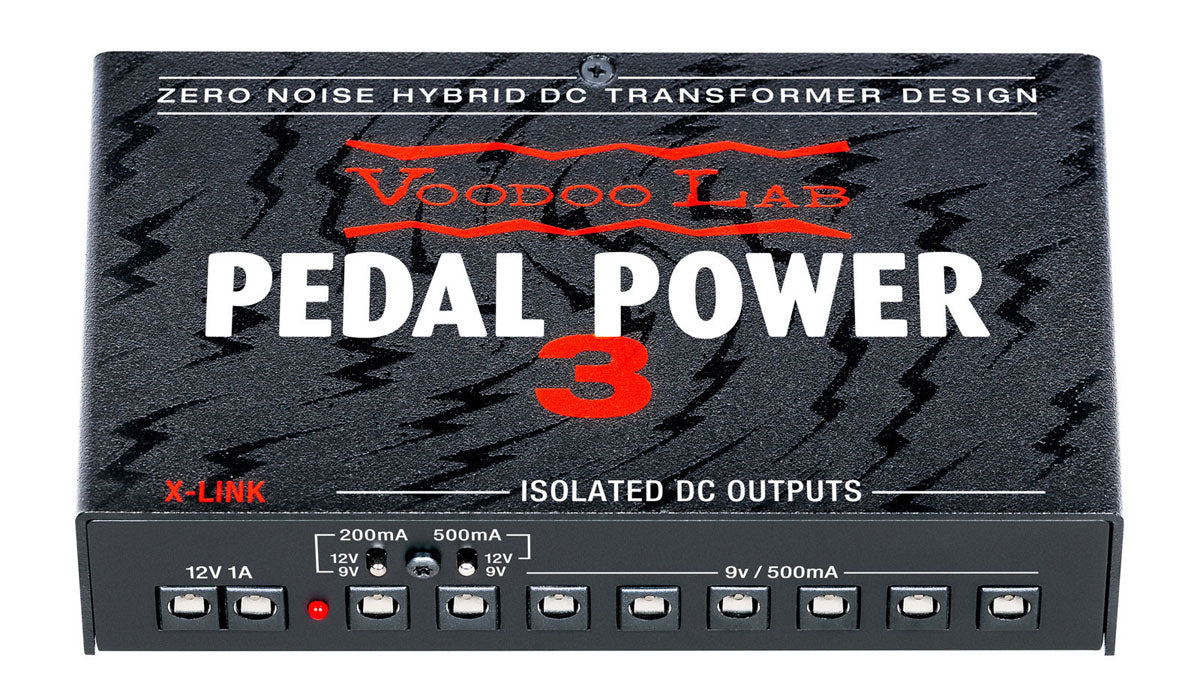

A Voodoo Lab Reference Designed for Modern Pedalboards
Designed to meet the current needs of guitarists and bassists, the Pedal Power 3 introduces a "high current" approach in a particularly lightweight format. It follows a logic of reliability and clean power supply: a solid foundation for a silent, stable pedalboard ready to handle evolving setups, from simple analog rigs to more demanding digital effect chains.
Who Is It For, and In What Uses?
The Voodoo Lab Pedal Power 3 is aimed at those who want a noise-free power supply for pedals, capable of managing varied setups in the studio, rehearsal, or on stage. Thanks to its isolated outputs, it is especially recommended if you mix several pedal brands, use high-consumption digital effects, or want to preserve the tone and dynamics of your most sensitive pedals.
Designed for Clean, Stable, and Scalable Power Supply
At the heart of the Pedal Power 3 is a hybrid DC transformer combined with polymer and organic filtering and noise-free linear regulation. The goal is clear: to provide an "audiophile" power supply, clean and consistent, to reveal the potential of your effects chain while limiting interference.
Isolated Outputs: Silence and Compatibility

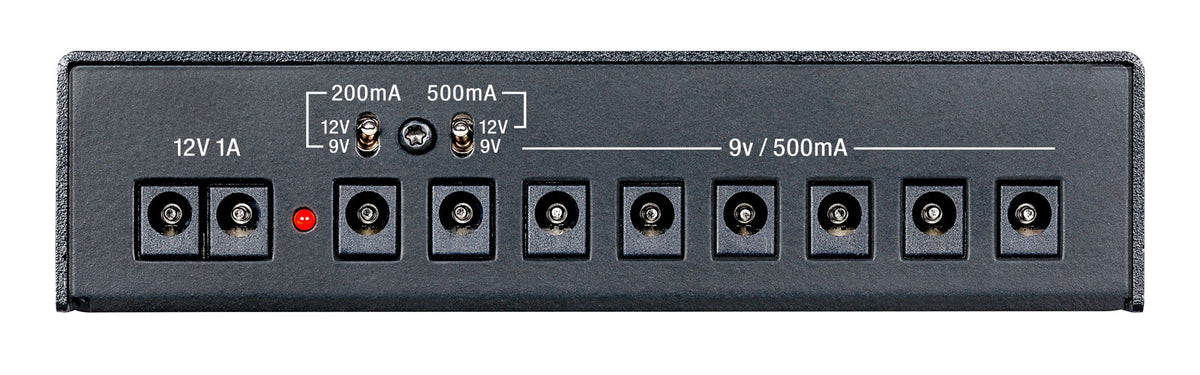

Its 8 galvanized and isolated DC outputs prevent ground noise and reduce unintended interactions between pedals. Each output provides 9V DC, with 2 switchable outputs to switch to 12V, convenient for certain specific pedals.
A Platform That Grows with Your Pedalboard
Two X-LINK ports allow expanding the number of isolated outputs via compatible modules Pedal Power X4 or X8. You can thus adapt the power capacity as your setup evolves, without starting from scratch.
Technical specifications
| Current | 0.5 A | Category | Multiple power supply |
| Voltage | 9 V | Number of outputs | 8 |
| Type | high current, noise-free pedal power supply | Transformer | hybrid DC |

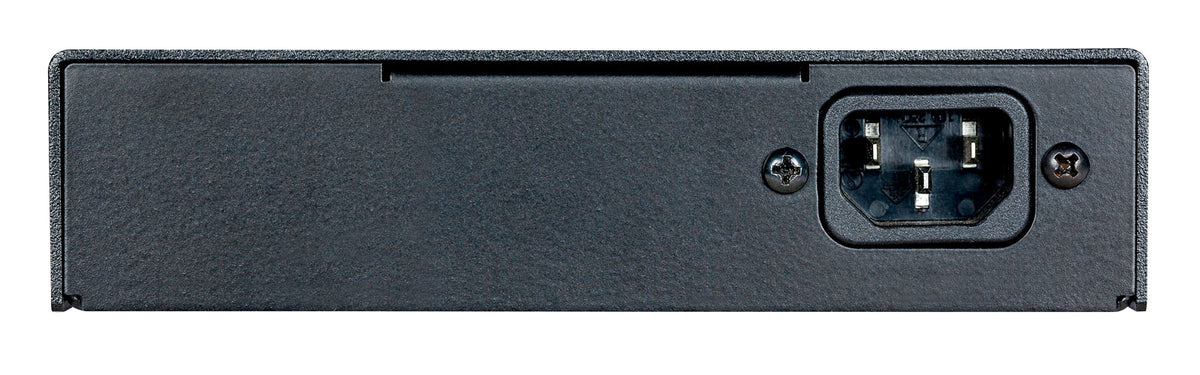

| AC input | 100 to 240 Volts AC (worldwide use) | Filtering | polymer and organic |
| Voltage per output | 9 Volts | Regulation | noise-free linear |
| Switchable outputs | 2 outputs at 9V or 12V (selector) | Format | compact and ultra-lightweight |
| Max current per output | up to 500 mA | Manufacturing | Made in the USA |
| Expansion | 2 X-LINK ports to connect a Pedal Power X4 or X8 | Dimensions (excluding power supply) | 12.7 x 8.6 x 3.8 cm |
| Higher voltage compatibility | possible power supply at 18V and 24V by combining outputs (using brand adapters) | Weight | 0.4 kg |
Questions frequently asked
How many pedals can the Voodoo Lab Pedal Power 3 power?
This power supply has 8 isolated, galvanically isolated DC outputs, each providing 9 V. Two of these outputs can be switched to 12 V.
Does the Pedal Power 3 eliminate ground noise?
The isolated outputs limit ground loops and interaction between pedals. The hybrid DC transformer, polymer and organic filtering, as well as noise-free linear regulation contribute to a clean power supply.
What current is available per output?
Each output provides up to 0.5 A, allowing to power digital pedals that require more current.
Can 18 V or 24 V pedals be powered with this power supply?
It is possible to obtain 18 V or 24 V by combining outputs, using Voodoo Lab adapters designed for this purpose. The voltages must match the specifications of the connected pedal.
How can the number of isolated outputs be increased?
Two X-LINK ports allow connecting a Pedal Power X4 or X8 module. The pedalboard capacity can thus be expanded without replacing the main power supply. The unit measures 12.7 x 8.6 x 3.8 cm and weighs 0.4 kg.
