In the Fishman tradition: the more precise alternative to the M200
The Fishman M-300 Nashville Series kit follows the philosophy of the M200 series, with pickup and mounting solutions designed for the mandolin, but adopts a slightly different pickup. Placed in the lower part of the bridge, it emphasizes definition and clarity, ideal for capturing the typical attack and articulation of the mandolin when amplified.

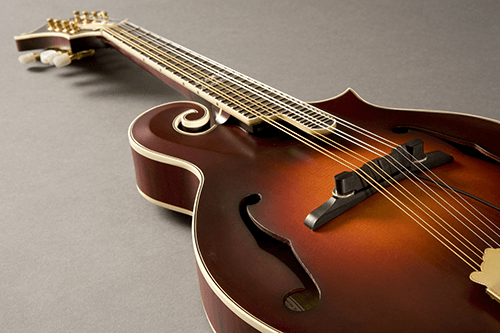

For the stage musician and recording, on archtop mandolin
Designed for archtop mandolins, the M-300 targets musicians who want a reliable, ready-to-play sound with a more precise rendering than some "rounder" piezo solutions. It can be plugged directly into an amplifier but reveals its full potential with a suitable preamp (for example, Platinum or ToneDEQ types) to gain control, dynamics, and tonal balance.
Ceramic piezo pickup integrated into the bridge: attack, balance, and accessible installation

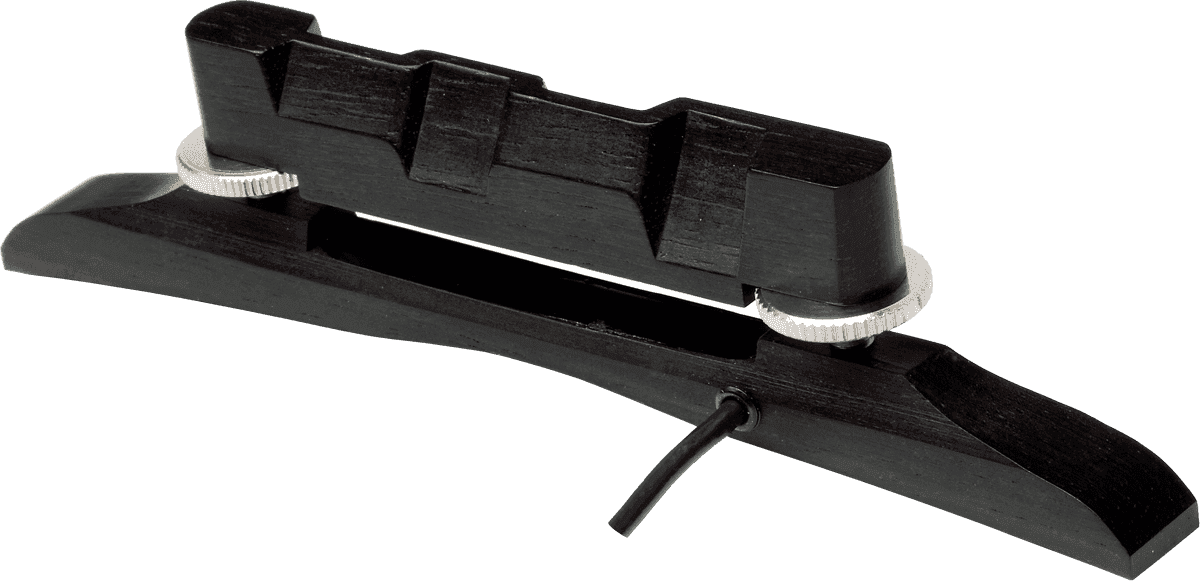

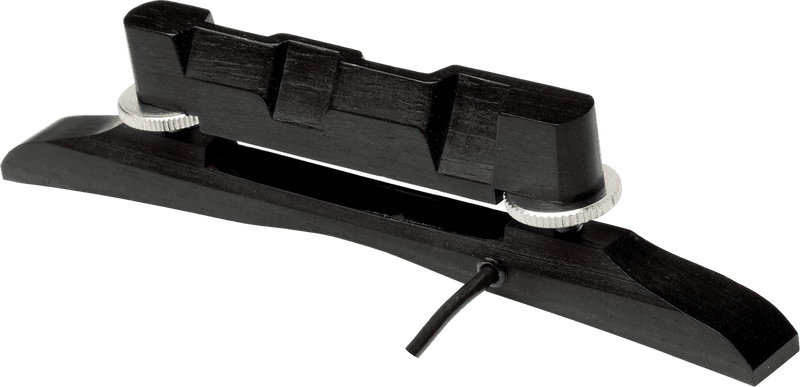

The M-300 is based on a ceramic piezo pickup molded into the lower part of an adjustable Gibson-style bridge. Connection is made via a female 6.35mm Jack socket, and the kit comes with a mounting system for the mandolin's side to secure the installation. Installation is described as simple, but bridge adjustment (notably fitting to the top and allowance for filing and adapting) must be done carefully: if in doubt, it is recommended to entrust this step to a dealer or luthier.
Note : the M-400 version is intended for flat top mandolins.
Technical specifications
| EQ | No | Notch filter | No |
| Category | sensor | Low battery indicator | Yes |
| Type | piezo, ceramic piezo, passive microphone | Professional installation | Yes |
| Instrument | mandolines | Brightness wheel | No |
| Tuner | No | Color | Black |
| Model | Fishman M-300 Nashville Series (M300) | Mounting | supplied with mounting system for the mandolin's side |
| Pickup | ceramic piezo molded into the lower part of the bridge | Connection | female 6.35mm Jack socket |
| Bridge | Gibson-style, height adjustable | Usage | direct connection possible to amplifier, optimization recommended via suitable preamp (Platinum or ToneDEQ type) |
| Sound | clearer and more defined grain than the M200MA | Range note | M-400 suited for flat top mandolins |
| Compatibility | archtop mandolins | ||
Questions frequently asked
Is the Fishman M-300 Nashville Series compatible with an archtop mandolin?
This model is designed for archtop mandolins and features a Gibson-style height-adjustable bridge. The M-400 version is intended for flat top mandolins.
What kind of sound does the Fishman M-300 pickup provide?
The ceramic piezo molded in the lower part of the bridge emphasizes a clear and defined tone. The mandolin's natural attack and articulation are highlighted when amplified.
Can the M-300 be plugged directly into an amplifier?
It can be connected directly to an amplifier via its 6.35 mm female jack output. Using a preamp such as the Platinum or ToneDEQ provides more control over dynamics and tonal balance.
Does the installation of the Fishman M-300 bridge require a luthier?
The kit includes the mounting system on the rib and its installation is described as simple. However, fitting the bridge to the top, including filing allowance, requires careful work. Consulting a dealer or luthier is recommended if unsure.
Does the Fishman M-300 have a built-in equalizer or tuner?
No EQ, tuner, notch filter, or brightness control is integrated into the pickup. The system is passive and features a low battery indicator as specified.
