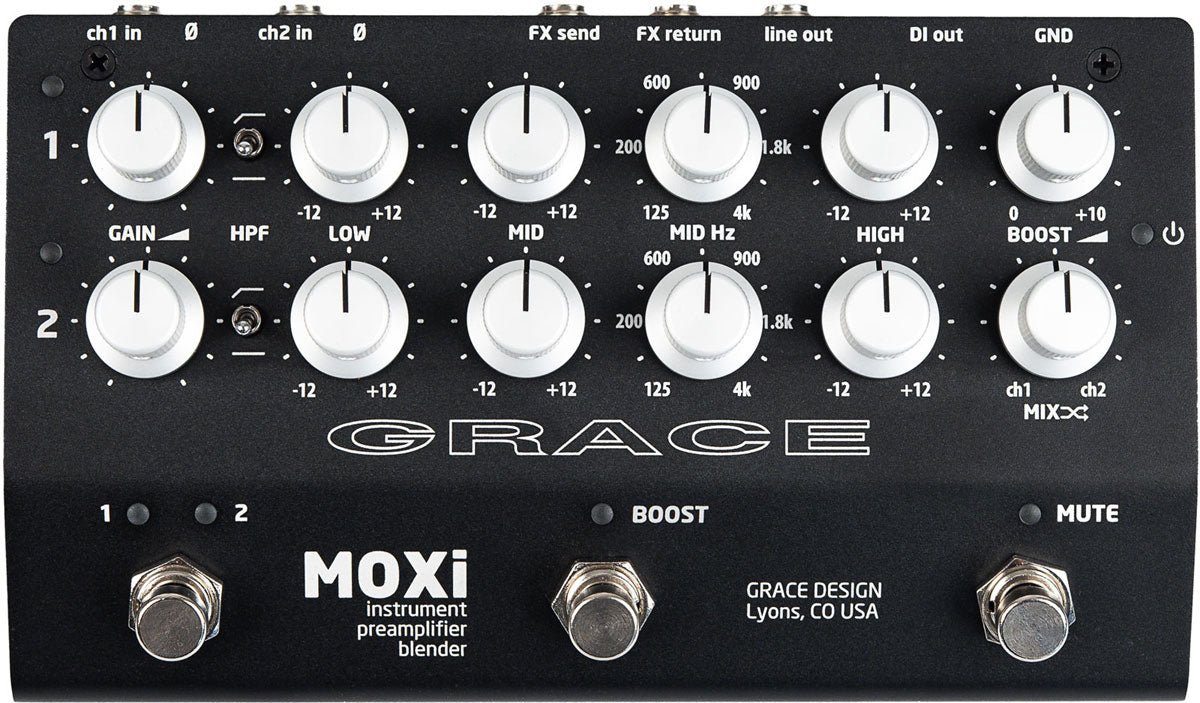

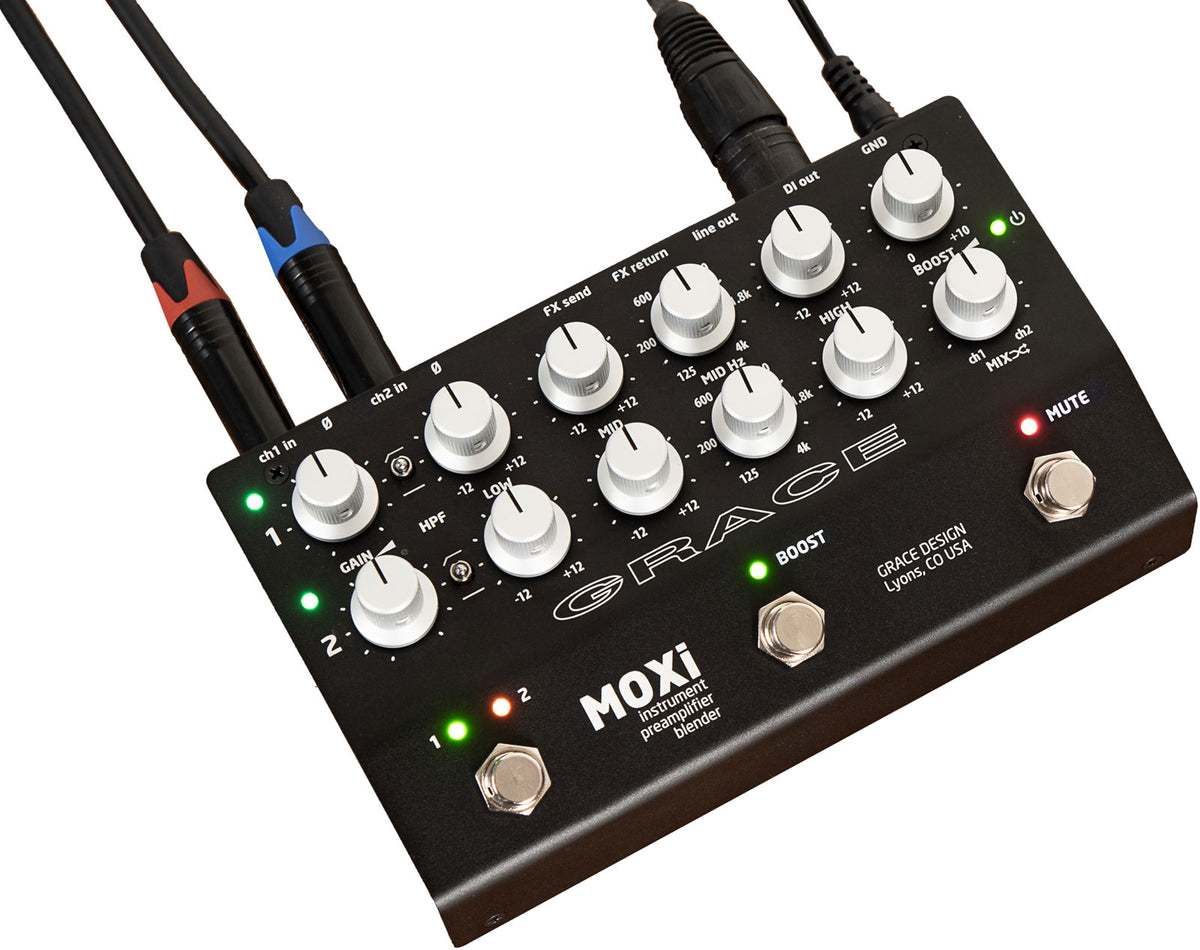

Grace Design MOXi Acoustic Preamp

The Grace Design "Sweet Spot": the FELiX Spirit, the BiX Efficiency

Within the Grace Design family, the MOXi is deliberately positioned between the FELiX (the very comprehensive "all-in-one" model) and the BiX (more streamlined). The idea is simple: to deliver the studio-quality audio and musicality that have made the brand renowned, while focusing on essentials for the stage. The result: two high-end channels, smart routing (MIX or A/B), and ergonomics designed for musicians who need to manage quickly, efficiently, and without unwanted noise.

Who It's For and What It's For: Demanding Acoustic, Stage and Studio Use

The Grace Design MOXi is aimed at acoustic guitarists, folk, bluegrass, jazz players, as well as instrumentalists (mandolin, violin, double bass, banjo) who want a faithful sound and an impeccable DI at front of house. Live, it becomes the heart of the "acoustic" pedalboard: you can switch between instruments via A/B, or blend two sources to gain presence and naturalness.
In the studio, the MOXi also excels as a clean and precise preamp/DI: it respects dynamics, handles attacks well, and maintains excellent clarity, ideal for detailed takes without excessive coloration.

Controls, Modes and Connectivity: Everything You Need, Where You Need It

Each channel features its own gain and a 3-band equalizer: bass and treble shelving, plus a "sweep" mid (adjustable frequency) to precisely target the area to tame (body resonance, piezo harshness) or enhance (presence, articulation). A 75 Hz high-pass filter helps clean up the low end (handling noise, rumble, proximity) before feeding the DI or amp.
The rear routing allows selection between MIX (blend of both channels) and A/B (one channel at a time). The Mute/Tune footswitch mutes all outputs except the effects send, handy for silent tuning by placing a tuner in the loop. The Boost footswitch offers up to +10 dB with fine adjustment, and a rear switch allows disabling boost on channel 1 depending on your setup.

Sound Character

The MOXi aims for an open, detailed, and very quiet sound, typical of Grace Design circuits: you gain definition, headroom, and bass control without the "boxy" effect sometimes found in simpler solutions. The EQ is musical: you can correct an aggressive resonance by sweeping the midrange, brighten the highs without harshness, and tighten the lows without muddiness.
Although the MOXi is a recent model, its sonic DNA clearly comes from Grace Design preamps used on stage by demanding musicians: in the FELiX range, for example, users include John Patitucci and Jorma Kaukonen, proof that the brand has become a reference for transmitting acoustic instruments with precision and musicality.

Technical specifications

Effects	EQ, Preamp	Type	sector
Format	Pedal	Use	acoustic guitar, electric guitar
EQ	3 channels	Color	Black

Instrument/acoustic preamp	2 channels	Footswitch Boost	variable boost 0 to +10 dB
Input impedance	1 M? (channel 1 and channel 2)	Rear adjustment	disable boost on channel 1
Independent EQ per channel	3 bands (Low, Mid, High)	Effects loop	mono, with dedicated send and return
EQ gain range	+/-12 dB	Inputs	2 x 6.35mm Jack (channel 1 and channel 2)
Low	shelving, transition frequency approx. 250 Hz	DI output	balanced XLR, transformer isolated
High	shelving, transition frequency approx. 1.5 kHz	Stage amp output	6.35mm Jack line level
Mid	sweepable frequency approx. 125 Hz to 4 kHz	Frequency response to amp output (at 0 dB gain, -3 dB)	4 Hz to 148 kHz
High-pass filter (HPF)	75 Hz	Frequency response to DI (at -20 dB gain, -3 dB)	6 Hz to 51 kHz
Phase inversion	per channel	Gain range (examples)	0 dB to +38.5 dB (to amp output, boost at 0 dB)
Operating mode	MIX (blend) or A/B (channel selection)	Default DI output level	-18 dB (internally adjustable)
Footswitch A/B	toggle channel 1 / channel 2 (in A/B mode)	Impedances (examples)	Insert In 20 k?, Insert Out 300 ?, DI outputs 150 ?, line output 150 ?
Footswitch Mute/Tune	mutes all outputs except effects send
