Essential Information About the Harrison D510mx Analog Mixer
Essential Information About the Harrison D510mx Analog Mixer

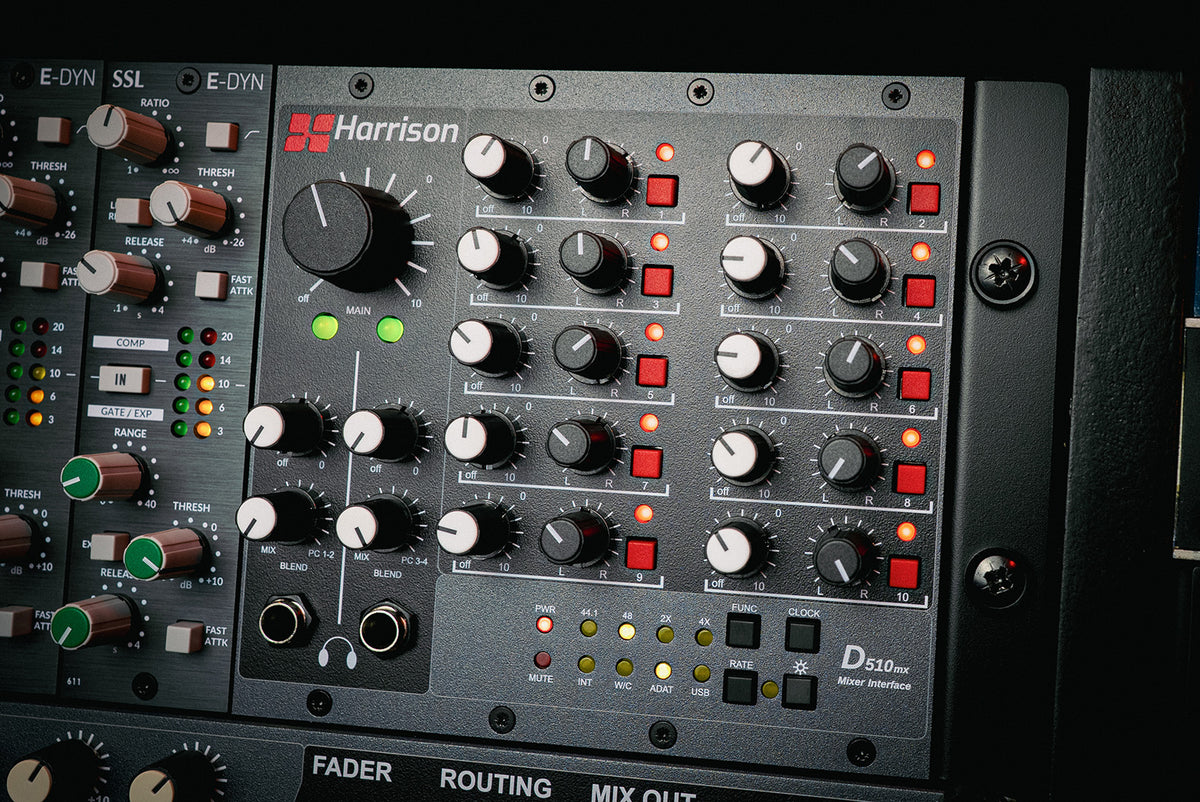

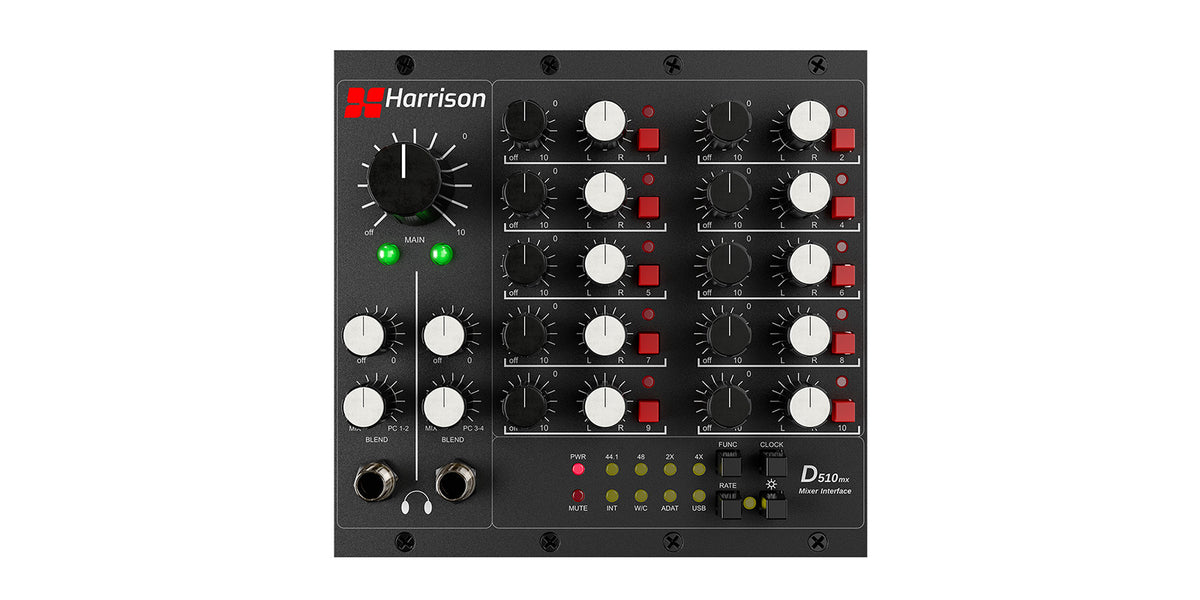

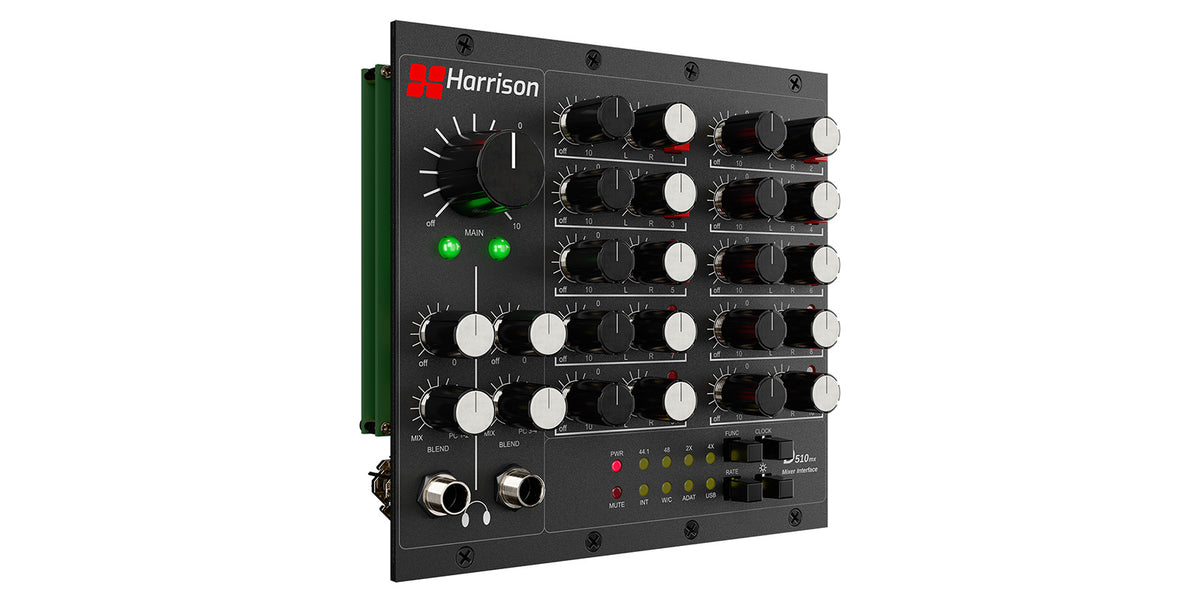

- Transforms the D510r 500-format rack into a powerful and portable 10-input / 2-output analog mixer.
- Stereo summing of the remaining 8 series 500 slots plus 2 dedicated inputs (slots 9 and 10), with volume and pan per channel.
- Two independent headphone outputs with "blend" function for customized monitoring mixes.
- Network expansion via the optional D510dante card to monitor from direct outputs or any Dante stream.
Manufacturer Information
Harrison
https://www.harrisonaudio.com
info@harrisonaudio.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Harrison Console Sound in Your 500 Chassis

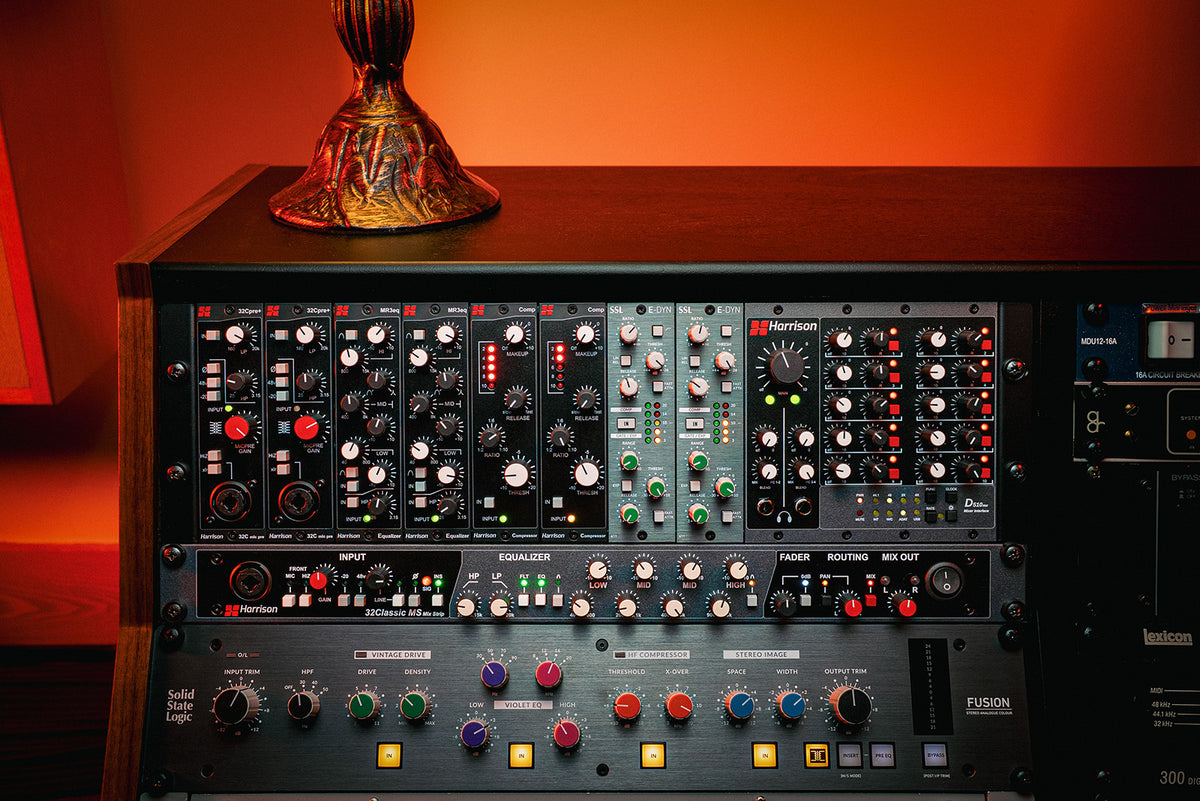

Born to fit into two slots of the Harrison D510r rack, the D510mx delivers the solidity and "3D" depth characteristic of the brand's consoles. It bridges the modular ergonomics of the 500 format with a true stereo mixing bus, while fitting into only 3U with the D510r. The D510dante option opens the door to network monitoring without sacrificing the analog signal chain.
Who Is It For and What Are Its Uses?
Sound engineers, producers, and musicians seeking high-quality analog mixing for hybrid setups. Ideal for studios, mobile control rooms, live sound, broadcast, or post-production whenever summing series 500 modules and creating precise, independent headphone mixes is needed.
Technical specifications
| Category | format 500 | Frequency response - start | 20 Hz |
| Number of channels | 2 | Frequency response - end | 20 kHz |
| Rack unit | 2 | Analog outputs | 2 x Headphones |
You will also like
Rupert Neve Designs
511 mic pre
Heritage Audio
73JRII
Heritage Audio
73EQ JR
Harrison
D510 USB ADAT
Solid State Logic
VHD+ Preamp
Api Audio
505 DI
AEA
TRP500
Rupert Neve Designs
551 Inductor EQ
Questions frequently asked
Is the Harrison D510 Mixer compatible with the D510r chassis?
The module fits into two slots of the Harrison D510r rack. The complete unit occupies 3U when combined with this chassis.
How many channels can this 500 series mixer sum?
The 10x2 architecture groups the remaining 8 500 series slots and two additional analog inputs on slots 9 and 10. Each channel features level and pan controls with a 3 dB pan law. This law maintains a stable center image when panning.
Is it possible to create two independent headphone mixes?
Two dedicated headphone amplifiers, each with outputs on 2 jacks and a blend function, allow for two separate headphone mixes.
How can Dante be used with the D510 Mixer?
With the optional D510dante card, monitoring can be sourced either from the analog direct outputs or from a Dante network input. The analog signal chain remains preserved.
What headroom and distortion specifications does the mixer offer?
Both input and maximum output levels reach +24 dBu. The specified THD+N is below 0.003% at 1 kHz under the measurement conditions specified for the mixing stages.
