Harrison D510 USB ADAT

Name: D510 USB ADAT
Brand: Harrison
SKU: 428888
Price: 649.00 EUR
Availability: InStock

649,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 428888

EAN : 0850057437119

This item is covered for 3 years

Information

Essential Information About the Harrison D510 System for 500 Modules
• Ultra-flexible USB/ADAT audio hub offering up to 26 inputs and 30 combined outputs for hybrid workflows in studio and live settings.

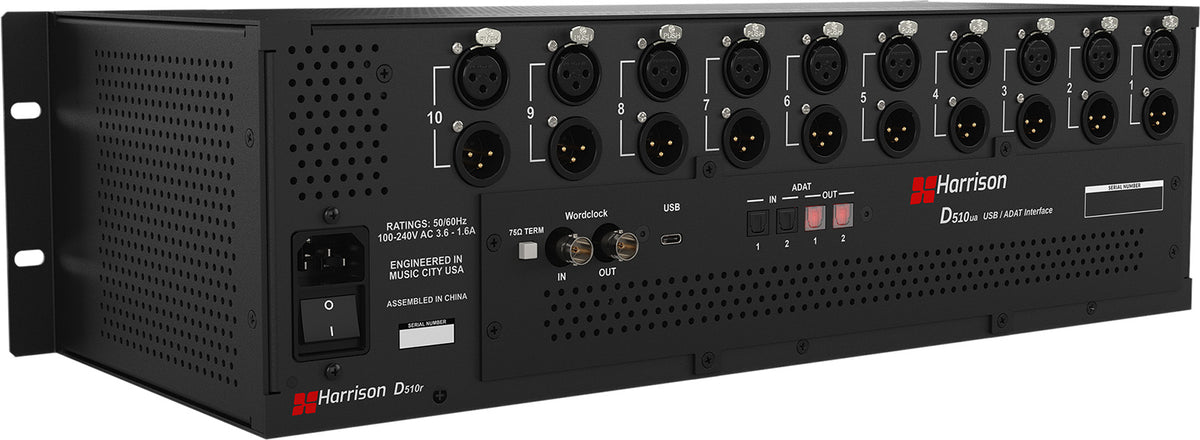

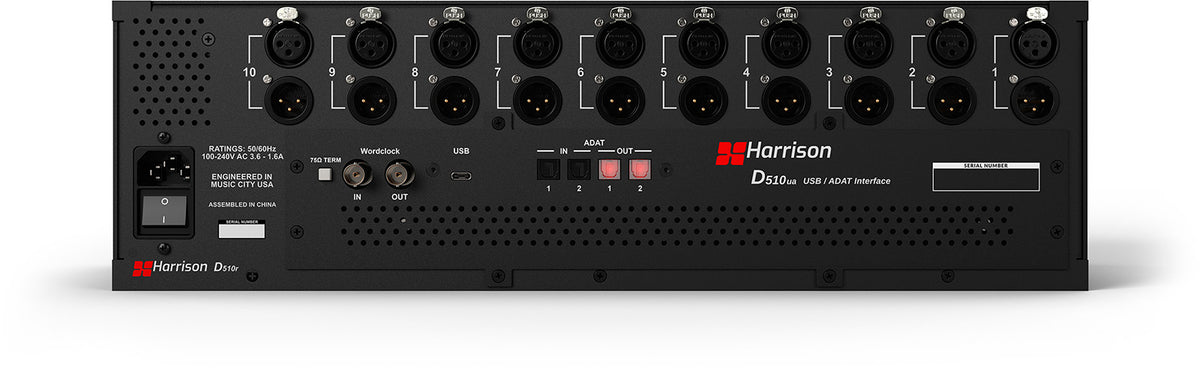

• D510r 10-slot rack with dedicated A/D and D/A converters per slot, plus 4 additional D/A outputs for D510mx headphone mixes.
• High-resolution audio up to 192 kHz, BNC Word Clock I/O, and front-panel routing controls for reliable, jitter-free integration.
• Extensive compatibility with macOS (audio class) and Windows with ASIO/WDM driver, USB and ADAT connectivity usable simultaneously*

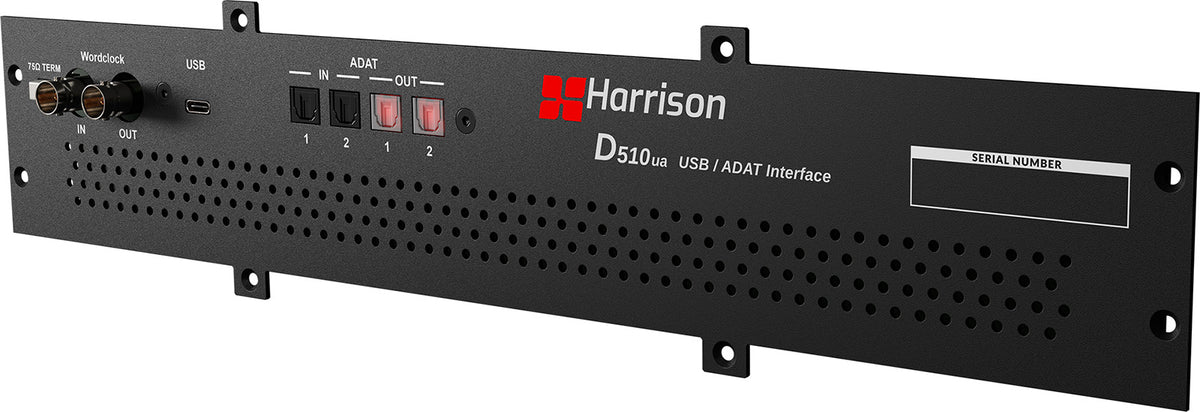

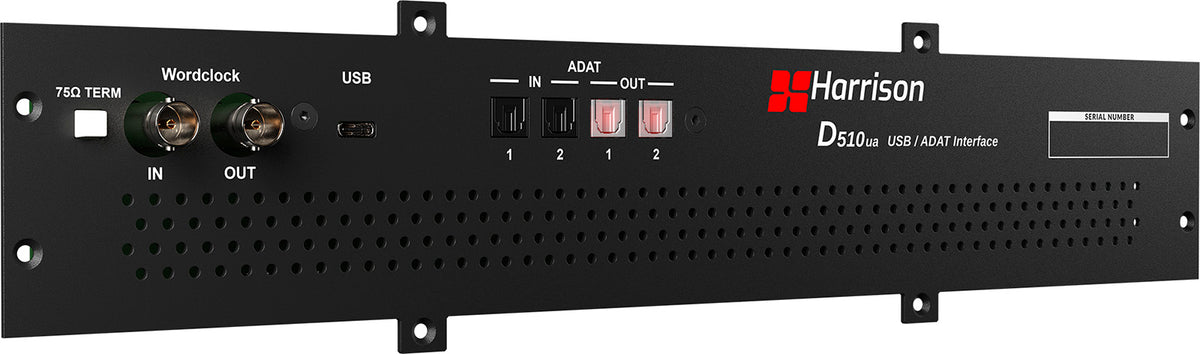

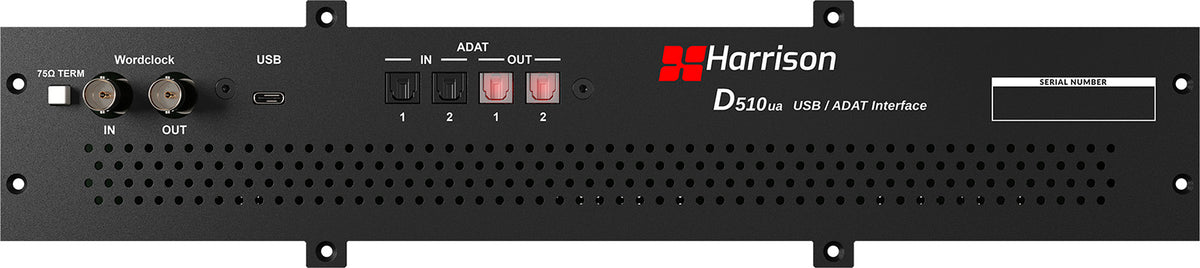

D510 USB ADAT

649,00 €VAT incl.

0,00 € Ecotax included

Reference price

The Harrison 500 System Reinvented for Modern Studios

Direct descendant of Harrison's 1970s legacy, the "D510" translates the expertise of legendary consoles into a current 500 modular format. The D510r rack concentrates high-power supply, per-slot conversion, and road-ready robustness. By pairing it with the D510-USB-ADAT interface, you transform your 500 rack into a true audio nerve center, capable of powering a demanding analog/digital recording chain.

Who Is It For and What Are Its Uses?

Ideal for sound engineers, producers, and hybrid creators who want to get the best out of their 500 modules while maintaining the flexibility of a DAW. Perfect for studio (tracking, re-amping, analog summing), live (compact, reliable racks), or high-end home studios. Headphone mixes via D510mx provide comfortable monitoring for musicians and artistic directors.

Technical specifications

Category	format 500
Number of channels	16
Sampling frequency	192000 kHz

Rack unit	10
Analog outputs	Adat, headphone

Questions frequently asked

Harrison D510 USB ADAT: Mac and Windows compatibility?

The USB connection works plug-and-play on macOS. On Windows, an optimized ASIO/WDM driver is provided.

How many ADAT channels are available depending on the sampling rate?

At 44.1 or 48 kHz, 16 bidirectional ADAT channels are available via USB. At 88.2 or 96 kHz, the capacity is 8 bidirectional ADAT channels. At 176.4 or 192 kHz, ADAT is not supported.

How many analog inputs and outputs are accessible via USB?

The interface provides 10 analog inputs and 10 analog outputs via USB up to 96 kHz. Four additional outputs can power the D510mx headphone mixer card when installed.

What USB latency is obtained with a buffer of 32 samples?

With a 32-sample buffer at 96 kHz, the round-trip USB latency reaches 5.1 ms on Mac and 3 ms on Windows in Safe Off mode.

Are Word Clock routing and synchronization provided?

Switching between USB and ADAT sources is done from the front panel. Independent routing of inputs and outputs is available, with Word Clock input and output for synchronization.
