Harrison Console Expertise, Concentrated in the "500 Series" Format

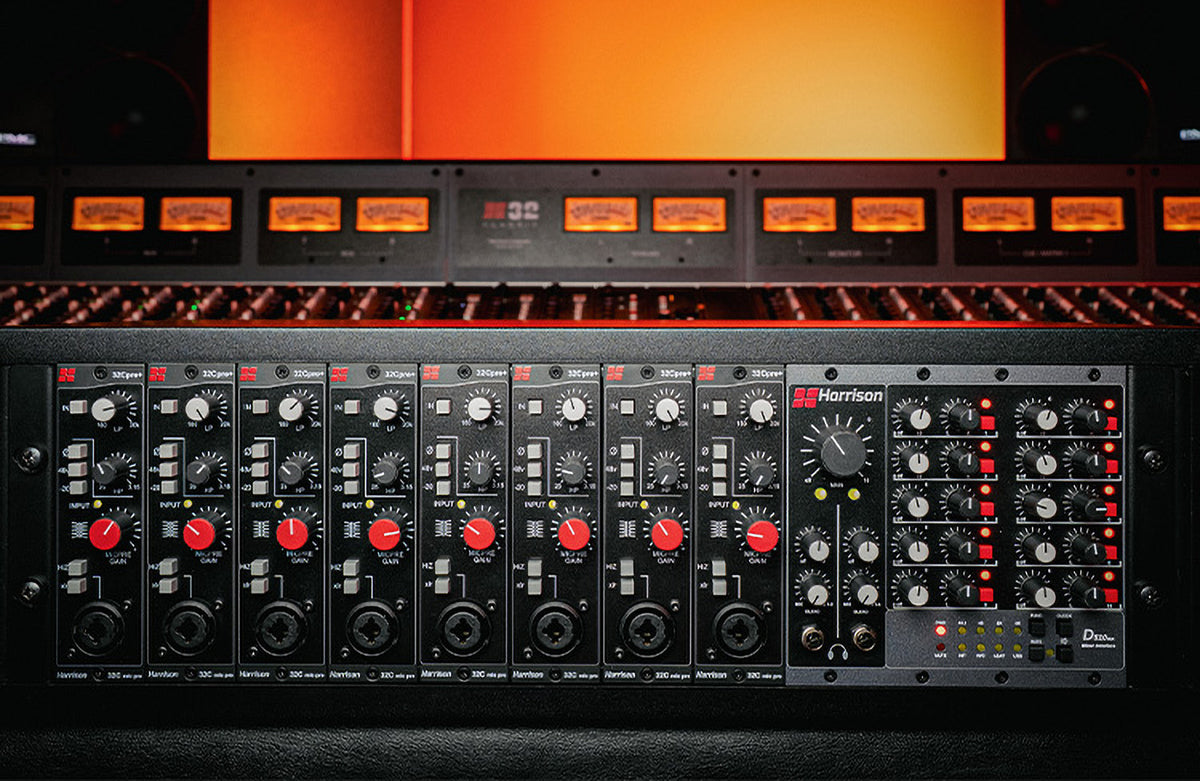

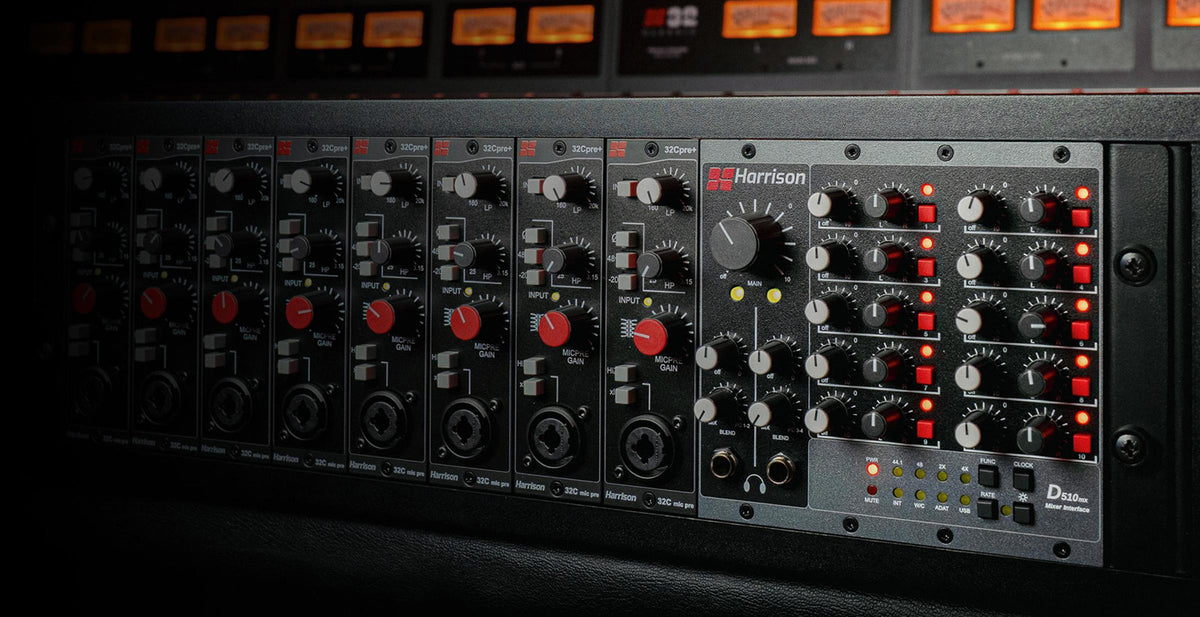

Harrison has shaped the sonic aesthetic of generations of artists and engineers. With the D510r, the brand transposes this console DNA into a portable "500 series" chassis. Pair it with the D510mx mixing card to benefit from true Harrison analog summing, and build your own modular console around the famous 32C preamps and your favorite processors.
Who Is It For and What Are Its Uses?
The D510r is aimed at demanding engineers and producers seeking a high-performance modular system. Ideal for fixed or mobile studios, live sound, post-production, and hybrid setups, it excels at stem summing, multitrack recording with 32C PRE+ preamps, or creating a custom Harrison channel strip. Its robustness and compact 3U size make it a reliable companion for both touring and studio environments.
Technical specifications
| Category | format 500 | Rack unit | 3 |
| Number of channels | 10 | Analog outputs | Adat, RJ45 |
Questions frequently asked

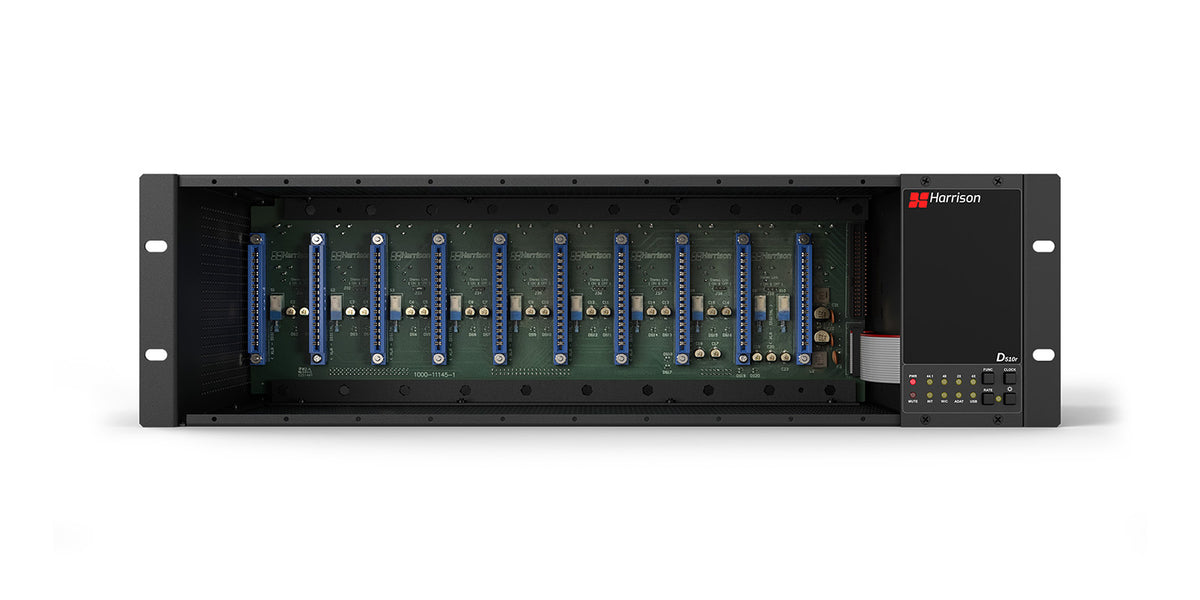

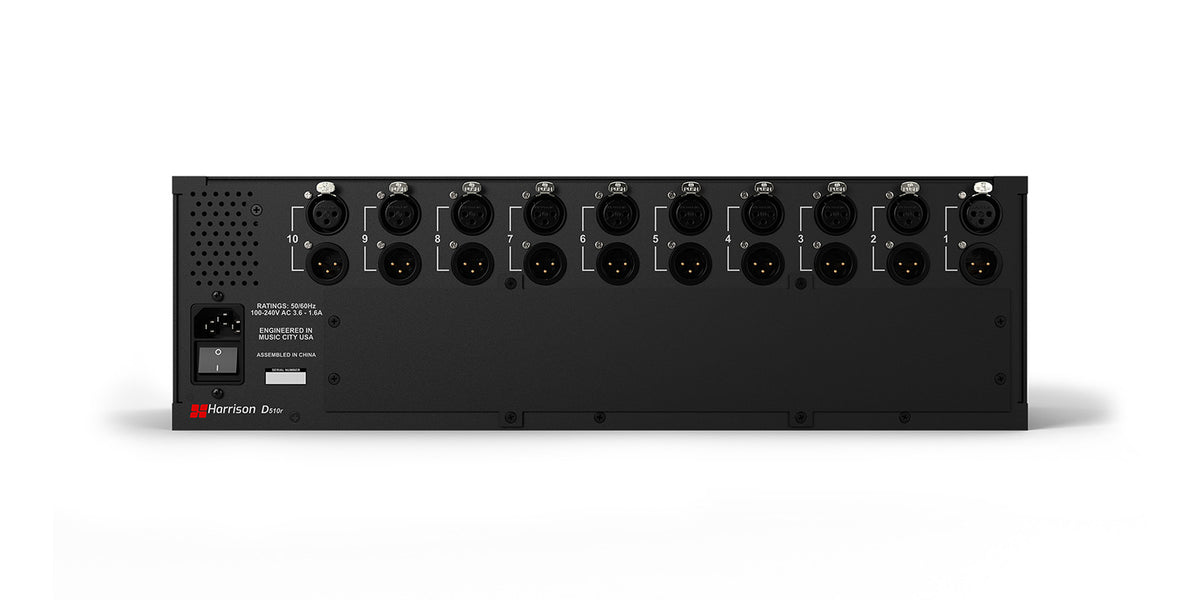

How many 500 series modules can this Harrison chassis accommodate?
The 19-inch steel chassis provides 10 slots compatible with standard 500 series modules.

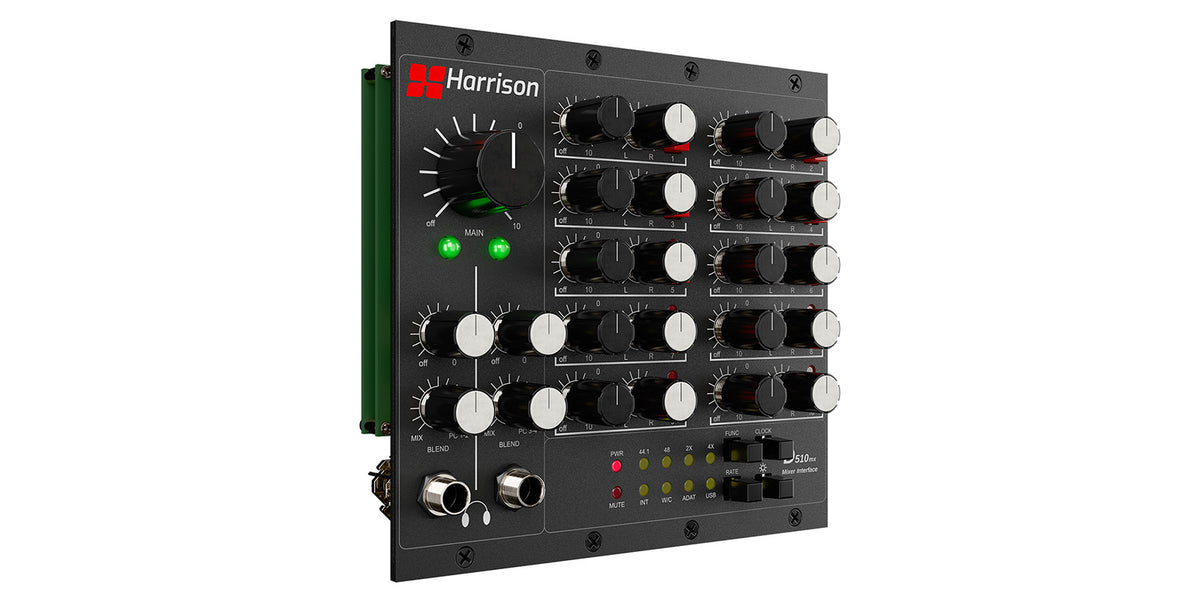

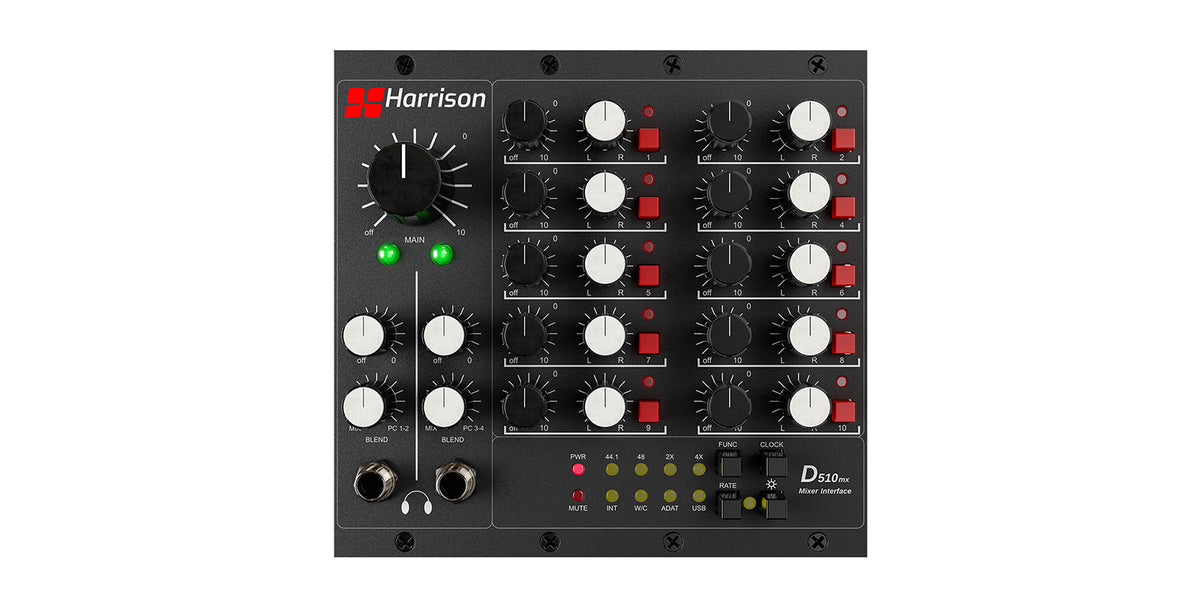

Does the Harrison D510R with D510 Mixer allow analog summing?
The D510mx mixing card provides analog summing on up to 8 channels. This setup is particularly suitable for mixing stems in a hybrid workflow.
What power supply is available for the 500 series modules?
The internal power supply delivers 170 mA per slot. A margin of approximately 30% above the standard 500 series specifications is provided. This reserve supports modules requiring higher current.

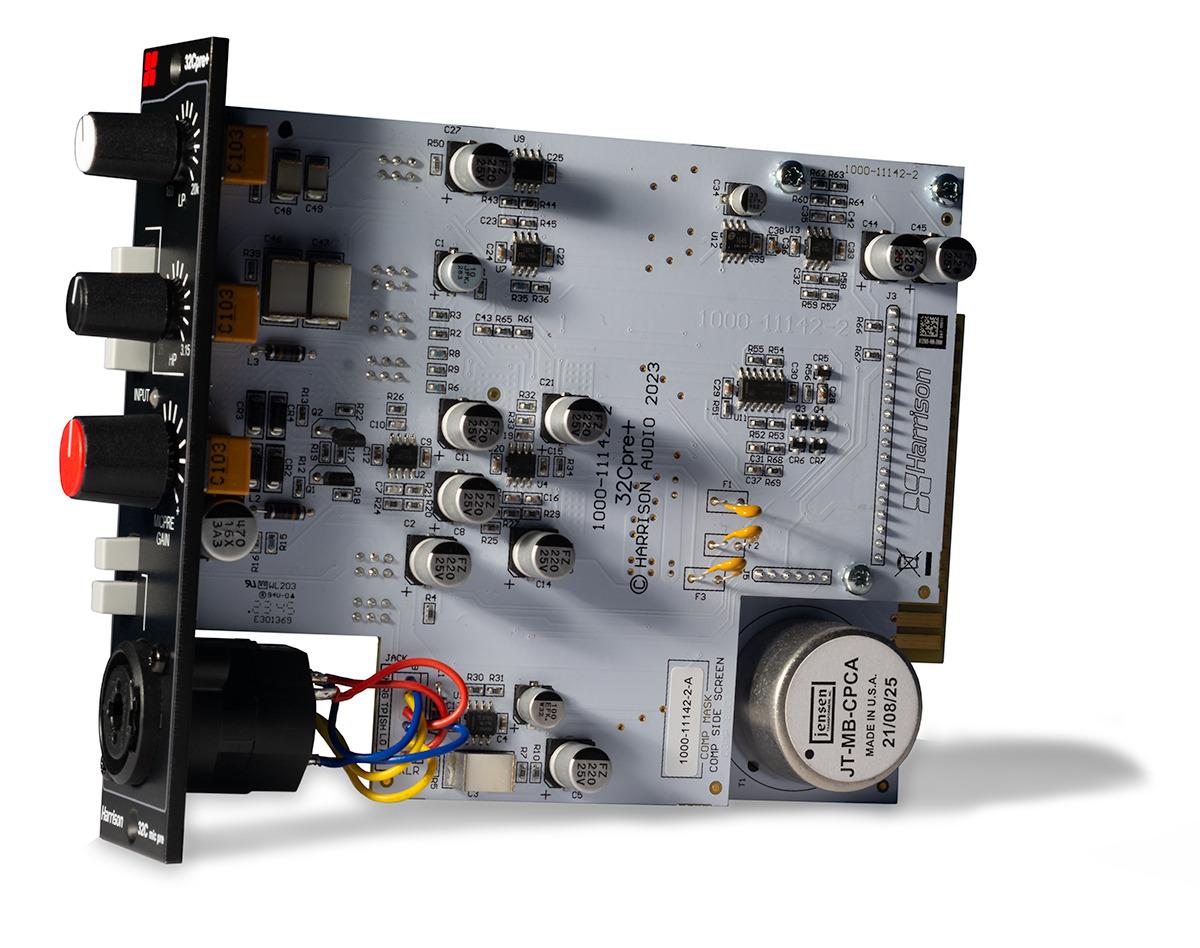

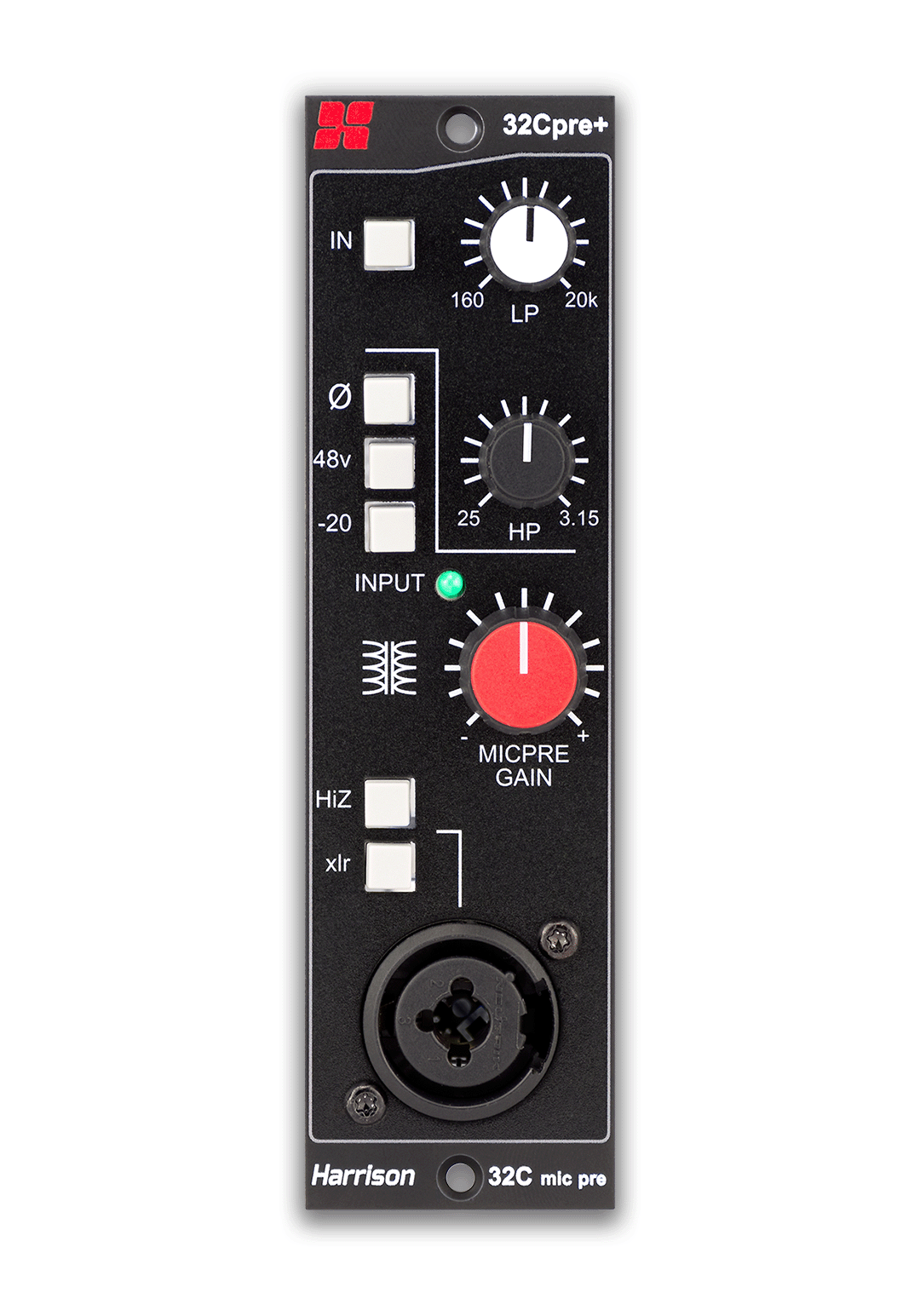

Which preamps are included in this Harrison pack?
The set includes 8 Harrison 32C PRE+ preamps, as indicated in its reference. They allow building a modular console channel strip around the D510R chassis.
Can this Harrison rack be integrated into a Dante audio network?
An optional Dante AoIP interface is available for integration into audio networks. A USB + ADAT card is also offered for configurations using these formats.
