Koch Loadbox 16

Name: Loadbox 16
Brand: Koch
SKU: 163879
Price: 379.00 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

379,00 €VAT incl.

0,14 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 163879

EAN : 8718053960036

This item is covered for 3 years

Information

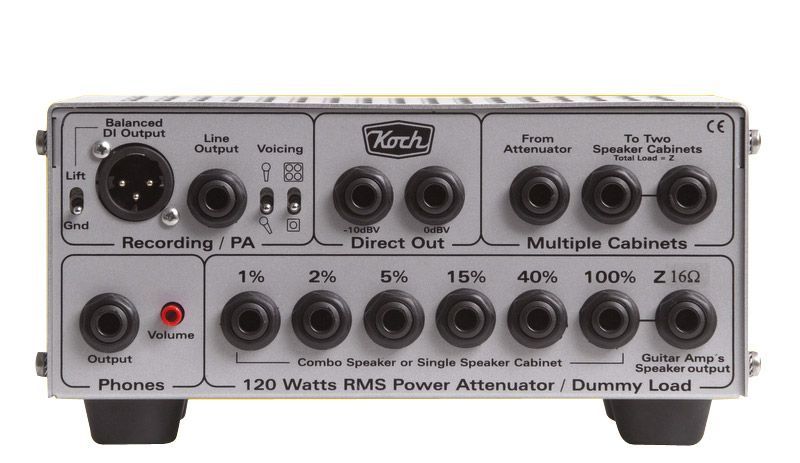

Essential Information About the Koch Loadbox II
• 120 Watt Continuous Attenuator with 7 power levels, allowing you to push a tube amp into its saturation zone without deafening the room
• Direct Box + Loadbox (dummy load) + Cabinet Simulator : a true all-in-one solution for stage and recording
• Transformer-balanced XLR DI + direct outputs and line output, adaptable to a mixing console, audio interface, or another amp
• Robust stainless steel chassis and level selection via jacks (reliable, no attenuation potentiometer)

Loadbox 16

379,00 €VAT incl.

0,14 € Ecotax included

Reference price

A Koch "Multi-Tool" Designed to Get the Best Out of Your Amp

The Loadbox II follows Koch's philosophy: offering solid, musician-oriented tools that respect the amp's tone. Rather than trying to "recreate" an amp, it helps you exploit yours under the best conditions: power tubes working hard, richer grain, natural compression, and controlled final volume. With its dummy load function, it also allows you to play and record without a cabinet while maintaining a usable output for a PA system or studio.

Who It's For and Situations Where the Loadbox II Makes a Difference

This power attenuator is aimed at guitarists playing tube amps (combo or head) who want to regain the feel of a pushed amp in an apartment, rehearsal space, or small stage. It suits dynamic clean tones as well as blues crunch, classic rock, hard rock, up to heavy distortion, where the response of power tubes adds density and sustain. In the studio, it becomes a formidable partner for quick recording (DI/line outputs), doubling takes, or sending a signal to a console while keeping a cabinet at a reasonable volume.

Technical specifications

Power handling	120 MILLIWATT	Destination	effect pedal
Fictitious load	Yes	Headphone outputs	Yes
IR loader	No	Color	Grey
Type	Rack mount kit	Connections	XLR, Standard (5.5x2.1mm)

Questions frequently asked

Can the Koch Loadbox 16 be used without a speaker cabinet?

The built-in dummy load allows the amplifier to be used without a speaker cabinet connected, including with attenuation set to 0%. A headphone output with volume control enables silent practice.

Which impedance should be chosen for a tube amplifier?

The 16 ohm version must match the amplifier's speaker output impedance. The Loadbox II is also available in 4 and 8 ohm versions.

What attenuation levels are available?

Seven fixed positions are offered: 100%, 40%, 15%, 5%, 2%, 1%, and 0%. This dedicated output system does not use a potentiometer.

Does the DI output allow direct recording?

A transformer-balanced XLR DI output is provided for console or studio use with a maximum load of 600 ohms. Selectable filters offer 1x12 or 4x12 cabinet styles and mic on-axis or off-axis positions. A line output complements this connectivity, with a maximum load of 20 kOhms.

What are the direct outputs of the Loadbox II?

Two unfiltered unbalanced direct outputs are available at -10 dBv and 0 dBv levels, intended notably for effects loop return, another amplifier, or a power stage.
