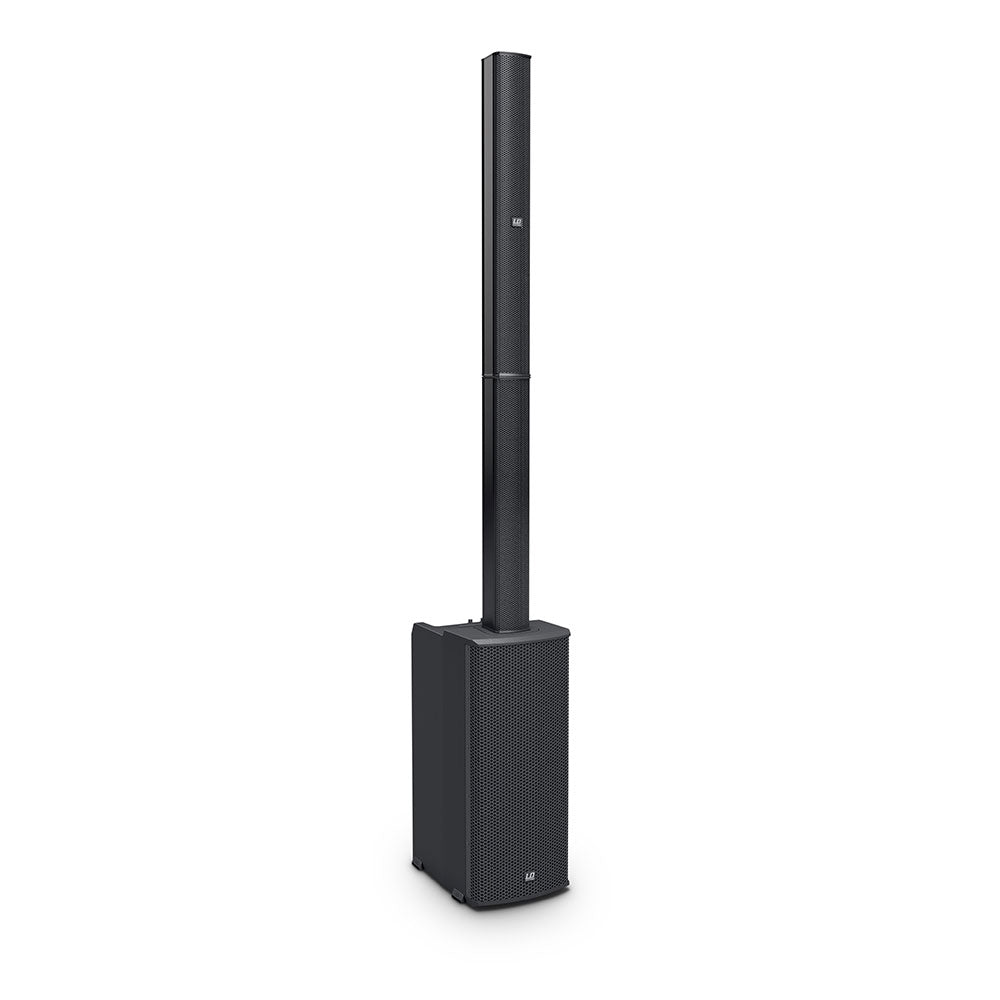

LD Systems Maui 11 G2

A Compact Column Solution Designed for Mobile Performances

The MAUI 11 follows the design principles of modern column PA systems: offering a more discreet, faster and more intuitive setup than a traditional system made up of speakers on stands. At LD Systems, the MAUI series is recognized for its practical approach to live sound, with a format that is easy to transport and sound cover particularly well suited to small and medium-sized performances.

This model strikes an excellent balance between compactness, sonic clarity and ease of use. Its tower-style subwoofer houses the essential controls, while the column locks securely into place via a dedicated connector. The result is an elegant, tidy stage system that is reassuring to handle, whether for a self-contained musician or an event professional.

A System Designed for Mobile DJs, Musicians and Versatile Events

The MAUI 11 is aimed at users who need a complete, efficient system that can be deployed quickly. It is particularly well suited to solo artists, acoustic duos, small ensembles, mobile DJs, entertainers and presenters looking for a PA system that is easy to transport without sacrificing sound quality. Its wide sound cover helps distribute sound evenly throughout the listening area while maintaining good monitoring for the performers.

In practice, this system naturally fits private parties, cocktail receptions, corporate events, speeches, municipal events, showcases and small stages. Its column format reduces the visual footprint and eliminates the need for speaker stands, making it a relevant option for smaller spaces, reception venues and setups where aesthetics matter just as much as performance.

Built-In DSP, Cable-Free Assembly and Balanced Sound Reproduction

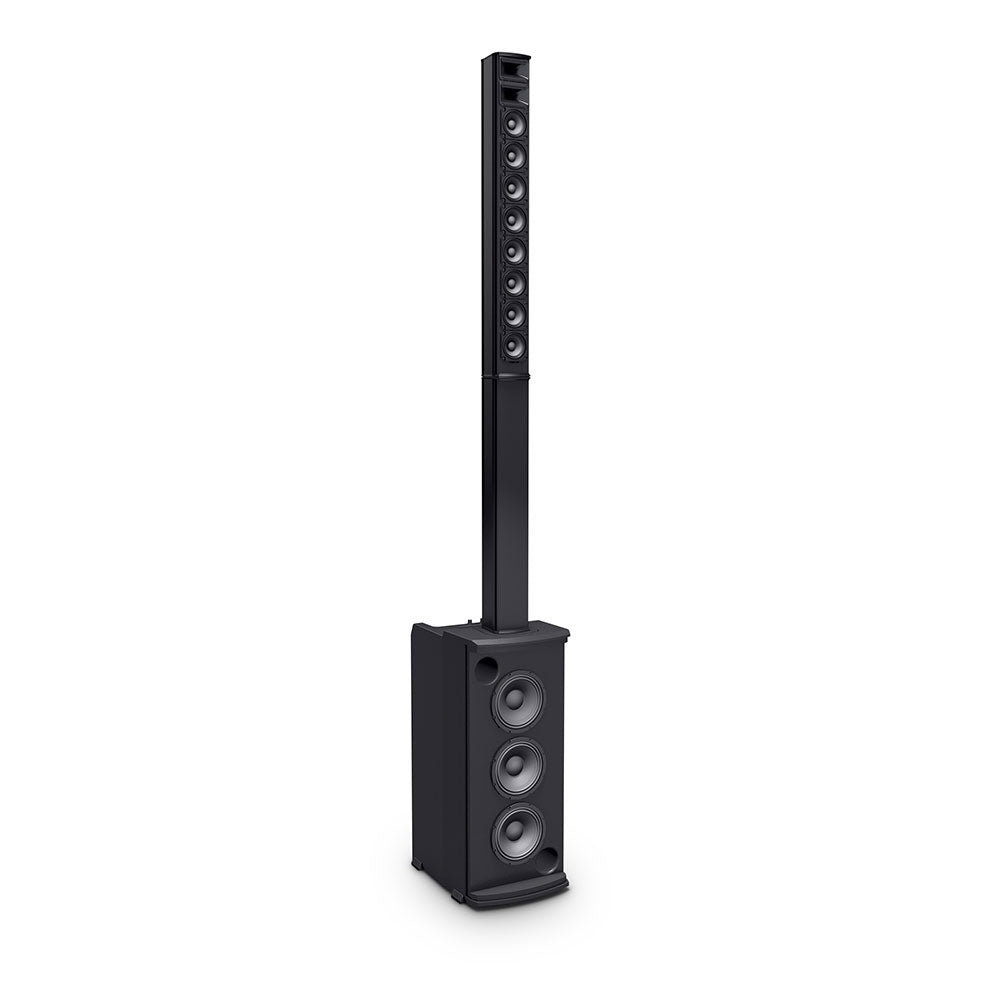

At the heart of the MAUI 11 is a 2.1 active architecture with Class D amplification: 200 W RMS are dedicated to the subwoofer and 140 W RMS to the column. The subwoofer features two 6.5-inch woofers mounted in a V configuration, helping to deliver solid low-end support while maintaining a compact footprint. The column combines eight 3-inch speakers with a 1-inch horn-loaded tweeter to ensure precision, presence and intelligibility, particularly for vocals.

LD LECC DSP digital processing plays a central role in the system's performance. It manages limiter, equalizer, compressor and crossover functions to optimize the overall response and ensure reliable operation at high levels. With a frequency response of 50 Hz to 20 kHz, a sensitivity of 96 dB and a maximum peak SPL of 121 dB, the MAUI 11 offers sufficient headroom for a wide range of mobile performances.

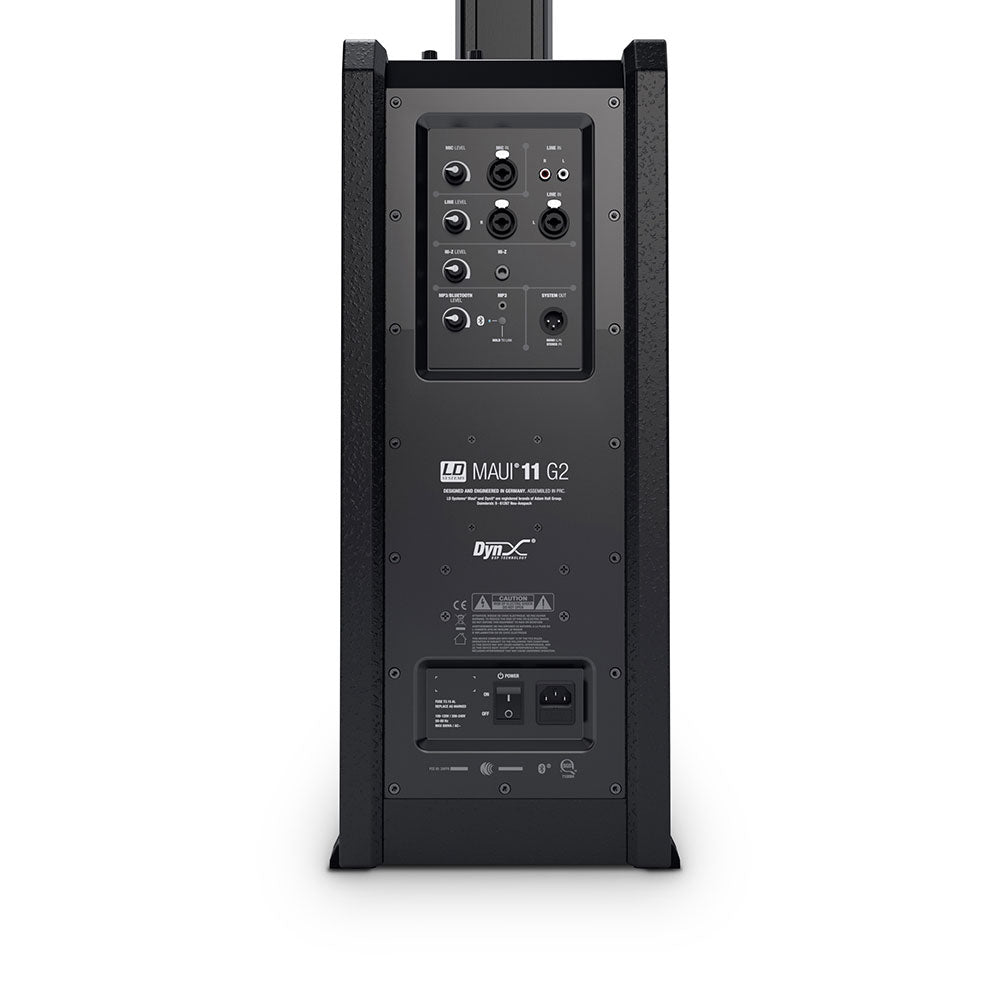

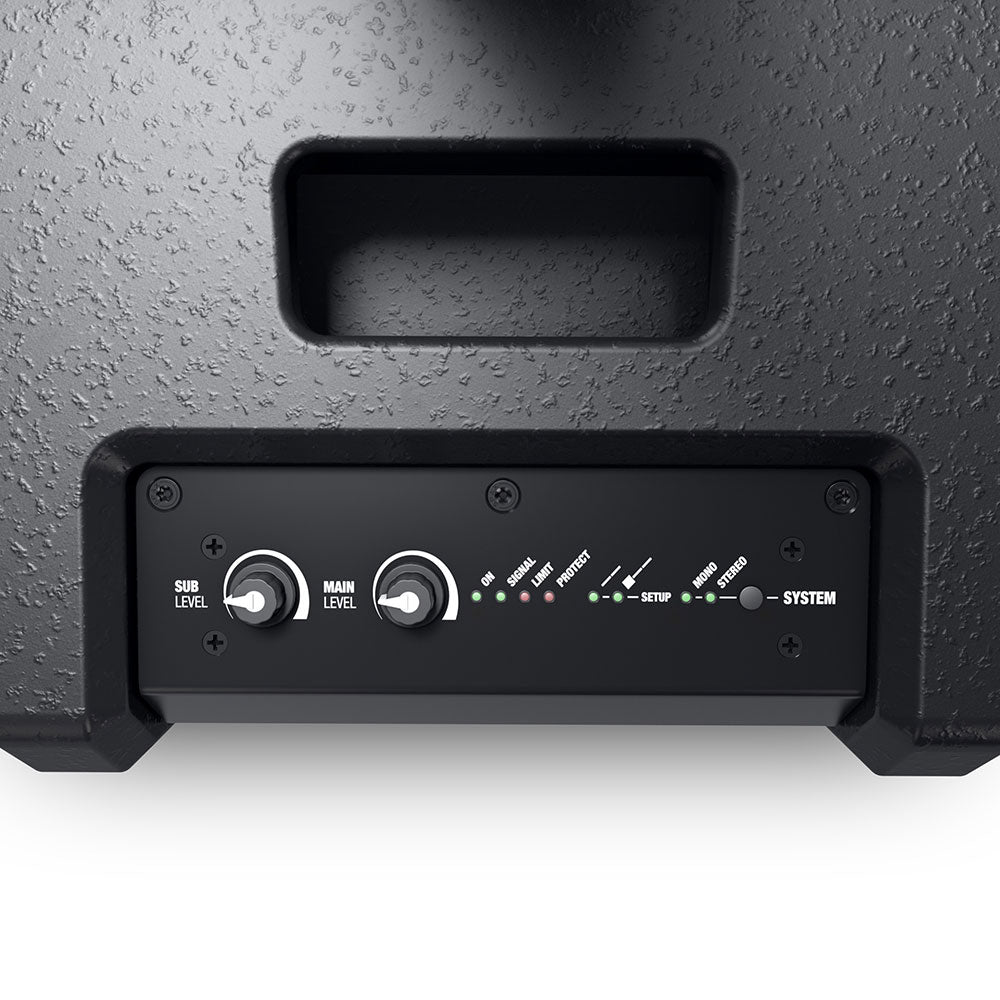

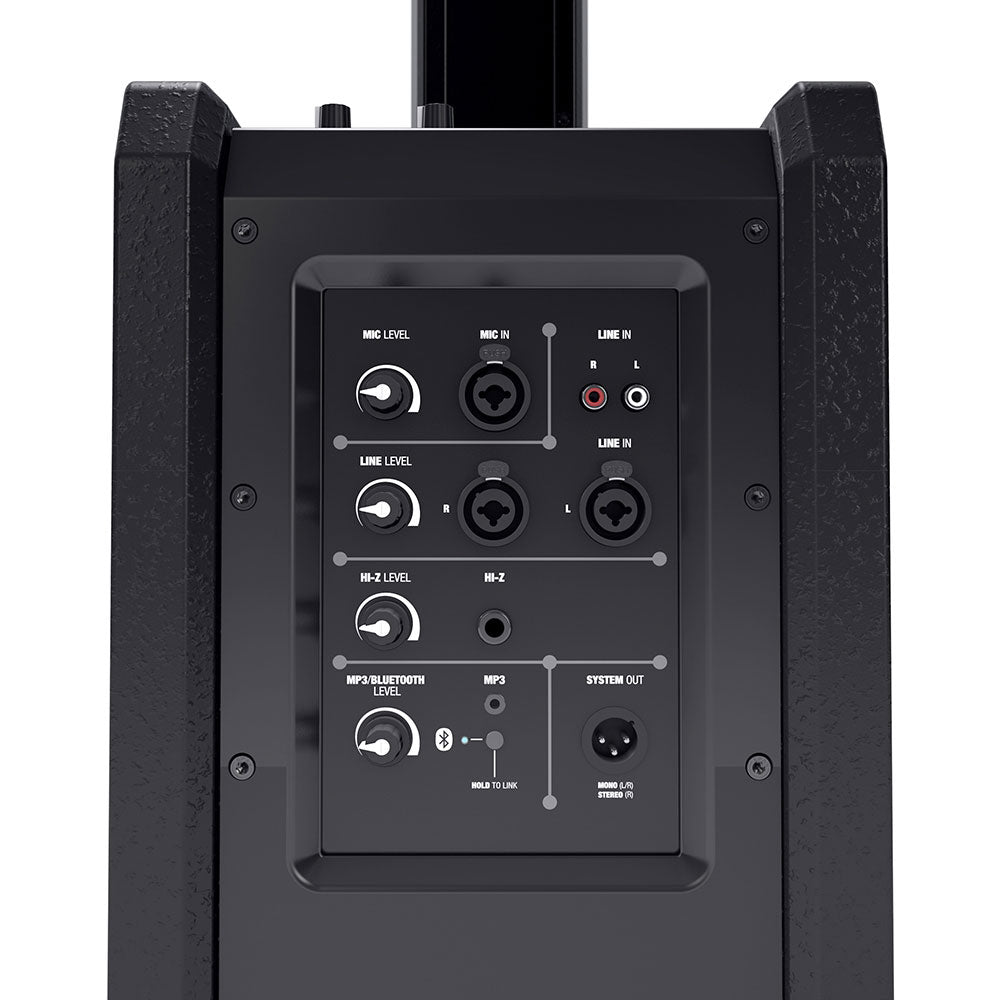

From a practical standpoint, everything is designed for speed: the column elements connect via a custom multipoint connector, with no external cable required, and overall stability is reinforced by two steel extensions. The control panel remains simple and effective, with volume and subwoofer level controls plus a power switch. The On, Signal, Limit and Protect status indicators make it easy to monitor the system in real-world situations, while the XLR, 6.3 mm jack and RCA inputs accommodate different audio sources depending on the context.

Technical specifications

Battery	No	Media Player	Bluetooth
Number of channels	3 channels	Speaker structure	wood
Bluetooth	Yes	Inputs	stereo minijack, combo XLR/jack
Speaker diameter	1", 3", 6,5"	Outputs	XLR
Number of speakers	13	Color	Black
EQ	Yes	Power output	1000 W

Model name	LDMAUI11	Frequency response	50 Hz - 20 kHz
Type	2.1 system with vertical column and subwoofer	Sensitivity at 1 W / 1 m	96 dB
Design	compact active column PA system	Maximum continuous SPL level	113 dB
Vertical column	8 x 3-inch speakers	Maximum peak SPL level	121 dB
High frequencies	1-inch horn-loaded tweeter	Signal processing	LD LECC DSP
Average horizontal dispersion	120	DSP functions	limiter, equalizer, compressor, crossover
Subwoofer	2 x 6.5-inch woofers in V-shaped configuration	Protections	short circuit, overcurrent, dual limiter
Amplification	Class D	Controls	volume, subwoofer level, on/off switch
Subwoofer RMS power	200 W	Indicators	On, Signal, Limit, Protect
Subwoofer peak power	400 W	Subwoofer inputs	2 x XLR / 6.3 mm jack, RCA
Column system RMS power	140 W	Column connector	custom multipin connector, no cable required
Column system peak power	280 W
