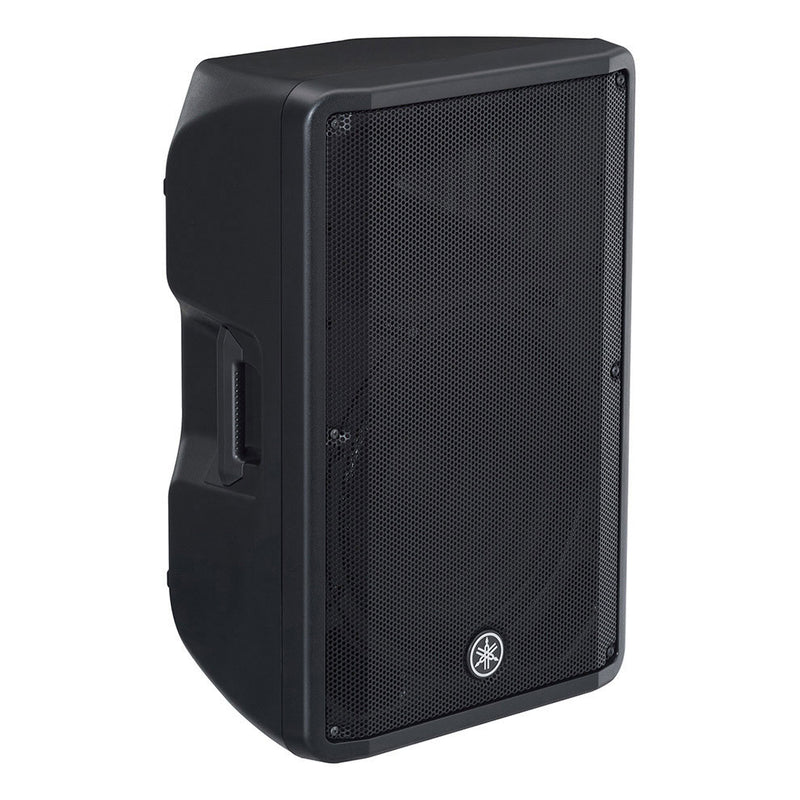

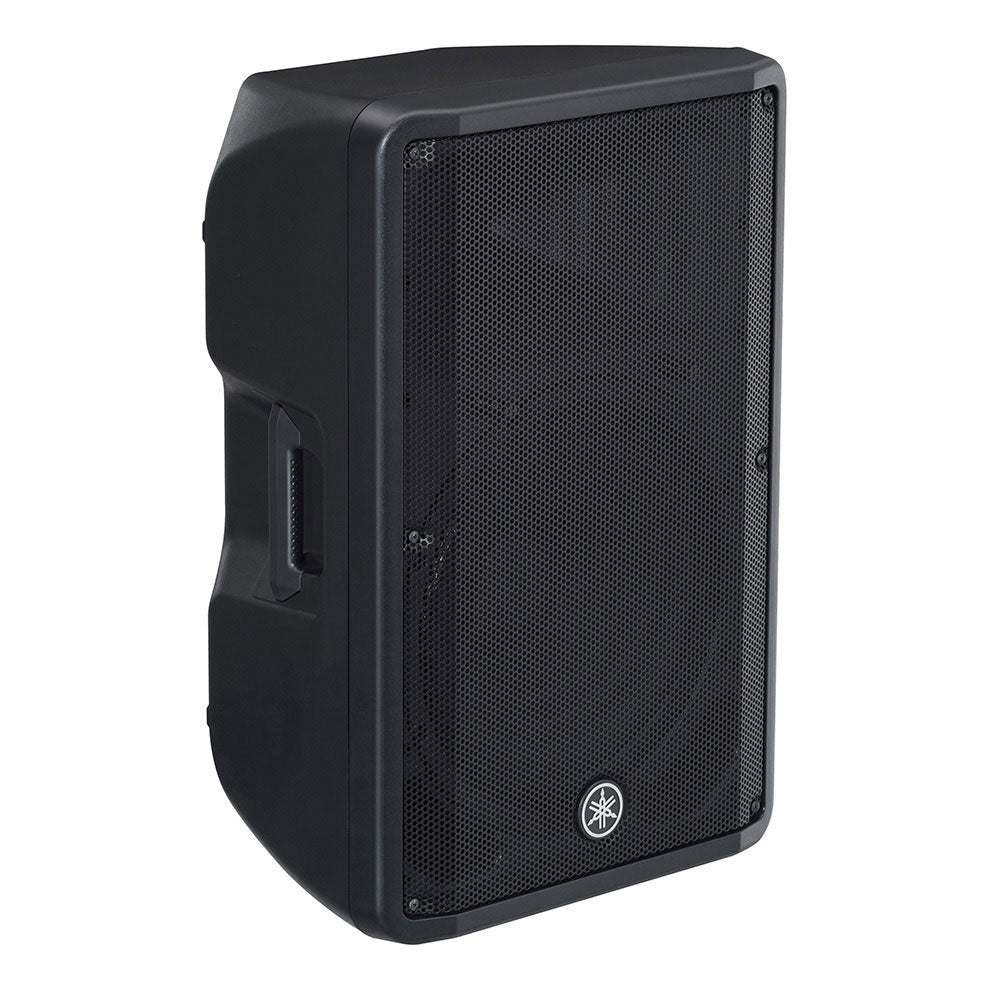

Yamaha CBR15
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Yamaha
https://www.yamaha.com
------------------------
Safety manager:
Yamaha Music Europe GmbH
Email: info@yamaha.de
Address:
Essential Information About Yamaha CBR Passive Speakers
- Powerful and precise sound reproduction thanks to optimized transducers and a constant directivity horn.
- High-volume reliability: tweeter protection circuit and low-inertia woofer.
- Lightweight, robust plastic enclosure with ergonomic handles and steel grille.
- Complete versatility: front of house, stage monitors (50-degree angled cut), rigging, and fixed installations.
A Series Rooted in Yamaha Expertise
The "CBR" series, the result of Yamaha's accumulated acoustic technologies, emphasizes clarity and reach in a portable format. Designed to deliver high-definition sound reproduction while remaining easy to deploy, these speakers naturally fit both on stage and in lightweight installations.
Who Is the CBR Series For?
Ideal for contractors, bands, places of worship, bars, and schools, the CBR ensures even coverage both front of house and as monitors. Its simple connectivity and discreet enclosure allow quick integration into mobile or fixed setups.
Technical specifications
| Battery | No | Speaker structure | polymer molding |
| Number of channels | 2 channels | Inputs | jack, 1 x NL4 (speakON compatible) |
| Speaker diameter | 15" | Outputs | Speakon, jack |
| Number of speakers | 2 | Color | Black |
| EQ | No | Power output | 1000 W |
| Cutaway | Yes | ||
Questions frequently asked
Is the Yamaha CBR15 an active speaker?
This passive speaker requires external amplification; no battery or built-in EQ function is indicated. Its rated power is 1000 W.
What connectivity does the CBR15 offer?

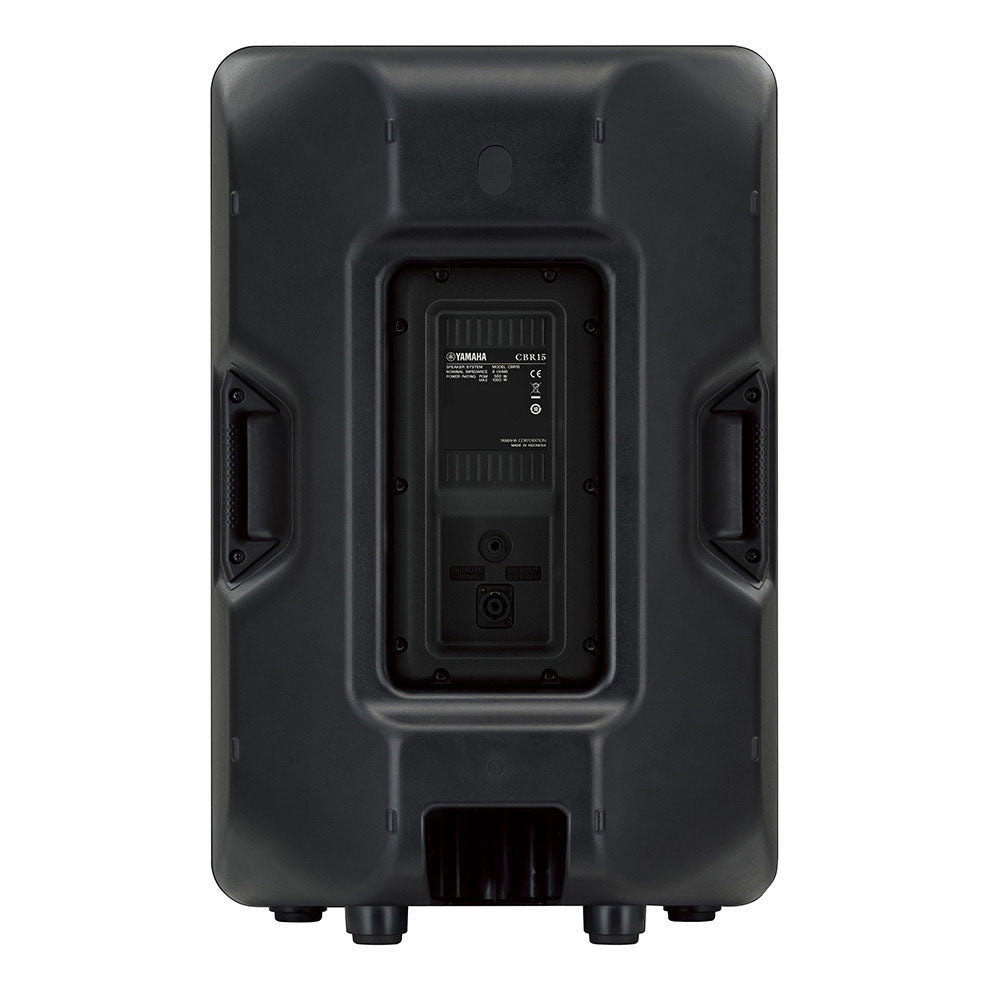

Connections include a 6.35 mm jack input and an NL4 speakON-compatible input. speakON and jack outputs allow signal looping.
Can it be used as a stage monitor?
The enclosure features a beveled edge allowing floor placement as a monitor. The CBR15 has a symmetrical design suited for stereo mirror monitor setups.
What sound coverage does the horn provide?
The constant directivity waveguide covers 90° horizontally and 60° vertically, aiming for even coverage of side areas.
Is it suitable for suspended installation?
M8 threaded inserts are built into the polymer enclosure for rigging. Mounts and eye bolts are not included.
