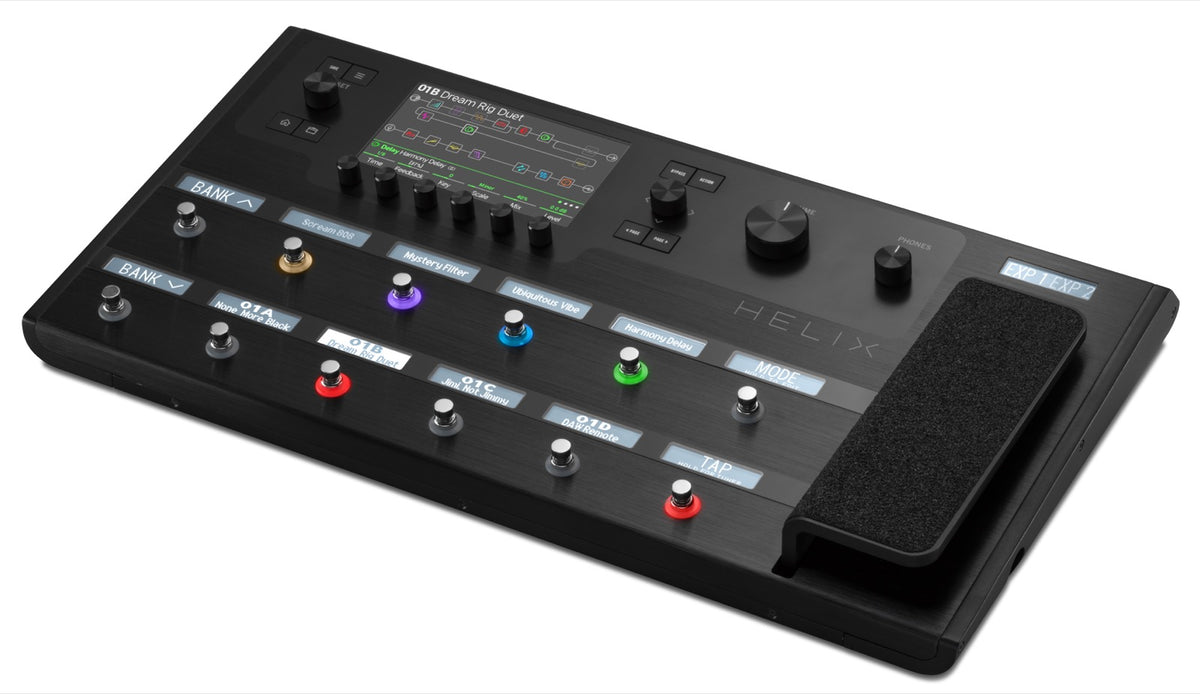

Line 6 HELIX - Refurbished

Helix Floor: The HX Flagship, Designed as a Rig "Brain"

The Helix Floor is more than just stacking effects: it was designed as a modular platform where you build your chains (amps, cabinets, effects, external loops) while maintaining highly advanced real-time control. Within the Line 6 range, it is the most complete pedalboard version for managing both your sounds and equipment control (amps, external pedals, MIDI systems), with ergonomics that favor quick adjustments on stage or in the studio.

Who Is It For, and In What Contexts?

The Helix Floor is aimed at demanding guitarists and bassists, from cover musicians to touring pros, who want to switch presets without compromise and secure a full set in a single pedalboard. It excels in rock, metal, pop, funk, worship, ambient, or studio session settings, and integrates very well into hybrid setups (real amp + Helix effects, or Helix direct). To get the most out of amp and speaker simulations, using an FRFR cabinet or neutral monitoring is particularly relevant.

Controls, Modes, and Connectivity: A "Hands-On" Approach

Thanks to the editing controls (turn/press/hold), joystick, and dedicated buttons, you can select, move, bypass, and edit your blocks with one hand. The legend ribbons and LED rings are customizable for instant reading: in Preset mode, you display preset numbers and names; in Stomp mode, you see effect names and assigned parameters. Capacitive footswitches allow quick access to assignments, and editing directly on the pedalboard facilitates adjustments without interrupting playing.

Sound Quality

The Helix Floor focuses on lively reproduction: precise attack, natural compression when pushing amp models, and excellent responsiveness to playing nuances. Its wide dynamic range and adjustable impedance input help preserve pickup character and the "feel" under the fingers, whether you seek modern transparency, organic saturation, or highly crafted textures. On PA, recording via USB, or in an amp loop, it allows sculpting a consistent and reproducible sound from gig to gig.

Technical specifications

Effects	Multi-effects, Preamp, MIDI Foot Controller, Cabinet Simulator	Use	electric guitar
Format	Pedalboard	Color	Black
Type	sector

Screen	6.2'' color LCD (15.74 cm diagonal), 800 x 480 pixels	Effects loops	4 independent
Editing controls	turn to adjust, press to initialize, press and hold to assign a controller	Variax functions	instant recall of model and tuning, effects control and power supply for the Variax guitar
Joystick and editing buttons	select, move, navigate and change editing pages with one hand	MIDI connectivity	In and Out/Thru
Label strips	customize switch labels and LED ring colors	S/PDIF connectivity	In and Out
Switch Preset mode	displays preset numbers and names on the label strips	Digital outputs	L6 LINK and AES/EBU Out
Switch Stomp mode	displays effect names and available parameters on the label strips	USB audio interface	8 inputs / 8 outputs (Mac, PC, iPad), "Reamping" function
Capacitive-sensing footswitches	touch to select, press and hold to assign, press to activate	Box contents not detailed in the supplier's product sheet (power supply, cables and documentation	not specified)
Remote control	traditional amplifiers and pedals	Required power supply	9V DC
Guitar input	adjustable impedance, 123 dB dynamic range	Power consumption	3000 mA
