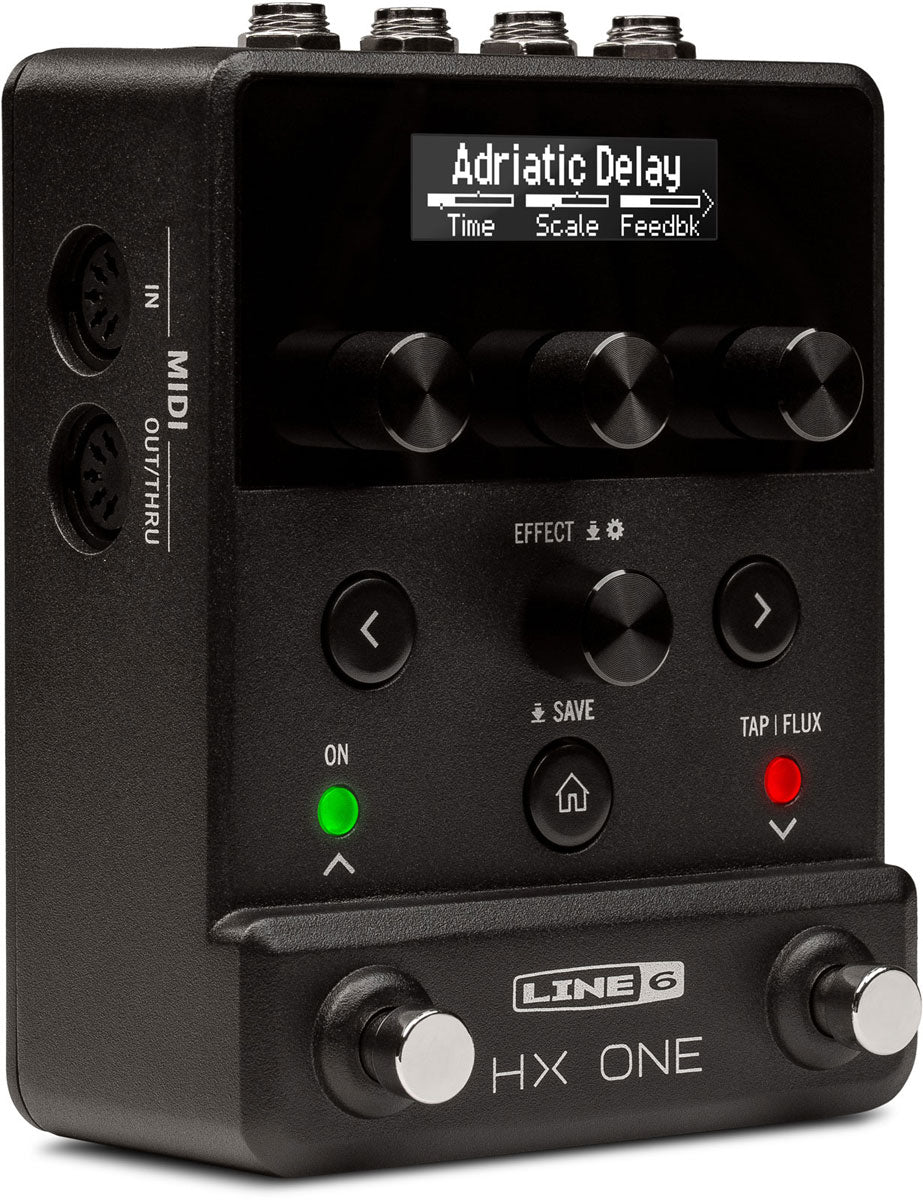

Line 6 HX One

Essential information about the Line 6 HX One pedal

• Over 250 effects from the HX family (delay, reverb, modulation, pitch, filters, dynamics, drives) in a compact format designed for the pedalboard.

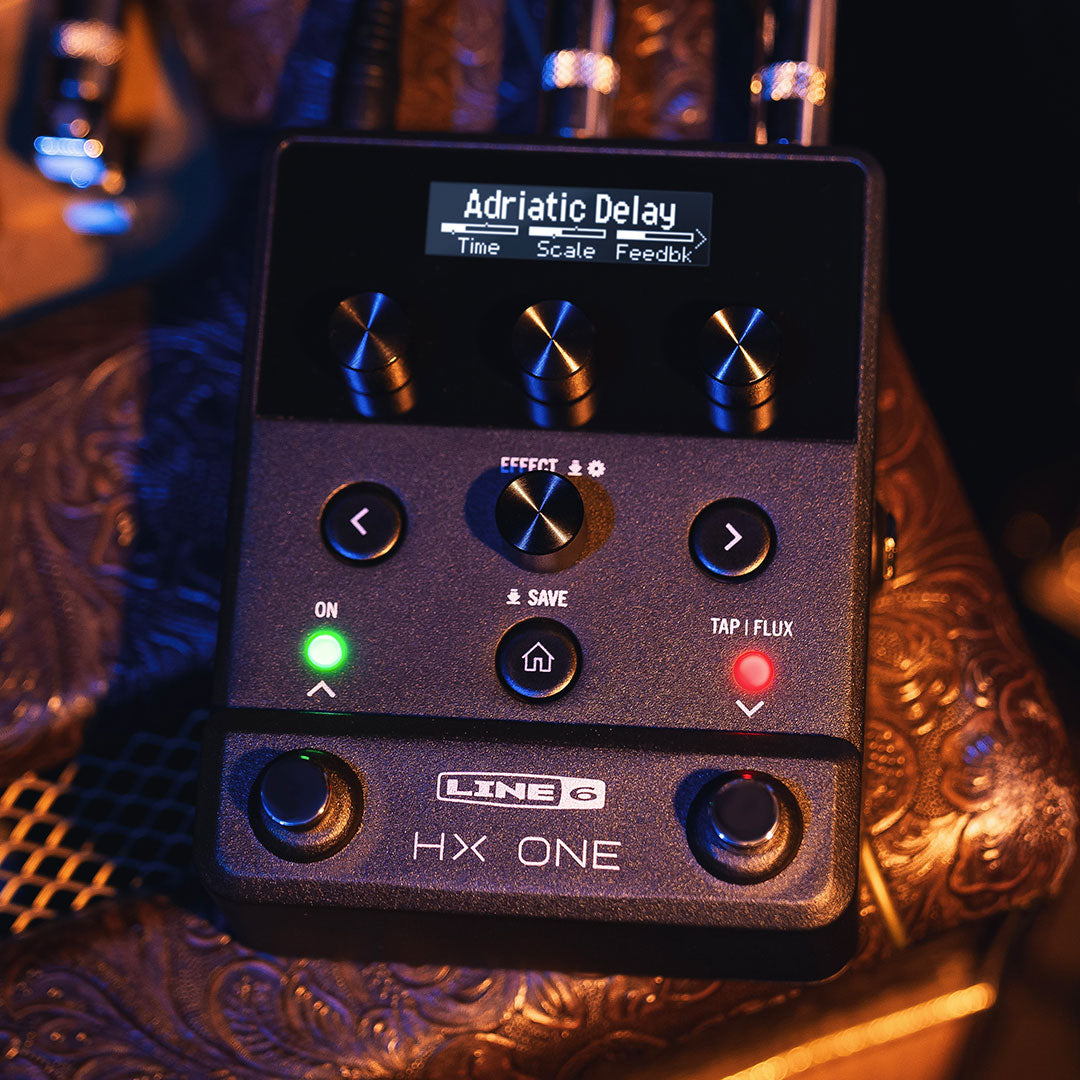

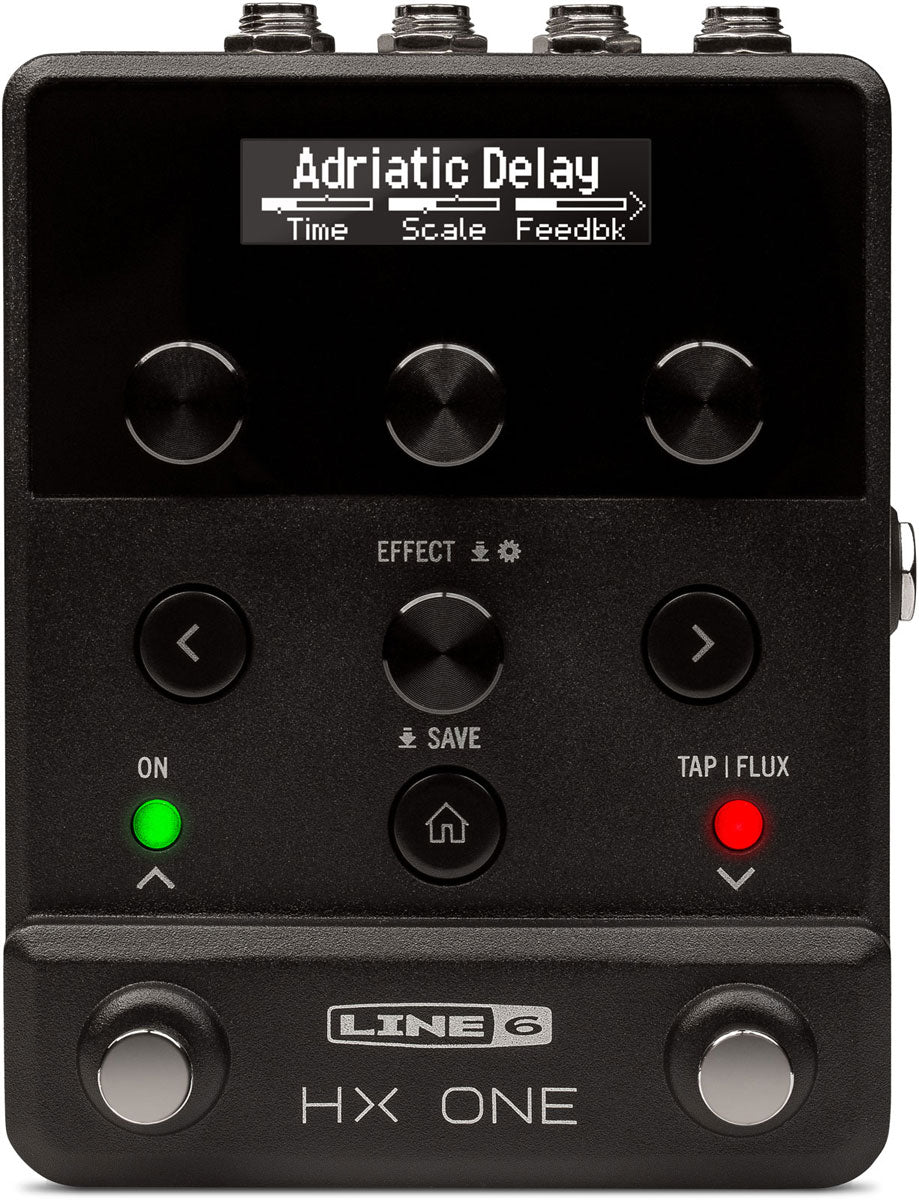

• Ultra-intuitive editing: OLED screen and 3 potentiometers dedicated to displayed parameters, for quick and precise adjustments both in rehearsal and on stage.


• Flux Controller to automate a transition between two settings of the same effect, triggered via the Tap/Flux pedal.


• Ready for modern rigs: stereo I/O, adjustable input impedance, True Bypass or buffered DSP Bypass, MIDI In and Out/Thru, 128 presets, USB-C, 9V power supply included.

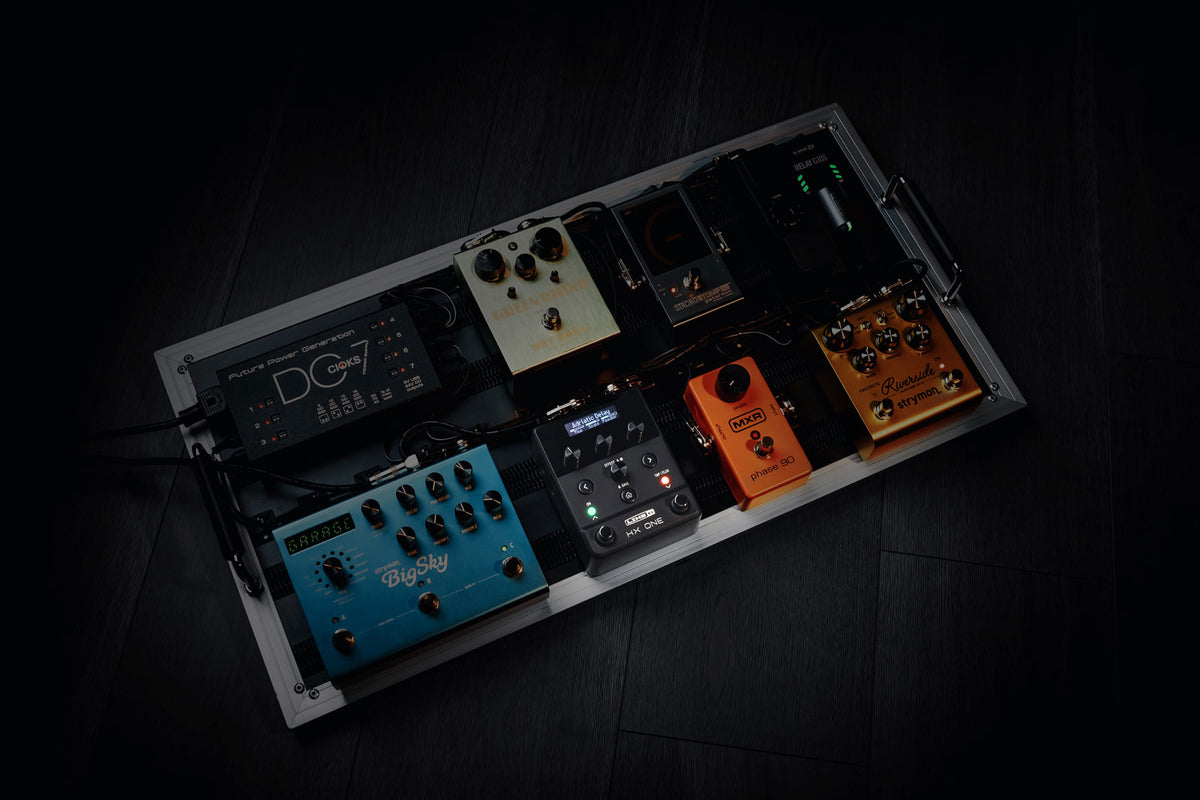

A "Swiss Army knife" pedal in the HX universe, designed to complement a pedalboard

The HX One inherits the processing quality and effects library from Line 6's HX ecosystem, known for its clean, precise, and highly usable sounds in real situations (live, studio, home studio). The idea is simple: instead of replacing your entire pedalboard with a complex multi-effects unit, the HX One acts as a single pedal capable of becoming a chorus, phaser, delay, pitch shifter, ambient reverb, or compressor, depending on the song's needs.

It naturally fits as a "wild card" in the chain: just one pedal to carry, but enough options to cover dozens of sonic colors. And thanks to its 128 preset slots, you can organize your sounds by setlist, guitar, or project.

Who is it for? Guitarists (and bassists) who want versatility without complicating their setup

The Line 6 HX One is aimed both at intermediate musicians who want to explore quality effects without multiplying pedals, and at experienced guitarists looking for a compact, reliable, and controllable solution to complement an already established rig. It's perfect if you play in a band and need to quickly switch from subtle tremolo to rhythmic delay, then to a wider reverb, without rewiring your pedalboard.

Style-wise, it covers a vast range: blues and rock for short delays, spring-like reverbs and boosts/overdrives, pop and funk for clean and dynamic modulations, modern metal for certain pitch and ambience textures, and ambient for layering immersive reverbs. In the studio, it becomes a quick tool to "find the right tone" without opening ten plugins, and live it shines thanks to preset recalls and MIDI.

Technical specifications

Effects	Multi-effects	Use	electric guitar
Format	Pedal	Color	Black
Type	sector

User presets	128	Two looper types	Simple and Shuffling, in mono or stereo
Flux Controller	automation of parameter changes within a preset	Maximum duration	60 seconds in mono and 30 seconds in stereo (full-speed mode)
Distortions and drives	59	Looper half-speed mode	duration can be doubled depending on the configuration
Dynamics and EQ	26	Bypass	True Bypass or Buffered DSP Bypass (selectable)

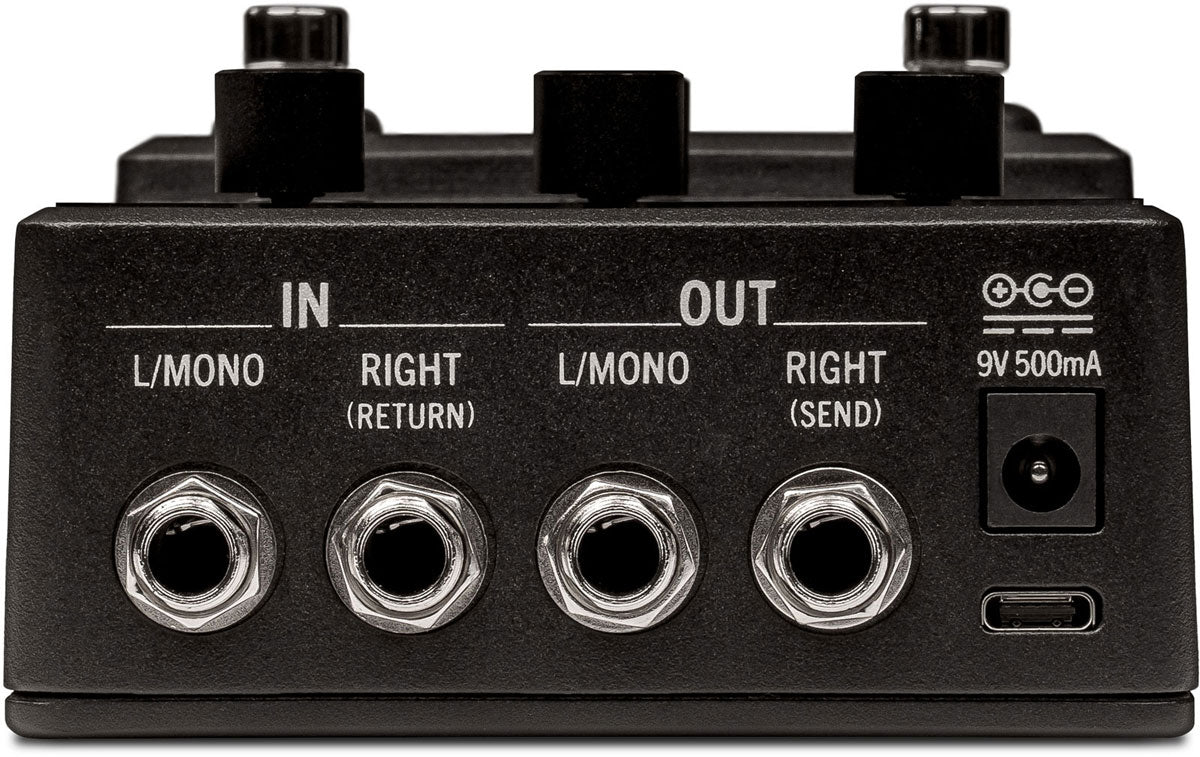

Modulations	56	Audio inputs	2 x 6.35mm jack
Delays	45	Audio outputs	2 x 6.35mm jack
Pitch and synth	29	Audio input/output configuration	stereo

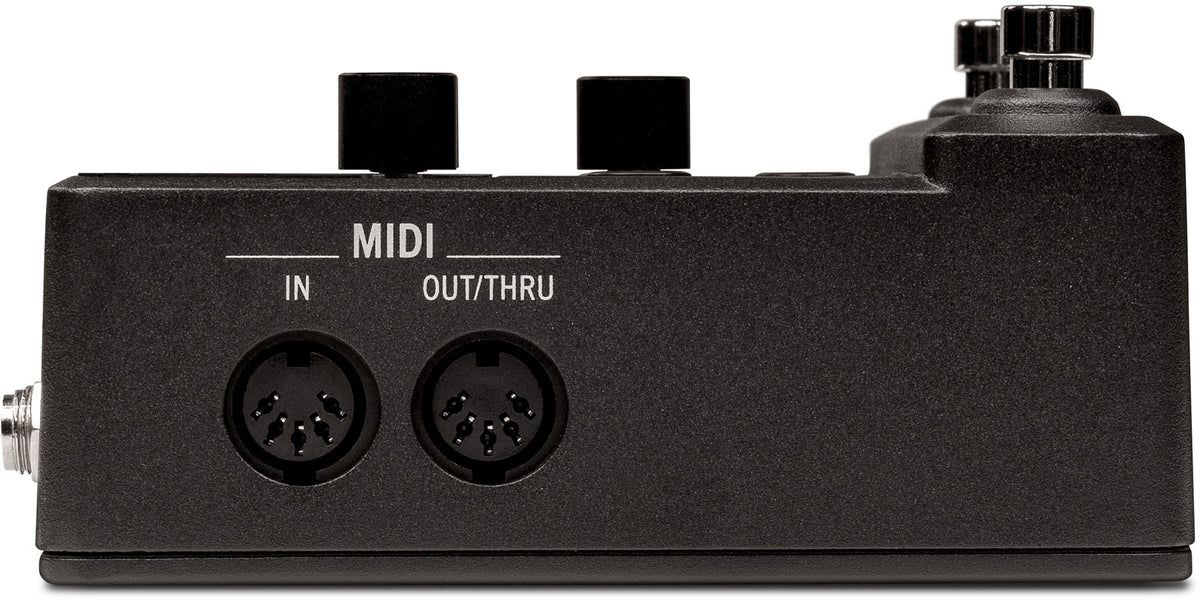

Wah and filters	25	MIDI	In and Out/Thru (5-pin DIN)
Display	OLED	USB port	USB-C (updates and preset management)
Parameter knobs	3, assigned to the display	Chassis material	cast aluminium
Effect selection	knob	Dimensions	96 x 125 x 62 mm
Preset management and navigation	dedicated controls	Weight	0.45 kg
Input impedance	adjustable
