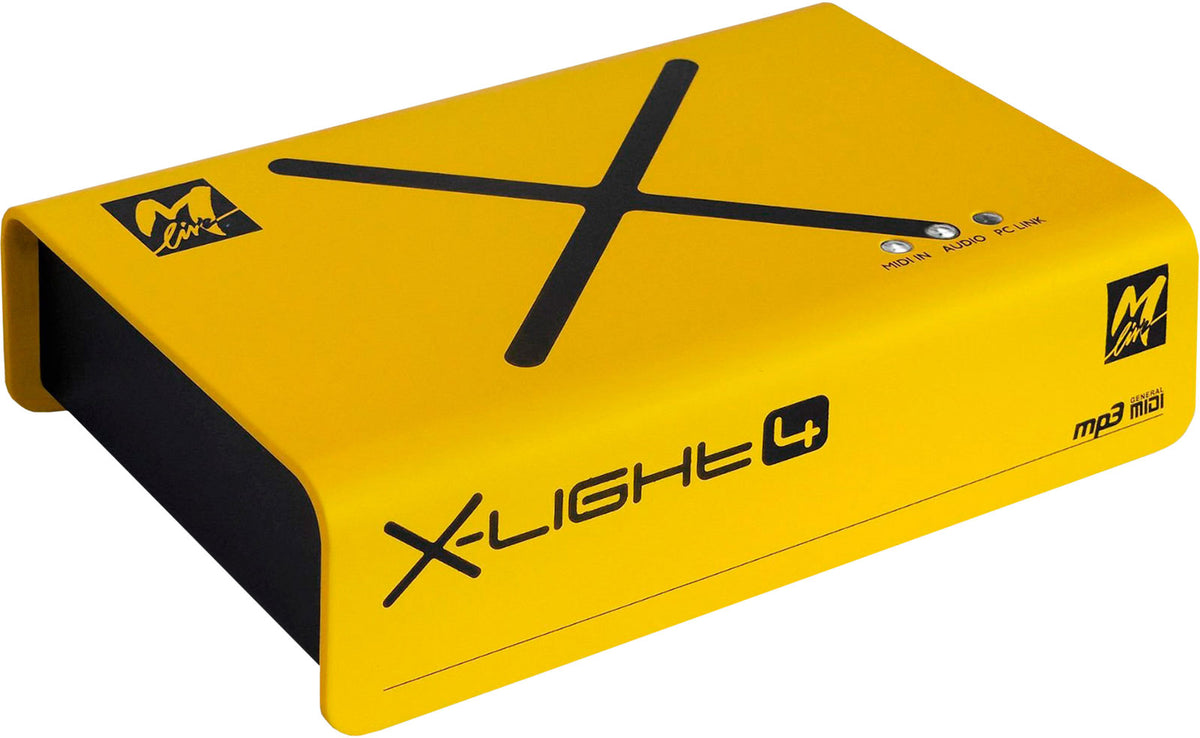

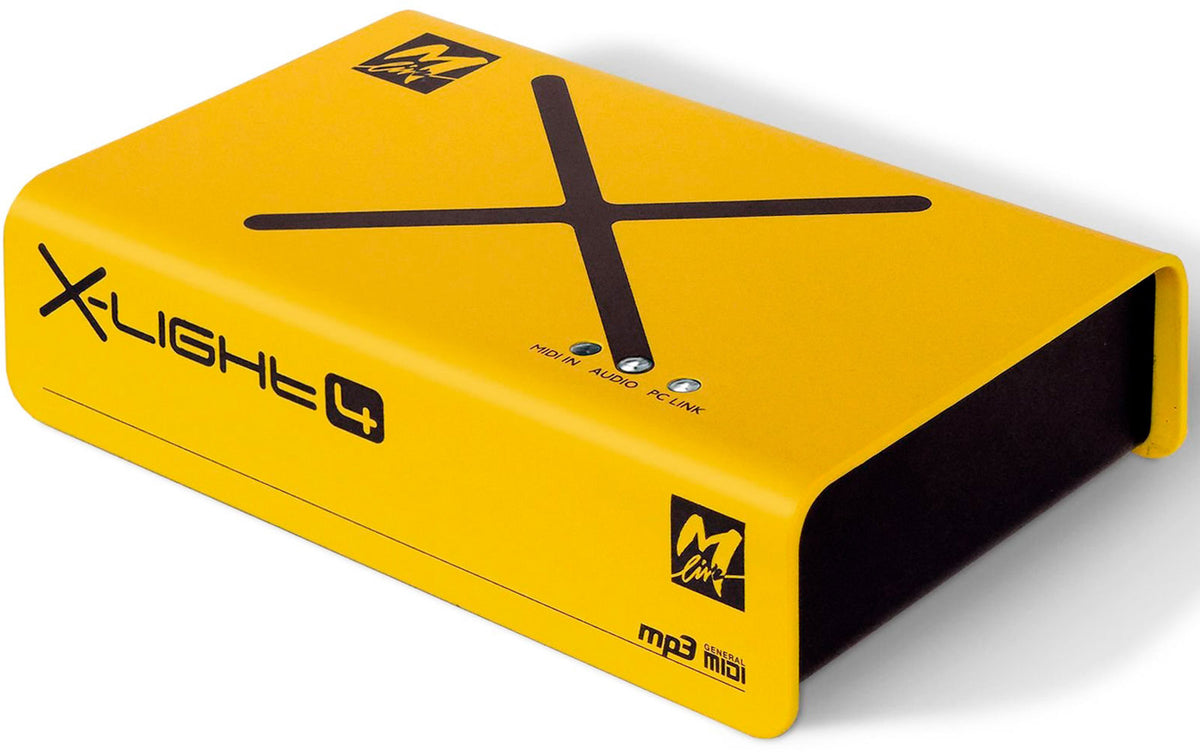

M-Live X-Light4

An "X-Light" Format Focused on Mobility and Simplicity

The M-Live X-Light4 fits the concept of a modern expander: a lightweight chassis, quick to set up, providing a ready-to-use sound library without requiring complex configuration. Its approach prioritizes daily efficiency, whether you want to complement a master keyboard, have a second sound generator in a stage rig, or add an immediately available palette of timbres alongside a computer.

With its 256 MB sound library and intentionally straightforward connectivity, the X-Light4 positions itself as a practical tool for musicians who want to focus on the essentials: select a sound, play, record, and route audio to a mixer, monitoring speakers, or headphones.

Who the X-Light4 Is For and Its Use Cases

The X-Light4 is primarily aimed at keyboardists and DAW musicians who control their sounds via MIDI (master keyboard, sequencer, arrangement in a DAW). Thanks to its 108-note polyphony, it handles layering, splits, and accompaniments comfortably where notes can quickly accumulate.

In live contexts, it can serve as an additional sound module to expand your set without carrying an extra keyboard. In the studio, the USB-B (MIDI + Audio) facilitates integration with a computer for faster workflow, while maintaining a simple stereo RCA audio output to connect to a mixing console or interface. The 3.5mm mini-jack headphone output also allows discreet rehearsing, sound preparation, or routing monitoring.

Key Features: MIDI Integration, Audio, and Sound Library

A Versatile Sound Library Covering the Essentials

The X-Light4 includes 848 sounds and percussion, as well as 46 drum kits. This variety allows switching between registers (accompaniments, performance sounds, basic layers, and drums) while maintaining a module logic: quick access to immediately usable timbres for composing, arranging, or reinforcing a stage set.

108-Note Polyphony: More Headroom for Layers and Arrangements

With 108-note polyphony, the X-Light4's MIDI generator offers useful headroom when stacking multiple parts, playing with long releases (pads, soundscapes), or layering rhythmic and harmonic elements. The result is a more stable feel, with less risk of note dropouts during dense passages.

USB-B: A Single Link to the Computer

The USB-B connection combines MIDI + Audio and can also power the device from a Windows PC or Apple Mac. This approach reduces cabling and speeds up setup, especially if you work with a computer at the center of your configuration. Depending on your setup, you can prioritize USB power or use the supplied 9V-DC power adapter.

Simple Audio Routing: RCA Outputs, Headphones, and Audio IN Input

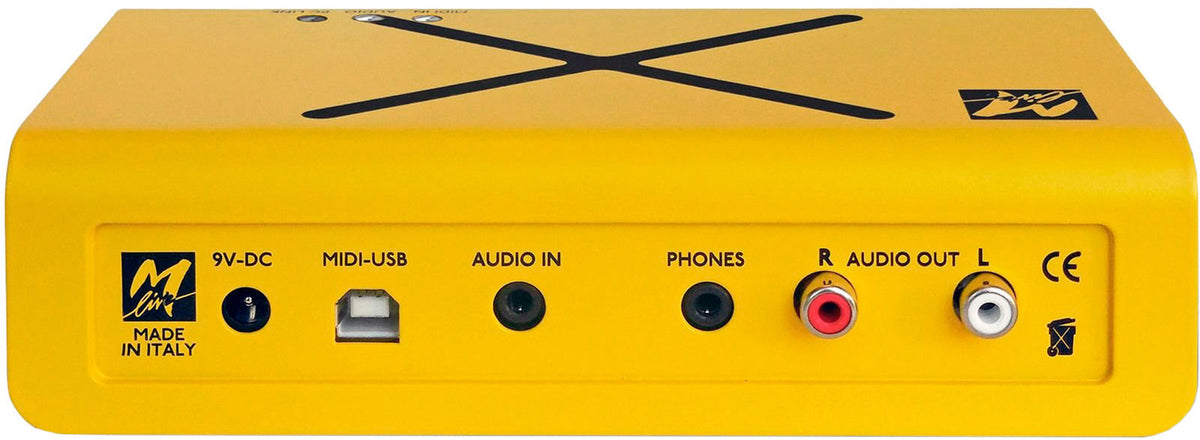

The X-Light4 offers stereo audio output on 2 RCA left + right connectors, convenient for connecting to a mixer, powered speakers, or a working hi-fi system. The 3.5mm mini-jack headphone output allows immediate monitoring, while the 3.5mm TRS Audio IN input can be used to route an external source as needed in your setup (for example, to centralize listening through the headphone output).

Technical specifications
