A new generation of silent power supply designed for modern pedalboards
The Pedal Power 3 PLUS represents the evolution of pedalboard power supplies: more compact, lighter, and designed to meet current needs, where a single setup often mixes low-consumption pedals and highly demanding digital effects. Its design focuses on a clean, stable, and reliable power supply to reveal the sonic potential of each pedal, without hum or interference.
For which guitarists and bassists?
This power supply is aimed at musicians who want a no-compromise solution: guitarists and bassists in the studio, on stage, or in rehearsal, with a substantial pedalboard and seeking exemplary silent operation. Thanks to its isolated outputs, it is particularly suitable for setups including several sensitive pedals (overdrives, fuzz, compressors) and power-hungry digital effects (compact multi-effects, modern delays, and reverbs).
Isolated outputs, high current, and scalability

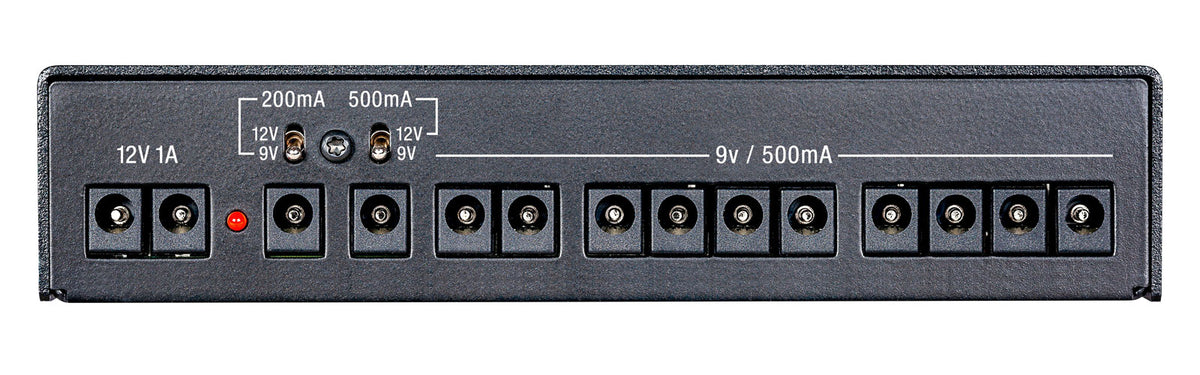

12 galvanized and isolated outputs for a quieter pedalboard
With its 12 galvanized and isolated DC outputs, the Pedal Power 3 PLUS effectively limits ground loops and prevents unwanted interactions between pedals. Each output provides a 9V DC supply, and 2 outputs feature a selector to switch to 12V, convenient for compatible pedals.
500 mA per output: ready for digital effects
Each output delivers up to 500 mA, a major advantage for powering modern high-consumption digital effects while preserving the musical character of the most distinctive pedals thanks to a stable and silent power supply.
X-LINK ports: your power supply grows with your pedalboard
Two X-LINK ports allow you to easily expand your system by adding a Pedal Power X4 or X8, to obtain respectively 4 or 8 additional isolated outputs. An ideal solution if your pedalboard evolves over time.
Technical specifications
| Current | 0.5 A | Category | Multiple power supply |
| Voltage | 9 V | Number of outputs | 12 |
| International power supply | 100 to 240 Volts AC | Possible extension | +4 or +8 isolated outputs (depending on module) |
| 12 isolated DC outputs | 10 at 9V + 2 at 9V or 12V | Dimensions (excluding power supply) | 17.8 x 8.6 x 3.8 cm |
| Max current | up to 500 mA per output | Weight (excluding power supply) | 0.5 kg |
Questions frequently asked
How many pedals can the Voodoo Lab Pedal Power 3 Plus power?
This power supply has 12 isolated and regulated DC outputs: 10 fixed 9 V outputs and 2 switchable outputs at 9 V or 12 V.
Do the isolated outputs eliminate ground noise on a pedalboard?
The 12 isolated outputs minimize ground loops and interactions between pedals. This design aims to reduce hum and interference in setups with multiple sensitive effects.
What current is available on each output?
Each output provides up to 500 mA of continuous current. This capacity allows powering modern digital effects, including delays, reverbs, or compact multi-effects that demand higher current.
Can pedals be powered at 12 V?
Two outputs feature a selector to choose between 9 V and 12 V for pedals compatible with that voltage.
How can additional outputs be added to the Pedal Power 3 Plus?
Two X-LINK ports are provided to connect a Pedal Power X4 or X8 module. The expansion adds 4 or 8 additional isolated outputs, respectively. The power supply accepts an international mains voltage from 100 to 240 V AC.
