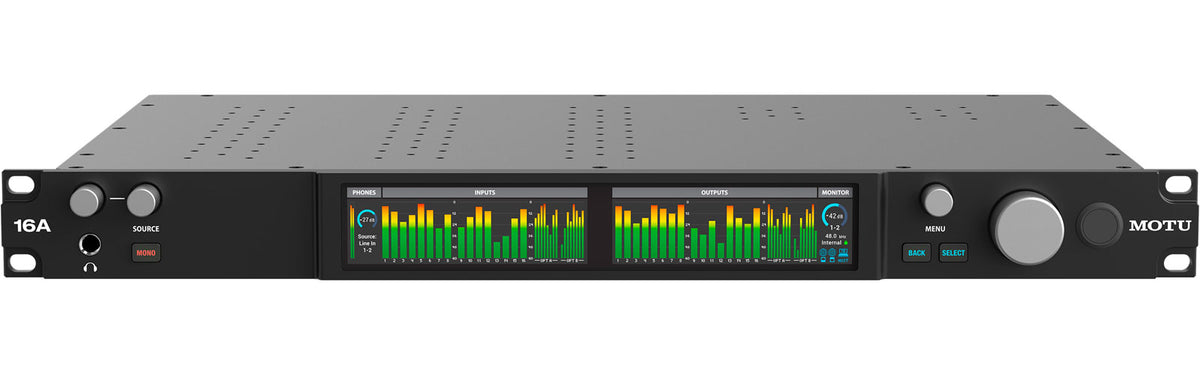

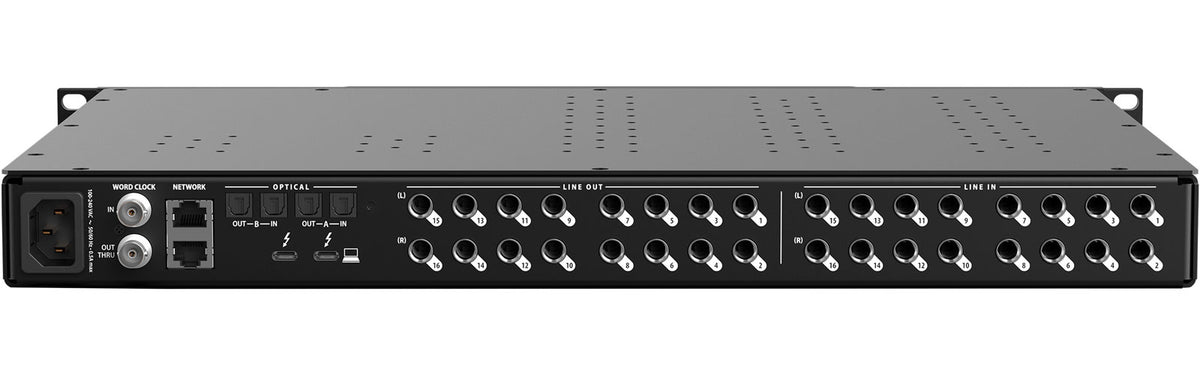

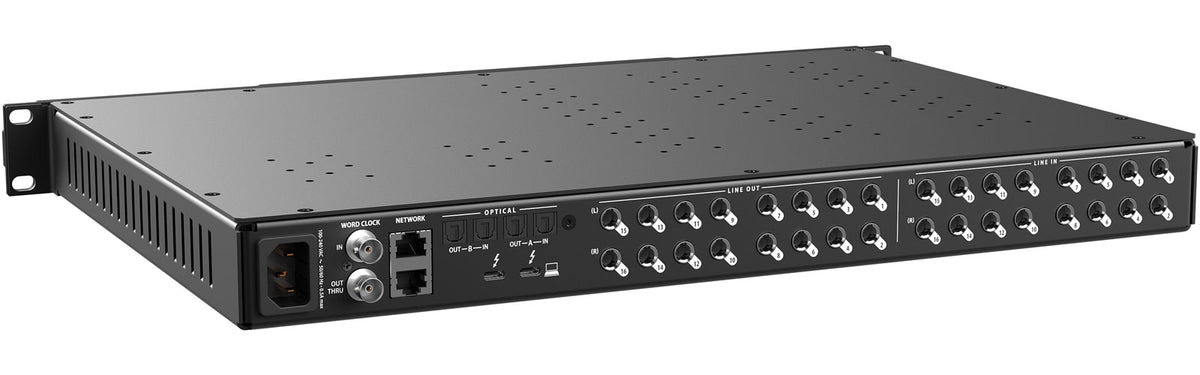

Motu 16A (2025)
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the MOTU 16A Audio Interface
Essential Information About the MOTU 16A Audio Interface
- High-end ESS Sabre32 (ES9026PRO) conversion and equally high-quality headphone outputs for precise stereo imaging and a dynamic range up to 125 dB.
- Universal Thunderbolt 4 / USB4 connectivity with two USB-C ports for daisy-chaining displays/storage and compatibility with Mac, Windows, and iOS.
- Ultra-low round-trip latency down to 1.8 ms at 96 kHz, 64-input / 32-bus mixer, and 32-bit floating DSP with reverb, EQ, gate, and compression.

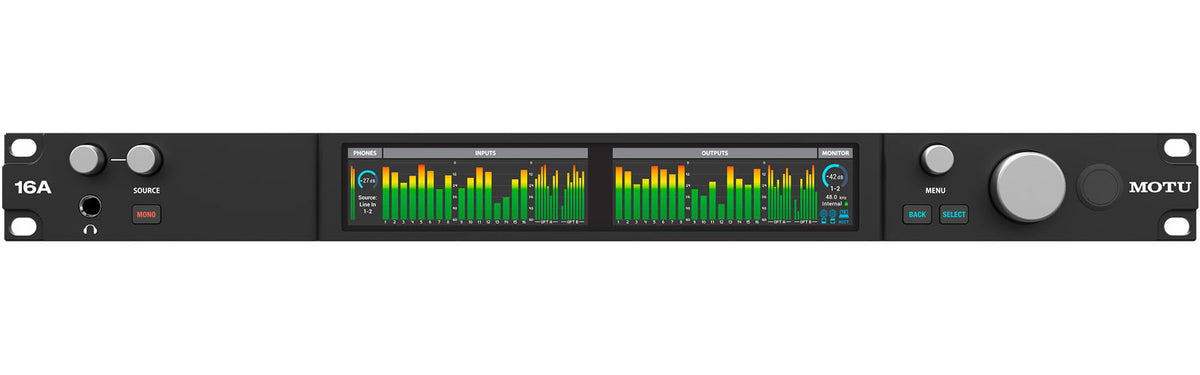

- Scalable AVB network via 2 Ethernet ports, 16 AVB streams (128 channels), Wi-Fi/CueMix Pro control, and dual 3.9-inch TFT displays for detailed metering.
Manufacturer Information
Motu
https://www.motu.com
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
A New Generation for MOTU's AVB Series
A major evolution of the historic "16A" model, the 2025 version modernizes the entire production workflow: Thunderbolt 4/USB4, new ESS converters, and optimized local control thanks to two TFT screens. Professional monitoring features (talkback, A/B/C speaker selection) and native loopback meet current streaming and post-production needs.
Designed for Hybrid Studios, Tours, and Installations

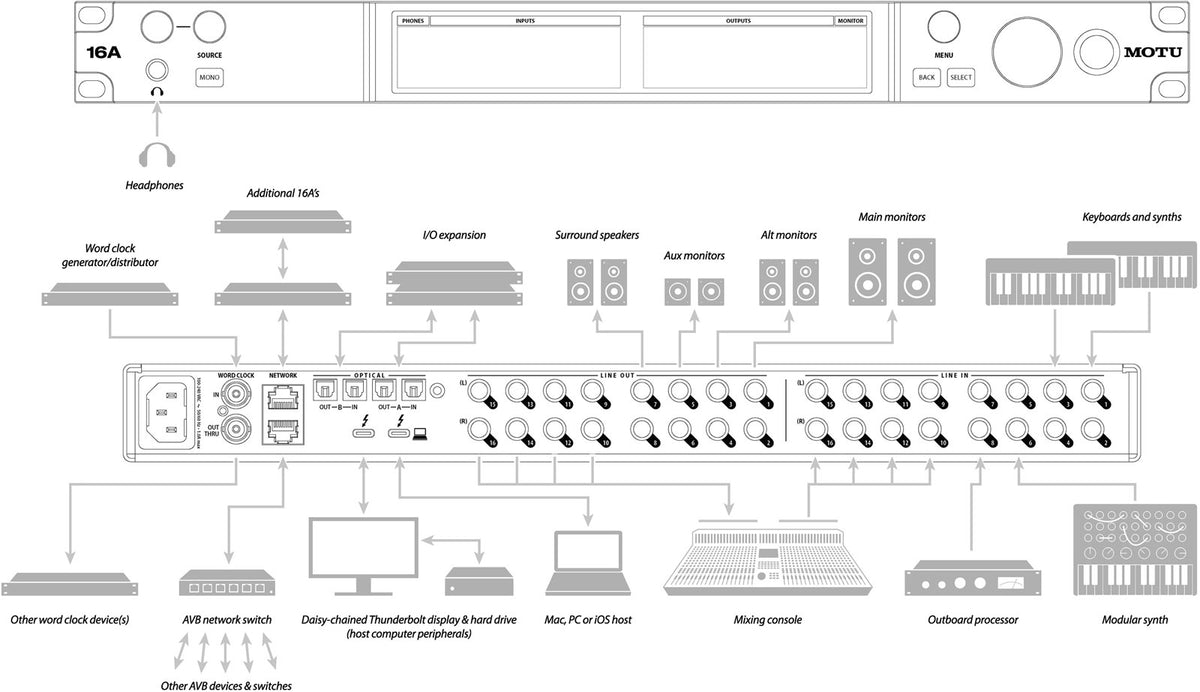

The 16A targets artistic directors, broadcast control rooms, stages, and modular studios requiring a large number of balanced line I/Os, minimal latency, and robust AVB network integration. DC-coupled outputs facilitate controlling modular synths, while iOS compatibility simplifies mobile recordings.
Features Designed for the Modern Workflow
Conversion and Performance
Carefully crafted analog stages and ESS Sabre32 DACs ensure transparent reproduction with high dynamic range and very low THD+N on both inputs and outputs. Sampling rates up to 192 kHz and a 1.8 ms RTL provide natural monitoring.
DSP Mixing and Advanced Monitoring
The 32-bit floating DSP delivers reverb, 4-band EQ, high-pass filters, gate, and compression on a 64-input/32-bus mixer. Integrated talkback, A/B/C speaker selection, and 1 dB step boost/trim speed up your takes and comparisons.
Network and Control
Two Gigabit Ethernet ports enable AVB daisy-chaining (up to 7 devices, including switches) and 16 bidirectional 8-channel AVB streams. CueMix Pro offers full control from macOS, Windows, or iOS, including Wi-Fi.
Versatile Computer Connectivity
Two Thunderbolt/USB-C ports provide host connection and daisy-chaining for a display or storage device. USB audio class-compliant operation allows plug-and-play functionality on macOS and iOS.
Technical specifications
| Compatibility | PC, Mac | Max resolution | 32-bits |
| Sampling frequency | 192 kHz | Headphone outputs | Yes |
| Analog output dynamic range | 125 dB | Monitoring control features | Talkback and A/B/C speaker selection |
| Output THD+N | -113 dB | Carton dimensions | 629 x 133 x 425 mm |
| Analog input dynamic range | 119 dB | Gross weight | 6.8 kg |
| Input THD+N | -115 dB | Product dimensions (bare) | 483 x 311 x 444 mm |
| Ultra-low round-trip latency (RTL) | down to 1.8 ms at 96 kHz | Net weight | 5.2 kg |

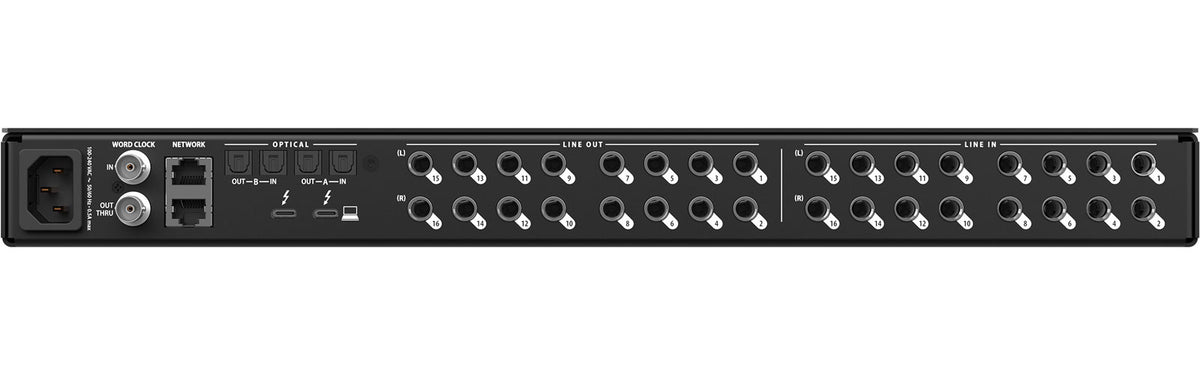

| 2 banks of optical digital I/O | 16 ADAT channels at 44.1/48 kHz or 8 S/MUX channels at 88.2/96 kHz; Bank A can provide stereo TOSLink I/O (optical S/PDIF) up to 96 kHz | Manufacturer's warranty | 2 years |
| 2 Thunderbolt / USB-C ports | one for connection to your Mac, PC, or iOS device, the other for daisy-chaining, display, or storage device connection | ||
You will also like
Neumann
MT48 U
RME
Madiface XT II
RME
Fireface 802 FS
Focusrite
ISA C8X
RME
Fireface 802 FS AE
RME
FIREFACE UFX II
Yamaha
RUIO16-d
Apogee
Symphony Studio 2x12
Questions frequently asked
Is the MOTU 16A (2025) compatible with Mac and PC?
Compatibility is stated for both Mac and PC computers. Both Thunderbolt/USB-C ports support Thunderbolt 4 and USB4. USB class-compliant audio functionality also allows plug-and-play connection on macOS and iOS.
What latency does this interface offer at 96 kHz?
Round-trip latency can be as low as 1.8 ms at 96 kHz.
Can multiple MOTU 16A interfaces be linked via an AVB network?
Two Gigabit Ethernet ports allow AVB daisy-chaining of up to 7 devices, including switches. The network can carry 16 bidirectional streams of 8 channels each.
How many ADAT channels are available on the 16A 2025?
The two optical banks provide 16 ADAT channels at 44.1 or 48 kHz. At 88.2 or 96 kHz, they offer 8 channels in S/MUX format. Bank A can also operate as stereo S/PDIF optical TOSLink up to 96 kHz.
Does the 16A have talkback and multiple speaker outputs?
The monitoring control includes talkback and A/B/C speaker selection. The 32-bit floating DSP mixer offers 64 inputs and 32 buses, with 4-band EQ, high-pass filter, gate, compression, and reverb.
