MXR M77 Custom Badass Modified OD

An MXR Overdrive Designed to Go Beyond "Simple Drive"

The MXR M77 Custom Badass Modified OD fits within the spirit of "classic" overdrives: an organic saturation, sensitive to touch, capable of ranging from a slight grit to a real gain boost. Where it stands out is in its stage and studio-oriented modifications: better-targeted EQ tools and a second voice via the Bump switch, allowing quick adaptation of the pedal to your guitar, amp, and band mix.

It naturally positions itself as a main overdrive on the pedalboard, but also as an excellent boost/drive stage to stack with other saturations. Its "modified" approach aims for a more controllable result: more focus, more foundation when needed, and fewer compromises when changing contexts (rehearsal, live, recording).

For Which Guitarists and Styles?

This pedal is suitable both for beginner guitarists seeking a simple-to-set overdrive and for experienced musicians looking for expressive saturation that's easy to integrate into a rig. It excels in blues, classic rock, pop, country, indie, and modern rock, especially when you want to keep the guitar's identity while adding grit.

In live settings, the M77 is very effective at "cutting through the mix": a slight output boost and EQ adjustment often suffice to make a solo stand out. In studio, its 100 Hz bass control helps better manage low-end clutter, especially with humbuckers, lower tunings, or doubled tracks. It works very well in front of a tube amp already at edge of breakup but remains relevant on a clean channel if you want a straightforward and articulate overdrive.

Settings, Voicings, and Stacking Possibilities

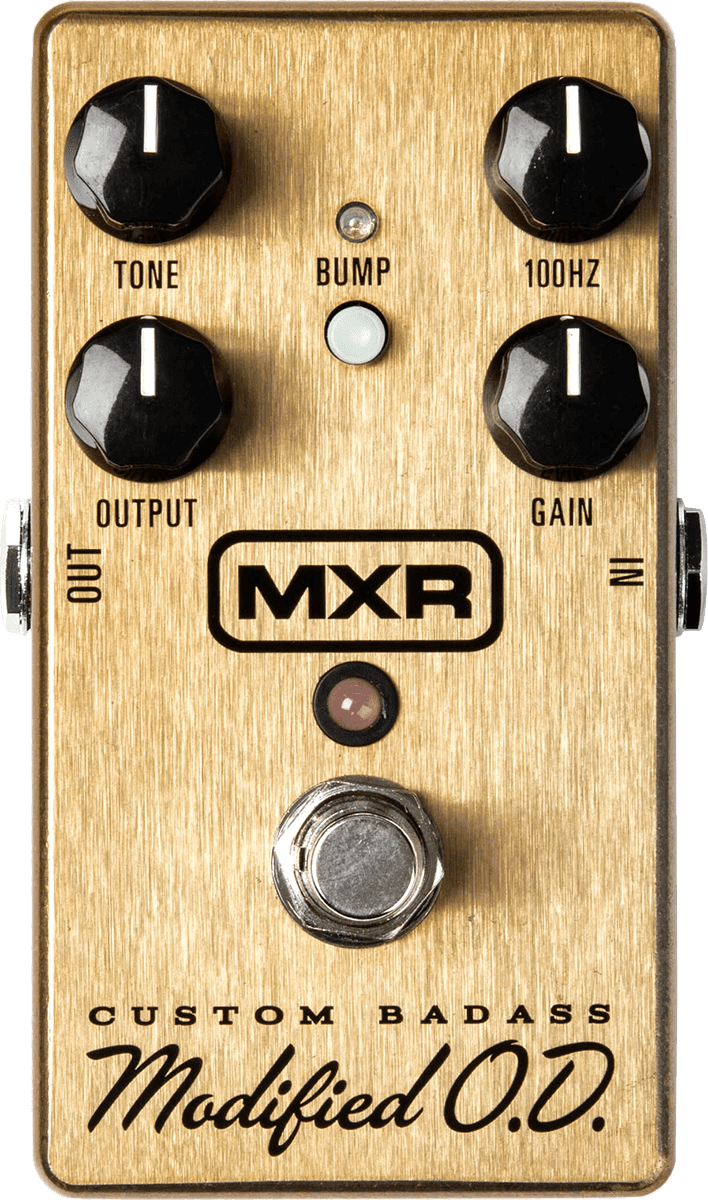

The MXR M77 offers a straightforward interface with four controls: gain (saturation level), output (output volume), tone (overall balance between warmth and brightness), and especially 100 Hz, which acts as a dedicated cut/boost for the low end. This last control is valuable: in cut, you get a tighter, more "defined" attack, ideal for precise rhythms; in boost, the pedal gains thickness, with a more generous low end that can evoke a more "amp-like" feel.

The Bump on/off switch engages an alternative voicing that highlights the bass and midrange. It's an excellent tool to thicken a single-coil guitar, add more body to a slightly bright amp, or reinforce a lead part without excessively increasing gain. This voicing is also very useful when stacking saturations: it lets you choose whether the overdrive remains more neutral and focused or becomes a more substantial stage that pushes the amp.

In an effects chain logic, it naturally sits before distortion to shape attack and bass response. Used this way, it can create a wide range of gain structures, from a simple "push" to denser saturation, while avoiding the veil effect that masks the instrument's character.

Sound Character

The M77 delivers an overdrive with a warm and dynamic grain, with great responsiveness to playing variations: guitar volume and pick attack clearly influence the saturation level. Its character can range from a rather transparent drive (moderate gain, 100 Hz slightly cut, balanced tone) to a thicker and more "muscular" overdrive (100 Hz boosted and Bump activated) that emphasizes body and projection.

The 100 Hz control is one of its major assets on stage: it allows you to keep a rhythm part clear without muddiness in the lows, or conversely to provide a more generous foundation for heavier riffs. The Bump switch adds a low-mid oriented coloration that favors singing leads and fuller rock rhythms. Ultimately, you get a pedal that remains clear, fits easily into a mix, and can adapt to very different guitars and amps.

Technical specifications

Effects	Distortion / Overdrive / Fuzz, Boost, Overdrive	EQ	Tone
Technology	Analog	Settings	tone
Format	Pedal	Use	guitar
Inputs	Jack	Color	Gold
Outputs	Jack	Power supply included	No
True bypass	Yes	Power supply	9V battery, DC 9 V
Switch	Bump

Guitar effect pedal	overdrive	Bypass	True hardwire
Controls	tone, 100 Hz, output, gain	Required voltage	9 V
Power supply (not included)	9 V battery or MDU ECB003E or DC-BRICK adapter	Consumption	5 mA
