Neumann TLM 49
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the Neumann TLM 49 Studio Microphone
Essential Information About the Neumann TLM 49 Studio Microphone
- Sound signature inspired by the U 47/M 49: Large diaphragm K 47 capsule for full, dense, and elegant vocals.
- Modern transformerless electronics: increased reliability, phantom power P48, no external power supply needed.
- Controlled "tube-like" character: smooth and musical saturation at high SPL levels, ideal for expressive timbres.
- Operational silence: self-noise of 12 dB(A) and signal-to-noise ratio up to 82 dB for ultra-clean recordings.
Manufacturer Information
Neumann
https://www.neumann.com
contact@sennheiser.com
------------------------
Safety manager:
Sennheiser electronic SE & Co.
Email: contact@sennheiser.com
Address:
A Modern Heir to Neumann Legends

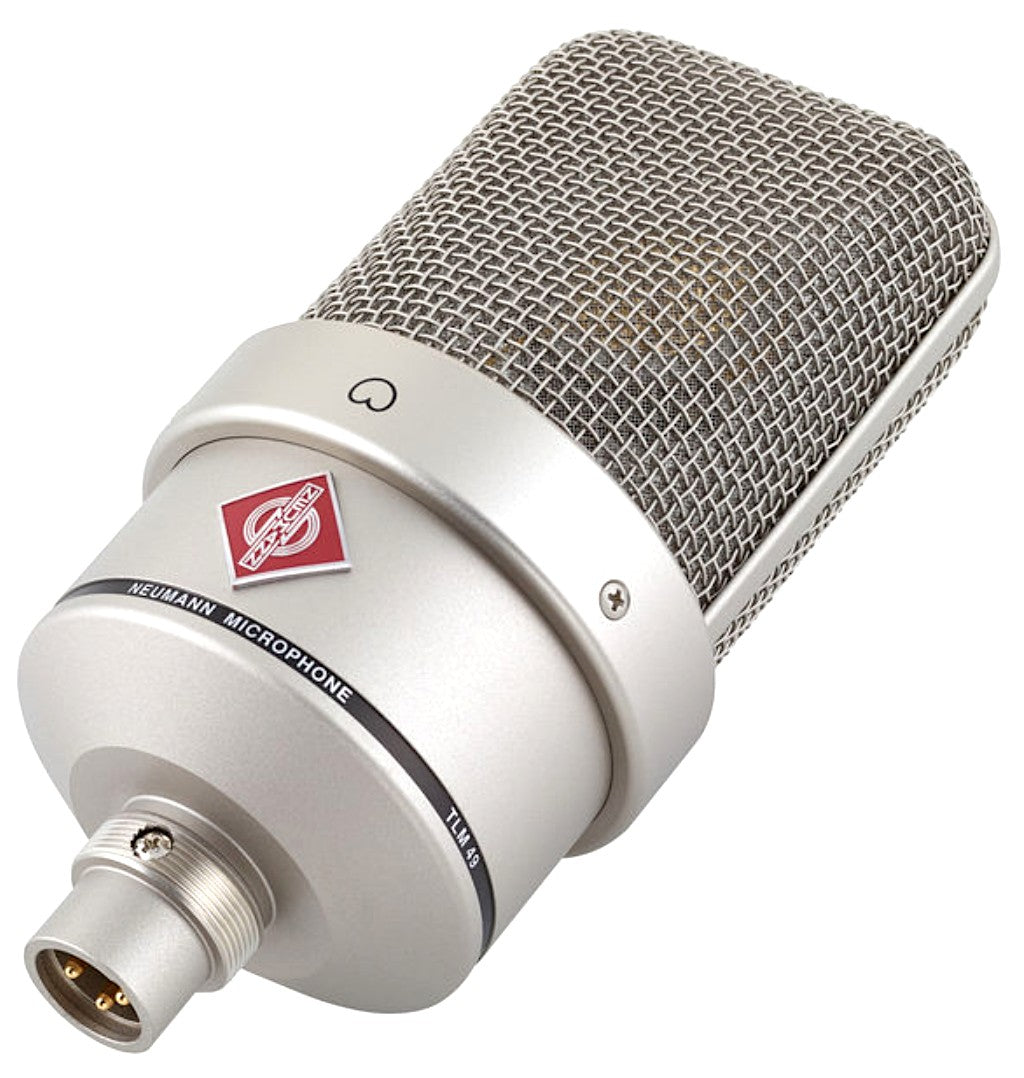

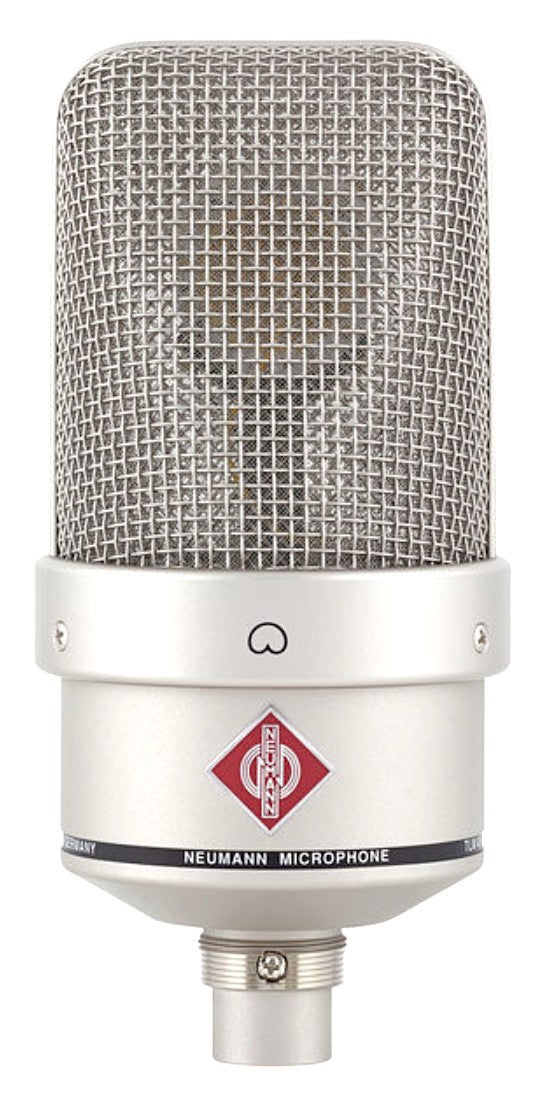

Designed as a nod to the legendary M 49, the TLM 49 features the large open grille and the K 47 capsule also used on the iconic U 47. Neumann combines this with modern electronics designed to reproduce the harmonic richness of tube circuits without the maintenance constraints or the cost of tubes and separate power supplies. The result: a "modern classic" that fits naturally into contemporary studios.
For Whom and For What Uses?
The TLM 49 is tailored for lead vocals, voice-over, and narration, where presence, warmth, and intelligibility are sought. Its cardioid polar pattern focuses on the source and limits bleed, making it suitable for both vocal booths and treated home studios. It also excels on acoustic guitar, piano, or soft brass instruments when a silky texture and rich midrange are desired.
Features Designed for Demanding Vocal Recording
With its pressure gradient capsule and acoustically open grille, the TLM 49 offers an extended frequency response from 20 Hz to 20 kHz and natural transient response. Its transformerless semiconductor preamp has been optimized to generate progressive saturation as SPL increases: 0.5% THD around 110 dB SPL, rising to 5% at 129 dB SPL. This subtle compression recalls the warmth of vintage tube microphones while maintaining a modern noise floor and exemplary reliability under standard P48 phantom power.
Technical specifications
| Frequency response - start | 20 Hz | Directivity | cardioid |
| Frequency response - end | 20 kHz | Connection | XLR |
| Category | studio microphone | Color | Grey |
| Polar pattern | cardioid | Max output voltage for THD < 5% | -1 dBu |
| Frequency response | 20 Hz to 20 kHz | Nominal output impedance | 50 Ohms |
| Sensitivity at 1 kHz (load 1 kOhm) | 13 mV/Pa | Recommended load impedance | 1000 Ohms |
| Equivalent input noise, CCIR | 23 dB | Phantom power (P48, IEC 61938) | 48 V +/- 4 V |
| Equivalent input noise, A-weighted | 12 dB(A) | Current consumption | 3.2 mA |
| Signal-to-noise ratio, CCIR (ref. 94 dB SPL) | 71 dB | Output connector | 3-pin male XLR (XLR 3M) |
| Signal-to-noise ratio, A-weighted (ref. 94 dB SPL) | 82 dB | Dimensions | 165 x 78 mm |
| Max SPL for THD = 0.5% | 110 dB | Weight | 825 g |
| Max SPL for THD < 5% | 129 dB | ||
You will also like
Universal Audio
Sphere DLX
AKG
C414 XLS Stereo
Austrian Audio
OC818 Black Dual Set Plus
Austrian Audio
OC818 Silver Dual Set Go
Lewitt
LCT 940
Neumann
TLM 107 Studio Set Nickel
AKG
C414 XLII Stereo
Warm Audio
WA-87 R2 TS
Customer reviews
Based on 1 review
- 5 stars, 1 review
- 4 stars, 0 reviews
- 3 stars, 0 reviews
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
I have nothing to add about everything that was said on this microphone, I use it for voice, I use it for voice, spoken and sung, I had to test a good thirty brands for thirty years, Neumann I know nothing better for my voice, it's the best
Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
Is the Neumann TLM 49 suitable for vocal recording?
Its cardioid pattern and K 47 capsule are designed for lead vocals, voice-over, and narration. The open grille promotes detailed midrange reproduction, with a frequency response from 20 Hz to 20 kHz.
What power supply is required for this microphone?
A P48 phantom power supply of 48 V ± 4 V is necessary, with a current consumption of 3.2 mA. No dedicated external power supply unit is required.
Can it be used on an acoustic guitar or piano?
This model is recommended for acoustic guitar, piano, and mellow brass instruments when a silky texture is desired. Its transformerless electronics produce progressive saturation starting at 110 dB SPL at 0.5% THD. The maximum input level reaches 129 dB SPL for THD below 5%.
What connectivity and preamp should be used with this microphone?
The XLR output has a nominal impedance of 50 ohms, and the recommended load impedance is 1,000 ohms. Therefore, an XLR microphone input with 48 V phantom power is required.
What is the noise level of the TLM 49?
The self-noise, A-weighted, is 12 dB(A), while the signal-to-noise ratio, A-weighted, reaches 82 dB with a 94 dB SPL reference.
