Nux ZEUS
Estimated Shipping Widget will be displayed here!
Essential Information About NUX ZEUS
Essential Information About NUX ZEUS
- 10 isolated DC outputs plus 1 USB port to power a complete pedalboard with significantly reduced background noise
- Stable and silent switching power supply with double insulation to minimize buzz and interference
- High-capacity outputs suitable for modern digital pedals, up to 500 mA on 6 outputs
- Ready-to-play pack with 13 power cables and included power cord
Manufacturer Information
Nux
https://www.nuxaudio.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Isolated Power Supply for Guitar and Bass Pedalboards

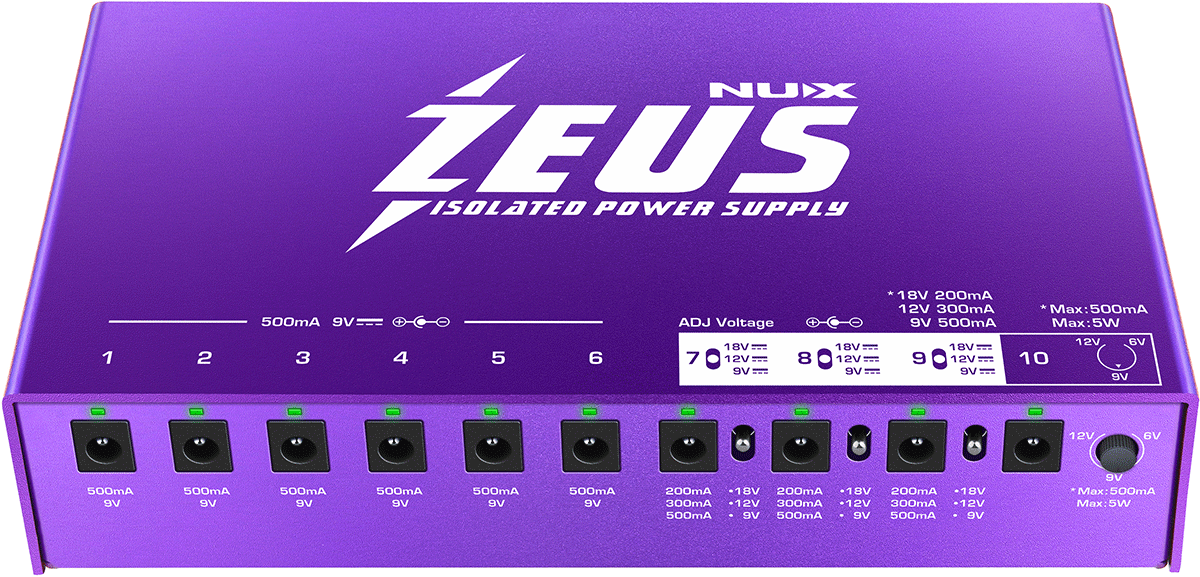

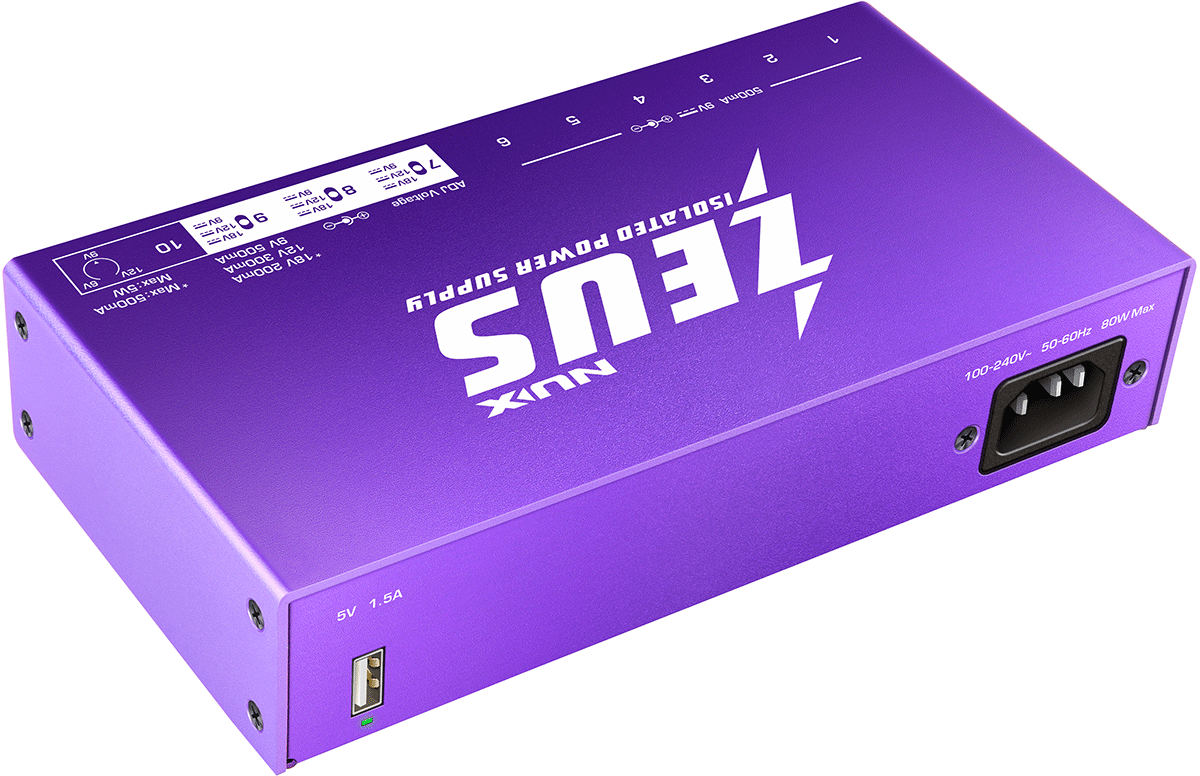

The NUX ZEUS is a multi-output power supply designed for guitarists and bassists who want a clean, reliable, and easy-to-wire pedalboard. Thanks to its isolated outputs, you avoid ground loops and interference that often occur with daisy-chained power supplies, especially when mixing analog pedals with digital effects. The available voltages cover essentials for stage and studio, with selectable outputs at 9 V, 12 V, or 18 V, and a variable output from 6 to 12 V ideal for testing undervoltage on certain fuzz pedals to achieve grittier textures. The 5 V USB port also powers a pedalboard light or a mobile device, convenient for rehearsals and concerts. Compact and lightweight, the ZEUS remains efficient everywhere thanks to its universal operation and built-in protections for worry-free playing, even on tour.
- Noise-free operation thanks to double isolation
- 13 power cables included to power all types of effect pedals
Technical specifications
| Current | 5 A | Color | Purple |
| Voltage | 18 V | Cables included | Yes |
| Category | Multiple power supply | Weight | 658 g |
| Number of outputs | 10 | Dimensions (mm) | 195 x 101 x 42 |
| Isolated power supply unit for guitar / bass effects | 10 DC outputs + USB | USB output | 5 V / 1.5 A |
| Power supply technology | switching, double insulation | Power supply cables included | 13 |
| Universal use | suitable for use worldwide (100-240 V, 50-60 Hz) | Power cord | included |
| Protection | against overheating and overcurrent | Weight (kg) | 658 g |
| 10 isolated outputs | 6 at 9 V / 500 mA, 3 adjustable to 9 V, 12 V or 18 V, and 1 variable from 6 to 12 V | ||
You will also like
Strymon
Zuma
Voodoo Lab
Pedal Power 3 Plus
Voodoo Lab
Pedal Power 3
Cioks
DC7 V2
Walrus Audio
Canvas Power 15
Truetone
1 Spot Pro CS12
EBS
Runsten
Cioks
DC7 VHS Version LTD
Questions frequently asked
How many pedals can the Nux Zeus power?

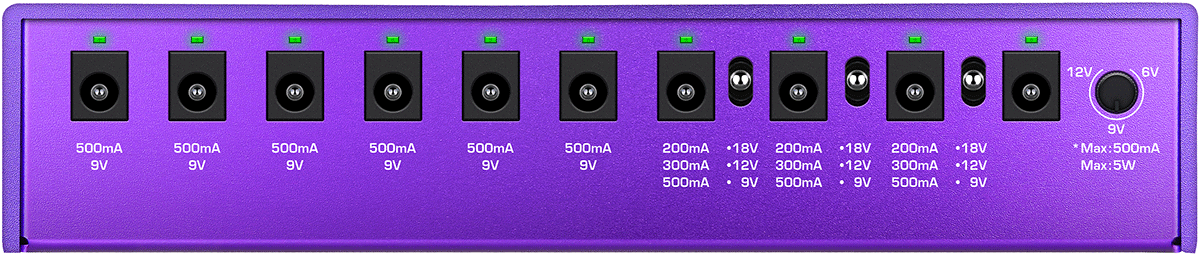

The power supply features 10 isolated DC outputs: six outputs at 9 V / 500 mA, three outputs selectable between 9 V, 12 V, or 18 V, and one output variable from 6 to 12 V.
Are the outputs isolated to prevent noise?
All 10 DC outputs are isolated to minimize ground loops and interference caused by mixing analog and digital pedals.
What voltages are available on this pedalboard power supply?
Six outputs provide 9 V at 500 mA. Three other outputs can be selected at 9 V, 12 V, or 18 V. A tenth output offers a variable setting from 6 to 12 V for pedals sensitive to undervoltage.

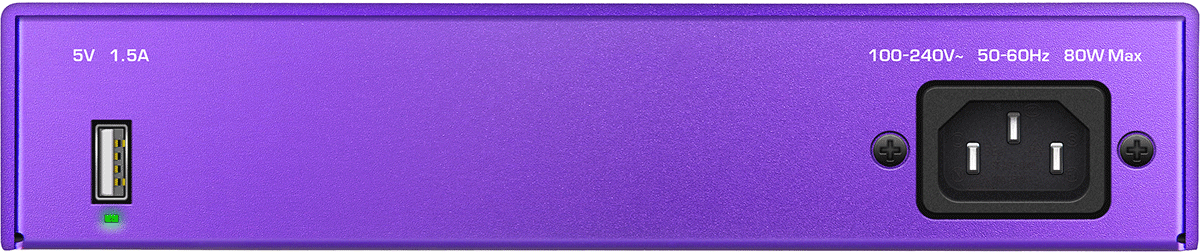

Is there a USB output?
A 5 V USB port is integrated, primarily to power a pedalboard lamp or a mobile device.
Can it be used on tour abroad?
The universal operation accepts mains power from 100 to 240 V at 50-60 Hz. The enclosure measures 195 x 101 x 42 mm and weighs 658 g.
