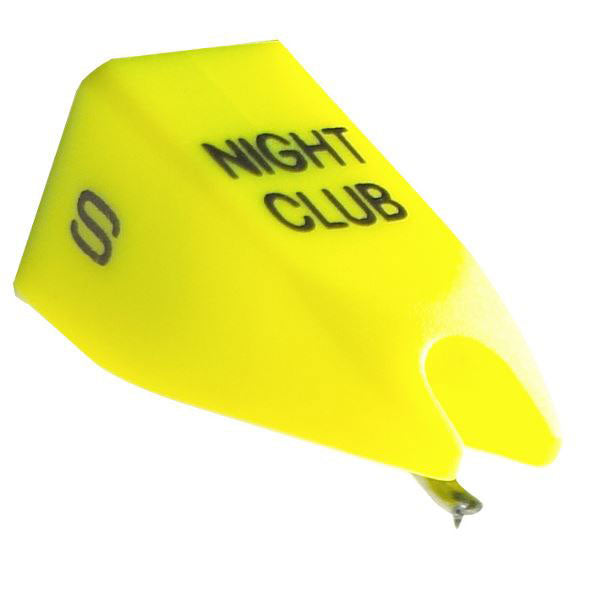

ORTOFON DJ Stylus Night Club S
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ortofon
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A Replacement Stylus in the "Club" Spirit of the Range
This replacement stylus follows the logic of cartridges oriented towards discotheques: prioritizing playback stability, dynamics, and solid reproduction on sound reinforcement systems. It extends the lifespan of your cartridge while preserving its listening characteristics.
For Which DJs and Uses?
Ideal for mobile DJs, bars, clubs, private parties, and fixed installations seeking a reliable stylus that is easy to adjust and comfortable with sustained mixes. The spherical profile promotes smooth playback, also useful in event contexts.
Features and Innovations
Designed for balanced reproduction and good stereo separation, this stylus emphasizes groove hold and compatibility with common DJ settings. The recommended loading parameters facilitate integration with a standard phono input (47 kOhm) and a load capacitance between 200 and 600 pF.
Technical specifications
| Frequency response | 20 Hz - 22 kHz, 20 Hz - 18 kHz | Destination | DJ |
| DJing type | Mix | Diamond tip | spherical |
| Category | diamond | Color | Yellow |
| Type | diamond | Quantity | 1 |
| Output voltage (1000 Hz, 5 cm/sec) | 6 mV | Tip radius | R 18 µm |
| Channel balance (1 kHz) | 1.5 dB | Tracking force range | 2.0 to 5.0 g (20 to 50 mN) |
| Channel separation (1 kHz) | 23 dB | Recommended tracking force | 3.0 g (30 mN) |
| Channel separation (15 kHz) | 15 dB | Tracking angle | 20deg |
| Frequency range (-3 dB) | 20 to 22,000 Hz | Internal impedance (DC resistance) | 750 ohms |
| Tracking (315 Hz, at recommended tracking force) | 80 pm | Internal inductance | 450 mH |
| Lateral dynamic compliance | 7 pm/mN | Recommended load resistance | 47 kOhm |
| Stylus type | spherical | Recommended load capacitance | 200 to 600 pF |
Questions frequently asked
Is the Ortofon DJ Night Club S stylus suitable for club mixing?
Its spherical tip and recommended tracking force of 3.0 g are designed for mixing. The tracking reaches 80 µm at 315 Hz with this tracking force, which helps maintain groove stability during sustained transitions.
What tracking force should be set for this stylus?
The recommended tracking force is 3.0 g, or 30 mN. The allowable adjustment range extends from 2.0 to 5.0 g.
Does this stylus work with a standard phono input?
A load of 47 kOhms is recommended, in accordance with the MM phono input standard. The advised capacitive load is between 200 and 600 pF.
What is the shape of the Night Club S tip?
The stylus has a spherical profile with a radius R of 18 µm. This geometry is intended for stable playback in a DJ context.
What stereo reproduction does this stylus provide?
Channel separation is specified as 23 dB at 1 kHz and 15 dB at 15 kHz. The stated frequency response covers 20 Hz to 22 kHz. Output voltage reaches 6 mV at 1 kHz for 5 cm/s.
