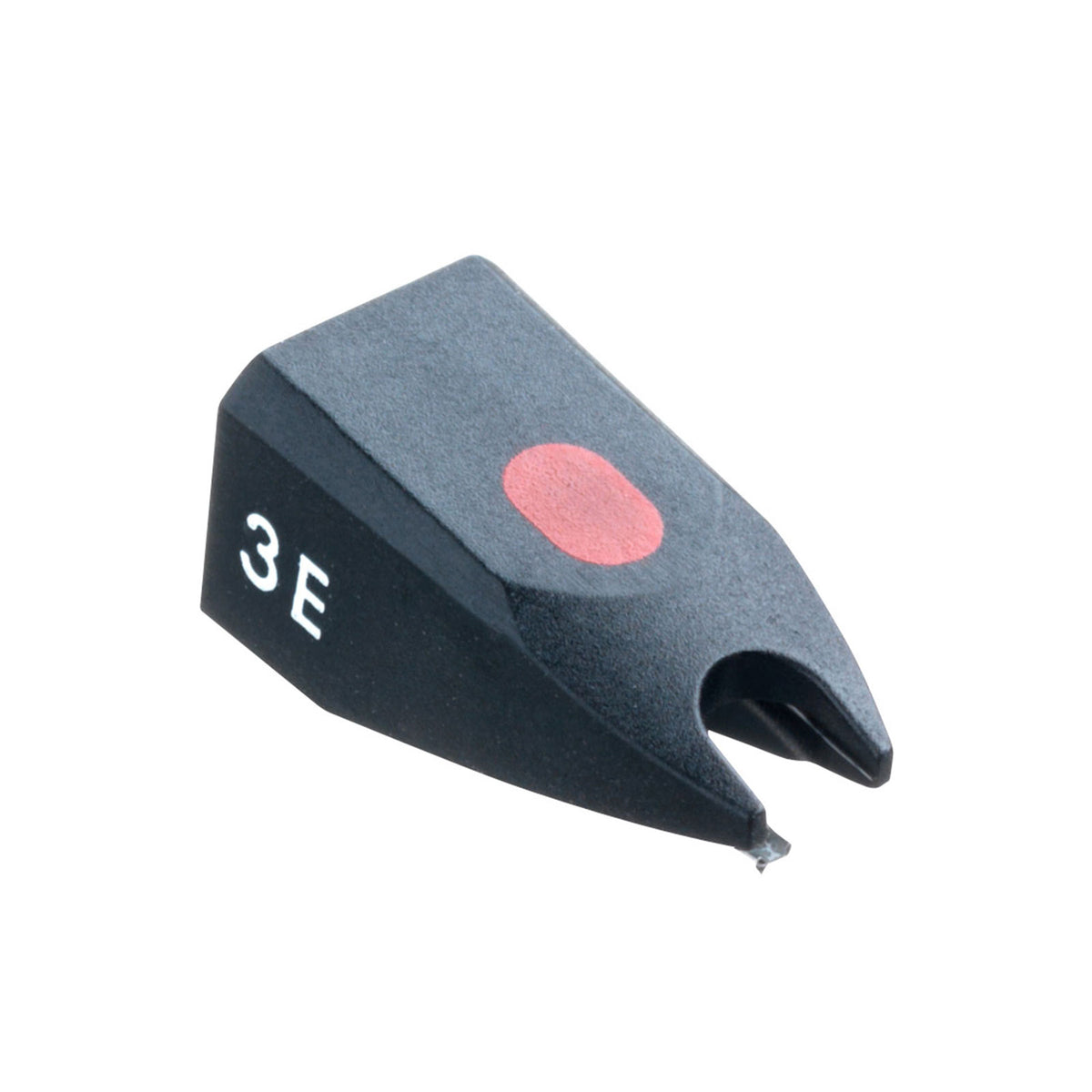

Ortofon Hifi STYLUS 3E
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ortofon Hifi
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
Key Information About the Black Elliptical Diamond
- Elliptical shape for more precise reading of groove details and better definition.
- Stable tracking thanks to a recommended tracking force of 1.75 g, ideal for limiting distortion.
- Frequency response from 20 to 18,000 Hz for a balanced output, suitable for listening and mixing.
- Usage compatibility designed for vinyl turntables in DJ or hi-fi contexts, with a tracking force range of 1.5 to 2.0 g.
A Stylus Focused on Precision, at the Heart of Your Vinyl Setup
This elliptical diamond follows the logic of tips designed to improve reading finesse compared to a conical profile, with a more "precise" contact on the groove walls. It aims for a relevant compromise between definition, tracking, and record preservation, within a carefully configured vinyl turntable setup.
For Whom and In What Uses?
This stylus is suitable for DJs and vinyl enthusiasts seeking detailed playback and good tracking stability, whether in the studio, at home, or in a fixed installation. The stated tracking force range allows adjustment of behavior according to the tonearm and cartridge, while staying within consistent values for controlled playback.
Features and Innovations
The elliptical profile and stylus tip radius r/R 8/18 µm promote better reproduction of transients and nuances, while maintaining a high tracking capability (315 Hz) with the recommended tracking force. The lateral dynamic compliance of 20 µm/mN contributes to smooth tracking, and the 20-degree tracking angle fits within standard vinyl playback settings. Finish: black stylus.
Technical specifications
| Frequency response | 20 Hz - 18 kHz |
| DJing type | Monitoring, Mix |
| Category | diamond |
| Type | diamond |
| Destination | hifi, DJ |
| Diamond tip | elliptical |
| Color | Black |
| Quantity | 1 |
| Diamond | Elliptical |
| Stylus color | Black |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent mass of stylus tip | 0.5 mg |
| Tracking capability (315 Hz with recommended tracking force) | 60 µm |
| Lateral dynamic compliance | 20 µm/mN |
| Tracking angle | 20 degrees |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Recommended tracking force | 1.75 g (17.5 mN) |
Questions frequently asked
What tracking force should be set for the Stylus 3e?
The recommended tracking force is 1.75 g, or 17.5 mN. The allowable adjustment range spans from 1.5 to 2.0 g (15 to 20 mN).
Is the elliptical diamond suitable for DJ mixing?
This model is intended for listening and mixing, with use advertised for hi-fi and DJ applications. Its elliptical profile with radius r/R 8/18 µm favors precise contact with the groove walls.
What frequency response does this Ortofon diamond offer?
The specified frequency response covers 20 Hz to 18 kHz.
What is the tracking capability of this stylus?
At 315 Hz and with the recommended tracking force, the tracking capability reaches 60 µm. The lateral dynamic compliance is specified at 20 µm/mN, allowing consistent groove tracking. The equivalent tip mass is 0.5 mg.
Is this stylus suitable for a fixed hi-fi turntable?
It is designed for hi-fi and DJ setups, notably at home, in studios, or fixed installations. The reading angle of 20° fits within common vinyl turntable adjustments.
