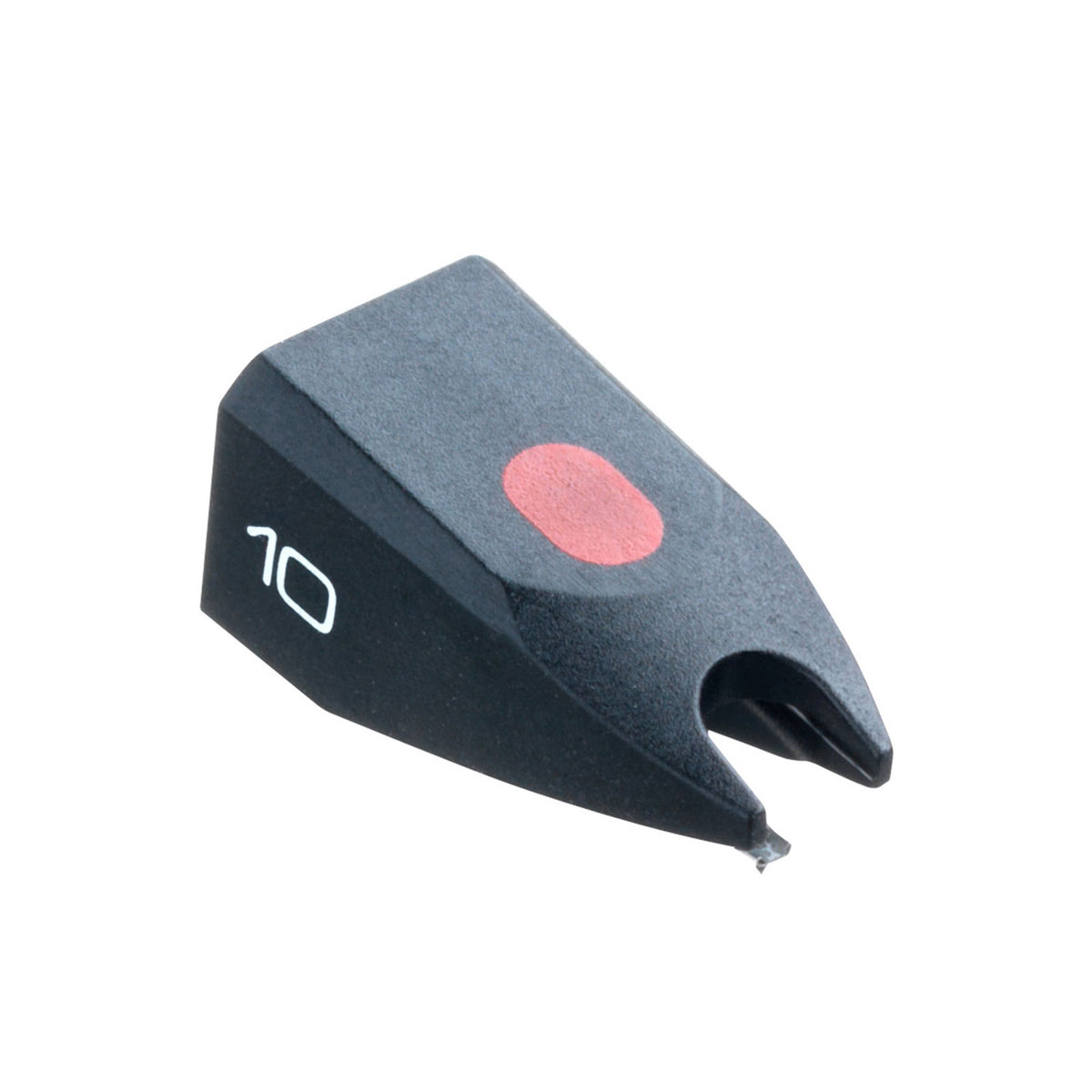

Ortofon Hifi STYLUS 10
Estimated Shipping Widget will be displayed here!
Essential Information About the Black Elliptical Stylus
Essential Information About the Black Elliptical Stylus
- Elliptical diamond for precise playback and better groove detail definition
- Frequency response 20-20,000 Hz for a balanced sound suitable for listening and mixing
- Recommended tracking force at 1.5 g for stable tracking and controlled wear
- Excellent tracking ability to limit distortion on demanding passages
Manufacturer Information
Ortofon Hifi
https://www.ortofon.com
support@ortofon.dk
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
A Replacement Stylus Designed to Restore Clean Sound
A diamond naturally wears over time and can cause loss of definition, sibilance, and listening fatigue. This elliptical stylus is designed to provide clear and consistent playback while maintaining simple and coherent settings for vinyl turntable use.
Who Is It For and What Are Its Uses?
This stylus is intended for DJs and vinyl enthusiasts seeking finer playback than a spherical profile, whether for hi-fi listening, DJ sets, or home studio use. It is particularly suitable for users attentive to transient accuracy, vocal clarity, and high-frequency control.
Features and Innovations
Thanks to its elliptical profile and a tip radius r/R of 8/18 ”m, this stylus improves contact with the groove walls for better separation and reduced distortion. Its tracking force range of 1.25 to 1.75 g (recommended 1.5 g) facilitates tracking optimization. The lateral dynamic compliance of 20 ”m/mN and the 20-degree stylus angle contribute to stable playback, with a measured tracking ability of 60 ”m (315 Hz) at the recommended force.
Technical specifications
| DJing type | Monitoring, Mix | Diamond tip | elliptical |
| Category | diamond | Color | Black |
| Type | diamond | Quantity | 1 |
| Destination | hifi, DJ | ||
| Diamond type | Elliptical | Tracking ability (315 Hz at recommended tracking force) | 60 ”m |
| Stylus tip radius | r/R 8/18 ”m | Lateral dynamic compliance | 20 ”m/mN |
| Stylus color | Black | Tracking force range | 1.25-1.75 g (12.5-17.5 mN) |
| Stylus angle | 20 degrees | Recommended tracking force | 1.5 g (15 mN) |
| Frequency response | 20-20,000 Hz +/- 3 dB | ||
You will also like
ORTOFON DJ
STYLUS-dj-s A
ORTOFON DJ
Stylus Q-bert
ORTOFON DJ
STYLUS-arkiv E
ORTOFON DJ
Stylus Night Club MKII E A
ORTOFON DJ
Stylus CC MKII Scratch
Ortofon Hifi
STYLUS 2M RED
Ortofon Hifi
STYLUS 3E
RELOOP DJ
Stylus Green
Questions frequently asked
What tracking force should be set for the Stylus 10 Ortofon Hifi?
The recommended tracking force is 1.5 g (15 mN). The allowable adjustment range extends from 1.25 to 1.75 g, or 12.5 to 17.5 mN.
Does the elliptical diamond improve vinyl playback?
Its elliptical profile, with an r/R radius of 8/18 ”m, ensures more precise contact with the groove walls. Playback aims for better separation and reduced distortion.
Is this stylus suitable for DJ mixing and hi-fi listening?
This model is intended for hi-fi listening and DJ use, with applications announced for mixing and home studio. Its tracking capability reaches 60 ”m at 315 Hz with the recommended tracking force of 1.5 g.
What is the frequency response of this diamond?
The stated frequency response covers 20 Hz to 20,000 Hz, with a tolerance of ±3 dB.
What dynamic compliance does this stylus have?
The lateral dynamic compliance is 20 ”m/mN and the tracking angle is set at 20 degrees. These values contribute to stable playback within the indicated tracking force range. The tip is elliptical and black.
