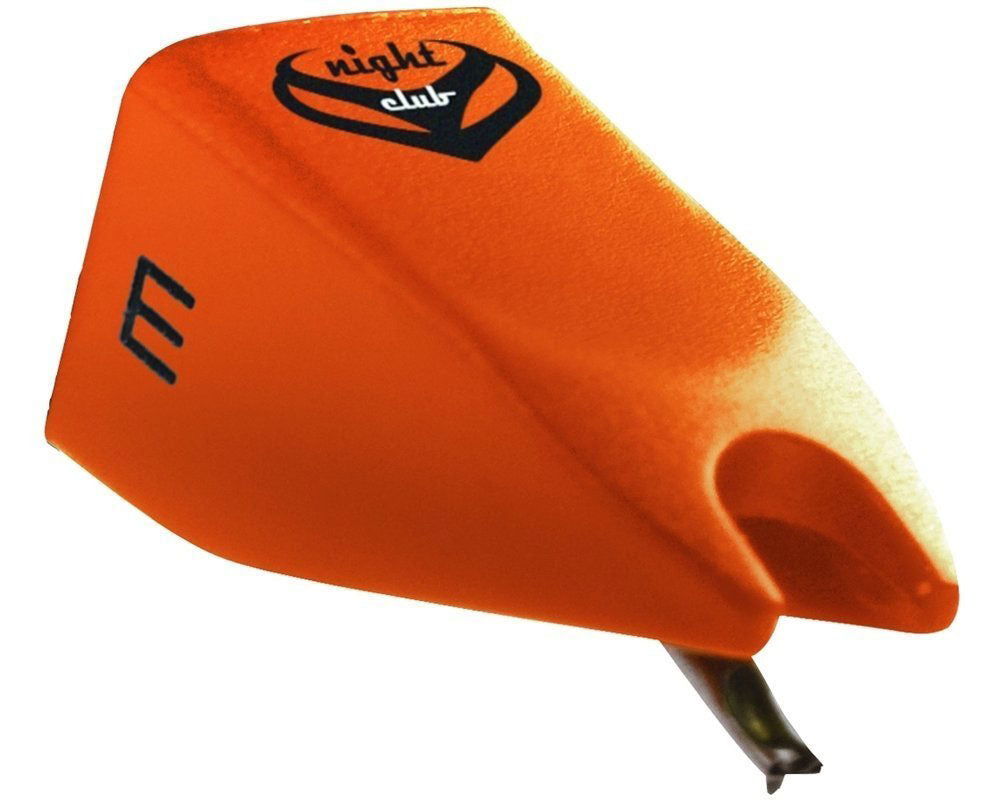

ORTOFON DJ Stylus Night Club MKII E A

Name: Stylus Night Club MKII E A
Brand: ORTOFON DJ
SKU: 215738
Price: 66.00 EUR
Availability: InStock

66,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 215738

EAN : 5705796140330

ORTOFON DJ

Information

Essential Information About the Ortofon Night Club MKII E A Replacement Stylus
• Replacement stylus designed to restore the "Night Club" sound signature: powerful, energetic, and precise
• Special elliptical profile for detailed playback and good groove tracking in DJ contexts
• Output level rated at 8 mV (at 1000 Hz) for a robust signal with DJ mixer phono preamps
• Compatibility: Concorde Night Club MKII E A and Concorde TWIN Night Club MKII E A

Stylus Night Club MKII E A

66,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Stylus Continuing the Night Club MkII Series

Following the Night Club series, the MkII generation has been re-engineered to enhance performance both in clubs and studios. This replacement stylus is the ideal solution to extend the lifespan of your setup while maintaining the sonic character and playback performance expected from a Concorde Night Club MkII cartridge.

For Which DJs and Uses?

This stylus is aimed at mobile DJs, residents, and vinyl enthusiasts seeking a present sound and stable playback, whether in clubs, bars, events, or for home listening and recording sessions. Its elliptical profile favors definition and balance, particularly appreciated in sets focused on mixing and audio quality.

Features and Innovations

The MkII design emphasizes a high output level and dynamic reproduction, engineered to drive the phono inputs of DJ mixers effectively. Channel separation and balance values contribute to a clean stereo image, while tracking parameters (tracking range and recommended tracking force) ensure reliable playback under real-world conditions. Note: this stylus is specified to work with Concorde Night Club MKII E A and Concorde TWIN Night Club MKII E A cartridges.

Technical specifications

Frequency response	20 Hz - 22 kHz	Destination	DJ
DJing type	Monitoring, Mix	Diamond tip	elliptical
Category	diamond	Color	Orange
Type	diamond	Quantity	1

Output voltage at 1000 Hz, 5 cm/sec	8 mV	Tracking force range	2.0-5.0 g (20-50 mN)
Channel balance at 1 kHz	1.5 dB	Recommended tracking force	3.0 g (30 mN)
Channel separation at 1 kHz	23 dB	Tracking angle	20 degrees
Channel separation at 15 kHz	15 dB	Internal impedance, DC resistance	1,000 Ohms
Frequency range at -3 dB	20 to 22,000 Hz	Internal inductance	580 mH
Tracking ability at 315 Hz (at recommended tracking force)	80 pm	Recommended load resistance	47 kOhms
Lateral dynamic compliance	7 pm/mN	Recommended load capacitance	200-600 pF
Stylus type	special elliptical	Cartridge weight	18.5 g
Stylus tip radius	r/R 13/25 µm

Questions frequently asked

Which cartridges is the Ortofon DJ Stylus Night Club MKII E A compatible with?

This stylus is designed for the Concorde Night Club MKII E A and Concorde TWIN Night Club MKII E A cartridges.

What tracking force should be set for the Night Club MkII stylus?

The recommended tracking force is 3.0 g. The acceptable adjustment range is from 2.0 to 5.0 g.

Elliptical or spherical tip for DJ mixing?

The elliptical tip of this stylus prioritizes definition and balanced playback. It is intended for listening and mixing, with a frequency response of 20 Hz to 22 kHz.

What output level does this Ortofon stylus provide?

The output voltage reaches 8 mV at 1,000 Hz and 5 cm/s. This level is designed to drive the phono inputs of DJ mixers. Channel separation is specified at 23 dB at 1 kHz.
