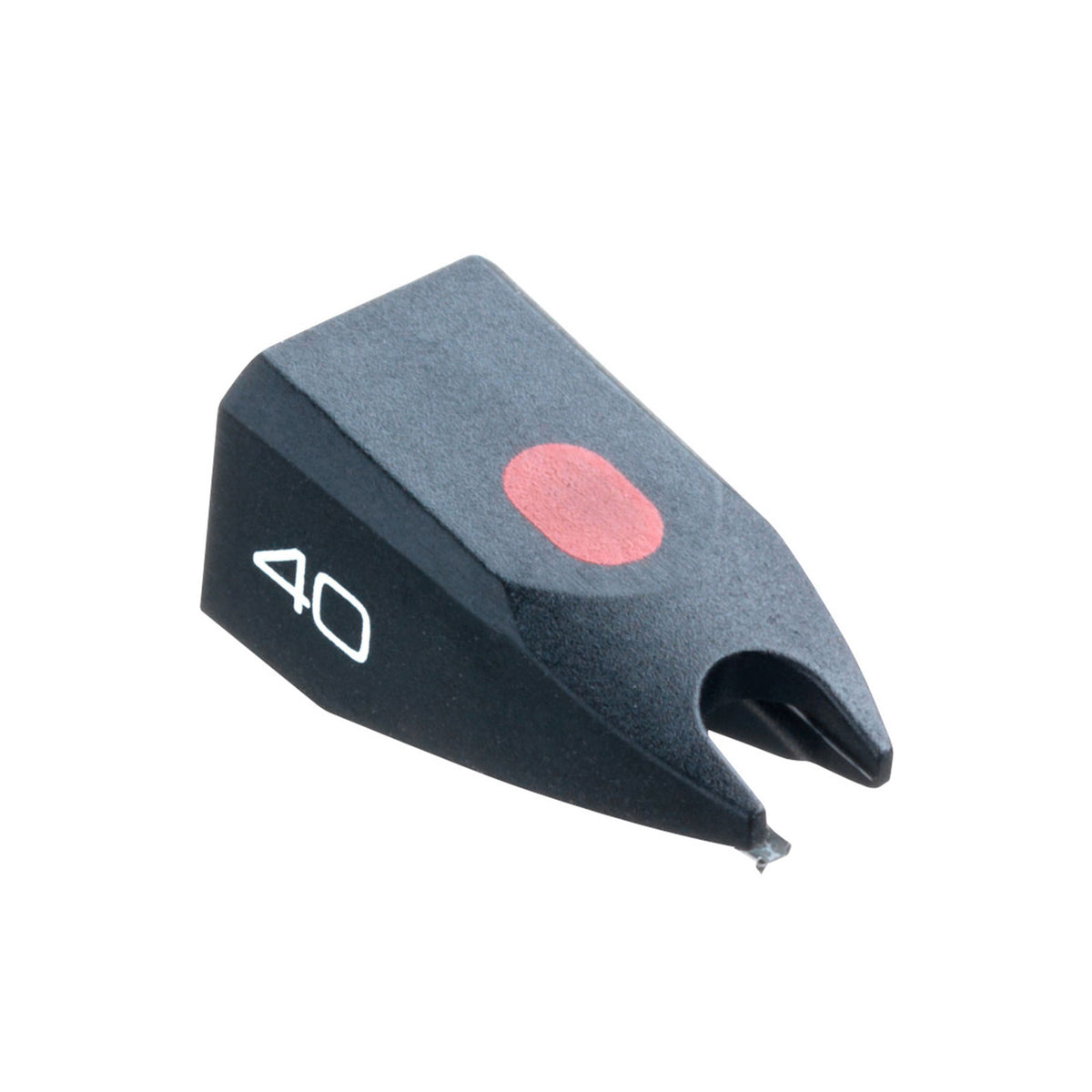

Ortofon Hifi STYLUS 40

Name: STYLUS 40
Brand: Ortofon Hifi
SKU: 387984
Price: 489.00 EUR
Availability: InStock

489,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 387984

EAN : 5705796130102

Information

Essential Information About the Replacement Diamond Compatible with OM 40 / OM 40 GOLD
• Line Contact FG 70 Profile (Fritz Gyger) : high reading precision and excellent detail reproduction.
• Very stable tracking : reading capacity rated at 80 µm (at 315 Hz, with the recommended tracking force).
• Easy adjustments : recommended tracking force at 1.5 g for an optimal balance between performance and wear.
• Targeted compatibility : recommended for OM 40 and OM 40 GOLD cartridges.

STYLUS 40

489,00 €VAT incl.

0,00 € Ecotax included

Reference price

A High-End Stylus Designed to Exploit the Full Potential of OM Cartridges

This replacement diamond is intended for users who want to maintain the sonic signature and performance of a high-level OM cartridge while restoring "like-new" playback. Its Fritz Gyger FG 70 profile, renowned for its finesse, aims for a more complete groove reading with reduced distortion and a better-defined soundstage.

For Whom and What Uses?

Ideal for demanding vinyl enthusiasts, audiophiles, and listening-oriented DJs (home studio, hi-fi living room, archiving, and digitization). Thanks to its high tracking ability and compliance, it adapts very well to carefully set-up turntables: alignment, tracking force, and stylus angle are key to getting the most out of it, whether on recent pressings or more delicate records.

Features and Innovations

The Line Contact FG 70 profile is designed to improve reading finesse, especially in the high frequencies, while limiting surface noise when properly adjusted. The tracking force range (1.25 to 1.75 g) allows behavior adjustment depending on the tonearm and record condition, with a recommended value of 1.5 g. The stylus features an r/R radius of 5/70 µm and a 20-degree stylus angle, ensuring geometry consistent with the announced compatible cartridges.

Technical specifications

Frequency response	20 Hz - 22 kHz
DJing type	Monitoring
Category	diamond
Type	diamond

Destination	hifi
Diamond tip	Fine line
Color	Black
Quantity	1

Diamond	Line Contact FG 70 (Fritz Gyger)
Stylus tip radius	r/R 5 / 70 µm
Stylus color	Black
Stylus angle	20 degrees

Tracking capacity (315 Hz with recommended tracking force)	80 µm
Compliance, dynamic, lateral	22 µm/mN

Tracking force range	1.25-1.75 g (12.5-17.5 mN)
Recommended tracking force	1.5 g (15 mN)

Recommended for the following cartridges

OM 40, OM 40 GOLD

Questions frequently asked

Is the Ortofon Hifi Stylus 40 compatible with an OM 40 cartridge?

This diamond stylus is recommended for OM 40 and OM 40 GOLD cartridges. It allows replacing the tip while maintaining the geometry designed for these models.

What tracking force should be set with this stylus?

The recommended tracking force is 1.5 g, or 15 mN. The adjustable range is from 1.25 to 1.75 g (12.5 to 17.5 mN).

What diamond profile does this stylus have?

The tip features a Line Contact Fritz Gyger FG 70 profile, with a radius r/R of 5 / 70 µm. This geometry aims for precise groove reading, especially in the high frequencies.

Is this stylus suitable for hi-fi listening and vinyl digitization?

Its hi-fi purpose and reading capability from 80 µm at 315 Hz make it suitable for listening, archiving, and digitization. A properly adjusted turntable is necessary to exploit its lateral compliance of 22 µm/mN.
