Ortofon Hifi STYLUS 7

Name: STYLUS 7
Brand: Ortofon Hifi
SKU: 387982
Price: 69.00 EUR
Availability: InStock

69,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 387982

EAN : 5705796130041

Information

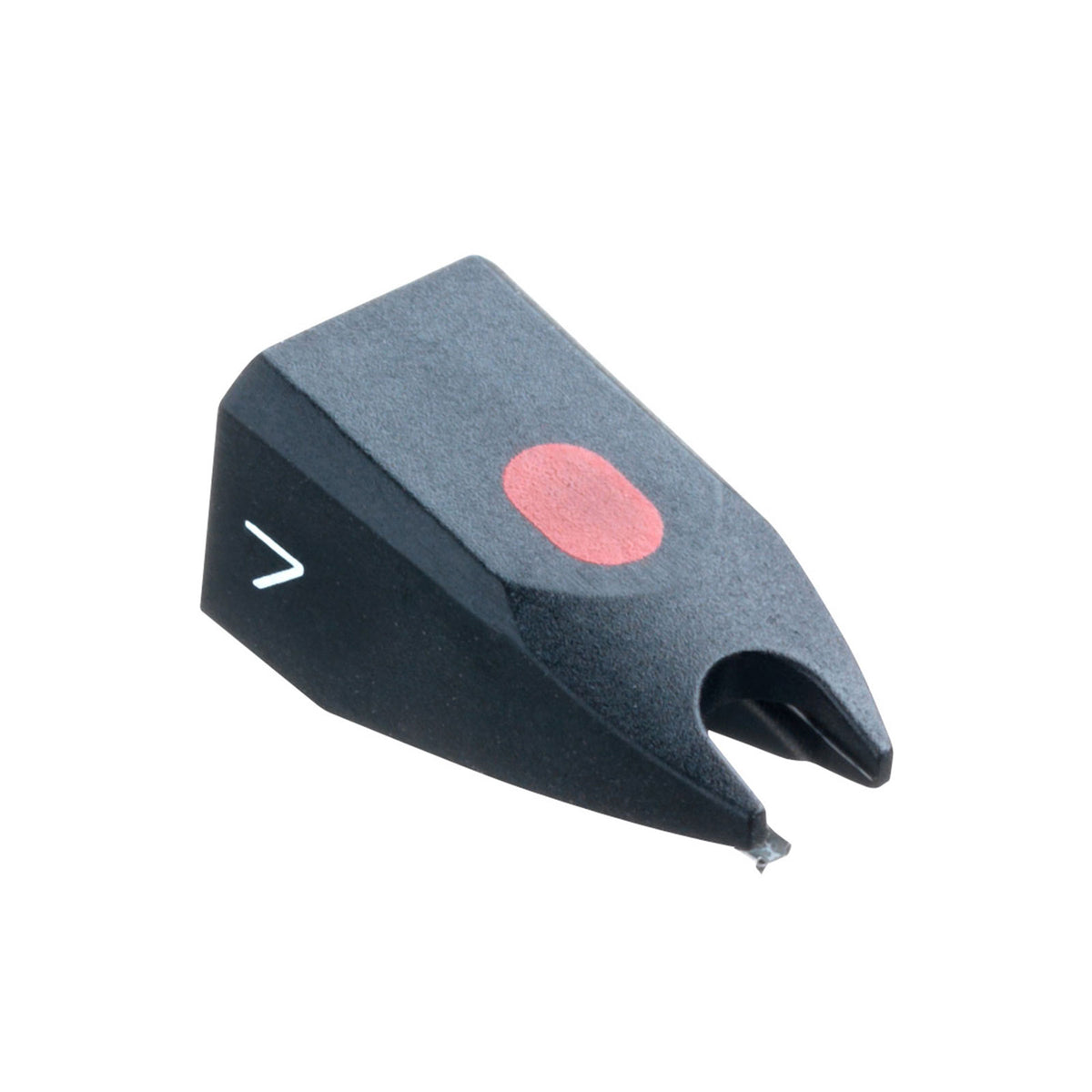

Essential Information About the TM 7 / TM 7U Elliptical Replacement Stylus
• Elliptical tip for precise groove tracking and detailed playback.
• Controlled playback with a recommended tracking force of 1.25 g for a good balance between performance and record preservation.
• Extended frequency response from 20 to 18,000 Hz for balanced listening, from bass to treble.
• Direct compatibility recommended for TM 7 and TM 7U cartridges.

STYLUS 7

69,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Consistent Replacement to Extend the Life of Your Cartridge

Designed as a replacement stylus, this model restores the original performance of your compatible cartridge without replacing the entire unit. It provides a simple solution to maintain stable playback and good sound definition over hours of listening.

For Audiophiles and Demanding Vinyl Users

This stylus is intended for turntable users who want to preserve precise and musical sound reproduction, whether for hi-fi listening or regular home use. The tracking force range (1.0 to 1.5 g) allows adjustment according to your tonearm, while remaining within values suitable for careful playback.

Features and Innovations

The elliptical geometry improves contact with the groove compared to a conical tip, enhancing transient accuracy and detail readability. With a tracking capacity of 60 µm (at 315 Hz, recommended tracking force) and a lateral dynamic compliance of 25 µm/mN, this stylus aims for good groove holding and stable playback. The 20-degree tracking angle contributes to faithful reproduction when alignment and tracking force adjustment are properly performed.

Technical specifications

Frequency response	20 Hz - 18 kHz
DJing type	Monitoring
Category	diamond
Type	diamond

Destination	hifi
Diamond tip	elliptical
Color	Black
Quantity	1

Diamond type	Elliptical
Stylus tip radius	r/R 8/18 µm
Stylus color	Black

Tracking capacity (315 Hz with recommended tracking force)	60 µm
Compliance, dynamic, lateral	25 µm/mN

Tracking force range	1.0-1.5 g (10-15 mN)
Recommended tracking force	1.25 g (12.5 mN)
Tracking angle	20 deg

Recommended for cartridge models

TM 7 and TM 7U

Questions frequently asked

Is the Ortofon Hifi Stylus 7 diamond compatible with my TM 7 cartridge?

This stylus is recommended for Ortofon TM 7 and TM 7U cartridges. It replaces the diamond without requiring the entire cartridge to be changed.

What tracking force should be set with this elliptical stylus?

The recommended tracking force is 1.25 g, or 12.5 mN. The allowable adjustment range extends from 1.0 to 1.5 g.

What is the tip shape of the Stylus 7?

The elliptical tip has an r/R radius of 8/18 µm. This geometry promotes detailed groove reading.

Is the Stylus 7 suitable for a hi-fi turntable?

Designed for hi-fi listening, this diamond offers a frequency response from 20 Hz to 18 kHz. Its lateral dynamic compliance is 25 µm/mN. The rated tracking ability reaches 60 µm at 315 Hz with the recommended tracking force.
