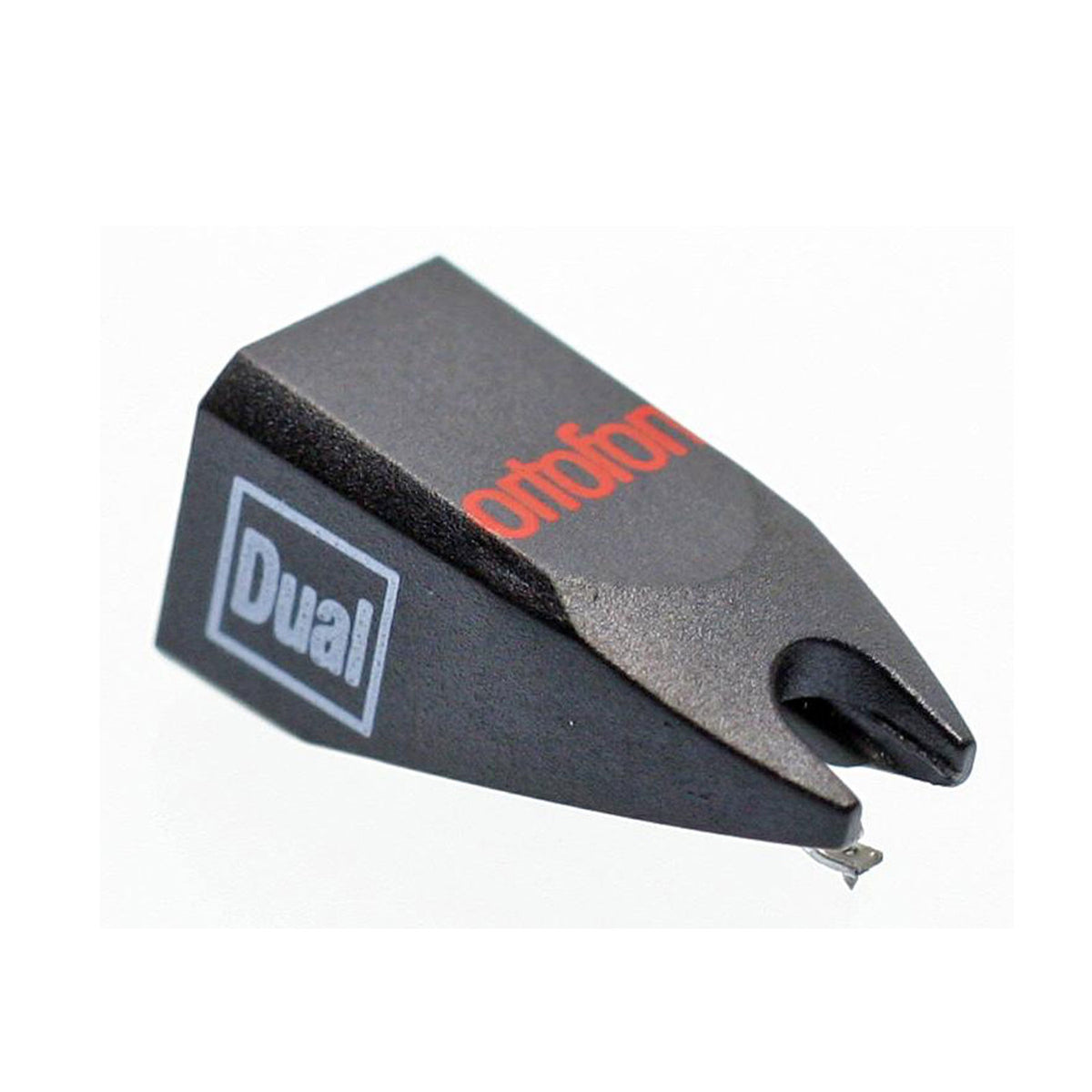

Ortofon Hifi STYLUS DUAL DN 165 E

Name: STYLUS DUAL DN 165 E
Brand: Ortofon Hifi
SKU: 387963
Price: 89.00 EUR
Availability: InStock

89,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 387963

EAN : 5705796130119

Information

Essential Information About the Black Elliptical Replacement Diamond
• Elliptical Profile : better tracking accuracy and more detailed playback than a conical profile, ideal for getting the best out of your vinyl records.
• Stable Tracking : tracking force range from 1.25 to 1.75 g, with a recommended setting of 1.5 g for optimal balance.
• Wide Frequency Response : frequency response from 10 to 25,000 Hz for dynamic listening, clean bass, and better-defined treble.
• Black Stylus : quick identification and sleek look for a hi-fi and DJ cartridge with a "careful" orientation.

STYLUS DUAL DN 165 E

89,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Stylus Designed to Upgrade Without Changing the Entire Cartridge

This elliptical diamond is aimed at those who want to keep the body of their compatible cartridge while getting a new, precise, and consistent tip. It is an ideal solution to restore clarity to a turntable, reduce distortion at the end of a side, and protect your records with properly adjusted tracking force.

Intended Uses and Profiles

Perfect for vinyl enthusiasts, hi-fi setups, and DJs who prioritize listening, recording, or smooth mixes rather than intensive scratching. In a home studio, it is well suited for digitizing records thanks to its detailed playback and good tracking ability when properly aligned.

Features and Innovations

The elliptical profile (radius r/R 8/18 µm) improves contact with the groove, which enhances instrument definition and separation. The lateral dynamic compliance of 25 µm/mN contributes to smoother playback, while the specified tracking capability of 70 µm (315 Hz, recommended force) helps reduce the risk of skipping on demanding passages. For optimal results, set the tracking force to 1.5 g (15 mN) and check the 20-degree stylus angle according to your tonearm settings.

Technical specifications

DJing type	Monitoring, Mix
Category	diamond
Type	diamond
Destination	hifi

Diamond tip	elliptical
Color	Black
Quantity	1

Diamond type	elliptical
Stylus tip radius	r/R 8/18 µm
Tracking capability (315 Hz, recommended tracking force)	70 µm
Lateral dynamic compliance	25 µm/mN
Stylus angle	20 degrees
Stylus color	black

Frequency response

10 to 25,000 Hz

Tracking force range	1.25 to 1.75 g (12.5 to 17.5 mN)
Recommended tracking force	1.5 g (15 mN)

Questions frequently asked

Is the Stylus Dual DN 165 E suitable for hi-fi listening?

Designed for hi-fi use, this elliptical diamond covers a frequency response from 10 to 25,000 Hz.

What tracking force should be set with this Ortofon Dual DN 165 E diamond?

The recommended tracking force is 1.5 g, or 15 mN. The allowable adjustment range extends from 1.25 to 1.75 g.

Does the elliptical diamond reduce distortion at the end of the record?

Thanks to its elliptical profile with a radius of r/R 8/18 µm, the tip ensures proper contact with the groove. This geometry enhances definition and helps limit distortion at the end of the side. Correct alignment and a tracking force set to 1.5 g are necessary.

Is this stylus suitable for digitizing vinyl records?

Its stated capability to track 70 µm at 315 Hz, with the recommended tracking force, makes it suitable for digitizing records. The lateral dynamic compliance is 25 µm/mN.
